PX700HDH
Projector
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product
in a safe manner, as well as registering your product for future service. Warranty information contained in this
User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right
corner of our website. "Antes de operar su equipo lea cu idadosamente las instrucciones en este manual"
Model
No. VS20135

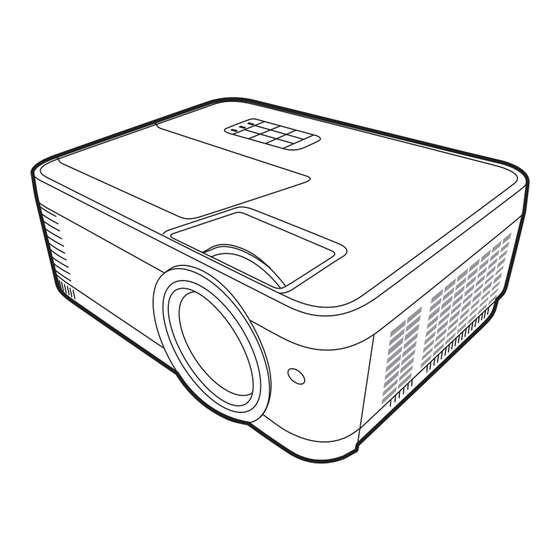

Model Name: PX700HDH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX700HDH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ViewSonic PX700HDH

  • Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
  • Page 2 At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well. Once again, thank you for choosing ViewSonic®!
  • Page 3: Safety Precautions - General

    Safety Precautions - General Please read the following Safety Precautions before you start using the projector. • Keep this user guide in a safe place for later reference. • Read all warnings and follow all instructions. • Allow at least 20“ (50 cm) clearance around the projector to ensure proper ventilation.
  • Page 4 (UPS). • If smoke, an abnormal noise, or a strange odor is present, immediately switch the projector off and call your dealer or ViewSonic®. It is dangerous to continue using the projector. • Use only attachments/accessories specified by the manufacturer.
  • Page 5 Safety Precautions - Ceiling Mounting Please read the following Safety Precautions before you start using the projector. If you intend to mount the projector on the ceiling, we strongly recommend that you use a proper fitting projector ceiling mount kit and that you ensure it is securely and safely installed.
  • Page 6: Table Of Contents

    Contents Safety Precautions - General ........3 Introduction ..............9 Package Contents ....................9 Product Overview ....................10 Projector ........................ 10 Controls and Functions ....................10 Connection Ports ......................11 Remote Control ..................... 12 Controls and Functions ....................12 Remote Control Effective Range ................. 13 Replacing the Remote Control Batteries ..............
  • Page 7 Operation ..............25 Turning the Projector On/Off ................25 Starting Up the Projector ..................25 First Time Activation ....................25 Shutting Down the Projector ................. 26 Selecting an Input Source ..................27 Adjusting the Projected Image ................28 Adjusting the Projector's Height and Projection Angle ..........28 Fine-Tuning the Image Size and Clarity ..............
  • Page 8 Regulatory and Service Information ......63 Compliance Information ..................63 FCC Compliance Statement ................... 63 Industry Canada Statement ................... 63 CE Conformity for European Countries ..............64 Declaration of RoHS2 Compliance................. 65 Indian Restriction of Hazardous Substances ............66 Product Disposal at End of Product Life ..............66 Copyright Information ..................67 Customer Service ....................
  • Page 9: Introduction

    Introduction Package Contents NOTE: The power cord and/or video cables included in your package may vary depending on your country. Please contact your local reseller for more information.
  • Page 10: Product Overview

    Product Overview Projector Controls and Functions Power Indicator Light Temperature Indicator Light Light Source Indicator Light Vent (heated air exhaust) Focus Ring Zoom Ring Projection Lens Remote IR sensor Description Toggles the projector between standby mode and Power On. Power Manually corrects distorted images resulting from an angled ] Keystone Keys projection.
  • Page 11: Connection Ports

    Connection Ports Security Slot AC Power Cord Inlet Security Bar Ceiling Mount Holes Interactive module mounting Adjuster Foot Port Description [1] AUDIO OUT Audio signal output socket. [2] HDMI 1 HDMI port. [3] HDMI 2 HDMI port. [4] USB 5V/1.5A (SERVICE) USB Type A port for power supply. [5] RS-232 RS-232 control port.
  • Page 12: Remote Control

    Remote Control Description Button Selects the desired Left/ Right menu items and makes Controls and Functions Down adjustments. Menu Turns on/off the On-Screen Display (OSD) Menu or goes back to previous OSD Menu. Displays the INFORMATION menu. Displays the HELP (INFORMATION) menu by a long press for 3 seconds.
  • Page 13: Remote Control Effective Range

    Remote Control Effective Range To ensure proper function of the remote control follow the steps below: The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s). The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.) NOTE: Refer to the illustration for the location of...
  • Page 14: Initial Setup

    Initial Setup This section provides detailed instructions for setting up your projector. Choosing a Location Personal preference and room layout will decide the installation location. Consider the following: • Size and Position of your screen. • Location of a suitable power outlet. •...
  • Page 15: Projection Dimensions

    Projection Dimensions NOTE: See “Specifications” on page 54 for the native display resolution of this projector. • 16:9 Image on a 16:9 Screen • 16:9 Image on a 4:3 Screen NOTE: (e) = Screen (f) = Center of Lens 16:9 Image on a 16:9 Screen (a) Screen Size (b) Projection Distance (c) Image...
  • Page 16: 16:9 Image On A 4:3 Screen

    16:9 Image on a 4:3 Screen (a) Screen Size (b) Projection Distance (c) Image (d) Vertical minimum maximum Height Offset 1524 1797 1977 1778 2097 2306 2032 2396 2636 2286 2696 2965 1029 2540 2995 3295 1143 2794 3295 3624 1257 3048 3594...
  • Page 17: Mounting The Projector

    If you buy a third-party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate. 1. To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount. 2. Ensure the screws used to attach a mount to the projector meet the following specifications: •...
  • Page 18: Preventing Unauthorized Use

    Preventing Unauthorized Use The projector has several built-in security features to prevent theft, access, or accidental setting changes. Using the Security Slot To help prevent the projector from being stolen, use a security slot locking device to secure the projector to a fixed object. Below is an example of setting up a security slot locking device: NOTE: The security slot can also be used as a safety anchor if the projector is...
  • Page 19: Using The Password Function

    Using the Password Function To help prevent unauthorized access or use, the projector offers a password security option. The password can be set through the On-Screen Display (OSD) Menu. NOTE: Make note of your password, and keep it in a safe place. Setting a Password Press Menu to open the OSD Menu and go to: SYSTEM...
  • Page 20: Changing The Password

    Changing the Password 1. Press Menu to open the OSD Menu and go to: SYSTEM > Security Settings > Change Password. 2. Press Enter, the message, ‘INPUT CURRENT PASSWORD’ will appear. 3. Enter the old password. ͫ If the password is correct, the message, ‘INPUT NEW PASSWORD’ will appear.
  • Page 21: Forgetting The Password

    Forgetting the Password If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message, as pictured to the right, will appear for 5 seconds, and the message ‘INPUT PASSWORD’...
  • Page 22: Locking The Control Keys

    Locking the Control Keys With the control keys on the projector locked, you can prevent your settings from being changed accidentally (by children, for example). NOTE: When the Panel Key Lock is On, no control keys on the projector will operate except Power.
  • Page 23: Making Connections

    Making Connections This section guides you on how to connect the projector with other equipment. Connecting to Power 1. Connect the power cord to the AC IN jack at the rear of the projector. 2. Plug the power cord into a power outlet. NOTE: When installing the projector, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible...
  • Page 24: Connecting To Video/Computer Sources

    Connecting to Video/Computer Sources HDMI Connection Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI 1 or HDMI 2 port of your projector. Connecting to Audio The projector is equipped with speakers, however, you can also connect external speakers to the AUDIO OUT port of the projector.
  • Page 25: Operation

    Operation Turning the Projector On/Off Starting Up the Projector 1. Press the Power button to turn on the projector. 2. The lamp will light up, and a “Power On/Off Ring Tone” will play. 3. The Power Indicator Light stays green when the projector is On.
  • Page 26: Shutting Down The Projector

    Shutting Down the Projector 1. Press the Power or Off button and a confirmation message will appear to prompt you to press the Power or Off button a second time. Additionally you can press any other button to cancel. NOTE: If you do not respond in a few seconds after the first press, the message will disappear.
  • Page 27: Selecting An Input Source

    Selecting an Input Source The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time. If you want the projector to automatically search for the input source, ensure the Quick Auto Search function in the SYSTEM menu is On.
  • Page 28: Adjusting The Projected Image

    Adjusting the Projected Image Adjusting the Projector's Height and Projection Angle The projector is equipped with one (1) adjuster foot. Adjusting the foot will change the projector’s height and the vertical projection angle. Carefully adjust the feet to fine tune the projected image’s position. Fine-Tuning the Image Size and Clarity To adjust the projected image to the size that you need, rotate the Zoom Ring.
  • Page 29: Correcting Keystone

    Correcting Keystone Keystoning refers to the situation where the projected image becomes a trapezoid due to angled projection. To correct this, besides adjusting the height of the projector, you may also: 1. Use the keystone keys on the projector or remote control to display the keystone page.
  • Page 30: Hiding The Image

    Hiding the Image In order to draw the audience’s full attention to the presenter, you can press Blank on the projector or remote control to hide the screen image. Press any key on the projector or remote control to restore the image. CAUTION: Do not block the projection lens as this could cause the blocking object to become heated and deformed or even cause a fire.
  • Page 31: Menu Functions

    Menu Functions This section will introduce the On-Screen Display (OSD) Menu and its options. General On-Screen Display (OSD) Menu Operation The projector is equipped with an On-Screen Display (OSD) Menu for making various adjustments. It can be accessed by pressing on the projector or Menu remote control.
  • Page 32: On-Screen Display (Osd) Menu Tree

    On-Screen Display (OSD) Menu Tree Main Menu Sub-menu Menu Option DISPLAY Aspect Ratio Auto 16:9 16:10 Native Keystone -40~40 Zoom 0.8X ~2.0X OverScan Off/1/2/3/4/5 3X Fast Input Inactive Active IMAGE Color Mode Brightest Sports Standard Gaming Movie User 1 User 2 Brightness 0~100 Contrast...
  • Page 33 Main Menu Sub-menu Menu Option IMAGE Advanced Color -50~50 Sharpness 0~31 Gamma 1.8/2.0/2.2/2.35/ 2.5/Cubic/sRGB Brilliantcolor Off/1/2/3/4/ 5/6/7/8/9/10 Color Management Primary Color Saturation Gain Reset Color Settings Reset Cancel POWER Auto Power On Signal Disable/HDMI MANAGEMENT Disable/Enable Direct Power On Disable/Enable Smart Energy Auto Power Off Disable/10 min/20...
  • Page 34 Off/On Start Counting/Off Pattern Test Card Blank Timer Disable/5 min/10 min/15 min/20 min/25 min/30 min Message Splash Screen Black Blue ViewSonic ADVANCED 3D Settings 3D Sync Auto Frame Sequential Frame Packing Top-Bottom Side-by-Side 3D Sync Invert Disable/Invert Save 3D Settings...
  • Page 35 Main Menu Sub-menu Menu Option ADVANCED Light Source Settings Light Source Mode Normal/Eco/ Dynamic Eco/ SuperEco+ Reset Light Source Hours Reset/Cancel Light Source Information Lamp Usage Time Normal Dynamic Eco SuperEco+ Equivalent Lamp Hour Reset Settings Reset Cancel SYSTEM Language Multi-Language OSD Selection Projector Position Front Table...
  • Page 36 Main Menu Sub-menu Menu Option SYSTEM Panel Key Lock Remote Control Code 1/2/3/4/5/6/7/8 Control Method RS-232 Baud Rate 2400/4800/9600/14400/19200/38400/57600/ 115200 INFORMATION Source Color Mode Resolution Color System Firmware Version 3X Fast Input...
  • Page 37: Display Menu

    DISPLAY Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the DISPLAY menu. Then press Enter or use to access the DISPLAY menu. 3. Press Enter to select the menu option. Then press to display its sub-menu, or press to adjust/select the setting.
  • Page 38 Menu Option Description Aspect Ratio Auto Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image’s aspect ratio.
  • Page 39: Image Menu

    IMAGE Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the IMAGE menu. Then press Enter or use to access the IMAGE menu. 3. Press to select the menu option. Then press to display its sub-menu, Enter or press...
  • Page 40 Menu Option Description Color Mode Brightest Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms. Sports Designed for viewing sports in well-lit environments. Standard Designed for normal circumstances in a daylight environment.
  • Page 41 Menu Option Description Color Temp. 8000K Images appear bluish white. 6500K Images maintain a normal white appearance. 5500K Images appear reddish white. To set a custom color temperature, you can further adjust the following items: Red Gain/Green Gain/Blue Gain Adjusts the Contrast levels of Red, Green, and Blue. Red Offset/Green Offset/Blue Offset Adjusts the Brightness levels of Red, Green, and Blue.
  • Page 42: Power Management Menu

    POWER MANAGEMENT Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the POWER MANAGEMENT menu. Then press Enter or use to access the POWER MANAGEMENT menu. 3. Press to select the menu option. Then press Enter to display its sub-menu, or press...
  • Page 43 Menu Option Description Auto Power On Signal Selecting HDMI allows the projector to turn on automatically once the HDMI signal is fed through the HDMI cable. This projector supports CEC (Consumer Electronics Control) function for synchronized power on/off operation via HDMI connection.
  • Page 44 Menu Option Description Quick Power Off Enable The projector will not enter the cooling process after being shut down. Disable The projector will enter the normal cooling process after being shut down. NOTE: If you attempt to restart the projector right after it’s been turned off, it may not be turned on successfully and will rerun its cooling procedure.
  • Page 45: Basic Menu

    BASIC Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the BASIC menu. Then press Enter or use to access the BASIC menu. 3. Press Enter to select the menu option. Then press to display its sub-menu, or press to adjust/select the setting.
  • Page 46 Menu Option Description Audio Settings Mute Select to temporarily turn off the projector’s internal speaker or the volume being output from the audio output jack. Audio Volume Adjusts the volume level of the projector’s internal speaker or the volume being output from the audio output jack. Power On/Off Ring Tone Turns on/off the ring tone during the starting up and shutting down process.
  • Page 47 Menu Option Description Blank Timer Allows the projector to return the image automatically after a period of time when there is no action taken on the blank screen. To display the blank screen, press Blank on the projector or remote control. NOTE: Do not block the projection lens as this could cause the blocking object to become heated and deformed or even...
  • Page 48: Advanced Menu

    ADVANCED Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the ADVANCED menu. Then press Enter or use access the ADVANCED menu. 3. Press to select the menu option. Then press to display its sub-menu, Enter or press to adjust/select the setting.
  • Page 49 Menu Option Description 3D Settings This projector features a 3D function which enables you to enjoy 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view 3D images. 3D Sync The default setting is Auto and the projector automatically chooses an appropriate 3D format when detecting 3D...
  • Page 50 Menu Option Description Light Source Settings Light Source Mode ͫ Normal: Provides full lamp brightness. ͫ Eco: Reduces lamp power consumption by 16% and lowers brightness to extend the lamp life and decreases the fan noise. ͫ Dynamic Eco: Reduces lamp power consumption by up to 30% depending on the content brightness level.
  • Page 51: System Menu

    SYSTEM Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the SYSTEM menu. Then press Enter or use to access the SYSTEM menu. 3. Press to select the menu option. Then press to display its sub-menu, Enter or press...
  • Page 52 Menu Option Description Language Sets the language for the On-Screen Display (OSD) Menu. Projector Position Selects a proper position for the projector. Menu Settings Menu Display Time Sets the length of time the OSD Menu will remain active after your last interaction. Menu Position Sets the OSD Menu’s position.
  • Page 53: Information Menu

    INFORMATION Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the INFORMATION menu and display its contents. Menu Option Description Source Shows the current input source. Color Mode Shows the selected mode in the IMAGE menu. Resolution Shows the native resolution of the input source.
  • Page 54: Appendix

    (W x H x D) (11.5” x 4.5” x 8.7”) Weight Physical 2.4 kg (5.29 lbs) Power Saving 260 W (Typical) Modes < 0.5 W (Standby) Please use the power adapter from ViewSonic® or an authorized source only. The test condition follows EEI standards.
  • Page 55: Projector Dimensions

    Projector Dimensions 293 mm (W) x 115 mm (H) x 221 mm (D) 293 mm 221 mm 115 mm 60 mm 90 mm Timing Chart HDMI (PC) Signal Resolution (dots) Aspect ratio Refresh rate (Hz) 640 x 480 60/72/75 720 x 400 720 x 400 SVGA 800 x 600...
  • Page 56 HDMI (Video) Timing Resolution Horizontal Vertical Dot Clock Frequency frequency Frequency (kHz) (Hz) (MHz) 480i 720(1440) x 480 15.73 59.94 480p 720 x 480 31.47 59.94 576i 720(1440) x 576 15.63 576p 720 x 576 31.25 720/50p 1280 x 720 37.5 74.25 720/60p...
  • Page 57 3D (HDMI/VGA signal included) Timing Resolution (dots) Refresh rate (Hz) HDTV(1080p) 1920 x 1080 WXGA 1280 x 800 60*/120** HD(720p) 1280 x 720 60*/120** 1024 x 768 60*/120** SVGA 800 x 600 60*/120** NOTE: *60Hz signals are supported for Side-by-Side, Top-Bottom, and Frame Sequential formats.
  • Page 58: Ir Control Table

    IR Control Table Format Byte 1 Byte 2 Byte 3 Byte 4 NEC-F2 NEC-F2 COMP NEC-F2 VIDEO NEC-F2 HDMI NEC-F2 Auto Sync NEC-F2 Source NEC-F2 NEC-F2 NEC-F2 Left Enter NEC-F2 NEC-F2 Right NEC-F2 Down/ Menu NEC-F2 NEC-F2 (INFORMATION) Exit NEC-F2 Aspect NEC-F2 Freeze...
  • Page 59: Address Code

    Address Code Code 1 83F4 Code 2 93F4 Code 3 A3F4 Code 4 B3F4 Code 5 C3F4 Code 6 D3F4 Code 7 E3F4 Code 8 F3F4...
  • Page 60: Troubleshooting

    Troubleshooting Common Problems This section describes some common problems that you may experience when using the projector. Problem Possible Solutions The projector does not turn on • Ensure the power cord is properly attached to the projector and to the power outlet. •...
  • Page 61: Led Indicators

    LED Indicators Light Status and Description Power Green Stand-by mode Flashing Green Powering up Green Normal operation Green Normal power-down cooling Flashing Downloading Green Green Green Burn in off Lamp Green First light source-lit error cooling Flashing Light source error in normal operation Green Color wheel start has failed Heating/Cooling...
  • Page 62: Maintenance

    • ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the lens or case. Some chemical cleaners have been reported to damage the lens and/or case of the projector. • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
  • Page 63: Regulatory And Service Information

    Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 64: Ce Conformity For European Countries

    CE Conformity for European Countries The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Ecodesign Directive 2009/125/EC. The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE).
  • Page 65: Declaration Of Rohs2 Compliance

    Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed Maximum Substance...
  • Page 66: Indian Restriction Of Hazardous Substances

    Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®...
  • Page 67: Copyright Information

    Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation. VESA is a registered trademark of the Video Electronics Standards Association.
  • Page 68: Customer Service

    For technical support or product service, see the table below or contact your reseller. NOTE:  You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia www.viewsonic.com/au/ Bangladesh www.viewsonic.com/bd/ 中国 (China) www.viewsonic.com.cn www.viewsonic.com/hk/ 香港 (繁體中文) Hong Kong (English) www.viewsonic.com/hk-en/ India www.viewsonic.com/in/...
  • Page 69: Limited Warranty

    If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
  • Page 70 (e) the serial number of the product. 3. Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®. 4. For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®. Limitation of implied warranties:...
  • Page 71 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
  • Page 72: Mexico Limited Warranty

    If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components &...
  • Page 73 Exclusion of damages: ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based...
  • Page 74 Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004 Hermosillo: Villahermosa: Distribuciones y Servicios Computacionales SA de CV.
