ViewSonic VS20195 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

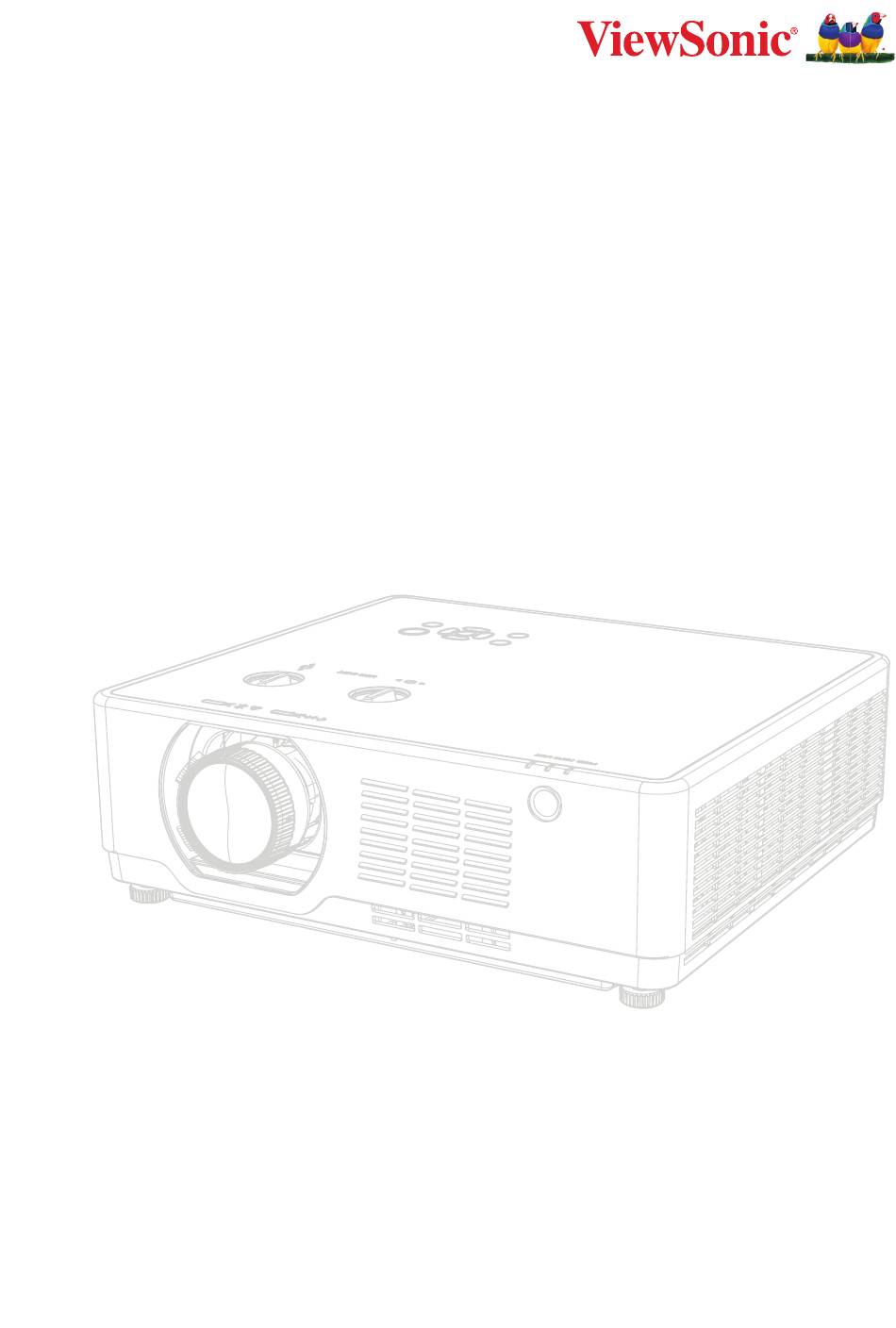

LSC801WU
LSC800WU
LSC731WU
LSC730WU
LSC731WU-ST
LSC730WU-ST
LSC651WU
LSC650WU
LSC601WU
Projector
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box on our website.
VS20195 | VS20194 | VS20192 | VS20190 | VS20193 | VS20191 | VS20189 | VS20188 | VS20184 | VS20180 | VS20185 |
LSC801WU | LSC800WU | LSC731WU | LSC730WU | LSC731WU-ST | LSC730WU-ST | LSC651WU | LSC650WU | LSC601WU |
LSC600WU | LSC601WU-ST | LSC600WU-ST | LSC601W-ST | LSC600W-ST | LSC601-4K | LSC600-4K | LSC701-4K | LSC700-4K
LSC600WU
LSC601WU-ST
LSC600WU-ST
LSC601W-ST
LSC600W-ST
LSC601-4K
LSC600-4K
LSC701-4K
LSC700-4K
VS20181 | VS20186 | VS20182 | VS20187 | VS20183 | VS20176 | VS20175
Model No.
P/N:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS20195 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ViewSonic VS20195

Summary of Contents for ViewSonic VS20195

  • Page 1 English, or in specific languages using the Regional selection box on our website. Model No. VS20195 | VS20194 | VS20192 | VS20190 | VS20193 | VS20191 | VS20189 | VS20188 | VS20184 | VS20180 | VS20185 | VS20181 | VS20186 | VS20182 | VS20187 | VS20183 | VS20176 | VS20175...
  • Page 2 At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.

  • Page 3: Safety Precautions

    Safety Precautions following Safety Precautions before you start using the projector. Please read the • Keep this user guide in a safe place for later reference. • Read all warnings and follow all instructions. • Allow at least 20“ (50 cm) clearance around the projector to ensure proper ventilation.
  • Page 4 (UPS). • If smoke, an abnormal noise, or a strange odor is present, immediately switch the projector off and call your dealer or ViewSonic®. It is dangerous to continue using the projector. • Use only attachments/accessories specified by the manufacturer.
  • Page 5 Safety Precautions - Ceiling Mounting Please read the following Safety Precautions before you start using the projector. If you intend to mount the projector on the ceiling, it is strongly recommended that you use a proper fitting projector ceiling mount kit and that you ensure it is securely and safely installed.

  • Page 6: Table Of Contents

    Contents Safety Precautions ............3 Introduction ..............9 Package Contents ....................9 LSC600W-ST | LSC601W-ST | LSC600WU-ST | LSC601WU-ST ........ 9 LSC730WU-ST | LSC731WU-ST ................10 LSC600WU | LSC601WU..................11 LSC650WU | LSC651WU | LSC730WU | LSC731WU | LSC800WU | LSC801WU .. 12 LSC600-4K | LSC601-4K | LSC700-4K | LSC701-4K ..........
  • Page 7 Using the Projector ............ 52 Turning the Projector On ..................52 Selecting an Input Source ..................53 Adjusting the Projected Image ................55 Adjusting the Projector’s Height and Projection Angle ......... 55 Fine-Tuning the Image Size and Clarity ..............56 Controlling the Projected Image Position (Lens Shift) ........... 57 Turning the Projector Off ..................64 Menu Operation (non 4K models) ......
  • Page 8 Appendix ..............106 Specifications ......................106 Projector Dimensions ..................110 LSC600WU | LSC601WU | LSC650WU | LSC651WU | LSC730WU | LSC731WU | LSC800WU | LSC801WU | LSC600-4K | LSC601-4K | LSC700-4K | LSC701-4K ... 110 LSC600W-ST | LSC601W-ST | LSC600WU-ST | LSC601WU-ST ......110 LSC730WU-ST | LSC731WU-ST ................

  • Page 9: Introduction

    Aspect Mute Blank Zoom Volume Timer http://vsweb.us Download Link http://vsweb.us/q/dn.php ViewSonic Projector Number Description Projector Remote Control Batteries Quick Start Guide Power Cord NOTE:  The power cord and remote control included in your package may vary depending on your country. Please contact your local reseller for more...

  • Page 10: Lsc730Wu-St | Lsc731Wu-St

    Aspect Mute Blank Zoom Volume Timer http://vsweb.us Download Link http://vsweb.us/q/dn.php ViewSonic Projector Number Description Projector Remote Control Batteries Quick Start Guide Power Cord NOTE:  The power cord and remote control included in your package may vary depending on your country. Please contact your local reseller for more...

  • Page 11: Lsc600Wu | Lsc601Wu

    Aspect Mute Blank Zoom Volume Timer http://vsweb.us Download Link http://vsweb.us/q/dn.php ViewSonic Projector Number Description Projector Remote Control Batteries Quick Start Guide Power Cord NOTE:  The power cord and remote control included in your package may vary depending on your country. Please contact your local reseller for more...

  • Page 12: Lsc650Wu | Lsc651Wu | Lsc730Wu | Lsc731Wu | Lsc800Wu | Lsc801Wu

    Aspect Mute Blank Zoom Volume Timer http://vsweb.us Download Link http://vsweb.us/q/dn.php ViewSonic Projector Number Description Projector Remote Control Batteries Quick Start Guide Power Cord NOTE:  The power cord and remote control included in your package may vary depending on your country. Please contact your local reseller for more...

  • Page 13: Lsc600-4K | Lsc601-4K | Lsc700-4K | Lsc701-4K

    Picture Zoom Volume Freeze Mute Blank http://vsweb.us Download Link http://vsweb.us/q/dn.php ViewSonic Projector Number Description Projector Remote Control Batteries Quick Start Guide Power Cord NOTE:  The power cord and remote control included in your package may vary depending on your country. Please contact your local reseller for more...

  • Page 14: Product Overview

    Product Overview Projector LSC600W-ST | LSC601W-ST | LSC600WU-ST | LSC601WU-ST Number Description Projection Lens Focus Ring Remote Control IR Sensor LED Indicator Keypad Power Button Vent Filter NOTE:  Do not block projector intake and exhaust vents.
  • Page 15 LSC730WU-ST | LSC731WU-ST Number Description Projection Lens Focus Ring Zoom Ring Lens Shift (H & V) Remote Control IR Sensor LED Indicator Keypad Power Button Vent Filter NOTE:  Do not block projector intake and exhaust vents.
  • Page 16 LSC600WU | LSC601WU Number Description Projection Lens Focus Ring Zoom Ring Lens Shift (H & V) Remote Control IR Sensor LED Indicator Keypad Power Button Vent Filter NOTE:  • Do not block projector intake and exhaust vents. • Remove the foam protector from the lens before turning on the projector to prevent it from interfering with the cooling system and heat flow.
  • Page 17 LSC650WU | LSC651WU | LSC730WU | LSC731WU | LSC800WU | LSC801WU LSC650WU LSC730WU LSC800WU LSC651WU LSC731WU LSC801WU Number Description Projection Lens Focus Ring Zoom Ring Lens Shift (H & V) Remote Control IR Sensor LED Indicator Keypad Power Button Vent Filter NOTE: ...
  • Page 18 LSC600-4K | LSC601-4K | LSC700-4K | LSC701-4K Number Description Projection Lens Focus Ring Zoom Ring Lens Shift (H & V) Remote Control IR Sensor LED Indicator Keypad Power Button Vent Filter NOTE:  • Do not block projector intake and exhaust vents. •...

  • Page 19: Keypad

    Keypad LSC600W-ST | LSC601W-ST | LSC600WU-ST | LSC601WU-ST | LSC730WU-ST | LSC731WU-ST | LSC600WU | LSC601WU | LSC650WU | LSC651WU | LSC730WU | LSC731WU | LSC800WU | LSC801WU INPUT INPUT MENU EXIT Description INPUT Input Displays the input source selection bar. MENU Menu Open the On-Screen Display (OSD) Menu.
  • Page 20 LSC600-4K | LSC601-4K | LSC700-4K | LSC701-4K INPUT INPUT MENU EXIT Description INPUT Input Displays the input source selection bar. MENU Menu Open the On-Screen Display (OSD) Menu. EXIT Toggles the projector between standby mode and Power Power On. EXIT Exit Close the On-Screen Display (OSD) Menu.

  • Page 21: I/O Ports

    I/O Ports LSC600W-ST | LSC601W-ST | LSC600WU-ST | LSC601WU-ST | LSC730WU-ST | LSC731WU-ST | LSC600WU | LSC601WU | LSC650WU | LSC651WU | LSC730WU | LSC731WU | LSC800WU | LSC801WU COMPUTER MONITOR OUT SERVICE USB A 5V/2A AUDIO OUT RS232 HDBaseT CONTROL HDMI 1 HDMI 2...
  • Page 22 LSC600-4K | LSC601-4K | LSC700-4K | LSC701-4K S/PDIF USB A 5V/2A USB A 5V/2A RS232 AUDIO OUT HDBaseT HDMI 2 HDMI 1 HDCP 2.2 HDCP 2.2 Port Description S/PDIF Multichannel sound via optical signals. USB Type A port for reader (USB 2.0, FAT32) and USB A 5V/2A power.

  • Page 23: Remote Control

    Remote Control LSC600W-ST | LSC601W-ST | LSC600WU-ST | LSC601WU-ST | LSC730WU-ST | LSC731W-ST | LSC600WU | LSC601WU | LSC650WU | LSC651WU | LSC730WU | LSC731WU | LSC800WU | LSC801WU Input Computer Video HDMI Auto Menu Keystone Image Freeze Pattern Aspect Mute Blank Zoom...
  • Page 24 Button Description Confirm the selection. Opens the Keystone menu to correct distorted images resulting Keystone from an angled projection. Image Selects the image mode. Freeze Freeze the projected image. Pattern Displays embedded test pattern. Aspect Displays the aspect ratio selection bar. Selects Light source mode.
  • Page 25 LSC600-4K | LSC601-4K | LSC700-4K | LSC701-4K Power Input Menu Back Option Keystone Aspect Picture Zoom Volume Freeze Mute Blank Button Description Power Turn the projector on or off. Input Displays the source selection bar. Menu Open the On-Screen Display (OSD) Menu. Back Returns to the previous screen.
  • Page 26 Button Description Picture Selects the picture mode. Zoom Increase or decrease the projected image size. Volume Increase or decrease the sound level. Freeze Freeze the projected image. Selects the Light source mode. Mute Turn on or off the sound. Blank Temporarily hides the projected image.
  • Page 27 Receiver Range To ensure proper function of the remote control follow the steps below: 1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s). 2. The distance between the remote control and the sensor(s) should not exceed 6 m (19 ft).
  • Page 28 Replacing the Batteries 1. Remove the battery cover from the bottom of the remote control. 2. Remove any existing batteries (if necessary) and install two AAA batteries. NOTE:  Observe the battery’s polarities as indicated. 3. Replace the battery cover by aligning it with the base and pushing it back into position.

  • Page 29: Initial Setup

    Initial Setup Choosing a Location - Projection Orientation Personal preference and room layout will decide the installation location. Consider the following: • Size and position of your screen. • Location of a suitable power outlet. • Location and distance between the projector and other equipment. The projector is designed to be installed in one of the following locations: Location Front...

  • Page 30: Projection Dimensions

    Projection Dimensions LSC600WU | LSC601WU 16:10 Image on a 16:10 Screen NOTE:  (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 26.76 44.15 1121 15.90 7.15 1524 54.68 1389...
  • Page 31 16:10 Image on a 4:3 Screen NOTE:  (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 25.91 42.24 1073 15.00 6.73 1524 51.73 1314 84.33 2142 29.96 13.48 1778...

  • Page 32: Lsc650Wu | Lsc651Wu | Lsc730Wu| Lsc731Wu | Lsc800Wu | Lsc801Wu

    LSC650WU | LSC651WU | LSC730WU| LSC731WU | LSC800WU | LSC801WU 16:10 Image on a 16:10 Screen NOTE:  (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 30.10 49.54 1258...
  • Page 33 16:10 Image on a 4:3 Screen NOTE:  (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 28.82 48.23 1225 15.00 9.00 1524 57.60 1463 96.50 2451 30.00 18.00 1778...

  • Page 34: Lsc600W-St | Lsc601W-St | Lsc600Wu-St | Lsc601Wu-St

    LSC600W-ST | LSC601W-ST | LSC600WU-ST | LSC601WU-ST 16:10 Image on a 16:10 Screen NOTE:  (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 1397 -0.28 1524 -0.31 1778 -0.35...
  • Page 35 16:10 Image on a 4:3 Screen NOTE:  (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 1524 21.10 21.10 30.00 -0.28 1778 24.65 24.65 35.00 -0.35 2032 28.17 28.17...

  • Page 36: Lsc730Wu-St | Lsc731Wu-St

    LSC730WU-ST | LSC731WU-ST 16:10 Image on a 16:10 Screen NOTE:  (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 1270 28.78 34.80 26.50 13.25 1524 34.57 41.77 1061 31.80...
  • Page 37 16:10 Image on a 4:3 Screen NOTE:  (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 1270 27.17 32.83 25.00 12.50 1524 32.52 39.33 29.96 14.98 1778 37.99 45.94...

  • Page 38: Lsc600-4K | Lsc601-4K | Lsc700-4K | Lsc701-4K

    LSC600-4K | LSC601-4K | LSC700-4K | LSC701-4K 16:9 Image on a 16:9 Screen NOTE:  (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 31.38 52.56 1335 14.71 9.71 1524...
  • Page 39 16:9 Image on a 4:3 Screen NOTE:  (e) = Screen / (f) = Center of Lens (b) Projection Distance (d) Vertical (a) Screen Size (c) Image Height Offset Minimum Maximum 28.78 48.23 1225 13.50 8.91 1524 57.60 1463 96.50 2451 27.01 17.83 1778...

  • Page 40: Mounting The Projector

    NOTE:  If you buy a third party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate. 1. To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount.

  • Page 41: Making Connections

    Making Connections Connecting to Power 1. Connect the power cord to the AC IN socket at the rear of the projector. 2. Plug the power cord into a power outlet. NOTE:  When installing the projector, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible outlet near the unit.

  • Page 42: Connecting To External Devices

    Connecting to External Devices VGA Connection Connect one end of a VGA cable to the VGA port of the computer. Then connect the other end of the cable to the COMPUTER port of the projector. NOTE:  Some computers do not turn on their external displays automatically when connected to a projector.

  • Page 43: Vga Out Connection

    VGA Out Connection To view the projected content up close on a monitor as well as project it, a monitor can be connected to the MONITOR OUT port of the projector. After establishing the VGA Connection, connect one end of a VGA cable to the VGA port of your monitor.

  • Page 44: Hdmi Connection

    HDMI Connection Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI 1 or HDMI 2 port of your projector. COMPUTER MONITOR OUT SERVICE USB A 5V/2A AUDIO OUT RS232...

  • Page 45: Audio Connection

    Audio Connection The projector supports both Audio In and Audio Out. Audio In To play audio from your external device through the projector’s speakers, connect one end of an audio cable to your external device, and the other end to the projector’s AUDIO IN port.
  • Page 46 S/PDIF To play audio from the projector through an external speaker, connect one end of an audio cable to the external speaker, and the other end to the projector’s S/PDIF port. S/PDIF USB A 5V/2A RS232 USB A 5V/2A AUDIO OUT HDBaseT HDMI 2 HDMI 1...

  • Page 47: Usb Connection

    USB Connection USB Type A The USB Type A port is for reader (FAT32) and supplying power. USB Type B The USB Type B port is for service and USB display. MONITOR OUT COMPUTER USB A 5V/2A SERVICE AUDIO OUT RS232 HDBaseT CONTROL...
  • Page 48 USB Display USB Display will output the computer’s audio and image. 1. Connect one end of a USB Type B cable to the USB port of your computer. Then connect the other end of the cable to the SERVICE port of your projector. 2.

  • Page 49: Network Connection

    Network Connection Plug the network cable into the CONTROL or LAN port for network connectivity. The projector provides several networking and remote management features. The LAN /RJ45 function of the projector, through a network, can control the projector remotely. COMPUTER MONITOR OUT SERVICE USB A 5V/2A...

  • Page 50: Rs-232 Connection

    RS-232 Connection When you use a RS-232 serial port cable to connect the projector to an external computer certain functions can be controlled remotely by the PC, including Power On/Off, Volume adjustment, Input select, Brightness, and more. COMPUTER MONITOR OUT USB A 5V/2A SERVICE AUDIO OUT...

  • Page 51: Hdbaset Connection

    HDBaseT Connection NOTE:  HDBaseT is only available for LSC601WU, LSC651WU, LSC731WU, LSC801WU, LSC731WU-ST, LSC601W-ST, LSC601WU-ST, LSC601-4K, and LSC701-4K. HDBaseT is a technology to transmit image signals through a LAN cable. Connect a Cat5e/Cat6 cable to the projector’s HDBaseT port from an HDBaseT TX box. Then connect the HDBaseT TX box to an HDBaseT ouput (e.g., HD TV source, Blue-ray player, etc.).

  • Page 52: Using The Projector

    Using the Projector Turning the Projector On Input Computer Video HDMI Auto Menu EXIT Keystone Aspect Freeze Pattern Screen Mute 1. Make sure the projector’s power cord is properly connected to a power outlet. 2. Press the Power button on the projector or remote control to turn on the projector.

  • Page 53: Selecting An Input Source

    Selecting an Input Source LSC600W-ST | LSC601W-ST | LSC600WU-ST | LSC601WU-ST | LSC730WU-ST | LSC731WU-ST | LSC600WU | LSC601WU | LSC650WU | LSC651WU | LSC730WU | LSC731WU | LSC800WU | LSC801WU The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.
  • Page 54 LSC600-4K | LSC601-4K | LSC700-4K | LSC701-4K The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time. NOTE:  HDBaseT is only available for LSC601-4K and LSC701-4K. USB A 5V/2A RS232 S/PDIF USB A 5V/2A...

  • Page 55: Adjusting The Projected Image

    Adjusting the Projected Image Adjusting the Projector’s Height and Projection Angle The projector is equipped with two adjustment feet. Adjusting the feet will change the projector’s height and the vertical projection angle. Adjustment Feet Tilt-Adjustment Ring...

  • Page 56: Fine-Tuning The Image Size And Clarity

    Fine-Tuning the Image Size and Clarity To adjust the projected image to the size you need, rotate the Zoom Ring. You can also improve the clarity of the image by adjusting the Focus Ring.

  • Page 57: Controlling The Projected Image Position (Lens Shift)

    Controlling the Projected Image Position (Lens Shift) The projection lens can be moved up, down, right, and left with the lens shift function by turning the Lens Shift dials. This function makes the positioning of images easy on the screen. LENS SHIFT NOTE: ...
  • Page 58 Lens shift is generally expressed as a percentage of the image height or width, please see the below illustrations. LSC600WU | LSC601WU Unusable Unusable Area Area Vertical Shift Max. = 0.45 V (45%) Lens Shift Movable Area Front Table Projected Image Image Height = V 10 10 Image Width = H...
  • Page 59 LSC600-4K | LSC601-4K |LSC700-4K | LSC701-4K Unusable Unusable Area Area Vertical Shift Max. = 0.66 V (66%) Lens Shift Movable Area Front Table Projected Image Image Height = V 10 10 Image Width = H Max. = 0.29 H (29%) Max.
  • Page 60 LSC600WU | LSC601WU Unusable Unusable Area Area Image Height (V) Image Width (H) NOTE:  • V : Projected image height. • H : Projected image width. • ΔH : Maximum horizontal shift when the lens is centered. • ΔH0 : The lens shift range without vignetting in horizontal direction when the lens is at the top center or the bottom center.
  • Page 61 LSC650WU | LSC651WU | LSC730WU | LSC731WU | LSC800WU | LSC801WU Unusable Unusable Area Area Image Height (V) Image Width (H) NOTE:  • V : Projected image height. • H : Projected image width. • ΔH : Maximum horizontal shift when the lens is centered. •...
  • Page 62 LSC600-4K | LSC601-4K |LSC700-4K | LSC701-4K Unusable Unusable Area Area Image Height (V) Image Width (H) NOTE:  • V : Projected image height. • H : Projected image width. • ΔH : Maximum horizontal shift when the lens is centered. •...
  • Page 63 LSC730WU-ST | LSC731WU-ST Unusable Unusable Area Area Image Height (V) Image Width (H) NOTE:  • V : Projected image height. • H : Projected image width. • ΔH : Maximum horizontal shift when the lens is centered. • ΔH0 : The lens shift range without vignetting in horizontal direction when the lens is at the top center or the bottom center.

  • Page 64: Turning The Projector Off

    Turning the Projector Off 1. Press the Power button on the projector or remote control and a “power off message” will appear. 2. Press the Power button again to confirm and put the projector in standby mode.

  • Page 65: Menu Operation (Non 4K Models)

    Menu Operation (non 4K models On-Screen Display (OSD) Menu The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. Menu Description Adjust image position, Aspect, Projector and Menu Display Position, Background Display, and Signal Format settings.

  • Page 66: Menu Navigation

    Menu Navigation The projector has multilingual on-screen display menus that allow for image and settings adjustment. 1. To open the On-Screen Display (OSD) Menu, press the Menu button on the projector or the remote control. 2. When the OSD is displayed, use the Navigation buttons ( ) to select any item in the main menu.

  • Page 67: On-Screen Display (Osd) Menu Tree

    On-Screen Display (OSD) Menu Tree Main Menu Sub-menu Menu Option Auto PC Adj. Fine Sync (0~31) H Position (-5~+5) V Position (-5~+5) H Size (-15~+15) Auto 16:9 Aspect 21:9 16:10 Front Rear Display Ceiling / Front Projector Position Ceiling / Rear Auto Ceiling / Front Auto Ceiling / Rear Upper Left...
  • Page 68 Main Menu Sub-menu Menu Option Standard Cinema Golf Image Mode Blue Colorboard Green Yellow User Brightest Contrast (0~63) Brightness (0~63) High Image Settings Color Temp User (0~63) Green (0~63) Blue (0~63) Sharpness (0~15) Yellow Green Advanced Color Adj. Hue/Saturation/Gain Cyan Blue Magenta Reset...
  • Page 69 Main Menu Sub-menu Menu Option Normal Cooling Fast 0 sec 30 sec Key Lock Contrast Optimization 19200 4800 Baud Rate Settings 38400 9600 Normal Full Normal Light Source Mode Laser Control ECO1 ECO2 Laser Adjust 50~100% Volume (0~25) Sound Mute...
  • Page 70 Main Menu Sub-menu Menu Option Edge Blending Boundary Line Left Right Area Setting Bottom Settings Edge Blending Left Range Top Range Right Range Bottom Range R Gain (0~64) G Gain (0~64) B Gain (0~64) White Balance R Offset (0~64) G Offset (0~64) B Offset (0~64)
  • Page 71 Main Menu Sub-menu Menu Option Bottom Blending Left Area Right Other Area Level 0 Level 1 Level 2 Image Edge Adj. Level Level 3 Level 4 Level 5 (0~255) Green (0~255) Edge Blending Blue (0~255) Gain (0~5) Settings Reset EB 4 Dot Keystone Grid Image EB Keystone...
  • Page 72 Main Menu Sub-menu Menu Option English Deutsch Français Italiano Español Português Nederlands Svenska Suomi Norsk Dansk Polski Language Český Magyar Русский Türkçe Қазақ Tiếng Việt 한국어 日本語 ไทย 中文繁體 中文 Advanced Bahasa Indonesia Input Search Auto Setup Auto PC Adj. Auto Keystone Reset Keystone...
  • Page 73 Main Menu Sub-menu Menu Option Logo Select Default User Logo Capture Logo PIN Code Lock Logo PIN Code Change PIN Code Lock Security PIN Code Cancel Advanced New PIN PIN Code Change Code Ready Shutdown Power Management Timer (1~30 min) Ready Countdown (0~30 min) 500H...
  • Page 74 Gray scale 2 Gray scale 3 Gray scale 4 Color bar Test Pattern Green Blue Cross hatch White Advanced Black Raster gray ViewSonic DHCP IP Address Network Setting Subnet Network Setup Gateway Network Information Return to Factory Factory Default Default?
  • Page 75 Main Menu Sub-menu Menu Option Set Slide Slide Down Slide Transition Effect Slide Right Extend Order Name Order Sort Order Timer Order Size Order No Rotate USB-A 270 Degrees Rotate 180 Degrees 90 Degrees Best Fit Repeat Apply Input H-Sync Freq. V-Sync Freq.

  • Page 76: Menu Options

    Menu Options Display Menu Description Automatically adjust the best picture timings for the projected image. Auto PC Adj. NOTE: For the PC input signal only. Manually adjust the picture timings for the projected image. Fine Sync NOTE: For the PC input signal only. Manually set the horizontal position of the projected image.
  • Page 77 Menu Description Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image Auto which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image’s aspect ratio.

  • Page 78: Image Settings

    Image Settings Menu Description There are several predefined display modes that you can choose from to suit your viewing preference. Designed for normal circumstances in a Standard daylight environment. Provides the best balance of detail and colors Cinema for watching movies. Image Mode Golf Suitable for golf simulators.
  • Page 79 Menu Description Blue Adjusts the contrast levels of blue. A higher value will sharpen the image, while a lower value will soften Sharpness the image. Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters should advanced color adjustment be Advanced Color considered.

  • Page 80: Settings

    Settings Menu Description The projector will turn on automatically once connected to a power Direct Power On source. Normal standby > 0.5W; the Network setup Normal function is available. Eco standby < 0.5W; the Network setup function is Standby Mode not available.
  • Page 81 Menu Description Set a baud rate that is identical with your computer’s so that you can Baud Rate connect the projector using a suitable RS-232 cable and control the projector with RS-232 commands. Change the light source brightness according to the projector’s operating environment.
  • Page 82 Menu Description Adjust the blending effect smoothly by switching between the Left, Right, Top, Bottom, and Non- Blending areas. Adjust brightness of blending Level 0 area to 0%. Adjust brightness of blending Level 1 area to 25%. Image Edge Adjust brightness of blending Adj.
  • Page 83 Menu Description Automatically set to standard Auto signal. Manually adjust the signal until Image 64~940 the image is normal. Manually adjust the signal until 0~1023 the image is normal. Output audio from the device HDMI connected to the HDMI port. Sound Output audio from the device HDMI Setup...

  • Page 84: Advanced

    Advanced Menu Description Language Select the On-Screen Display (OSD) Menu language. Automatically find and project an available input Input Search source. When Auto PC Adj. is turned on, the projector will input an analog signal. Pressing the Auto button on the remote control will adjust Fine Auto Setup Auto PC Adj.
  • Page 85 Menu Description Store or reset the keystone correction after Keystone unplugging the power cord. Correct the projected image horizontally or H/V Keystone vertically. 4-Corner Correct the projected image’s four corners. Correction Keystone 6-Corner Correct the projected images’ six corners. Correction Correct a projected image that is uneven or Curved Correction deformed due to a curved surface.
  • Page 86 Menu Description A countdown will be displayed after 30 seconds without a signal input. Allows the projector to enable Ready mode automatically after a set period of time once no Ready input source is detected . If the input signal is reconnected or any key (except the Power button) on the remote control or control panel is pressed, the light source will be turn back on.
  • Page 87 Menu Description Display the projector’s built-in test pattern. Test Pattern NOTE: Not available for USB A, USB B, and LAN display. Set the IP address, LAN, and DHCP settings. Network Setup NOTE: The projector does not support wireless display. Users can purchase a Wi-Fi dongle with a built-in RTL8192EU driver.
  • Page 88 Controlling the Projector through a Network The projector provides diverse networking and remote management features. The LAN /RJ45 function of the projector, through a network, can remotely manage: Power On/Off, Volume adjustment, Input select, Brightness, and more. 1. Connect the projector to a network via the LAN/RJ45 port. 2.

  • Page 89: Usb-A

    USB-A Menu Description Set Slide Display slides. Slide Transition Effect Control slide playback transition effects. Sort Order Set the order of the slides. Rotate Set the rotation direction of images. Best Fit Set the image to fit with the projection screen. Repeat Play the slides repeatedly when turned on.
  • Page 90 Supported File Formats Video Extension Video Codec Audio Codec Video Format 1280 x 70, 30 FPS .avi MotionJPEG ADPCM (Maximum) Image Extension Format Description Maximum Resolution: 10000 x 10000 Baseline encoder 24 jpg/jpeg Progressive RGB24 bit Maximum Resolution: Panel resolution 1.4.8 bit palette-based Maximum Resolution: 1280 x 800 RGB24, 32-bit...

  • Page 91: Information

    Information View Input source, H-Sync Freq., V-Sync Freq., Light Source Counter, Image Mode, MAC Address, Serial Number, Firmware Version, and SUBCPU information.

  • Page 92: Menu Operation (4K Models)

    Menu Operation (4K models On-Screen Display (OSD) Menu The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. Menu Description Adjust Picture, Audio, Light Source Mode, Advanced, Adjust Color Management, and User settings. Adjust Projector Projection, Geometric Correction, Filter, Installation High Altitude Mode, and Digital Lens Shift settings.

  • Page 93: Menu Navigation

    Menu Navigation The projector has multilingual on-screen display menus that allow for image and settings adjustment. 1. To open the On-Screen Display (OSD) Menu, press the Menu button on the projector or the remote control. 2. When the OSD is displayed, use the Navigation buttons ( ) to select any item in the main menu.

  • Page 94: On-Screen Display (Osd) Menu Tree

    On-Screen Display (OSD) Menu Tree Main Menu Sub-menu Menu Option Brightest Presentation Movie Picture Mode Golf Game User Brightness (0~100) Contrast (0~100) Saturation (0~100) (0~100) Picture Sharpness (0~100) Gamma Adjust Standard Warm Color Temperature Cool User (0~100) Green (0~100) Blue (0~100) Volume (0~100)
  • Page 95 Main Menu Sub-menu Menu Option Auto Full Aspect Ratio 16:9 16:10 21:9 Zoom (0~100) Magnify Positions Enter Auto HDMI Range Full Limited Advanced Enhanced HDMI EDID Normal (0~63) Adjust (0~63) (0~63) (0~63) (0~63) (0~63) (0~63) (0~63) (0~63) Color Management Saturation (0~63) (0~63) (0~63)
  • Page 96 Main Menu Sub-menu Menu Option Front Table Rear Table Front Ceiling Projector Projection Rear Ceiling Auto Front Ceiling Auto Rear Ceiling Auto Manual Keystone Geometric Correction H Keystone V Keystone 4 Corner Installation 200 Hours 500 Hours Filter Hours 1000 Hours 3000 Hours Filter Settings Custom...
  • Page 97 Main Menu Sub-menu Menu Option English German French Italian Spanish Polish Swedish Dutch Portuguese Japanese Simplifed Chinese Language Traditional Chinese Korean Russian Turkish Settings Finnish Norwegian Danish Indonesian Hungarian Czech Vitenamese Thai Auto DHCP Static IP IP Address Wired LAN Subnet Mask Default Gateway DNS Server...
  • Page 98 Main Menu Sub-menu Menu Option Standby Power On Mode Standby Mode Normal Power Management 15 Minutes 30 Minutes Auto Power Off 60 Minutes 120 Minutes Custom Settings HDMI Settings HDMI ARC Firmware Version MCU Version Baud Rate Information Resolution MAC Address Used Time Update by USB Firmware Upgrade...

  • Page 99: Menu Options

    Menu Options Adjust Menu Description There are several predefined picture modes that you can choose from for your viewing preference. Suitable for bright, well-lit Brightest environments. Suitable for most presenting Presentation needs for business and education environments. Provides the best balance of detail Movie and colors for watching movies.
  • Page 100 Menu Description The higher the value, the brighter the image. Lower Brightness values will result in a darker image. Use this to set the peak white level after you have Contrast previously adjusted the Brightness setting to suit your selected input and viewing environment. Refers to the amount of that color in a video Saturation picture.
  • Page 101 Menu Description Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is Auto suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image’s aspect ratio.

  • Page 102: Installation

    Installation Menu Description Projector Select the preferred projection location. Projection Keystone Adjust image distortion. Geometric Correction Adjusts each corner to make a square image 4 Corner when the projection surface is not level. Review the filter’s usage hours and enable or disable a warning Filter Settings message when the filter is used for a set amount of time.

  • Page 103: Settings

    Settings Menu Description Language Select the On-Screen Display (OSD) Menu language. Wired LAN Set DHCP to Auto or input a Static IP. Power Enable or disable Power On Mode and Auto Power Off, or set the Management Standby Mode type. When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or...
  • Page 104 Menu Description Returns all settings to the factory preset values. NOTE: • When using Reset Settings, the following settings will still Factory Reset remain: Language, Projector Projection, Baud Rate, High Altitude, and Light Source Hours. • The projector will restart after the Factory Reset completes.
  • Page 105 Controlling the Projector through a Network The projector provides diverse networking and remote management features. The LAN /RJ45 function of the projector, through a network, can remotely manage: Power On/Off, Volume adjustment, Input select, Brightness, and more. 1. Connect the projector to a network via the LAN/RJ45 port. 2.

  • Page 106: Appendix

    Appendix Specifications Specifications LSC650WU LSC651WU Item Category LSC600WU LSC730WU LSC601WU LSC731WU LSC800WU LSC801WU Type Laser Display Size 30”~300” Projector Throw Ratio 1.08~1.76 1.2~2.01 Lens 1.6x Display System 3LCD HDMI : 15K~100 kHz, f : 23K~85 Hz, Pixel rate: 160 MHz Input Signal : 15K~100 kHz, f : 23K~85 Hz, Pixel rate: 300 MHz...
  • Page 107 Specifications LSC650WU LSC651WU Item Category LSC600WU LSC730WU LSC601WU LSC731WU LSC800WU LSC801WU LSC600WU: LSC650WU: 320W (Typical) 330W (Typical) LSC601WU: LSC651WU: 330W (Typical) 340W (Typical) LSC730WU: 365W (Typical) Power LSC731WU: Consumption 375W (Typical) LSC800WU: 375W (Typical) LSC801WU: 385W (Typical) < 0.5W (Standby) 2 - The test condition follows EEI standards.
  • Page 108 Specifications Item Category LSC600W-ST LSC600WU-ST LSC730WU-ST LSC601W-ST LSC601WU-ST LSC731WU-ST Type Laser Display Size 55”~180” 50”~300” Projector Throw Ratio 0.44 0.679~0.821 Lens Fixed 1.2x Display System 3LCD HDMI : 15K~100 kHz, f : 23K~85 Hz, Pixel rate: 160 MHz Input Signal : 15K~100 kHz, f : 23K~85 Hz, Pixel rate: 300 MHz Resolution...
  • Page 109 Specifications Item Category LSC600-4K LSC700-4K LSC601-4K LSC701-4K Type Laser Display Size 30”~300” Projector Throw Ratio 1.2~2.01 Lens 1.6x Display System 3LCD Input Signal HDMI : 15K~100 kHz, f : 23K~85 Hz, Pixel rate: 600 MHz Resolution Native 1920 x 1200 (supports 4K enhancement) Power Input Voltage AC 100-240V, 50/60 Hz (auto switch)

  • Page 110: Projector Dimensions

    Projector Dimensions LSC600WU | LSC601WU | LSC650WU | LSC651WU | LSC730WU | LSC731WU | LSC800WU | LSC801WU | LSC600-4K | LSC601-4K | LSC700-4K | LSC701-4K 405 mm (W) x 358 mm (D) x 137 mm (H) LENS SHIFT LENS SHIFT INPUT INPUT LSC600W-ST | LSC601W-ST | LSC600WU-ST | LSC601WU-ST...

  • Page 111: Lsc730Wu-St | Lsc731Wu-St

    LSC730WU-ST | LSC731WU-ST 405 mm (W) x 425 mm (D) x 137 mm (H) LENS SHIFT INPUT...

  • Page 112: Timing Chart

    Timing Chart LSC600W-ST |LSC601W-ST | LSC600WU-ST | LSC601WU-ST | LSC730WU- ST | LSC731WU-ST | LSC600WU | LSC601WU | LSC650WU | LSC651WU | LSC730WU | LSC731WU | LSC800WU| LSC801WU PC Signal (VGA) Resolution Refresh Rate 720 x 480i 60 Hz 720 x 576i 50 Hz 720 x 480p 60 Hz...

  • Page 113: Hdmi Signal

    HDMI Signal HDMI Video Resolution Refresh Rate 720 x 480p 60 Hz 720 x 480i 60 Hz 720 x 576p 50 Hz 720 x 576i 60 Hz 1280 x 720p 50, 60 Hz 1920 x 1080i 50, 60 Hz 1920 x 1080p 24, 50, 60 Hz HDMI PC Resolution...
  • Page 114 HDBaseT Signal Resolution Refresh Rate 720 x 480p 60 Hz 720 x 480i 60 Hz 720 x 576p 50 Hz 720 x 576i 50 Hz 1280 x 720p 50 Hz, 60 Hz 1920 x 1080i 50 Hz, 60 Hz 1920 x 1080p 24 Hz, 50 Hz, 60 Hz 640 x 480 60, 67, 72, 75, 85 Hz...

  • Page 115: Hdmi Signal

    HDMI Signal LSC600-4K | LSC601-4K | LSC700-4K | LSC701-4K HDMI Video / HDBaseT Resolution Refresh Rate 640 x 480p 60 Hz 720 x 480p 60 Hz 720 x 480i 60 Hz 720 x 576p 50 Hz 720 x 576i 50 Hz 1280 x 720p 24, 30, 50, 60 Hz 1920 x 1080i...

  • Page 116: Troubleshooting

    Troubleshooting This section describes some common problems that you may experience when using the projector. Problem or Issue Possible Solutions • Ensure the power cord is properly attached to the projector and to the power outlet. • If the cooling process has not completed, please The projector does not wait until it has finished then try to turn on the turn on...
  • Page 117 Problem or Issue Possible Solutions The projector stops • Turn off the projector and unplug the power cord. responding to all Wait at least 20 seconds then reconnect and try controls again.

  • Page 118: Led Indicators

    LED Indicators When the warning indicators (see below) light up or flash, the projector will automatically shutdown. Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicators light up or flash, please contact your nearest service center for assistance.

  • Page 119: Maintenance

    • ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the lens or case. Some chemical cleaners have been reported to damage the lens and/or case of the projector. • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

  • Page 120: Cleaning The Filter

    Cleaning the Filter Please follow these steps to clean your filter: 1. Turn off the projector and unplug it from its power source. 2. Remove the filter. 3. Gently clean it with a brush. 4. Replace the filter, making sure it has been inserted fully. CAUTION: Do not operate the projector after removing the filter.

  • Page 121: Regulatory And Service Information

    Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 122: Ce Conformity For European Countries

    CE Conformity for European Countries The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Ecodesign Directive 2009/125/EC. The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE).

  • Page 123: Declaration Of Rohs2 Compliance

    Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed Maximum Actual Concentration...

  • Page 124: Indian Restriction Of Hazardous Substances

    Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®...

  • Page 125: Copyright Information

    Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation. VESA is a registered trademark of the Video Electronics Standards Association.

  • Page 126: Customer Service

    For technical support or product service, see the table below or contact your reseller. NOTE:  You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia www.viewsonic.com/au/ Bangladesh www.viewsonic.com/bd/ 中国 (China) www.viewsonic.com.cn www.viewsonic.com/hk/ 香港 (繁體中文) Hong Kong (English) www.viewsonic.com/hk-en/ India www.viewsonic.com/in/...

  • Page 127: Limited Warranty

    If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
  • Page 128 (e) the serial number of the product. 3. Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®. 4. For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®. Limitation of implied warranties:...
  • Page 129 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

  • Page 130: Mexico Limited Warranty

    If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components &...
  • Page 131 Exclusion of damages: ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based...
  • Page 132 Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004 Hermosillo: Villahermosa: Distribuciones y Servicios Computacionales SA de CV.

This manual is also suitable for:

Vs20194Vs20192Vs20190Vs20193Vs20191Vs20189 ... Show all

Table of Contents
