Larson Electronics LEDXUL-500 Instruction Manual

500W Quartz Halogen Equivalent - (4) 12.5W High Output LEDs – Submersible
Thank you for your purchase of the Larson Electronics LEDXUL-500 Wall Pack Light. Please follow the steps
below in order to install, operate and maintain this product.
IMPORTANT
READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. THE LEDXUL-500 MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND
ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, AND MAINTAIN THIS PRODUCT. IF
YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET, CONSULT
AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.
WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE
INSTALLATION OR PERFORMING ANY MAINTENANCE.
RISK OF FIRE/ELECTRIC SHOCK –
RISK OF PERSONAL INJURY –
RISK OF BURN –
ALLOW FIXTURE TO COOL BEFORE SERVICING.
MOUNTING
The LED wall pack is equipped with stainless steel mounting brackets which slide within the aluminum housing
to allow users to adjust their positioning to match existing or user drilled mounting holes. Each stainless steel
bracket has an integrated rubber bushing to absorb vibrations and shocks. To secure the lights in place, simply
slide the mounting bolts through the aluminum mounting block and rubber isolator, through the mounting
surface, then secure the bolt with a locking nut on the opposite side of the mounting surface. This mounting
system enables mounting to flat or round surfaces and allows for minimal 7 degrees of flexibility of angle
placement of the light.
Submersible to 3 Meters
1. Begin by choosing a location to install the fixture. This LED wall pack is IP68 waterproof and built to
resist the damaging effects of an outdoor environment. It can be used underwater and above water. The
luminaire is submersible up to 3 meters.
2. Affix the mount to your chosen surface. There are stainless steel mounting brackets on each side of the
fixture. Plan a way for wiring to connect such as using a separate junction box. 17" pigtail wiring is
available for completing connections.
3. Attach lamp. Slide the mounting bolts through the aluminum mounting block and rubber isolator, through
the mounting surface, then secure the bolt with a locking nut on the opposite side of the mounting surface.
The fixture can be placed in any direction.
WIRING
We strongly encourage a licensed electrician install this product, especially in outdoor locations where
weatherproofing may be required. Universal voltage driver permits operation at 110V - 277V AC.
Warning: Check product label for correct input voltage!

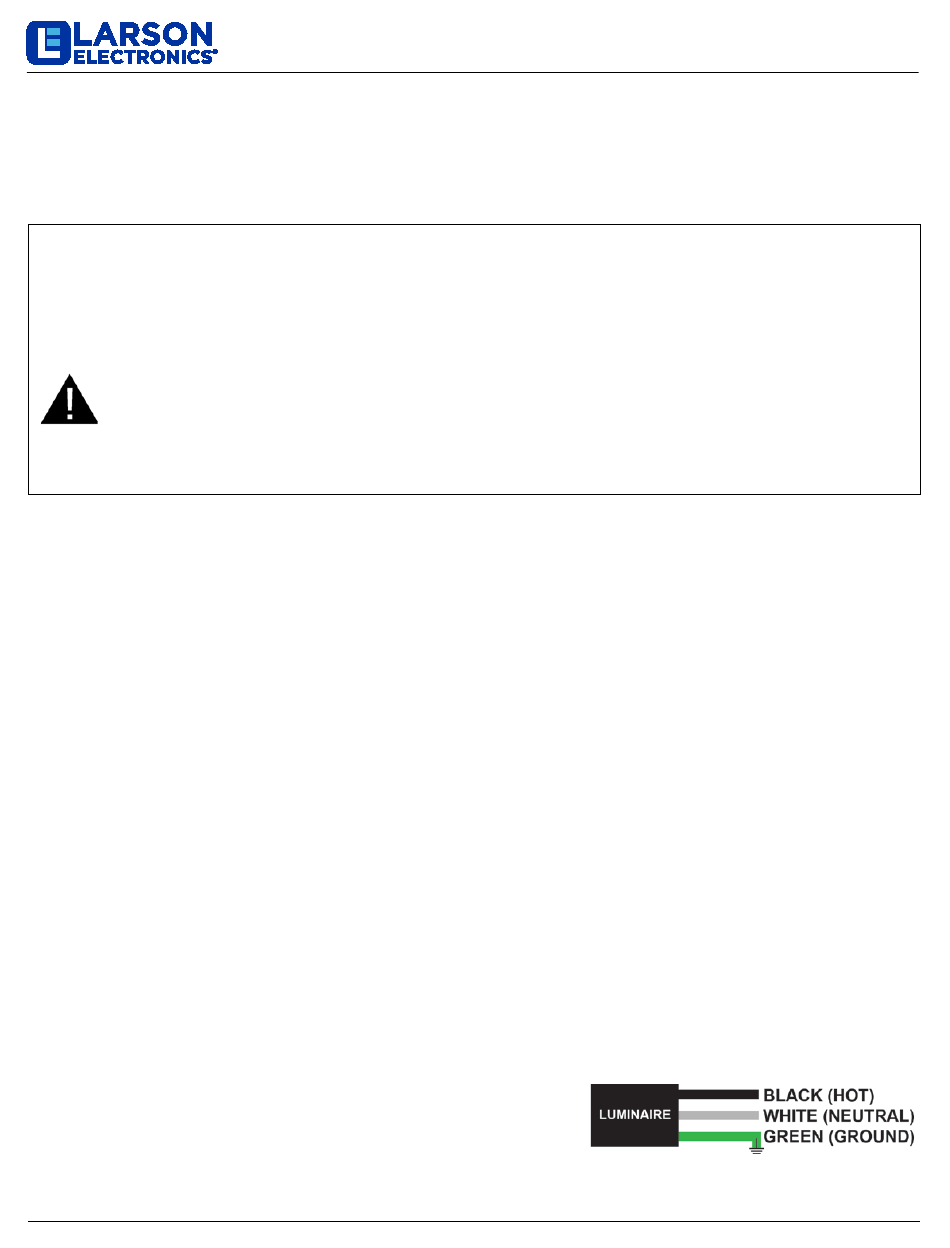

Attach supply line wires to the appropriate light fixture
wires as shown in the diagram 
Secure each pair with a wire nut according to the diagram.
Utilize a junction box or similar device and take
precautionary steps for weatherproofing all connections if
installed in a location where water will come in contact with
the unit. Ensure the unit is properly grounded.
Larson Electronics, LLC
50W LED Wall Pack Light
Instruction Manual
DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.
FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.
Phone: (800) 369-6671 Fax: (903) 498-3364
LEDXUL-500
www.larsonelectronics.com 1 of 2
