Larson Electronics LED18W-PAR36 Instruction Manual

LED Cab Light Upgrade Kit for John Deere 4040 Tractors
Familiarize yourself with all procedures outlined within this instruction sheet.
WARNING:
READ CAREFULLY BEFORE OPERATING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
CRITICAL SAFETY INSTRUCTIONS:
•
RISK OF Electric Shock – To avoid electric shock, serious injury or death, be certain all electrical power is
disconnected from the supply branch circuit conductors before installing or maintaining this fixture.
•
This product must be installed and maintained in accordance with the applicable installation codes by a person
familiar with the construction and operation of the product and the hazards involved.
•
Avoid direct eye exposure the light source when light is on. DO NOT shine light into the face of someone else.
•
DO NOT touch lens of light when on or recently on. The lens/cooling fins will be hot after long periods.
•
DO NOT allow children to handle or operate this flood light.
•
DO NOT use this product for other than its intended use.
•
DO NOT operate in close proximity of combustible or flammable materials.
•
DO NOT attempt to operate this flood light if cord, plug, lens or any part of the flood light is damaged or corroded.
IMPORTANT
READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. THE LLP-JD-TR-4040-V1 PACKAGE MUST BE WIRED IN ACCORDANCE WITH NATIONAL
ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS
PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,
CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.
WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE
INSTALLATION OR PERFORMING ANY MAINTENANCE.
RISK OF FIRE/ELECTRIC SHOCK –
RISK OF PERSONAL INJURY –
RISK OF BURN –
ALLOW FIXTURE TO COOL BEFORE SERVICING.

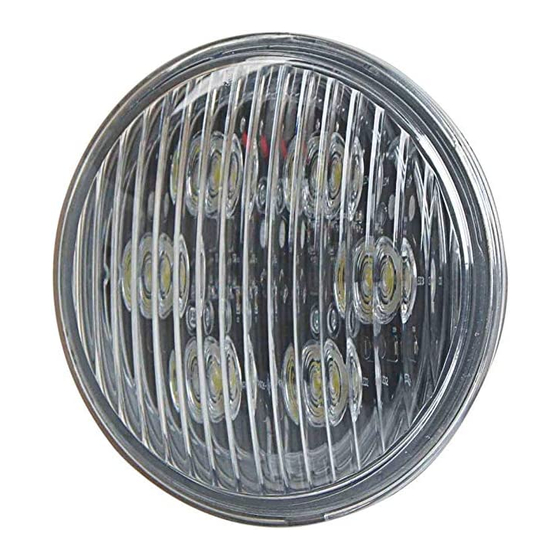

The LLP-JD-TR-4040-V1 LED Tractor Light Package comes with 8 LED18W-PAR36 LED Work Lights. Two of the light heads come
with a flood beam configuration for use as high beam lights. Two more of the LED18W-PAR36 lights feature a Euro beam
configuration for use as front fender lights. The Euro beam configuration is more concentrated than a full flood beam and is ideal for
peripheral illumination. The other four come with a flood beam configuration for use as area flood lights. The LLP-JD-TR-4040-V1
also includes 2 LED25WRE-CPR LED Work Lights. These lights come in a spot beam configuration for use as low beam lights. The
LLP-JD-TR-4040-V1 LED Light Package is ideal for installation and use on a John Deere 4040 Tractor. Each LED18W-PAR36
produces 1,800 lumens and each LED25WRE-CPR produces 2,750 lumens of high-intensity LED light output with low voltage and
amp draw, a 50,000 hour rated service life and 12 to 32 volt compatibility that provides operators with a versatile and powerful LED
tractor lighting solution.
Larson Electronics, LLC
(8) LED18W-PAR36 - (2) LED25WRE-CPR
Instruction Manual
DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.
FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.
Phone: (800) 369-6671 Fax: (903) 498-3364
LLP-JD-TR-4040-V1
www.larsonelectronics.com 1 of 1
