Larson Electronics LEDLB-12E-F-M-1227 Instruction Manual

LED Machine light - 2, 150lbs. Magnetic Bases - 120'L x 100'W Beam
Thank you for your purchase of the Larson Electronics LEDLB-12E-F-M-1227 series LED machine light. This
light is completely assembled, tested and ready for installation when shipped from the factory. Please follow
the steps below in order to operate and maintain this product.

IMPORTANT

READ CAREFULLY BEFORE OPERATING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF
UNSURE ABOUT ANY PART OF THESE INSTRUCTIONS, CONSULT A QUALIFIED ELECTRICAL PROFESSIONAL.
WARNING:
OPERATE ONLY AT THE VOLTAGE LISTED ON THE PRODUCT. DO NOT OPERATE IN CLOSE PROXIMITY OF
COMBUSTIBLE OR FLAMMABLE MATERIALS. NEVER LOOK DIRECTLY AT LIGHT WHEN ON. DO NOT SHINE LIGHT INTO THE
FACE OF SOMEONE ELSE.
WARNING:
CONSULT A QUALIFIED ELECTRICAL PROFESSIONAL/ELECTRICIAN TO INSTALL THIS DEVICE IN
ACCORDANCE WITH APPROPRIATE LOCAL AND NEC CODES AND REGULATIONS.
WARNING:
DEVICE IS SUITABLE FOR INSTALLATION IN WET LOCATIONS; GFCI PROTECTION RECOMMENDED.
WARNING:
ALTHOUGH FIXTURE IS WATERPROOF, IT IS NOT DESIGNED OR INTENDED TO BE SUBMERGED.
WARNING:
DO NOT ALLOW LINE VOLTAGE WIRES TO BECOME SUBMERGED!
•
IP68 RATED; SUITABLE FOR WET LOCATIONS (ALTHOUGH FIXTURE IS WATERPROOF, IT IS NOT DESIGNED OR
INTENDED TO BE SUBMERGED).
•
ALL OUTDOOR INSTALLATIONS AND INDOOR INSTALLATIONS NEAR A WET LOCATION REQUIRE THE USE OF A
GFCI DEVICE FOR SAFETY, ACCORDING TO THE NATIONAL ELECTRICAL CODE® (NEC).
•
KEEP AWAY FROM FLAMMABLE OBJECTS. DO NOT POSITION WITHIN ONE (1) INCH OF ANY COMBUSTIBLE
MATERIALS.
•
IF DROPPED OR DAMAGED, THE UNIT MAY NO LONGER BE WATERPROOF AND SHOULD BE REPLACED.
•
TO AVOID HAZARDS TO CHILDREN, ACCOUNT FOR ALL PARTS AND DESTROY PACKING MATERIALS.
•
PEOPLE WITH PACEMAKERS SHOULD CONSULT THEIR PHYSICIAN(S) BEFORE USE. ELECTROMAGNETIC FIELDS
IN CLOSE PROXIMITY TO HEART PACEMAKER COULD CAUSE PACEMAKER INTERFERENCE OR PACEMAKER
FAILURE.
•
KEEP FINGERS AWAY FROM MAGNET WHEN MOUNTING AS INJURY COULD OCCUR.

INSTALLATION

MOUNTING

Mount via the two, 100lb. magnets. This allows for easy fixture
placement and removal. Please note: The magnetic base on this
unit increases the units` overall height.
When removing, do not drag the magnets to disconnect, as it
may scratch the surface/paint. Each magnet provides 200lb. grip
magnetic force.

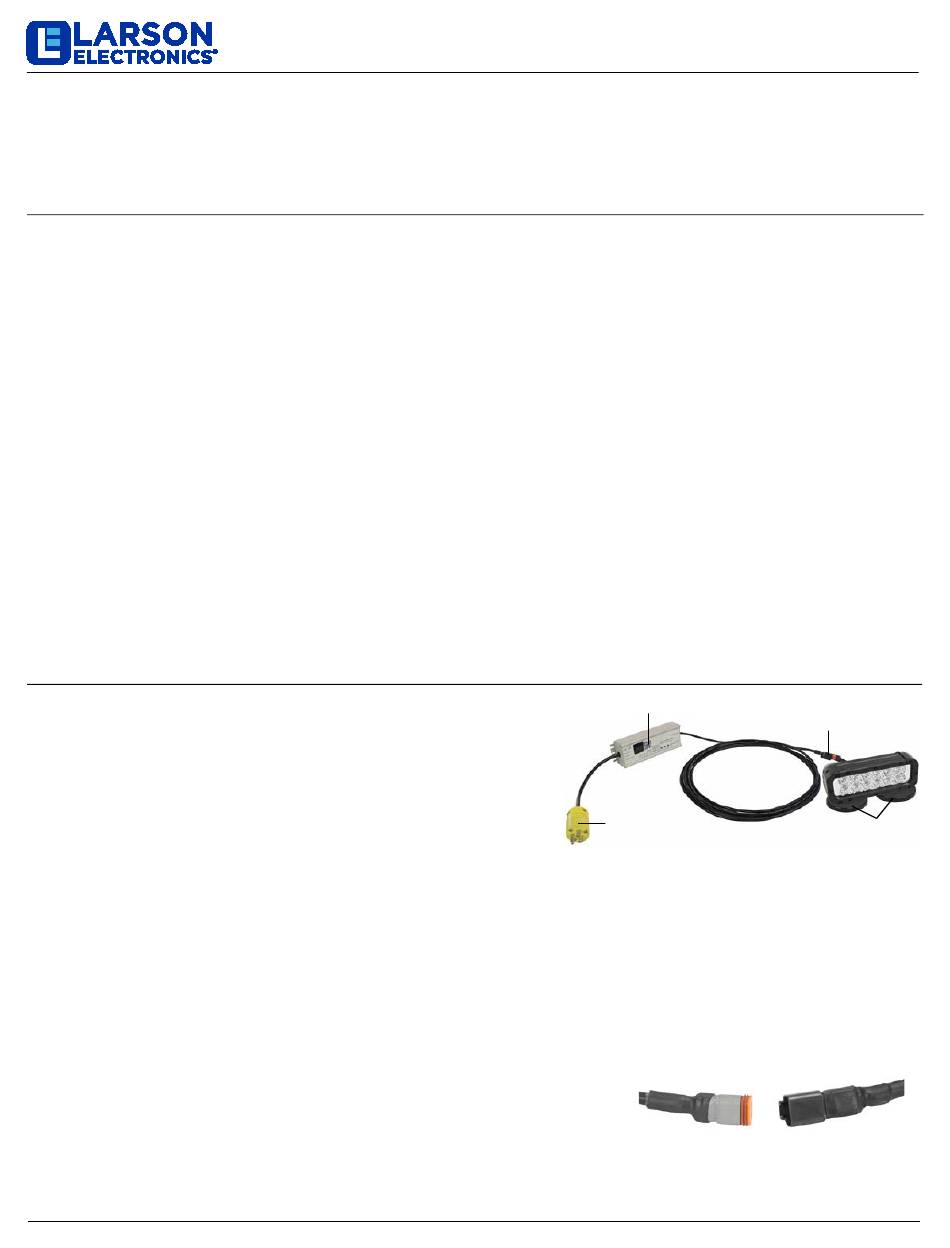

WIRING

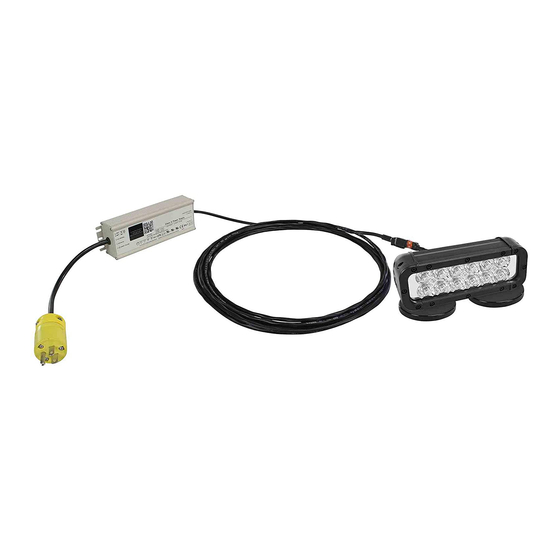

Once mounted, check to ensure the deutsch connector from the transformer is plugged into the back of the
light. Run cord and transformer near power source. Connect the transformer into the proper voltage listed on
its product label. Improper voltage could cause the unit to fail, voiding warranty. The light is "instant-on" and will
turn on once power is supplied.
Voltage: 110V with transformer. 9-42 VDC Without transformer.
Larson Electronics, LLC
Instruction Manual
Phone: (800) 369-6671
TRANSFORMER
CORD CAP
Fax: (903) 498-3364
LEDLB-12E-F-M-1227
DEUTSCH CONNECTOR
DEUTSCH CONNECTOR
www.larsonelectronics.com
MAGNETS
1 of 2
