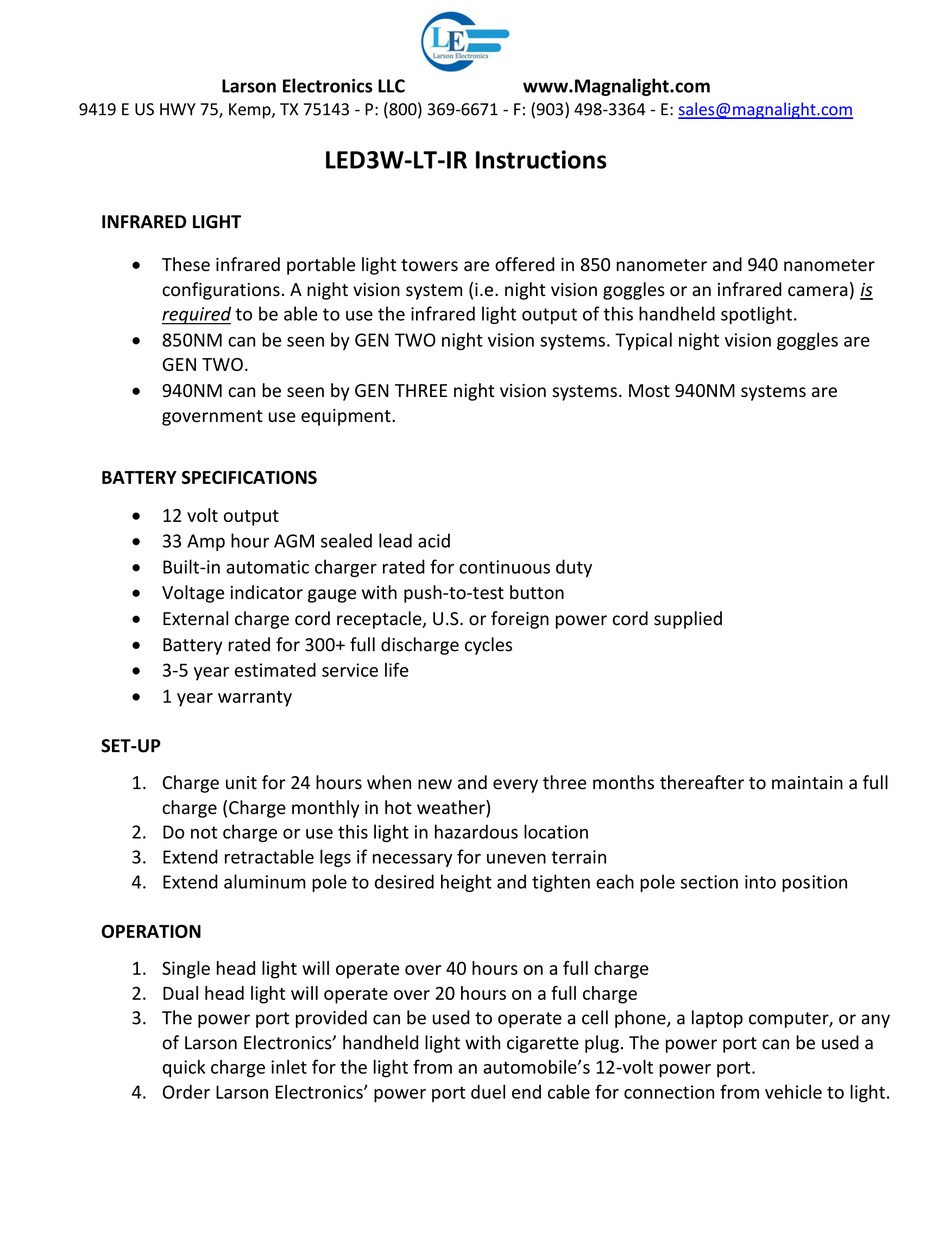

Larson Electronics LED3W-LT-IR Instructions

Larson Electronics LLC
9419 E US HWY 75, Kemp, TX 75143 - P: (800) 369-6671 - F: (903) 498-3364 - E:

INFRARED LIGHT

 These infrared portable light towers are offered in 850 nanometer and 940 nanometer
configurations. A night vision system (i.e. night vision goggles or an infrared camera) is
required to be able to use the infrared light output of this handheld spotlight.
 850NM can be seen by GEN TWO night vision systems. Typical night vision goggles are
GEN TWO.
 940NM can be seen by GEN THREE night vision systems. Most 940NM systems are
government use equipment.

BATTERY SPECIFICATIONS

 12 volt output
 33 Amp hour AGM sealed lead acid
 Built-in automatic charger rated for continuous duty
 Voltage indicator gauge with push-to-test button
 External charge cord receptacle, U.S. or foreign power cord supplied
 Battery rated for 300+ full discharge cycles
 3-5 year estimated service life
 1 year warranty

SET-UP

1. Charge unit for 24 hours when new and every three months thereafter to maintain a full
charge (Charge monthly in hot weather)
2. Do not charge or use this light in hazardous location
3. Extend retractable legs if necessary for uneven terrain
4. Extend aluminum pole to desired height and tighten each pole section into position

OPERATION

1. Single head light will operate over 40 hours on a full charge
2. Dual head light will operate over 20 hours on a full charge
3. The power port provided can be used to operate a cell phone, a laptop computer, or any
of Larson Electronics' handheld light with cigarette plug. The power port can be used a
quick charge inlet for the light from an automobile's 12-volt power port.
4. Order Larson Electronics' power port duel end cable for connection from vehicle to light.
LED3W-LT-IR Instructions
