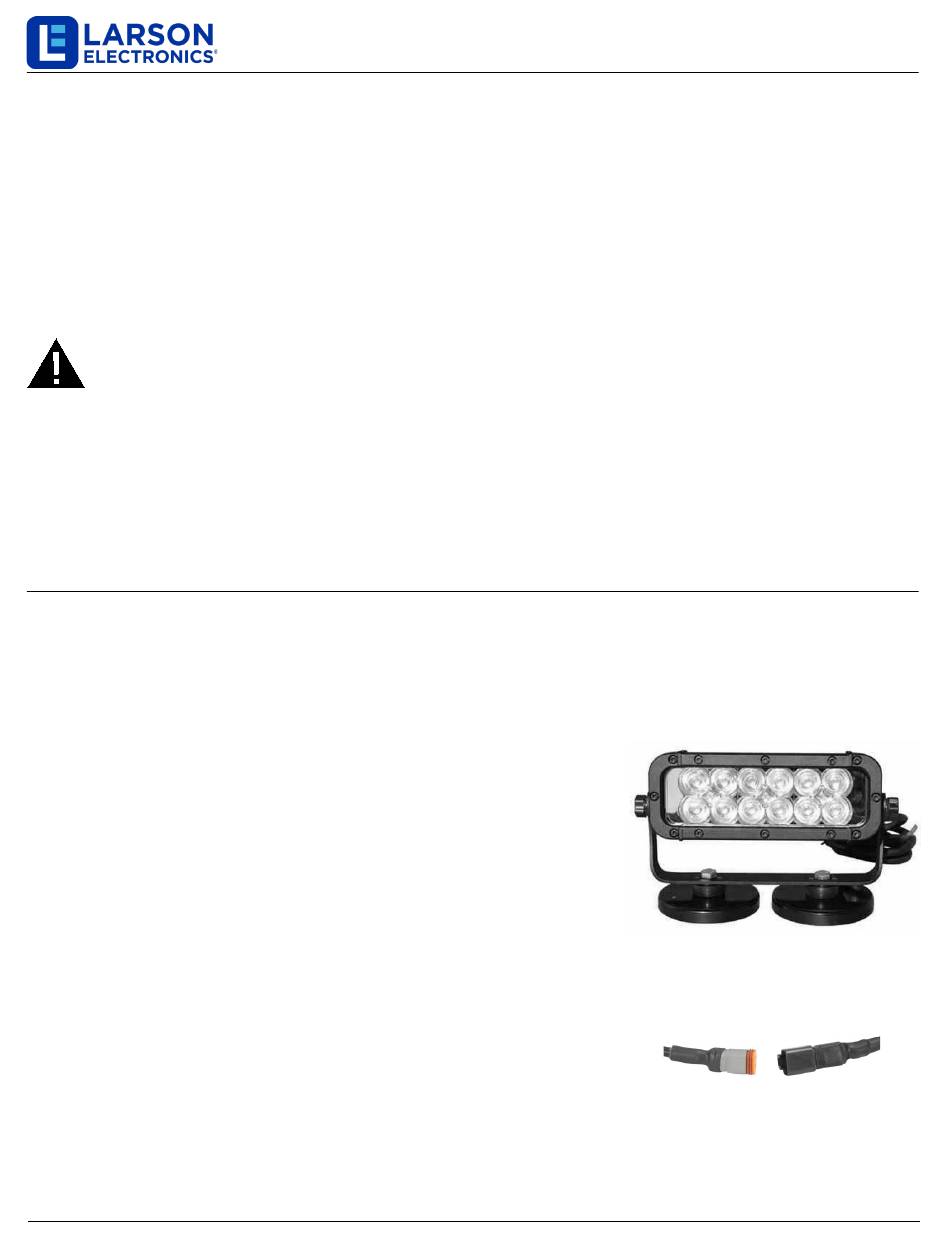

Larson Electronics LEDLB-12ET-IR-M Instruction Manual

Thank you for your purchase of the Larson Electronics LEDLB-12ET-IR-M Infrared Led Light Bar.

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. THE LEDLB-12ET-IR-M MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE
AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS
PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,
CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.
WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE
INSTALLATION OR PERFORMING ANY MAINTENANCE.
RISK OF FIRE/ELECTRIC SHOCK –
RISK OF PERSONAL INJURY –
RISK OF BURN –
ALLOW FIXTURE TO COOL BEFORE SERVICING.
PEOPLE WITH
•
USE. ELECTROMAGNETIC FIELDS IN CLOSE PROXIMITY TO HEART PACEMAKER
COULD CAUSE PACEMAKER INTERFERENCE OR PACEMAKER FAILURE.
• KEEP FINGERS AWAY FROM MAGNET WHEN MOUNTING AS INJURY COULD OCCUR.
INFRARED LIGHT MAY CAUSE DAMAGE TO EYES IN VERY INTENSE CONCENTRATIONS.
•
RISK OF EYE DAMAGE AT SHORT DISTANCES. TURN LIGHT SOURCE OFF BEFORE SERVICING.
•

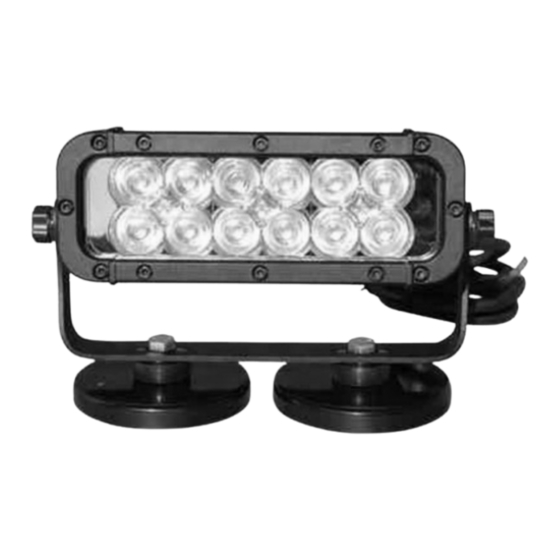

The Larson Electronics LEDLB-12ET-IR-M LED Light Bar offers high light output and extreme durability combined with a
versatile magnetic trunnion mounting system that provides convenience and 270 degrees of adjustability. This IP68 rated
infrared LED light bar is waterproof to three meters and produces a 3,600mW infrared light beam that can only be seen
through the use of night vision goggles. 850Nm versions have a very slight red glow around the LED emitters when
viewed from a certain angle while 940Nm versions are completely invisible to the naked eye. This light can run on any
voltage from 9 to 42 Volts DC and provides an extremely rugged infrared lighting solution that is ideal for use in
commercial and industrial security applications as well as military environments.

MOUNTING

Mounting of this light bar is achieved via magnetic mounting bracket attached at
the sides of the light. Simply stick the light to any clean, flat magnetic surface
capable of supporting the weight of the fixture. Once mounted, angle of the light
can be adjusted by loosening the two screws on either side of the fixture, tilting
the light into desired position, then tightening the screws again to hold it in place.

POWER

WARNING: Check product label for correct voltage rating!
Power to the light is connected via 16' coiled cord with cigarette plug, which is attached to the light via 2-pin quick
disconnect Deutsch connector on the back of the fixture. Simply mate the coiled cord with the light, then plug the cigarette
plug into a compatible outlet outputting the correct voltage.
Larson Electronics, LLC
Infrared LED Light Bar With Magnetic Base
Trunnion Bracket - Extreme Environment
Instruction Manual
DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.
FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.
PACEMAKERS SHOULD
Phone: (877) 348-9680
CONSULT THEIR PHYSICIAN(S)
Fax: (903) 498-3364
LEDLB-12ET-IR-M
BEFORE
QUICK DISCONNECT
DEUTSCH CONNECTOR
www.larsonelectronics.com
1 of 2
