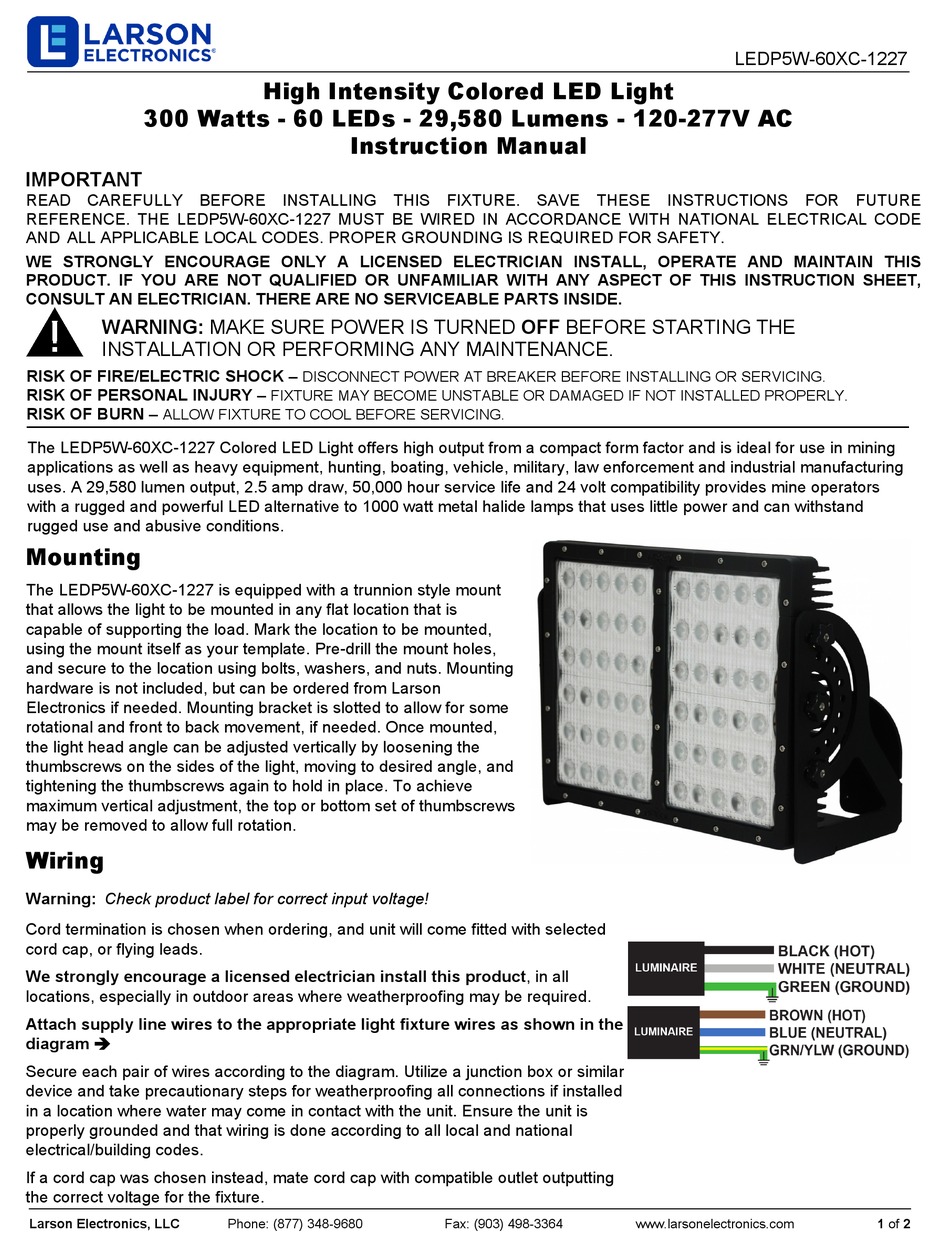

300 Watts - 60 LEDs - 29,580 Lumens - 120-277V AC
IMPORTANT
READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. THE LEDP5W-60XC-1227 MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE
AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS
PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,
CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.
WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE
INSTALLATION OR PERFORMING ANY MAINTENANCE.
RISK OF FIRE/ELECTRIC SHOCK –
RISK OF PERSONAL INJURY –
RISK OF BURN –
ALLOW FIXTURE TO COOL BEFORE SERVICING.

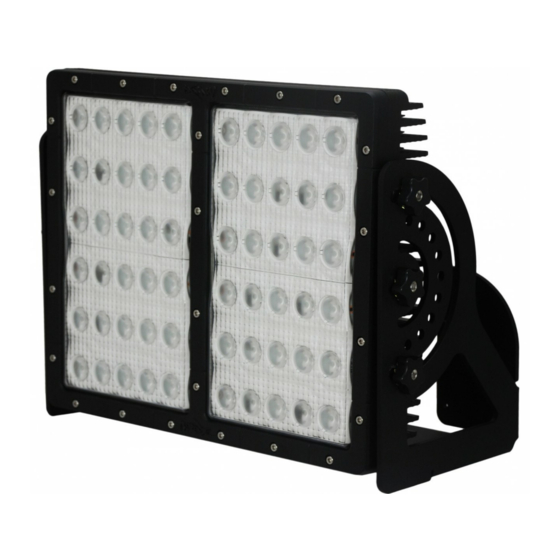

The LEDP5W-60XC-1227 Colored LED Light offers high output from a compact form factor and is ideal for use in mining
applications as well as heavy equipment, hunting, boating, vehicle, military, law enforcement and industrial manufacturing
uses. A 29,580 lumen output, 2.5 amp draw, 50,000 hour service life and 24 volt compatibility provides mine operators
with a rugged and powerful LED alternative to 1000 watt metal halide lamps that uses little power and can withstand
rugged use and abusive conditions.

Mounting

The LEDP5W-60XC-1227 is equipped with a trunnion style mount
that allows the light to be mounted in any flat location that is
capable of supporting the load. Mark the location to be mounted,
using the mount itself as your template. Pre-drill the mount holes,
and secure to the location using bolts, washers, and nuts. Mounting
hardware is not included, but can be ordered from Larson
Electronics if needed. Mounting bracket is slotted to allow for some
rotational and front to back movement, if needed. Once mounted,
the light head angle can be adjusted vertically by loosening the
thumbscrews on the sides of the light, moving to desired angle, and
tightening the thumbscrews again to hold in place. To achieve
maximum vertical adjustment, the top or bottom set of thumbscrews
may be removed to allow full rotation.

Wiring

Warning: Check product label for correct input voltage!
Cord termination is chosen when ordering, and unit will come fitted with selected
cord cap, or flying leads.
We strongly encourage a licensed electrician install this product, in all
locations, especially in outdoor areas where weatherproofing may be required.
Attach supply line wires to the appropriate light fixture wires as shown in the
diagram 
Secure each pair of wires according to the diagram. Utilize a junction box or similar
device and take precautionary steps for weatherproofing all connections if installed
in a location where water may come in contact with the unit. Ensure the unit is
properly grounded and that wiring is done according to all local and national
electrical/building codes.
If a cord cap was chosen instead, mate cord cap with compatible outlet outputting
the correct voltage for the fixture.
Larson Electronics, LLC
High Intensity Colored LED Light
Instruction Manual
DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.
FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.
Phone: (877) 348-9680
Fax: (903) 498-3364
LEDP5W-60XC-1227
www.larsonelectronics.com
1 of 2
