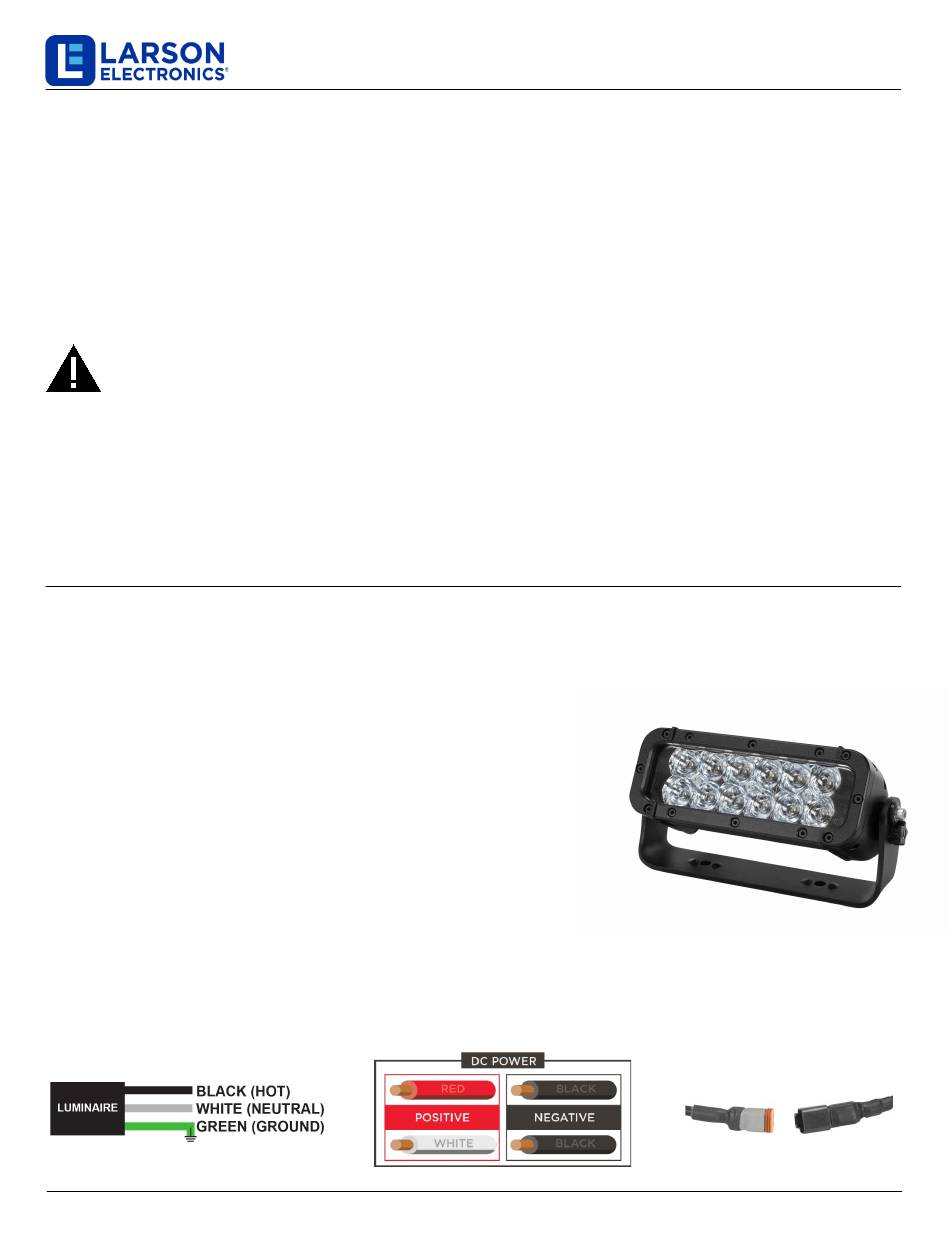

Larson Electronics LEDLB-8ET-IR Instruction Manual

Infrared LED Light Emitter on Trunnion Mount
Extreme Environment - (8) 3-Watt LEDs - 1440 Lumens
Thank you for your purchase of the Larson Electronics LEDLB-8ET-IR Infrared Led Light Bar.
IMPORTANT
READ CAREFULLY
FUTURE REFERENCE.
ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS
PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,
CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.
WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE
INSTALLATION OR PERFORMING ANY MAINTENANCE.
RISK OF FIRE/ELECTRIC SHOCK –
RISK OF PERSONAL INJURY –
RISK OF BURN –
ALLOW FIXTURE TO COOL BEFORE SERVICING.
PEOPLE WITH PACEMAKERS
•
USE. ELECTROMAGNETIC FIELDS IN CLOSE PROXIMITY TO HEART PACEMAKER
COULD CAUSE PACEMAKER INTERFERENCE OR PACEMAKER FAILURE.
KEEP FINGERS AWAY FROM MAGNET WHEN MOUNTING AS INJURY COULD OCCUR.
•
INFRARED LIGHT MAY CAUSE DAMAGE TO EYES IN VERY INTENSE CONCENTRATIONS.
•
RISK OF EYE DAMAGE AT SHORT DISTANCES. TURN LIGHT SOURCE OFF BEFORE SERVICING.
•
The LEDLB-8ET-IR from Larson Electronics is an Infrared LED Light Bar that offers high light output and extreme
durability combined with a versatile trunnion handle in order to hold up to desired areas for therapy. This IP67 rated
infrared LED light bar produces an infrared light beam in several different nanometer ranges. The 850Nm versions have
a very slight red glow around the LEDs when viewed from a certain angle while higher NM units cannot be viewed with
the human eye.
MOUNTING
Mounting of this light bar is achieved via trunnion mounting bracket attached at
the sides of the light. Secure the trunnion mounting bracket to the mounting
surface using heavy duty mounting screws and washers through the pre-drilled
mount holes in the trunnion. Once mounted, angle of the light can be adjusted
by loosening the two screws on either side of the fixture, tilting the light into
desired position, then tightening the screws again to hold it in place.
POWER
WARNING: Check product label for correct voltage rating!
Power to the light is connected via 2-pin quick disconnect Deutsch connector on the back of the fixture. Simply mate the
power cord with the light, then connect to a compatible outlet or power source outputting the correct voltage for the light,
as identified on the product label. Larson Electronics offers high and low voltage models, as well as many different
power cord options for purchase, such as cigarette plug, battery ring terminals, cord cap, or flying leads.
Larson Electronics, LLC
Instruction Manual
BEFORE INSTALLING
THE LEDLB-8ET-IR
DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.
FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.
SHOULD
Phone: (877) 348-9680
THIS FIXTURE. SAVE
MUST BE WIRED IN
CONSULT THEIR
Fax: (903) 498-3364
LEDLB-8ET-IR
THESE INSTRUCTIONS
ACCORDANCE WITH
PHYSICIAN(S) BEFORE
QUICK DISCONNECT
DEUTSCH CONNECTOR
www.larsonelectronics.com
FOR
NATIONAL
1 of 2
