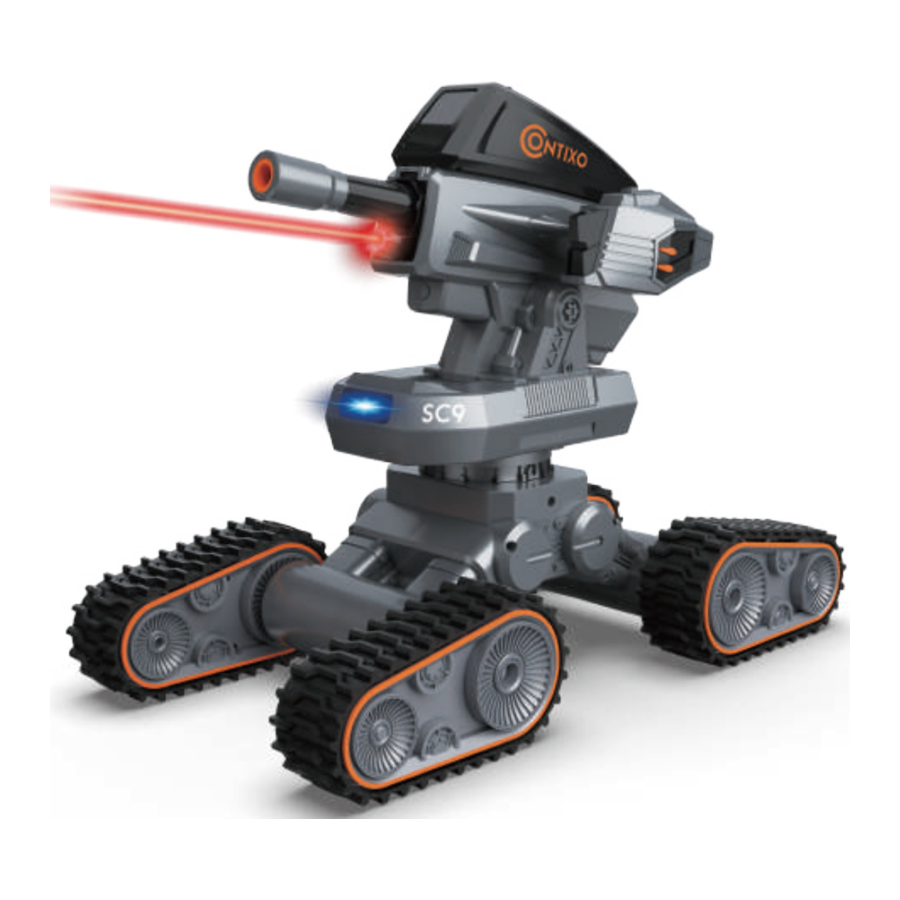

Contixo SC9 Manual

Table of Contents

Contents

1 Important
2 Warnings & Cautions
3 Precautions for Battery Use
4 Remote Control Functions
5 Commander Diagram
6 Water Gel Ball formation process
7 Battery Installation
8 Remote Control Connection
9 Charge
10 Packing Details
11 Specifications
12 Trouble Shooting
13 CONTACT INFORMATION
14 Documents / Resources
- 14.1 References
- 14.2 Download manual

Contixo SC9 Manual

Important

Please read all instructions and warnings carefully before operating, and keep this instruction manual for future reference and maintenance. In the event that the product is faulty. Please reach out to our technical support team. All of our products have a 1-year limited warranty: https://contixo.com/pages/warranty
Likewise, should the product malfunction, or become damaged and need maintenance, reach out to our customer service team at: Support@contixo.com

Warnings & Cautions

Detachable small parts should be stored safely and out of reach of children.
Transmitter will not function correctly if the batteries are low. Please replace the batteries.
Please discard old/used batteries in a safe manner. Consider your environment!
Please store the remote control model in cool, dry place.
DO NOT expose to fire or high temperatures, do not store in moist area.
Once the battery gets wet, wipe immediately with a soft dry cloth.
If the battery has any deformation, please stop using.

Precautions for Battery Use

Transmitter uses 2xI.5V "AA" batteries.
Please pay attention to correct polarity when replacing batteries.
Rechargeable batteries should be charged under adult supervision
Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries
After the battery is exhausted, the batteries should be removed.
Exhausted batteries should be safely disposed of.
DO NOT short circuit any terminals
DO NOT attempt to recharge non rechargeable batteries
DO NOT put batteries into a fire or into water.
The rated input voltage battery charger MUST be suitable for your main power voltage.
During charging it is quite normal for the charger and batteries to heat up.
Do not swallow battery!
Store only in cool, dry and dark places and should be keep out of reach from children!
If the battery leaks liquid and gets into your eyes, please rinse with water right away and consult an ophthalmologist

Product should only be used by individuals 14 years and older. Adult supervision required for children under 14 years old.

CHARGING OF THE CAR BATTERY MUST BE SUPERVISED AT ALL TIMES BY AN ADULT. UNPLUG THE BATTERY WHEN FULLY CHARGED. DO NOT OVER-CHARGE THE BATTERY.

Remote Control Functions

Commander Diagram

Water Gel Ball formation process

The gel balls needs to be soaked in water for 4 hours for perfect results. If the pressure seems weak or the gel balls are not soft enough, it's likely an issue with the soaking time of the gel balls and not an issue with the vehicle. The gel balls must soak for 4 hours before use.

warning Note: We suggest to soak the gel balls in warm water, do not mix with other brands to use. The gel balls should be completely immersed in water.
Water Gel Ball formation process

Battery Installation

SC9 Battery Installation

Use a screwdriver to remove the battery cover from the bottom of the product
Attach the battery to the connector.
Replace the battery cover and screw back into place.

warning Note: When removing the battery to charge, take care to unclasp the connector before separating
Battery Installation

Remote Control Battery Installation

Use a screwdriver to remove the battery cover.
Insert 2 AA batteries (not included) according to the indicated positive and negative direction.
Replace the battery cover and screw back into place.

Remote Control Connection

Turn on the power switch on the remte control, the signal indicator light of remote control flashes
Power on the commander by switching the power button on the bottom of the turret.

Charge

Remove the battery from the car battery compartment. Connect the USB charging cable to the corresponding socket. The light turns on when charging and turns off when it is fully charged.
Charge

Packing Details

Commander Gel Blaster x 1

Remote Control x 1

Gel Balls x 3000

Charging Cable x 1

Manual x 1

Specifications

Model: SC9
Control Frequency: 2.4GHz
Remote Control Battery: 2 x AA
Battery: 3.7\/ 1200mAh
Playing Time: Up to 20 minutes
Charging Time: About 2 hours
Size: 13 x 7.5 x 10.6 Inch
Control Range: Up to 100 Ft.

Trouble Shooting

Problem	Cause	Solution
Car does not respond to user controls.	Remote is not synced to the car Insufficient battery power. Over control range.	Reconnect the remote to the car. Recharge the battery. Use within the control range, the control range is up to 100ft, this distance will change according to the actual environment.
Can not power on the car.	Insufficient battery power.	Recharge the battery.
Can not launch gel balls.	Gel balls are not sufficiently soaked. Clogged launch ports.	The gel balls must soak for 4 hours before use. During the soaking process, it needs to be completely immersed in water. Swing the gel balls away by adjusting the angle of the turret or manually shaking the turret.
