Contixo Speed Crawler SC1 Manual

Also See for Speed Crawler SC1:

User manual (9 pages)

Table of Contents

Contents

1 Powering it On
2 SC1 Wrist Remote
3 SC1 Remote Control
4 Battery Installation
- 4.1 SC1 Battery Installation
- 4.2 Remote Battery Installation
5 Fill Up The Smoke Chamber
6 Battery Warnings
7 Battery Charging
8 Charging Time
9 CONTACT INFORMATION
10 Documents / Resources
- 10.1 References
- 10.2 Download manual

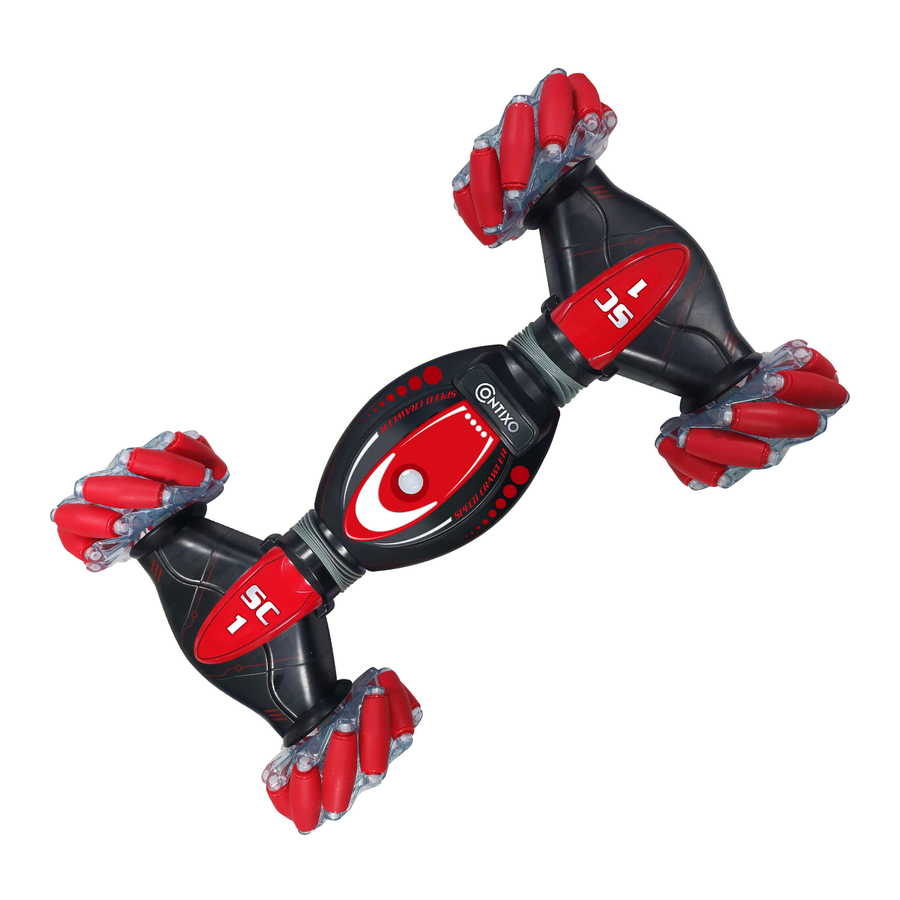

Contixo Speed Crawler SC1 Manual

Powering it On

PLEASE READ THIS MANUAL BEFORE USING.
PLEASE RETAIN THIS INFORMATION FOR FUTURE REFERENCE

How to turn on the SC1

Powering it On
*product colors may vary

SC1 Wrist Remote

How to use

Put it on
Put your thumb through the rubber loop and strap it around your palm.
Attach the mode-switch button around your index finger so that your thumb can press it easily.

Boot
Long Press Power Button to turn on.

	3 LED's blinking 3 times fast indicate the remote is booted
	Remote is looking for SC1
	Remote is connected, and in Mode 1

Mode 1: Default mode when device is turned

Move SC1 forward, back, left, and right

Car leans and lurches left/right

Mode 2: Alternate Controls

Move SC1 forward/back

Rotate SC1 left/right

SC1 leaning left and right

Mode 3: Music Player

Tilt Forward: Next song
Tilt Back: Previous song
Tilt Forward/Back and Hold 3 seconds: Spray On/Off

Tilt Left: Volume down
Tilt Right: Volume up

Click once to switch to Mode 2
Double click to switch to Mode 3

Toggle between Stealth Formation and Truck Formation in Mode 1 and Mode 2

SC1 Remote Control

How to use

Remote Control - How to use

Before switching to a new remote control, you need to turn off the previously connected remote control.

Battery Installation

SC1 Battery Installation

Use a small phillips head screwdriver to remove the battery cover.
Attach the battery to the connector.
Replace the battery cover and screw back into place

*When removing the battery to charge, take care to unclasp the connector before pulling it off.

Remote Battery Installation

Use a small phillips head screwdriver to remove the battery cover.
Place two AA's with the corresponding polarities as labeled on the unit.
Replace the battery cover and screw back into place.

The battery of the remote control watch does not need to be installed. Connect the charging cable to the charging port for charging.
Remote Battery Installation - Step 3

Fill Up The Smoke Chamber

Open the stopper at the front of the car and pour water with the bottle included in the package.
Fill Up The Smoke Chamber

Battery Warnings

There is a certain risk of using lithium batteries, which may cause significant damage to people and property. The end user must use it carefully and bear all the related responsibilities.
If the battery leaks, avoid contact with skin and eyes. If contact with skin occurs, wash with soap and water immediately. If contact with eyes occurs, rinse immediately with cold water for at least 15 minutes, and seek medical attention.
If the charger begins to emit a suspicious odor, noise, or smoke, unplug the power supply immediately.

Battery Charging

The light turns on when charging and turns off when it is fully charged.
Use only the original factory cable. Do not use damaged or cable of other brands.
Do not charge expanded, leaked, or damaged batteries.
Do not overcharge the battery. When the battery is fully charged, unplug the device.
Do not charge near inflammable materials (eg. carpets, wood flooring, solid wood furniture, etc.).
Do not charge the battery immediately after it has become hot.
The charging temperature of the battery should be between 0-40°C (32-104°F).
Recommend using a 5V 1A charger (Not included) for charging
