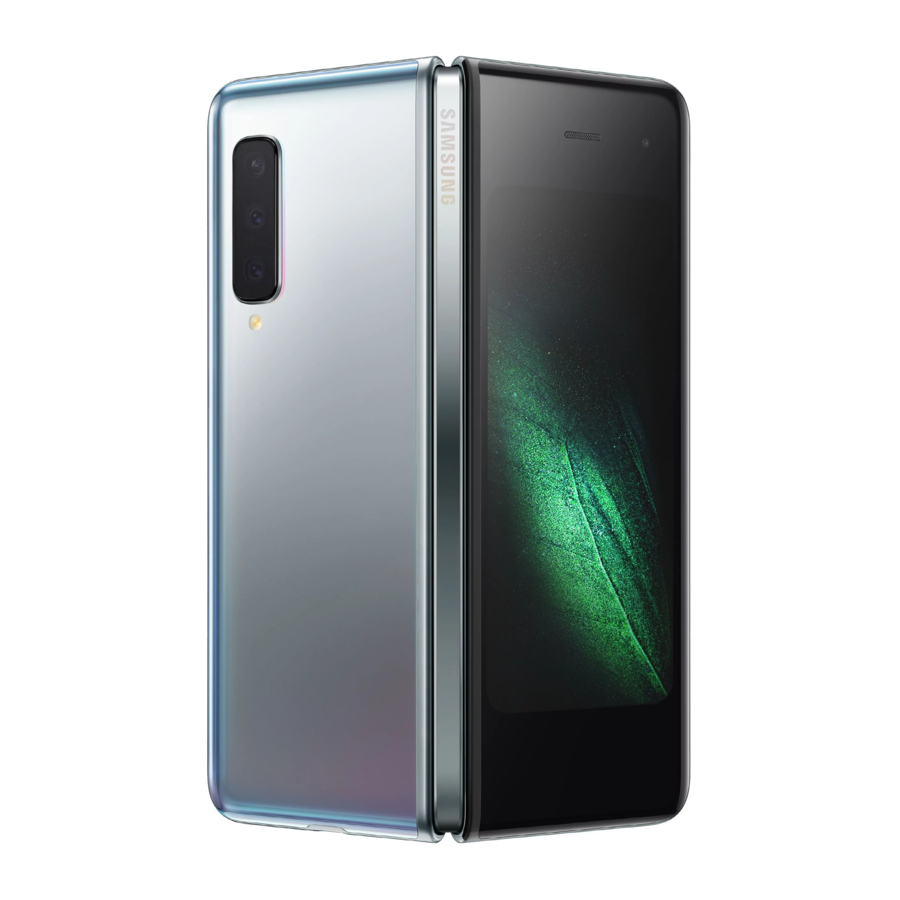

Samsung Galaxy Fold Manual

About your phone

Do not attach any adhesives such as films or stickers to the main screen or remove the top protective layer.
About your phone - Part 1

Do not press the screen with a hard or sharp object, such as a pen or fingernail, or apply excessive pressure. When folding the device, do not place any objects, such as cards, coins, or keys, on the screen.

About your phone - Part 2

Set up your phone

Remove SIM card tray
Use the tool to open the SIM card tray.

Insert SIM card
Place the SIM card into the tray with the gold contacts facing down.

Smart Switch
Get help transferring contacts, photos and other content from your old phone at samsung.com/smartswitch

Galaxy Buds

Pair Samsung Galaxy Buds with your Galaxy Fold and go. With sound by AKG, Samsung Galaxy Buds provide a balanced and natural sound with superb dynamic range. Connect your buds using the Galaxy Wearable app
Once connected, use the app to view connection status, battery percentages, manage notifications, and customize various settings.

Connect to your Samsung device
Open the charging case to enter Bluetooth ® pairing mode. When prompted by the app, tap Connect and follow the prompts to complete pairing.

Once connected:

Tap an earbud to view TIPS
Tap to turn the EQUALIZER On/Off

Charge your buds

Insert the buds into the charging case and close.
Charge your buds

The buds and the charging case are charged simultaneously.

You can also charge the buds and charging case using a wireless charger.

Single Tap
Music
Play/Pause

Double Tap
Music
Next song

Calls
Answer / End a call Switch between calls

Triple Tap
Music
Previous song

Touch & Hold
Digital assistant
Launch Bixby or Google

Calls
Reject a call
Mute/Unmute
End a call
Return to call waiting

Gestures

Customize the Home, Back and Recents keys or remove them and use gestures instead.

From Settings, tap Display> Navigation bar.
Tap one of the following Navigation types:

Navigation buttons (default)
Full screen gestures
Button order
Gesture hints (Displays only when full screen gestures is selected)
Position (Displays only when the device is open and Navigation buttons is selected)

App continuity

Do more with App continuity. The app experience continues from the front screen to the large immersive display.

Multi-tasking

Do more at once. Run up to three apps at the same time in the split screen view. You can also run multiple apps at the same time in the Pop-up view.

From the right edge of the display, swipe left and select an app.

information Note: Repeat this step to launch the second app.
Multi-tasking - Part 1
Multi-tasking - Part 2

Additional options
Tap at the top of the window to access additional options.

information Note: Some options only display in Pop-up view.

Adjust the window size
Drag the circle between the app windows to the left or right to adjust the size of the windows.

Reposition the window
You can change the location of windows. Tap and hold at the top of the window. When the window's app icon appears, drag the window to the new location.

This device is not water or dust resistant. Do not expose to liquids or small particles.

Your device contains magnets. Keep a safe distance between your device and objects that may be affected by magnets, such as credit cards and implantable medical devices. If you have an implantable medical device, consult your physician before use.

¹ Wireless voice, data and messaging services compatible with most major U.S. GSM and CDMA networks. Visit www.samsung.com for more information on your device. Support for certain features and services such as VoWiFi and hotspot, vary by wireless service provider. See provider for compatibility details.

Wireless PowerShare

Wirelessly charge compatible devices right from your phone

Drag the Status bar down to display the Notification panel.
Touch and drag to access all Quick Settings options.
Tap Wireless PowerShare .
With the phone face down, place the device on the back of the phone to charge.

information Note: Wireless PowerShare works with most Qi-Certified devices. Requires minimum 30% battery to share. Speed and power efficiency of charge varies by device. May not work with some accessories, covers, or other manufacturer's devices. If you have trouble connecting or charging is slow, remove any cover from each device. May affect call reception or data services, depending on your network environment.
