Samsung Galaxy S24 Ultra Manual
![]()
Back Cover Disassembly
When repairing devices, you absolutely must wear protective equipment for your safety.
Tool & Part Code | Image | Description |
Safety Goggles | ![]() | Prevents accidents during repair (protective equipment) |
Safety Gloves (ESD safe, cut-resistant) | ![]() | Prevents accidents during repair (protective equipment) |
Safety Mask | ![]() | Prevents accidents during repair (protective equipment) |
Anti-static Wrist Strap | ![]() | Prevents electrostatic damage (recommended) |
ESD Safe Mat | ![]() | Prevents electrostatic damage (recommended) |
Ejection Pin | ![]() | Pin for ejecting the SIM card tray |
Cross-head Screwdriver | ![]() | Tool for screwing in cross-head screws |
Opening Pick | ![]() | Tool for disassembling the Back Cover and other parts |
Suction Cup | ![]() | Tool for disassembling the Back Cover and other parts For separable handle suction cups, be careful not to injure yourself as the handle can be separted during use. |
Heating Pack | ![]() | Tool for disassembling the back cover and other parts |
Acrylic Protective Cover for Broken Glass | ![]() | Prevents injuries and scattering caused by broken glass |
Preparing for Disassembly
Before disassembling:
- Unplug and turn off the device before disassembling.
- Remove the SIM Card Tray and S Pen from the device before disassembling.
- Wear an Anti-Static Wrist Strap and connect it to the grounded ESD Safe Mat before beginning.
- The product's composition may vary depending on the country, region, or carrier. The device example provided in this Guide is the Galaxy S24 Ultra; actual device disassembly may vary from one model to another.
For all cases of broken glass:
- Wear Safety Goggles and Cut-Resistant Gloves.

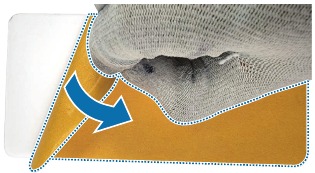

- Remove the release film of the Acrylic Protective Cover.

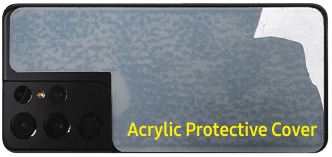

- To prevent injuries and scattering caused by broken glass, attach an Acrylic Protective Cover.
If your device's Back Glass breaks, be careful not to injure your hands or other body parts on debris.
- Press the Acrylic Protective Cover with strong force so that it is strongly attached to the Back Glass.
Wait more than 5 minutes until the bond between the Acrylic Protective Cover and the Back Glass is strengthened.
- Follow the disassembly steps in this guide.
Back Cover Removal With Heating Pack
When removing the Back Cover, ensure that the device is fixed on a flat surface.

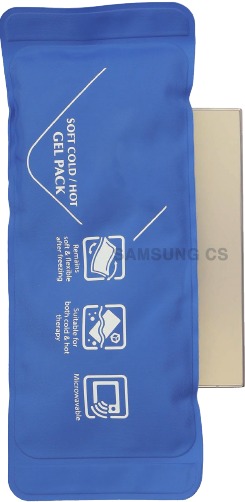

- Heat the microwaveable Heating Pack and apply it on the left edge of the Back Cover for 3 minutes.
![warning]()
- It is possible for the device or Battery to be damaged by heat.
- Do not heat the device in a microwave. Doing so could cause an explosion.
- If your device's Back Glass breaks, the debris can cause injury to your hands or other body parts. For your safety, attach an Acrylic Protective Cover before disassembling the device any time the Back Glass is broken.
![caution]()
- Follow the Heating Pack's instructions for heating. The recommended time for heating the bag is 50 seconds in a 1000W microwave and 70 seconds in a 700W microwave. (Correct temperature for use: 55-65 ℃.) Make sure to check the microwave wattage before heating the Heating Pack.
- Be careful not to damage the device with excessive heat. (It is recommended to disassemble the device in an area with a temperature gauge.)

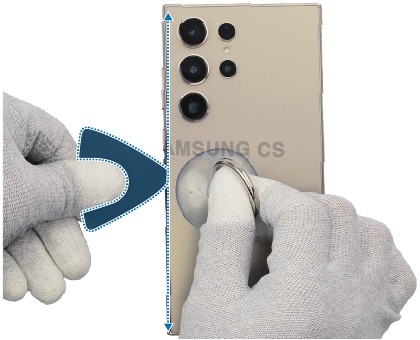

- Place the Suction Cup in the center of the left edge of the Back Cover, and lift upwards while separating it with the Opening Pick.
For separable handle Suction Cups, be careful not to injure yourself as the handle can be separated during use.
![caution]()
- As the Back Cover can be damaged by excessive force, be careful not to damage the Back Cover.
- Be careful that the Suction Cup does not adhere to the area where the tape or sticker is attached.
- As the internal circuitry can be damaged, do not insert the Opening Pick more than 3mm into the device.
If you have trouble creating a gap, heat the microwaveable Heating Pack again, and reapply it to the Back Cover to further soften the adhesive. When reheating, it should be heated no more than 30 seconds.
- Slide the Opening Pick along the left edge to slice the adhesive.
Leave the Opening Pick in the left edge side to prevent the adhesive from resealing.
- As the Back Cover can be damaged by excessive force, be careful not to damage the Back Cover.
- As the internal circuitry can be damaged, do not insert the Opening Pick more than 3 mm into the device.

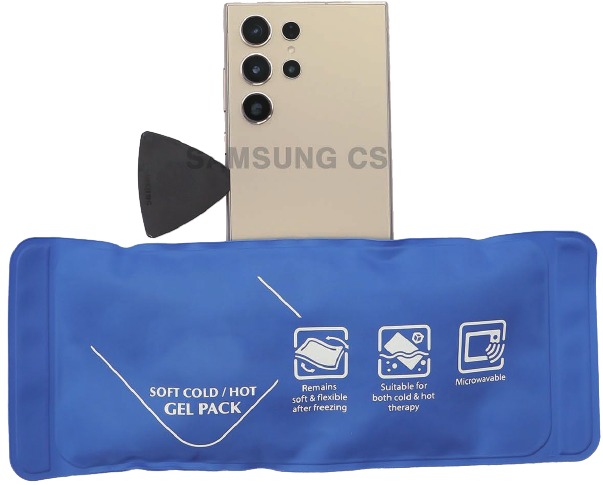

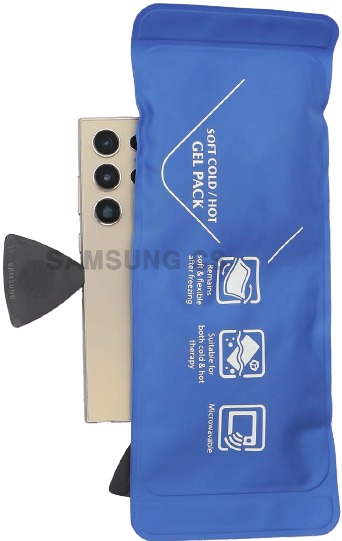

- Heat the microwaveable Heating Pack again and apply it to the bottom edge of the Back Cover for 3 minutes.
![Samsung - Galaxy S24 Ultra - Back Cover Removal With Heating Pack - Step 2 Back Cover Removal With Heating Pack - Step 2]()

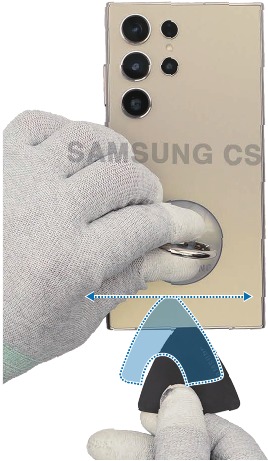

- Place the Suction Cup in the center of the bottom edge of the Back Cover, and lift upwards while separating it with the Opening Pick.
![caution]()
- As the Back Cover can be damaged by excessive force, be careful not to damage the Back Cover.
- As the internal circuitry can be damaged, do not insert the Opening Pick more than 3mm into the device.
If you have trouble creating a gap, heat the microwaveable Heating Pack again, and reapply it to the Back Cover to further soften the adhesive. When reheating, it should be heated no longer than 30 seconds.

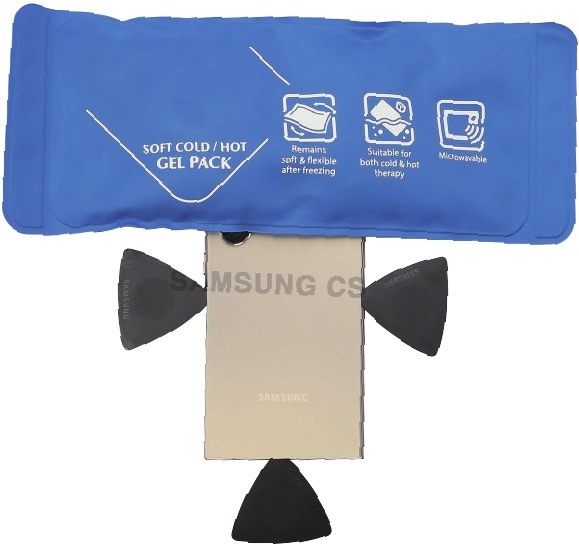

- Place the Opening Pick in the gap between the Back Cover and the screen module and increase the gap by pressing up/down/left/right on the bottom sides. Leave the Opening Pick in the bottom edge to prevent the adhesive from resealing.
![caution]()
- As the Back Cover can be damaged by excessive force, be careful not to damage the Back Cover.
- As the internal circuitry can be damaged, do not insert the Opening Pick more than 3mm into the device.

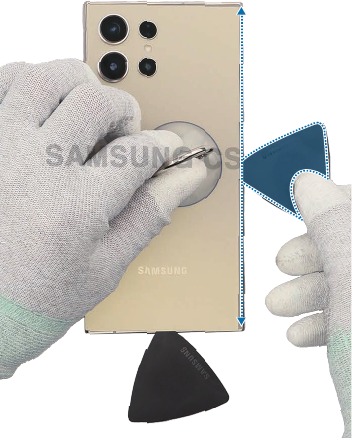

- Heat the microwaveable Heating Pack again and apply it to the right edge of the Back Cover for 3 minutes.
- Place the Suction Cup in the center of the right edge of the Back Cover.
- Pull up on the Suction Cup with strong, steady force to create a gap between the Back Cover and the Frame. Slide the Opening Pick back and forth along the right edge to slice through the adhesive.
Leave the Opening Pick inserted in the right edge to prevent the adhesive from resealing.
![caution]()
- As the Back Cover can be damaged by excessive force, be careful not to damage the Back Cover.
- As the internal circuitry can be damaged, do not insert the opening pick more than 3mm into the device.
If you have trouble creating a gap, heat the microwaveable Heating Pack again, and reapply it to the Back Cover to further soften the adhesive. When reheating, it should be heated no longer than 30 seconds.

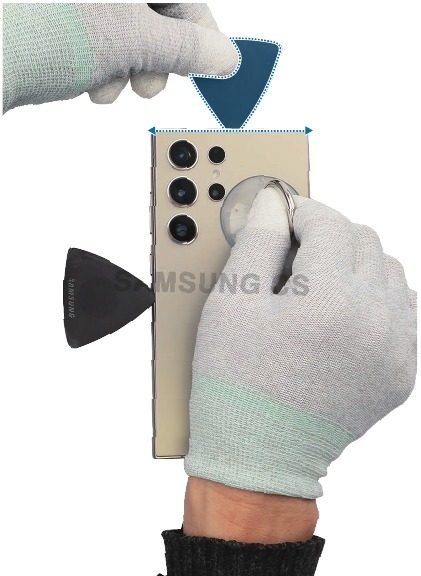

- Heat the microwaveable Heating Pack again and apply it to the top edge of the Back Cover for 3 minutes.
- Place the Suction Cup in the center of the top edge of the Back Cover, lift upwards, and then insert the Opening Pick in the gap at the top right edge.
![caution]()
- As the Back Cover can be damaged by excessive force, be careful not to damage the Back Cover.
- As the internal circuitry can be damaged, do not insert the Opening Pick more than 3mm into the device.
If you have trouble creating a gap, heat the microwaveable Heating Pack again, and reapply it to the Back Cover to further soften the adhesive. When reheating, it should be heated no longer than 30 seconds.
- Slide the Opening Pick back and forth along the top edge to slice through the adhesive.
![caution]()
- As the Back Cover can be damaged by excessive force, be careful not to damage the Back Cover.
- As the internal circuitry can be damaged, do not insert the Opening Pick more than 3mm into the device.

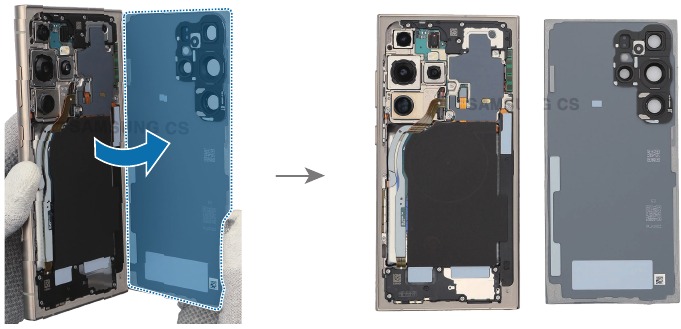

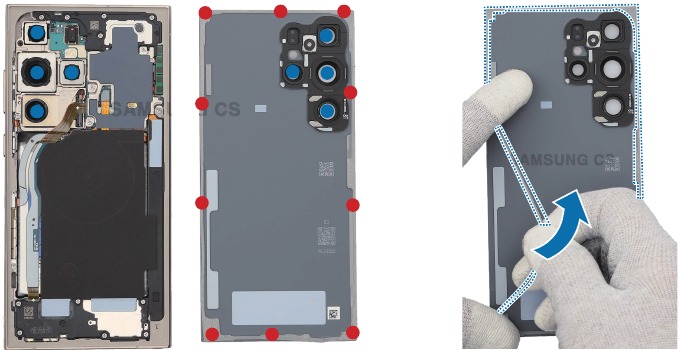

- Lift up the Back Cover slowly and remove it gently.
- Remove all adhesive tapes on both the Back Cover and rear of device (
).
![caution]()
- Be careful not to put your fingertips or any foreign objects on the rear camera or Back Cover lens (
). - Make sure to remove any residual tapes (
) attached to the inside of the Back Cover before reassembling the device. - Be careful not to damage any nearby components.
Apply additional heat with the microwaveable Heating Pack if you are having trouble separating the adhesive.
