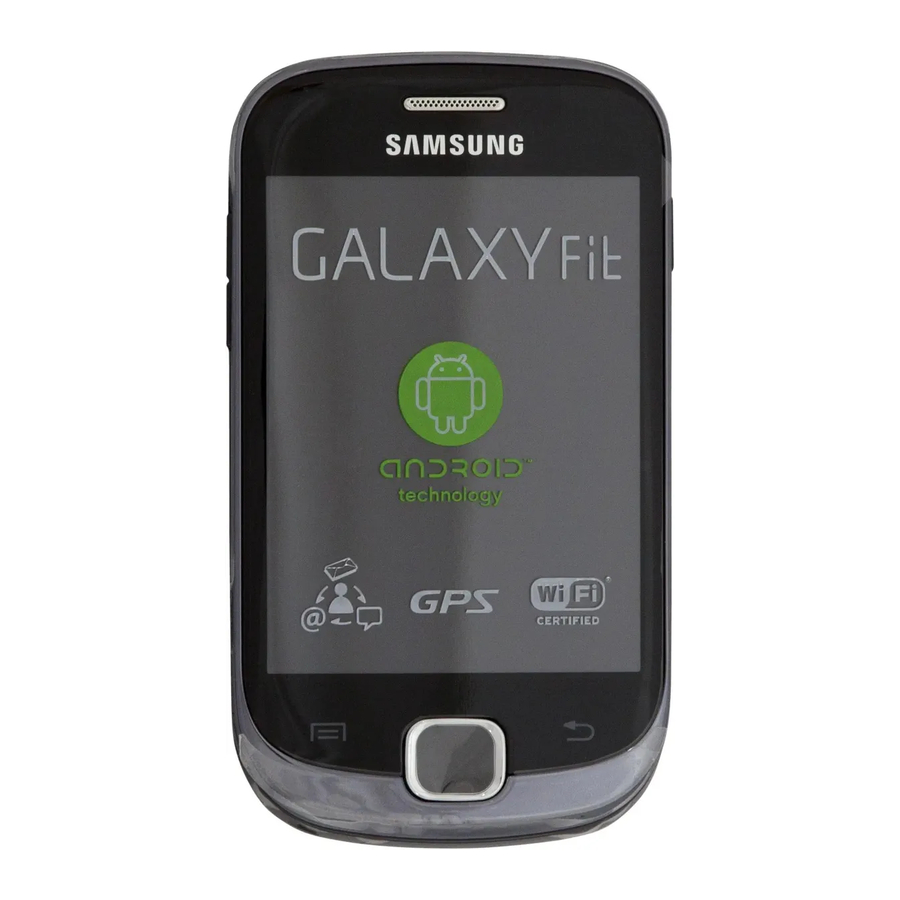

Samsung GALAXY Fit GT-S5670 Manual

Introduction

This device will provide you with high quality mobile communication and entertainment based on Samsung's exceptional technology and high standards.

  • Content in this manual may differ from the product, or from software provided by service providers or carriers, and is subject to change without prior notice.
  • The items supplied with your device and available accessories may vary depending on your region or service provider.
  • You can purchase additional accessories from your local Samsung dealer.
  • The supplied accessories perform best for your device.
  • Accessories other than the supplied ones may not be compatible with your device.

Instructional icons

Before you start, familiarize yourself with the icons you will see in this manual:

situations that could cause injury to yourself or others

situations that could cause damage to your device or other equipment
informationNote—notes, usage tips, or additional information
[ ] Square brackets—device keys

Assembling

Install the SIM or USIM card and battery

  1. Remove the back cover.
    Install the SIM or USIM card and battery - Step 1
  2. Insert the SIM or USIM card with the gold-colored contacts facing down.
    Install the SIM or USIM card and battery - Step 2
  3. Insert the battery.
    Install the SIM or USIM card and battery - Step 3
  4. Replace the back cover.
    Install the SIM or USIM card and battery - Step 4

Charge the battery
Before using the device for the first time, you must charge the battery.

Use only Samsung-approved chargers and cables. Unauthorized chargers or cables can cause batteries to explode or damage your device.

  1. Open the cover of the multifunction jack.
  2. Plug the small end of the travel adapter into the multifunction jack.

    Connecting the travel adapter improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.
    Charge the battery
  3. Plug the large end of the travel adapter into a power outlet.
    informationWhile the device is charging, the touch screen may not function due to an unstable power supply. If this happens, unplug the travel adapter from the device.
  4. When the battery is fully charged, first unplug the travel adapter from the device and then from the power outlet.

    Do not remove the battery while the device is connected to the travel adapter. Doing so may cause damage to the device.
    informationTo save energy, unplug the travel adapter when not in use. The travel adapter does not have a power switch, so you must unplug the travel adapter from the outlet to interrupt the power supply. The travel adapter should remain close to the socket when in use.

Getting started

Turn your device on and off

To turn on your device, press and hold [ ]. If you turn on your device for the first time, follow the on-screen instructions to set up your device.
To turn off your device, press and hold [] and select Power off.

information

  • Follow all posted warnings and directions from authorized personnel in areas where the use of wireless devices is restricted, such as airplanes and hospitals.
  • To use your device's non-network services only, switch to Flight mode.

Get to know your device
Get to know your device

Keys

Key Function

Power/ Lock
Turn on the device (press and hold); Access the quick menus (press and hold); Lock the touch screen.
Menu
Open a list of options available on the current screen.

Home
Return to the idle screen; Open the list of recent applications (press and hold).

Back
Return to the previous screen.

Volume
Adjust the device's volume.

Touch screen
Your device's touch screen lets you easily select items or perform functions. Control the touch screen by tapping, tapping and holding, or dragging across it.

Idle screen
When the device is in Idle mode, you will see the idle screen. From the idle screen, you can view indicator icons, widgets, shortcuts to applications, and other items.
The idle screen has multiple panels. Scroll left or right to a panel of the idle screen.

Indicator icons
Indicator icons show the signal strength, device status, current time, and other information at the top of the screen.

Widgets
You can use various widgets that provide convenient functions and information on your idle screen. Add a widget to the idle screen or remove the widget to the trash bin.

Shortcuts panel
From the shortcuts panel, you can use shortcut menus and access a list of notifications, such as new messages, upcoming events, and processing status. Tap the indicator icons area at the top of the screen and drag your finger down to open the shortcuts panel. To hide the panel, drag the bottom of the list up.

Access applications

  1. In Idle mode, select to access Menu mode.
  2. Scroll left or right to another menu screen.
    You can also select a dot at the top of the screen to move directly to the corresponding menu screen.
  3. Select an application.
  4. Press [] to return to the previous screen; Press the Home key to return to the idle screen.

Access recent applications
Press and hold the Home key to view the applications you have accessed recently.

Launch multiple applications
Your device allows you to multi-task by running multiple applications at the same time.
To launch multiple applications, press the Home key while using an application to return to Idle mode, and then select an application to launch.

Enter text
You can enter text with the virtual keypads or in handwriting mode. You can also use editing options to copy and paste text.

Swype keypad
With the Swype keypad, you can enter text by sliding across characters on the keypad. Tap the first character of a word, drag to the following characters, and release your finger on the last character.

Samsung keypad
The Samsung keypad provides different keypad types (such as QWERTY and 3x4 keypads) and a handwriting mode.
When entering text with the QWERTY or 3x4 keypads, use the predictive text feature. This feature will predict the word you are entering and display suggestions.
informationWhen entering text, rotate the device to display the QWERTY keypad in a widescreen layout.

DioPen Chinese IME
The DioPen Chinese IME provides different keypad types (such as QWERTY and 3x4 keypads) and a handwriting mode. You can enter text in Chinese with pinyins or strokes.

Make or answer a call
You can make a call by entering a phone number or selecting a number in your contact list. You can also access the call log to redial recently dialed numbers.

Make a call
Open the dialing screen, enter a phone number, and select .

Answer a call
When a call comes in, drag right until it reaches the dot.

Send and receive a message
You can create and send text (SMS), multimedia (MMS), or email messages, and view or manage messages you have sent or received.
informationYou may incur additional charges for sending or receiving messages while outside your home service area. For details, contact your service provider.

Text and multimedia message
You can create and send a simple text message or a multimedia message which can contain text, image, video, and sound files.

Email message
You can use the email application to send email messages on your device. Before you send and receive email messages, you must add an email account.

Connect to the internet
You can connect to the wireless web by using the WLAN feature or mobile network connections. Open the web application and browse web pages. You can bookmark your favorite web pages or use various web options.
informationYou may incur additional charges for accessing the web and downloading media files. For details, contact your service provider.

Safety information

To prevent injury and damage to yourself, to others and to the device, read all of the following information before using your device.

To prevent electric shock, fire, and explosion

Do not use damaged power cords or plugs, or loose electrical sockets
Do not touch your device and the power cord with wet hands
Do not bend or damage the power cord
Do not use your device while charging and do not disconnect the charger by just pulling the cord
Do not short-circuit the charger or the battery
Do not drop or cause an impact to the charger or the battery
Do not charge the battery with chargers that are not approved by the manufacturer
Do not use your device during a thunderstorm

Your device may malfunction and the risk of electric shock is increased.
Do not handle a damaged or leaking Lithium Ion (Li-Ion) battery
For safe disposal of your Li-Ion batteries, contact your nearest authorized service center.

Handle and dispose of batteries and chargers with care

  • Use only Samsung-approved batteries and chargers specifically designed for your device. Incompatible batteries and chargers can cause serious injuries or damage to your device.
  • Never dispose of batteries or devices in a fire. Follow all local regulations when disposing of used batteries or devices.
  • Never place batteries or devices on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.
  • Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating.

Protect the device, batteries, and chargers from damage

  • Avoid exposing your device and batteries to very cold or very hot temperatures.
  • Extreme temperatures can cause the deformation of the device and reduce the charging capacity and life of your device and batteries.
  • Prevent batteries from contacting metal objects, as this can create a connection between the + and – terminals of your batteries and lead to temporary or permanent battery damage.
  • Never use a damaged charger or battery.


Follow all safety warnings and regulations when using your device in restricted areas

Turn off your device where prohibited
Comply with all regulations that restrict the use of a mobile device in a particular area.
Do not use your device near other electronic devices
Most electronic devices use radio frequency signals. Your device may interfere with other electronic devices.
Do not use your device near a pacemaker

  • Avoid using your device within a 15 cm range of a pacemaker if possible, as your device can interfere with the pacemaker.
  • If you must use your device, keep at least 15 cm away from the pacemaker.
  • To minimize the possible interference with a pacemaker, use your device on the opposite side of your body from the pacemaker.

Do not use your device in a hospital or near medical equipment that can be interfered with by radio frequency
If you personally use any medical equipment, contact the manufacturer of the equipment to ensure the safety of your equipment from radio frequency.

If you are using a hearing aid, contact the manufacturer for information about radio interference
Some hearing aids may be interfered with by the radio frequency of your device. Contact the manufacturer to ensure the safety of your hearing aid.

Turn off the device in potentially explosive environments

  • Turn off your device in potentially explosive environments instead of removing the battery.
  • Always comply with regulations, instructions and signs in potentially explosive environments.
  • Do not use your device at refueling points (service stations), near fuels or chemicals, and at blasting areas.
  • Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or accessories.

Turn off your device when in an aircraft
Using your device in an aircraft is illegal. Your device may interfere with the electronic navigation instruments of the aircraft.

Electronic devices in a motor vehicle may malfunction due to the radio frequency of your device
Electronic devices in your car may malfunction due to radio frequency of your device. Contact the manufacturer for more information.

Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicle
While driving, safely operating the vehicle is your first responsibility. Never use your mobile device while driving, if it is prohibited by law. For your safety and the safety of others, practice good common sense and remember the following tips:

  • Use a hands-free device.
  • Get to know your device and its convenience features, such as speed dial and redial. These features help you reduce the time needed to place or receive calls on your mobile device.
  • Place your device within reach. Be able to access your wireless device without removing your eyes from the road. If you receive an incoming call at an inconvenient time, let your voice mail answer it for you.
  • Let the person you are speaking with know you are driving. Suspend calls in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice, and heavy traffic can be hazardous.
  • Do not take notes or look up phone numbers. Jotting down a "to do" list or flipping through your address book takes attention away from your primary responsibility of driving safely.
  • Dial sensibly and assess the traffic. Place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call, dial only a few numbers, check the road and your mirrors, then continue.
  • Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that have the potential to divert your attention from the road.
  • Use your device to call for help. Dial a local emergency number in the case of fire, traffic accident, or medical emergencies.
  • Use your device to help others in emergencies. If you see an auto accident, a crime in progress, or a serious emergency where lives are in danger, call a local emergency number.
  • Call roadside assistance or a special, non-emergency assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or another special, non-emergency number.

Proper care and use of your mobile device
Keep your device dry

  • Humidity and all types of liquids may damage device parts or electronic circuits.
  • When wet, remove the battery without turning on your device. Dry your device with a towel and take it to a service center.
  • Liquids will change the color of the label that indicates water damage inside the device. Water damage to your device can void your manufacturer's warranty.

Do not use or store your device in dusty, dirty areas
Dust can cause your device to malfunction.
Do not store your device on slopes
If your device falls, it can be damaged.
Do not store your device in hot or cold areas. Use your device at -20°C to 50°C

  • Your device may explode if left inside a closed vehicle, as the inside temperature can reach up to 80°C.
  • Do not expose your device to direct sunlight for extended periods of time (such as on the dashboard of a car).
  • Store the battery at 0°C to 40°C.

Do not store your device with such metal objects as coins, keys and necklaces

  • Your device may become deformed or malfunction.
  • If the battery terminals are in contact with metal objects, it may cause a fire.

Do not store your device near magnetic fields

  • Your device may malfunction or the battery may discharge from exposure to magnetic fields.
  • Magnetic stripe cards, including credit cards, phone cards, passbooks, and boarding passes, may be damaged by magnetic fields.
  • Do not use carrying cases or accessories with magnetic closures or allow your device to come in contact with magnetic fields for extended periods of time.

Do not store your device near or in heaters, microwaves, hot cooking equipment, or high pressure containers

  • The battery may leak.
  • Your device may overheat and cause a fire.

Do not drop your device or cause impacts to your device

  • The screen of your device may be damaged.
  • If bent or deformed, your device may be damaged or parts may malfunction.

Do not direct the flash to the eyes of people and pets
Directing a flash to the eyes may cause temporary loss of vision or damage to the eyes.

Ensure maximum battery and charger life

  • Avoid charging batteries for more than a week, as overcharging may shorten battery life.
  • Over time, unused batteries will discharge and must be recharged before use.
  • Disconnect chargers from power sources when not in use.
  • Use batteries only for their intended purposes.

Use manufacturer-approved batteries, chargers, accessories and supplies

  • Using generic batteries or chargers may shorten the life of your device or cause the device to malfunction.
  • Samsung cannot be responsible for the user's safety when using accessories or supplies that are not approved by Samsung.

Do not bite or suck on the device or the battery

  • Doing so may damage the device or cause explosion.
  • If children use the device, make sure that they use the device properly.

When speaking on the device:

  • Hold the device upright, as you would with a traditional phone.
  • Speak directly into the mouthpiece.
  • Avoid contact with your device's internal antenna. Touching the antenna may reduce the call quality or cause the device to transmit more radio frequency than necessary.
  • Hold the device with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks.

Protect your hearing

  • Excessive exposure to loud sounds can cause hearing damage.
  • Exposure to loud sounds while driving may distract your attention and cause an accident.
  • Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music.

Use caution when using the device while walking or moving
Always be aware of your surroundings to avoid injury to yourself or others.

Do not carry your device in your back pockets or around your waist
You can be injured or damage the device if you fall.

Do not disassemble, modify, or repair your device

  • Any changes or modifications to your device can void your manufacturer's warranty. For service, take your device to a Samsung Service Center.
  • Do not disassemble or puncture the battery, as this can cause explosion or fire.

Do not paint or put stickers on your device
Paint and stickers can clog moving parts and prevent proper operation. If you are allergic to paint or metal parts of the product, you may experience itching, eczema, or swelling of the skin. When this happens, stop using the product and consult your physician.

When cleaning your device:

  • Wipe your device or charger with a towel or a rubber.
  • Clean the terminals of the battery with a cotton ball or a towel.
  • Do not use chemicals or detergents.

Do not use the device if the screen is cracked or broken
Broken glass or acrylic could cause injury to your hands and face. Take the device to a Samsung Service Center to have it repaired.

Do not use the device for anything other than its intended use Avoid disturbing others when using the device in public Do not allow children to use your device
Your device is not a toy. Do not allow children to play with it as they could hurt themselves and others, damage the device, or make calls that increase your charges.

Install mobile devices and equipment with caution

  • Ensure that any mobile devices or related equipment installed in your vehicle are securely mounted.
  • Avoid placing your device and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly.

Allow only qualified personnel to service your device
Allowing non-qualified personnel to service your device may result in damage to your device and will void your manufacturer's warranty.

Handle SIM cards or memory cards with care

  • Do not remove a card while the device is transferring or accessing information, as this could result in loss of data and/or damage to the card or device.
  • Protect cards from strong shocks, static electricity, and electrical noise from other devices.
  • Do not touch gold-colored contacts or terminals with your fingers or metal objects. If dirty, wipe the card with a soft cloth.

Ensure access to emergency services
Emergency calls from your device may not be possible in some areas or circumstances. Before traveling in remote areas without signal coverage, plan an alternate method of contacting emergency services personnel.

Be sure to backup important data
Samsung is not responsible for data loss.

Do not distribute copyright-protected material
Do not distribute copyright-protected material that you have recorded to others without the permission of the content owners. Doing this may violate copyright laws. The manufacturer is not liable for any legal issues caused by the user's illegal use of copyrighted material.

To install Kies (PC Sync)

  1. Download the latest version of Kies from the Samsung website (www.samsungmobile.com) and install it on your PC.
  2. Using a PC data cable, connect your device to your PC. Samsung Kies will launch automatically.
    If Samsung Kies does not automatically launch, double-click the Samsung Kies icon on your PC. Refer to the Kies help for more information.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Samsung GALAXY Fit GT-S5670 Manual

Advertisement

Need help?

Need help?

Do you have a question about the GALAXY Fit and is the answer not in the manual?

Questions and answers

Table of Contents
