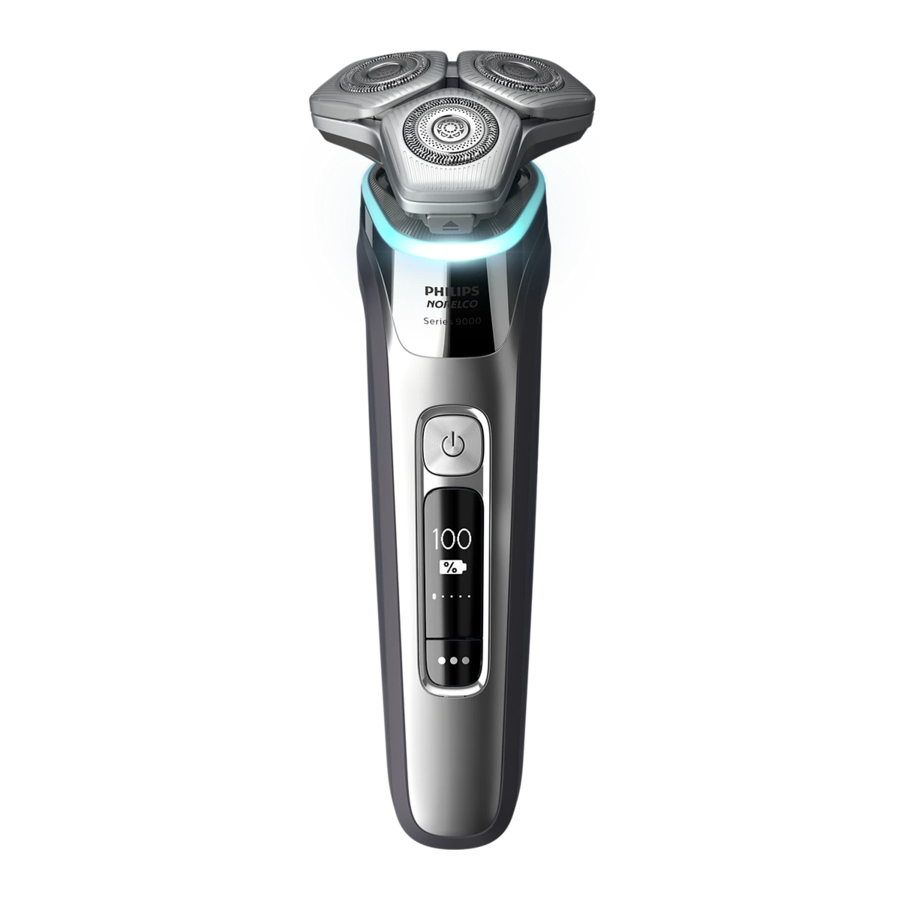

Philips NORELCO S9606/80, NORELCO 9000 / 8000 / 9400 Series Manual

General description

1. Pop-up trimmer
2. Trimmer release slide
3. Shaving unit
4. Shaving unit release button
5. On/off button
6. Handle
7. Socket for small plug
8. Charging stand
9. USB cable
   Note: A suitable power source (e.g. Philips HQ87) is available via www.philips.com/support.
10. Travel case
11. Quick Clean Pod Cartridge
12. Quick Clean Pod
13. Cleaning brush
14. Length settings for beard styler attachment
15. Click-on beard styler attachment
16. Comb for beard styler attachment
17. Click-on nose trimmer attachment

The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your product.

• This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used without cord.


What do the icons on my product handle mean

Icon	Behavior	Meaning
	Pulsing blue	The cleaning program is in progress.
	Slowly flashing blue when you remove the shaver from the Quick Clean Pod during the cleaning program	The cleaning program was interrupted. If you put the shaver back into the Quick Clean Pod within four seconds, the cleaning program resumes automatically.
	Flashing when you switch off the product	Clean the shaver in the Quick Clean Pod.
	Lights up continuously	The cleaning program is in progress.
	Flashing quickly when you remove the shaver from the Quick Clean Pod or press the on/off button during the cleaning program	The cleaning program was stopped. If you wish to continue, you need to restart the cleaning cycle by putting the shaver into the Quick Clean Pod and pressing the on/off button.
	Lights up	The SenseIQ technology is actively detecting your shaving behavior.
	Lights up green	The correct shaving motion (circular movements) was used.
	Lights up orange	Your shaving motion can be improved. See the app for details and advice.
	Lights up	Open the app. Either there is a notification waiting for you or you need to sync your shaves to prevent data loss.
	Flashing slowly	No connection is established between your shaver and smartphone.
	Flashing quickly	An error has occurred (e.g. the motor is blocked). Check the app for details.
	Flashing	The product must be disconnected from the power outlet before you can switch it on.
	Flashing when you press the on/off button	The travel lock is activated (see 'Storage and travel').
	Lights up white when you pick up the product.	The number of bars lit up show the remaining battery charge.
	Bottom light flashing orange	The battery is low. If the light flashes fast, the battery is almost empty.
	All three lights flashing in sequence	The product is in quick charge mode.
	One light flashing while the light bar/bars below continuously lighting up.	The product already has enough battery for one full shave and is now in regular charge mode. The constantly lighting bar/bars show the current battery level.
	Lights up continuously	The product is fully charged. After approx. 30 minutes, the lights go out automatically.

How do I connect my shaver and smartphone

Note: Make sure your smartphone is equipped with Bluetooth^® 4.2 or higher.
This shaver is equipped with Bluetooth^® 4.2 and higher to connect to the app. When you have paired your shaver and smartphone, Bluetooth on your shaver is switched on automatically, even when the shaver is switched off. This allows your shave data to be synced later so you don't need to take your smartphone with you when you shave. The first few times you switch on the shaver, the notification symbol flashes if no connection is established with a smartphone.

You can switch off Bluetooth on your shaver by activating the travel lock (see 'Storage and travel').

Pair the shaver and smartphone

The app is compatible with a wide range of iPhone and Android™ smartphones.
More information is available at www.philips.com/MyShaver9000-app

1. Download the app.

2. Make sure Bluetooth on your smartphone is switched on.
3. Switch on the shaver.

4. Open the app and follow the instructions to start the pairing process.

5. Once paired, the shaver and app connect automatically when the app is open and Bluetooth on your phone is switched on.

Notification symbol

The shaver is equipped with a notification symbol. The notification symbol lights up when there is an important message for you in the app. When it lights up, simply open the app on your smartphone and follow the easy tips that the app gives you. If you need further support, visit www.philips.com/support.

Synchronize your shaves

This shaver stores your shave data so you don't need to take your smartphone with you when you shave.
When the data storage is almost full, the notification symbol flashes. To prevent data loss, synchronize the shaver with the app.

1. Make sure your phone is close to the shaver and open the app.
2. The app connects automatically and synchronizes your last shaves.

Unpair the shaver and smartphone

You can pair your shaver with only one smartphone at a time. To unpair your shaver from your smartphone (e.g. when you get a new smartphone), follow these steps:

Unpair your shaver:
Press and hold the on/off button on the handle for approx. 10 seconds to remove the bond between shaver and app.
Note: Unpairing is successful when the notification symbol lights up 4 times briefly.

Unpair your smartphone:

1. Go to the settings on your smartphone and select Bluetooth.
2. Tap on the name of the shaver.
3. Tap 'forget' or 'unpair'.

Note: The unpairing procedure may vary by smartphone. Please check your smartphone manual for more information.

How do I charge my product

Note: This product is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap with water. For safety reasons, this product can only be used without cord.

• Charge the product before you use it for the first time and when the bottom light of the battery status indicator flashes orange, indicating that the battery is almost empty.
• Charging takes approx. 1 hour.
• Quick Charge: After approx. 5 minutes of charging, the battery contains enough energy for one full shave.
• When the product is fully charged it has a cordless operating time of up to 60 minutes.

Note: You cannot use the product while it is charging.

Keep the USB cable and the USB power source dry.

1. Make sure that the product is switched off.
2. Insert the small plug of the USB cable into the socket in the bottom of the product.
3. Insert the USB plug into the USB power source (not included).

4. Insert the USB power source into the power outlet.
   • While the product is in quick charge mode, the lights of the battery status indicator light up one after the other. After approximately 5 minutes, the bottom light of the battery status indicator flashes. The battery now contains enough energy for one full shave.
   • While the product charges, first the bottom light of the battery status indicator flashes and then lights up continuously. Next the second light flashes and then lights up continuously, and so on until the product is fully charged.
   • When the product is fully charged, all three battery status indicator lights light up continuously. After approx. 30 minutes, the light goes out automatically.
5. After charging, remove the USB power source from the power outlet and pull the small plug out of the product.

Charging in the charging stand

1. Make sure that the product is switched off.
2. Put the small plug in the charging stand and put the power cord in the power outlet.
3. Put the product in the charging stand.

'Unplug for use' symbol

The 'unplug for use' symbol flashes to remind you to disconnect the USB power source from the power outlet and remove the small plug from the product before you switch it on.

How do I use my product

Always check the product and all accessories before using. Do not use the product or any accessory if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.
Use this product for its intended household use as described in this manual.
For hygienic reasons, the product should only be used by one person.
Note: This product is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap with water. For safety reasons, this product can only be used without cord.

SenseIQ technology

This product is equipped with SenseIQ technology which intelligently detects your beard density and shaving technique. You need to use the app to benefit from this feature. For a better technique, you can get personalized shaving advice in the app. You get advice in 2 ways: guided shaves in real time and synchronized shaves. We advise you to start with the guided shave to enhance your shaving experience.

• Correct handling of your product will contribute to the best shaving results.
• Follow the advice obtained from the synchronized shaves and the personalized programs.

Shaving

You can use this product either wet or dry, or even in the shower. For a wet shave, apply some water and shaving foam or gel to your skin and rinse the shaving heads under the tap with warm water before following the steps below.

1. Switch on the product.
2. Move the shaving heads over your skin in circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave.

   Note: Do not press too hard, as this can cause skin irritation.
   Note: If you are shaving with gel or foam, rinse the shaving unit regularly during your shave to ensure that it continues to glide smoothly over your skin.

3. Use the narrow sides of the shaving unit to shave in hard-to-reach areas such as along your jawline and under your nose.

4. Switch off and clean the product after each use.
   Note: Make sure you rinse all foam or shaving gel off the product.
   SenseIQ: When you have finished shaving you receive feedback on the handle. The Motion Control sensor icon lights up in various colors, giving you feedback on your overall shave.

   • When you shave in the correct motion (circular movements), the Motion Control sensor icon lights up green.
   • When your shaving motion can be improved, the Motion Control sensor icon lights up orange. See the app for details and advice.

21-Day adaptation process

• 21 Day Trial and Conversion Process. It is a fact that your skin and beard need time to adjust to a new grooming system.
• Use your new shaver exclusively for 3 weeks to fully enjoy the closeness of a Philips Norelco shave.
• At first you may not get as close a shave as you expect, or your face may even become slightly irritated. This is normal since your beard and skin will need time to adjust. Invest 3 weeks and you'll soon experience the full joy of your new shaver.
• Stick with it! If you alternate shaving methods during the adjustment period, it may make it more difficult to adapt to the Philips Norelco shaving system.
• If you are still not convinced after 21 days, Philips Norelco will refund you the full purchase price as long as the request is received within 45 days of purchase.

Cleaning reminder

When you switch off the product, the cleaning reminder flashes to remind you to clean the product.

• Clean the product and attachments after each use (see 'How do I clean my shaver?') to prevent clogging and damage.
• Clean the shaving heads thoroughly once a month or when the product does not shave as well as it used to.

Trimming

You can use the pop-up trimmer to groom your sideburns and moustache.

1. Push the trimmer release slide downwards to open the trimmer.

2. Switch on the product.
3. Hold the trimmer perpendicular to the skin and move it downwards while exerting gentle pressure.

4. You can also use the trimmer under your nose.

5. Switch off the product and clean the trimmer after each use to prevent clogging and damage (see 'How do I clean my shaver?').
6. Close the trimmer.

Using the click-on attachments

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your product.

Using the beard styler attachment with comb
You can use the beard styler attachment with the comb attached to style your beard at one fixed setting or at different length settings. You can also use it to pre-trim any long hairs before shaving for a more comfortable shave.
The hair length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5 mm.

1. Twist the shaving head or other attachment to remove it from the handle and press the beard styler attachment onto the handle.

2. Slide the comb straight into the guiding grooves on both sides of the beard styler attachment.

3. Press the length selector and then push it to the left or right to select the desired hair length setting.

4. Switch on the product.
5. Move the product upwards while you exert gentle pressure. Make sure the front of the comb is in full contact with the skin.

6. Switch off the product and clean the attachment after each use (see 'How do I clean my shaver?').

Using the beard styler attachment without comb
You can use the beard styler attachment without the comb to contour your beard, moustache, sideburns or neckline to a length of 0.5 mm.

1. Pull the comb off the beard styler attachment.
   Note: Grab the comb in the center to pull it off the beard styler attachment. Do not pull at the sides of the comb.

2. Switch on the product.
3. Hold the beard styler attachment perpendicular to the skin and move the appliance downwards while you exert gentle pressure.

4. Switch off the product and clean the attachment after use.

Using the nose/ear trimmer attachment
You can use the nose/ear trimmer attachment to trim your nose and/or ear hair.
Make sure both the nose/ear trimmer attachment and nasal passages are clean before trimming.

1. Twist the shaving head or other attachment to remove it from the handle and press the nose/ear hair trimmer onto the handle.

2. Switch on the product.
3. Carefully insert the trimming head into one of your nostrils.
   Do not insert the attachment more than 0.5 cm into your nostrils.
4. Slowly move the trimming head around inside each nostril, making sure the side of the tip is held firmly against the skin. This reduces the tickling effect that can occur.

5. Switch off the product and clean the attachment after use.

Dried nasal mucus can block the cutting element, preventing the product from switching on. If the cutting element is blocked, clean the attachment (see 'How do I clean my shaver?').

Trimming ear hair
Make sure your outer ear channels are clean and free from wax.

1. Switch on the product.
2. Slowly move the trimming head along the rim of the ear to remove hairs that stick out beyond the rim.
3. Carefully insert the trimming head into the outer ear channel.
   Do not insert the trimming head more than 0.5 cm into your ear channel, as this could damage the eardrum.
4. Slowly turn the trimming head around to remove all unwanted hairs from your outer ear channel.

5. Switch off the product and clean the attachment after each use (see 'How do I clean my shaver?').

How do I clean my shaver

Clean the product and the attachments after each use for optimal performance.

Cleaning the shaver under the tap

Clean the shaver after each use to prevent clogging and damage.
Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.
While rinsing the shaving unit, water may drip out of the base of the shaver. This is a normal occurrence.

1. Switch on the shaver.
2. Rinse the shaving unit under a warm tap.

3. Switch off the shaver. Press the release button to open the shaving unit.

4. Rinse the hair chamber under a warm tap.

5. Rinse the shaving head holder under a warm tap.

6. Carefully shake off excess water and let the shaving head holder air-dry completely.
7. Close the shaving unit.


Thorough cleaning

We advise you to clean the shaving heads thoroughly once a month or when the shaver does not shave as well as it used to.

1. Make sure that the product is switched off and disconnected from the power outlet.
2. Press the release button on the shaving unit and pull the shaving head holder off the shaving unit.

3. Rinse the hair chamber and shaving head holder under the tap.

4. Remove the shaving heads. For detailed instructions, see 'How do I replace the shaving heads?'.
   Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.
5. Clean the cutter and guard under the tap.

6. Shake off excess water.
7. Put the shaving heads back into the shaving head holder. For detailed instructions, see 'How do I replace the shaving heads?'.
8. Insert the hinge of the shaving head holder into the slot in the top of the shaving unit and close the shaving unit.


Cleaning the pop-up trimmer

Clean the trimmer after each use to prevent clogging and damage.

Never dry the trimmer teeth with a towel or tissue, as this may damage the trimmer teeth.

1. Make sure that the product is switched off and disconnected from the power outlet.
2. Push the trimmer release slide down to open the pop-up trimmer.

3. Switch on the product and rinse the pop-up trimmer with warm water.

4. After cleaning, switch off the product.
5. Carefully shake off excess water and let the pop-up trimmer air-dry.
6. Close the trimmer.

Tip: For optimal performance, lubricate the teeth of the pop-up trimmer with a drop of mineral oil every six months (oil not included).

How do I use the Quick Clean Pod

Preparing the Quick Clean Pod for use

1. Twist and remove the top of the Quick Clean Pod.

2. Twist the lid off of the Quick Clean Pod Cartridge.

3. Lift the tab on the seal and pull it by the corner to remove the seal from the Quick Clean Pod Cartridge.

4. Press the small circular piece on the handle of the Quick Clean Pod Cartridge to break the snap hook on the handle.

5. Place the Quick Clean Pod Cartridge into the Quick Clean Pod.

6. Put the top of the Quick Clean Pod back onto the base and turn it clockwise until you hear a click.


Do not tilt the Quick Clean Pod to prevent leakage.

Using the Quick Clean Pod
Note: If you use the shaver with shaving foam, shaving gel or pre-shave products, thoroughly rinse the shaving heads before you use the Quick Clean Pod (see 'How do I clean my shaver?').
Always shake excess water off the shaver before you place it in the Quick Clean Pod.

1. Place the shaver upside down into the Quick Clean Pod. The shaver automatically detects that it is in the Quick Clean Pod.

2. Switch on the shaver to start the cleaning program.
   Each cleaning program takes approximately one minute. During the cleaning program the cleaning symbol lights up continuously and the blue icon pulses.
   The shaver vibrates twice quickly when the cleaning program is finished.

3. Let the shaver air-dry completely in the Quick Clean Pod before storing it.

What does the icon on my Quick Clean Pod mean?

Icon	Behavior	Meaning
	Becomes visible on the Quick Clean Pod	The Quick Clean Pod Cartridge needs to be replaced.

Replacing the Quick Clean Pod Cartridge

Replace the Quick Clean Pod Cartridge immediately when the cartridge replacement icon on the Quick Clean Pod becomes visible or follow the table below.

1. Twist and remove the top of the Quick Clean Pod.

2. Lift the Quick Clean Pod Cartridge out of the Quick Clean Pod by the handle.

3. Pour any remaining fluid down a drain and recycle the empty cartridge in accordance with local waste regulations.

4. Place a new Quick Clean Pod Cartridge into the Quick Clean Pod.
   Scan the QR code to the left or visit www.philips.com/cleaning-cartridge to order replacement Quick Clean Pod Cartridges.

Cleaning the click-on attachments

Never dry the trimmer or beard styler attachments with a towel or tissue, as this may damage the trimming teeth.
The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your product.
Clean the click-on attachments after each use for optimal performance.

1. Make sure that the product is switched off.
2. Twist the attachment to remove it from the handle.
3. Clean the parts thoroughly with warm water.
4. Carefully shake off excess water from the beard styler, combs and nose/ear trimmer attachments and let them air dry completely.

Never dry the cutting unit with a towel or tissue, as this may damage the trimming teeth.
Tip: For optimal performance, lubricate the teeth of the beard styler attachment with a drop of sewing machine oil regularly.

Storage and travel

• Be sure the product is switched off. Remove the power cord from power outlet and the product before storing it in a safe, dry location where it will not be crushed, banged, or subject to damage.
• Do not wrap cord around the product when storing.
• Store cord and other accessories in a safe location where these will not be cut or damaged.
• Do not place or store the product where it can fall or be pulled into a tub or sink, water or other liquid while plugged in.
  Note: We advise you to let the product and its attachments dry completely before you store them for the next use.
• Put the protection cap (if supplied) on the shaver to protect it from dirt accumulation.
• Store the product in the travel case.
• Alternatively, store the shaver on the charging stand (if supplied) or in the Philips Quick Clean Pod (if supplied).

Travel lock

You can lock the shaver when you are going to travel to prevent it from switching on accidentally.

Activating the travel lock

Press the on/off button for 3 seconds to use the travel lock mode.
When the travel lock is activated, the travel lock symbol flashes.

Note: When the travel lock is activated, Bluetooth is switched off automatically and your shaver is in energy saving mode.

Deactivating the travel lock

Press the on/off button for 3 seconds. Once the travel lock is deactivated, the product switches on automatically.

Note: The product unlocks automatically when connected to a power outlet.

How do I replace the shaving heads

For maximum shaving performance, replace the shaving heads once a year. Replace damaged shaving heads immediately.
Always replace the shaving heads with original Philips Norelco shaving heads (see 'Accessories').

Replacing the shaving heads

1. Switch off the shaver.
2. Press the release button on the shaving unit and pull the shaving head holder off the shaving unit.

3. Turn the retaining rings counterclockwise and remove them. Place them aside in a safe place.

4. Remove the shaving heads from the shaving head holder.
   Discard the used shaving heads immediately to avoid mixing them with the new shaving heads.

5. Place new shaving heads in the holder.

6. Place the retaining rings back onto the shaving heads and turn them clockwise to reattach the retaining rings.

   • Each retaining ring has two recesses that fit exactly into the projections of the shaving head holder. Turn the ring clockwise until you hear a click to indicate that the ring is fixed.

7. Insert the hinge of the shaving head holder into the slot in the top of the shaving unit and close the shaving unit.


Accessories

Replacement parts and accessories may be purchased at a store near you or on our website www.philips.com/store.
The following accessories and spare parts are available:

• SH91 Philips Norelco replacement shaving heads
• CC12 Philips Norelco Quick Clean Pod Cartridge 2-pack

IMPORTANT SAFETY INSTRUCTIONS

When using an electric product, basic precautions should always be followed, including the following:
Read all instructions before using this product.

To reduce the risk of electric shock:

• To charge the product, only use a USB power source on a certified product with output rating 5 V, ≥ 1 A. For safe charging in a moist environment (e.g. in a bathroom), only use an IPX4 (splash-proof) power source. A suitable power source (e.g. Philips HQ87) is available via www.philips.com/support. If you need support finding the correct USB power source, contact Philips support at 1-8xx-xxx-xxxx. Using a non-certified USB power source may cause hazards or serious injuries.
• Keep the USB cable and the USB power source dry.
• Do not reach for a corded product that has fallen into water. Unplug immediately from the power outlet.

• Do not place or store the product or charging stand where it can fall or be pulled into a tub or sink. Do not place or drop the product or charging stand into water or other liquid.
• This product does not work while it is connected to the power outlet. Except when charging, always unplug this product from the power outlet.
• Remove USB power source from power outlet and product before cleaning.

To reduce the risk of burns, fire, electric shock, or injury to persons:

• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety. Children should be supervised to ensure that they do not play with the product.
• Use this product only for its intended household use as described in this manual. Misuse can lead to hazards or serious injuries. Do not use attachments not recommended by Philips North America LLC. Accessories supplied may vary for different products.
• Never operate this product if it has a damaged USB power source, if it is not working properly, after it has been dropped or damaged, or after the product or the USB power source has been dropped into water. For assistance call 1-8xx-xxx-xxxx.
• Keep the USB cable and the USB power source away from heated surfaces.
• Never drop or insert any object into any opening.
• Do not use the USB power source in or near a power outlet that contains an electric air freshener to prevent damage to the USB power source.
• Do not charge or plug in product or charging stand outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Always check shaving heads (guards and cutters) before using the product. Do not use the product if cutters or guards are damaged, as injury may occur.
• Always attach the USB cable to the USB power source and the product or charging stand first, then attach the USB power source to the power outlet. To disconnect, set all controls to 'off' position. Then remove the USB power source from the power outlet.
• Plug USB power source directly into power outlet. Do not use an extension cord.
• Unplug USB power source before plugging in or unplugging the product.
• Be careful when handling your smartphone near water and in moist environments.
• The radio waves of Bluetooth-enabled products may impair the operation of pacemakers and other medical devices. Consult your phycisian for advice and keep the product at least 8 inches (20 cm) away.
• The batteries used in this product may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100°C (212°F) or incinerate.
• Only use original Philips accessories or consumables.
• Charge, use and store the product at a temperature between 41°F/5°C and 95°F/35°C.
• Keep product and batteries away from fire and do not expose them to direct sunlight or high temperatures.
• If the product becomes abnormally hot or smelly, changes color or if charging takes longer than usual, stop using and charging the product and contact Philips.
• Do not place products and their batteries in microwave ovens or on induction cookers.
• Do not open, modify, pierce, damage or dismantle the product or battery to prevent batteries from heating up or releasing toxic or hazardous substances. Do not short-circuit, overcharge or reverse charge batteries.
• If batteries are damaged or leaking, avoid contact with the skin or eyes. If this occurs, immediately rinse well with water and seek medical care.
• When you handle batteries, make sure that your hands, the product and the batteries are dry.
• To avoid accidental short-circuiting of batteries after removal, do not let battery terminals come into contact with metal objects (e.g. coins, hairpins, rings). Do not wrap batteries in aluminum foil. Tape battery terminals or put batteries in a plastic bag before you discard them.

Philips Norelco Quick Clean Pod Cartridge fluid

• Do not take internally.
• Avoid contact with the eyes. In case of eye contact, thoroughly flush with cold water. If irritation persists, get medical attention.
• Keep out of reach of children.

Assistance

Visit https://www.usa.philips.com/c-mpe/face-shavers for more information on your shaver.
For further assistance, visit our website: www.philips.com/support or call toll free 1-800-243-3050.
Online information is available 24 hours a day, 7 days a week.
