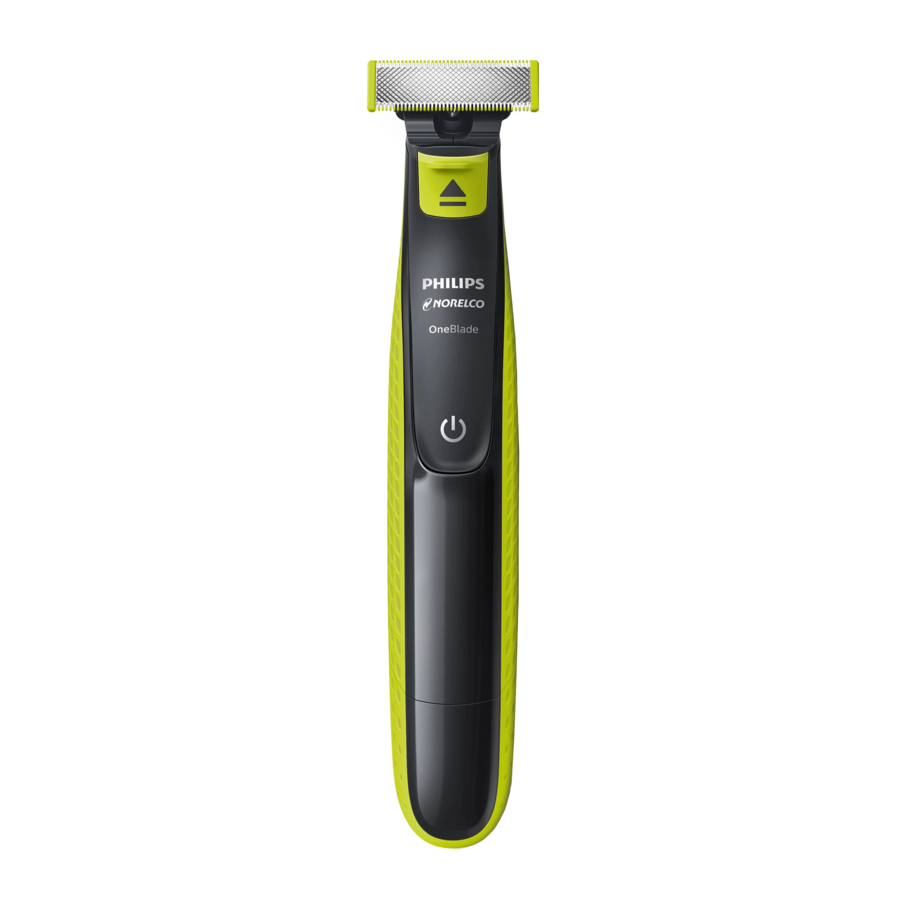

Philips Norelco QP2520 Manual

www.philips.com

Introduction

Congratulations on your purchase and welcome to Philips Norelco!
To fully benefit from the support that Philips Norelco offers, register your product at www.norelco.com/register.

General description

(Fig. 1)

1. Protective cap
2. Blade
3. Blade release slide switch
4. On/off button
5. Small plug
6. Battery charge indicator
7. Power plug
8. Click- on stubble comb 5mm (3/16in.)
9. Click-on stubble comb 3mm (1/8in.)
10. Click-on stubble comb 1mm (3/64in.

This symbol indicates that the product can be used in the bath or shower.

Charging

Charging takes approx. 8 hours. Charge the product before first use and when the product starts working more slowly.

• Charging or using the product at temperatures below 40°F (4,5°C) or higher than 95°F (35°C) adversely affects the lifespan of the battery.
• If the product is subjected to a major change in temperature, pressure or humidity, let the product acclimatize for 30 minutes before use.

Battery status indicator

The battery status is indicated by the performance of the product. When the product starts working more slowly, the battery is almost empty and needs to be charged for optimal performance.

Charging with the power cord

1. Make sure the product is switched off.
2. Insert the small plug into the product and put the power plug in any 120V AC outlet (Fig. 2).


• The battery charge indicator on the power plug lights up continuously, when the product is connected to the wall outlet.

3. After charging, remove the power plug from the wall outlet and pull the small plug out of the product.

Operating time

When the product is fully charged, it has a cordless operating time of up to 45 minutes.

Note: An adapter plug may be necessary for cord usage in some foreign countries. Use an attachment plug adapter of the proper configuration for power outlet.

Using the product

• Use this product for its intended household use as described in this manual.
• For hygienic reasons, the product should only be used by one person.
• Trimming is easier when the skin and hair are dry.
• Use the product to trim, edge or shave facial hair (beard, moustache and sideburns).
• Trim with the trimming comb to obtain a certain length and edge to create perfect edges and sharp lines.
• Take your time when you first start to use the product. You have to acquire practice with the product.

Switching the product on and off

1. Press the on/off button once to switch the product on or off (Fig. 3).


Shaving

• Make sure that the blade is in full contact with the skin by placing it flat on the skin.
• For the best result, move the product against the grain.
• Make long strokes while pressing lightly.
• Use the product dry or wet with gel or foam, even in the shower.
• Shaving a clean beard and face gives the best results.

1. Switch the product on (Fig. 3).
2. Place the blade on the skin and move the product up or against the grain in long strokes while pressing lightly (Fig. 4).


Note: Make sure you hold the surface of the blade flat against your skin (Fig. 5).

3. Switch off and clean the product after every use (see 'Cleaning').

Edging

• Use both edges of the blade to create sharp lines and perfect edges.
• Hold the product in such a way that the blade is perpendicular to the skin and one of its edges touches the skin. This allows more precise detailing of sideburns and the area around the mouth and nose.

1. To create sharp edges and lines, you can use either edge of the blade (Fig. 6).

2. Switch the product on (Fig. 3).
3. Place the edge of the blade perpendicular onto the skin (Fig. 7).

4. Make straight strokes while applying gentle pressure (Fig. 8).

5. Switch off and clean the product after each use (see 'Cleaning').

Trimming with comb

The click-on stubble combs allow you to trim hair to different lengths. This product comes with 3 click-on stubble combs: 5mm (3/16in.), 3mm (1/8in.) and 1mm (3/64in.). Start with the 5mm comb to acquire practice with this product. The indication on each comb corresponds to the remaining hair length in millimeters.

• Always make sure that the tips of the click-on stubble comb point in the direction in which you move the product.
• Make sure that the flat part of the comb is always in full contact with the skin to obtain an even trimming result (Fig. 9).

• Since all hairs do not grow in the same direction, you may want to try different trimming positions (i.e. upwards, downwards, or across). Practice is best for optimum results.
• Trimming is easier when the skin and hair are dry.

1. Place the comb onto the blade, with the teeth of the comb pointing upwards (Fig. 10).

   Note: For best results, always trim in the direction of the teeth of the comb.
2. Switch the product on (Fig. 3).
3. Place the comb onto the skin and move the product upwards slowly, against the grain (Fig. 11).

4. Switch off and clean the product after each use (see 'Cleaning').
5. To remove the comb, hold it on both sides and pull it off the blade (Fig. 12).


Cleaning

Clean the product after every use.

Cleaning the product

1. Switch the product off.
2. Pull the comb off the blade (Fig. 12).

3. Blow off any hairs that have accumulated on the blade and/or combs (Fig. 14, Fig. 15).

4. Switch on the product for approx. 15 seconds while rinsing the blade with lukewarm water (Fig. 16).

5. Rinse the combs for approx. 15 seconds with lukewarm water (Fig. 17).

6. Carefully shake off excess water and let all parts air dry completely.

Note: The blade is fragile. Handle it carefully. Replace the blade immediately if it is damaged.

This product has no other user-serviceable parts. For assistance call 1-800-243-3050.

Storage

Always attach the protective cap on the blade to protect the blade from damage during traveling or storage.

Make sure the product and attachments are completely dry before you store them for the next use.

1. Place the protective cap onto the edge of the blade (Fig. 18).

2. Close the protective cap (Fig. 19).


• Be sure the product is switched off. Remove cord from outlet and the product before storing it in a safe, dry location where it will not be crushed, banged, or subject to damage.
• Do not wrap cord around the product when storing.
• Store cord in a safe location where it will not be cut or damaged.
• Do not place or store the product where it can fall or be pulled into a tub or sink, water or other liquid while plugged in.

Replacement

Blade wear indicator

For optimal cutting and gliding performance, replace the blade every 4 months or when it no longer provides the shaving or trimming results you expect. This advice is based on two full shaves a week and actual results may vary.

The blade is equipped with a blade wear indicator. A green bar will gradually appear on the blade as you use it (Fig. 20). When it is highly visible, it is recommended to replace your blade for the best OneBlade experience. Always replace the blade with original Philips Norelco blade (see 'Accessories').

Depending on your usage behavior, the exact lifetime of the blade could be longer or shorter. Similar to a manual blade, the blade becomes blunt over time, which results in increased hair pulling and reduced cutting performance.

Replacing the blade

1. Switch the product off.
2. Carefully push the blade release slide switch upwards while holding the blade on both sides (Fig. 21). This will prevent the blade from flying away.

3. Hold the new blade on both sides and press it onto the handle ('click') (Fig. 22).


Note:Be careful, the edges of the blade are sharp. When you hear a click, the new blade is placed correctly and ready for use.

Accessories

Replacement parts and accessories may be purchased at a store near you or on our website www.philips.com/store.

The following accessories are available:

• Model QP210 Philips Norelco Replacement Blade, 1-Pack
• Model QP220 Philips Norelco Replacement Blade, 2-Pack
• Model QP230 Philips Norelco Replacement Blade, 3-Pack

Assistance

For assistance, visit our website: www.philips.com/support or call toll free 1-800-243-3050.

Online information is available 24 hours a day, 7 days a week.

Disposal

• This product contains a rechargeable nickel metal hydride battery which must be disposed of properly (Fig. 23).

• The built-in battery should not be disposed of with normal household waste
• Contact your local town or city officials for battery disposal information. You can also call 1-800-822-8837 or visit www.call2recycle.org for battery drop-off locations.
• For assistance, visit our website www.philips.com/support or call 1-800-243-3050 toll free.
• Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. For recycling information, please contact your local waste management facilities or visit www.recycle.philips.com

In order to obtain warranty service, simply go to www.philips.com/support for assistance. -

To obtain money-back guarantee return authorization form, call 1-800-243-3050 for assistance.
