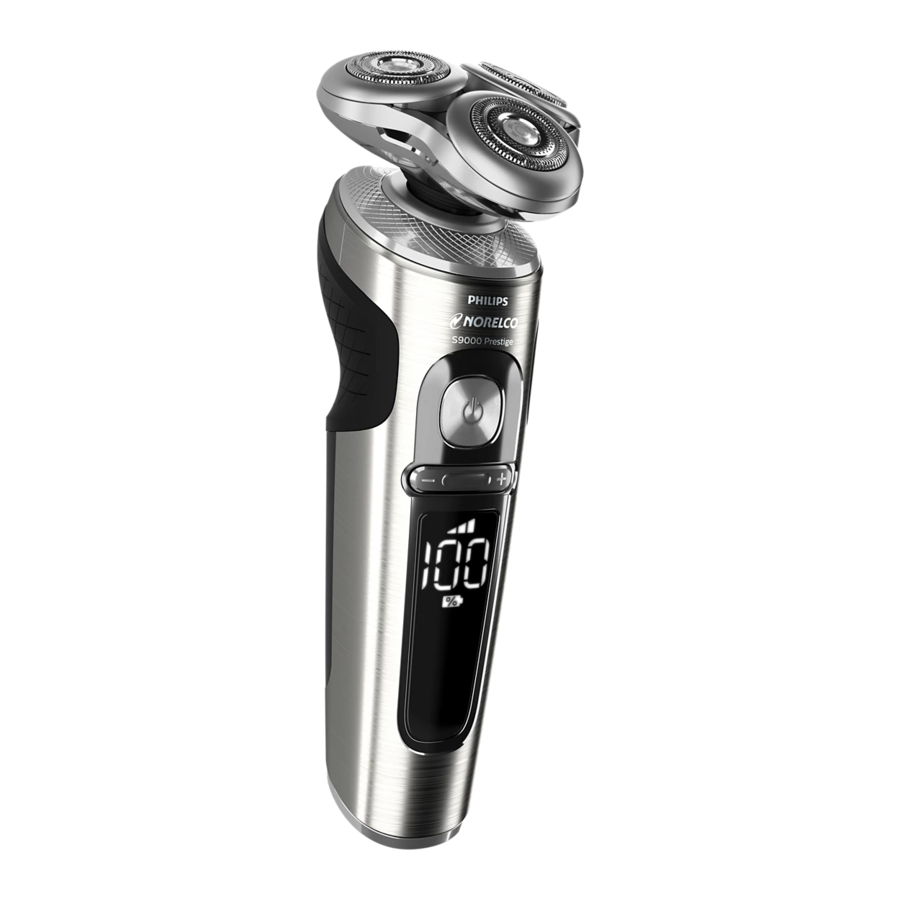

Philips SP9820 Manual

Introduction

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable.

General description

1. Supply unit
2. Small plug
3. Pouch
4. Socket for small plug
5. Unplug for use symbol
6. Replacement reminder
7. Notification symbol
8. Cleaning reminder
9. Travel lock symbol
10. Battery charge indicator
11. Battery charge percentage
12. Personal comfort settings bar
13. Personal comfort settings decrease button
14. Personal comfort settings increase button
15. On/off button
16. Shaving unit with hair chamber
17. Click-on precision trimmer attachment

The display

Note: Remove any sticker or protective foil from the display before using the product.

Charging
When the shaver is charging, the battery charge indicator on the shaver flashes white.
The battery charge is indicated by the battery charge percentage flashing on the display, which is shown when the shaver is moved.
Quick charge: After approx. 5 minutes charging, the shaver contains enough energy for one shave.

Battery fully charged
When the battery is fully charged, the battery charge indicator lights up white continuously. Note: When the battery is full, the display switches off automatically after 15 minutes. The battery charge percentage lights up white continuously when the shaver is moved.

Battery low
When the battery is almost empty, the battery charge indicator flashes orange and the shaver beeps. At this point there is enough energy left for one shave..

Remaining battery charge
The remaining battery charge is indicated by the battery charge percentage shown on the display.

Personal comfort settings
The shaver has a feature that allows you to personalize your settings. Depending on your personal shaving needs, choose between three settings, from low to high: comfort, dynamic or efficiency. When you press the button on the left or right of the display, the segment of the personal comfort settings bar lights up to indicate the selected setting. To select a lower or higher setting, press the button on the left or right of the display.

Cleaning reminder
Clean the shaver after every use for optimal performance (see 'Cleaning and maintenance'). When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver.

Travel lock
When you are going to travel, you can lock the shaver to prevent it from accidentally switching on 3 sec. (see 'Activating the travel lock').

Replacement reminder
For maximum shaving performance, replace the shaving heads every two years. The shaver is equipped with a replacement reminder which reminds you to replace the shaving heads. The shaver beeps, the replacement reminder lights up and the arrows flash to indicate that you have to replace the shaving heads.
Note: After replacing the shaving heads, you can reset the replacement reminder by pressing the on/off button for 7 seconds. If you do not reset the replacement reminder, the shaver resets automatically after 9 shaves.

'Unplug for use' reminder

The 'unplug for use' symbol flashes to remind you to disconnect the shaver from the wall socket before you can switch it on.

Notification symbol
Overheating
If the shaver overheats during charging, the notification symbol flashes. When this happens, the shaver automatically stops charging. Charging continues once the temperature of the shaver has decreased to the normal level after approx. 10 minutes.

Blocked shaving heads
If the shaving heads are blocked, the notification symbol continuously lights up red. The replacement reminder and the cleaning reminder alternately flash white and the shaver beeps. In this case, the motor cannot run because the shaving heads are dirty or damaged. If the shaving heads are dirty, you have to clean them. If the shaving heads are damaged, you have to replace them.

Charging

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.
Charging takes approx. 1 hour. A fully charged shaver has a shaving time of up to 60 minutes.
Note: You cannot use the shaver while it is charging.

Quick charge
After approx. 5 minutes of charging the shaver contains enough power for one shave.

Charging with the supply unit

1. Make sure the shaver is switched off.
2. Put the small plug in the shaver and put the supply unit in the wall socket. The display of the shaver indicates that the shaver is charging.
3. After charging, remove the supply unit from the wall socket and pull the small plug out of the shaver.
   Note: When the battery is full, the display switches off automatically after 15 minutes.

Using the shaver

Always check the shaver and all accessories before use. Do not use the shaver or any accessory if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.
This symbol indicates that the shaver can be used in the bath or shower.

• Use this shaver for its intended household use as described in this manual.
• For hygienic reasons, the shaver should only be used by one person.
• Trimming is easier when the skin and hair are dry.

Note: This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can only be used without cord.

5. Move the shaving heads over your skin in circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave.
   Note: Do not press too hard, as this can cause skin irritation. Note: Rinse the shaving unit regularly to ensure that it continues to glide smoothly over your skin.

6. Dry your face.
7. Switch off the shaver and clean it after each use.

Note: Make sure that you rinse all foam or shaving gel off the shaver.

Using click-on attachments

Removing or attaching click-on attachments

1. Make sure the shaver is switched off.
2. Pull the attachment straight off the shaver.
   Note: Do not twist the attachment while you pull it off the shaver.

3. Insert the lug of the attachment into the slot in the top of the shaver. Then press down the attachment to attach it to the shaver ('click').


Using the precision trimmer attachment
You can use the precision trimmer attachment to touch up your beard, sideburns and moustache.

1. Attach the attachment to the appliance ('click').
2. Switch on the appliance.

3. Hold the precision trimmer perpendicular to the skin and move it downwards while exerting gentle pressure.

4. Switch off the appliance and clean the attachment after use (see 'Deactivating the travel lock').

Travel lock

You can lock the shaver when you are going to travel to prevent it from switching on accidentally.

Activating the travel lock

1. Press the on/off button for 3 seconds to use the travel lock mode. While you activate the travel lock, the travel lock symbol lights up briefly and the shaver produces a short sound. When the travel lock is activated, the travel lock symbol flashes.
   If you try to switch on the shaver while the travel lock is active, the travel lock symbol flashes.


Deactivating the travel lock

1. Press the on/off button for 3 seconds. While you deactivate the travel lock, the travel lock symbol lights up briefly and the shaver produces a short sound. The shaver switches on and is now ready for use again.
   Note: The shaver unlocks automatically when it is connected to the wall socket.


Cleaning and maintenance

Regular cleaning guarantees better shaving results.
Never clean, remove or replace the shaving unit while the shaver is switched on.
Do not apply pressure to shaving head guards.
Do not touch shaving heads with hard objects as this may dent or damage the precisionmade slotted guards.
Do not use compressed air, abrasives, scourers or aggressive liquids such as petrol or acetone to clean the shaver.

Cleaning the shaver under the tap
Clean the shaver after every shave for optimal performance.
Always check if the water is too hot, to prevent burning your hands.
Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.
While rinsing the shaving unit, water may drip out of the bottom of the shaver. This is a normal occurrence.

1. Switch on the shaver.
2. Rinse the shaving unit under a warm tap. You can also use the cleaning brush to remove excess hairs before rinsing.


3. Switch off the shaver. Pull the shaving head holder off the bottom part of the shaving unit.

4. Rinse the hair chamber and shaving head holder under the tap. You can also use the cleaning brush to remove excess hairs before rinsing.

   While rinsing the shaving unit, water may drip out of the bottom of the shaver. This is a normal occurrence.

5. Carefully shake off excess water and let the shaving head holder air-dry completely.

6. Attach the shaving head holder to the bottom part of the shaving unit ('click').


Thorough cleaning
We advise you to clean the shaving heads thoroughly once a month or when the shaver does not shave as well as it used to.

1. Switch off the shaver.

2. Pull the shaving head holder off the bottom part of the shaving unit.

3. Rinse the hair chamber and shaving head holder under the tap. You can also use the cleaning brush to remove excess hairs before rinsing.

4. Turn the retaining ring counterclockwise and lift it off the shaving head. Repeat this process for the other retaining rings. Place them aside in a safe place.

5. Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard. Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

6. Clean the cutter and guard under the tap. You can also use the cleaning brush to remove excess hairs before rinsing.

7. Shake off excess water.
8. Put the cutter back into the guard.

9. Place the shaving heads in the shaving head holder.

10. Place the retaining ring on the shaving head.

11. Align the arrows on the retaining ring with the projections in the shaving head holder. Turn the ring clockwise until it clicks to indicate that the ring is fixed.

12. Attach the shaving head holder to the bottom part of the shaving unit ('click').


Cleaning the trimmer attachment
Never dry the trimmer with a towel or tissue, as this may damage the trimming teeth.
Clean the trimmer attachment after each use.

1. Switch on the appliance with the precision trimmer attachment attached.

2. Rinse the attachment under a warm tap.
3. After cleaning, switch off the appliance.
4. Carefully shake off excess water and let the attachment air-dry completely.


Tip: For optimal performance, lubricate the teeth of the attachment with a drop of sewing machine oil regularly.

2. Discard the old shaving head holder and attach the new shaving head holder to the bottom part of the shaving unit ('click').

3. After replacing the shaving heads, you can reset the replacement reminder by pressing the on/off button for 7 seconds. Wait until your hear 3 beeps. If you do not reset the replacement reminder, the shaver resets automatically after 9 shaves.


Storage

Store the shaver in the pouch.
Note: Always let the shaver dry completely before you store it in the pouch.

Ordering accessories

To buy accessories or spare parts, visit www.philips.com/parts-and-accessories or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details). The following accessories and spare parts are available:

• SH98 Philips shaving heads
• HQ110 Philips shaving head cleaning spray
• RQ111 Philips beard styler attachment
• RQ585 Philips cleansing brush attachment
• RQ560 Philips cleansing brush attachment

• RQ563 Philips cleansing brush attachment 3-pack
• HQ8505 supply unit
  Note: The availability of the accessories may differ by country.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Before you remove the battery, make sure that the shaver is disconnected from the wall socket and that the battery is completely empty. Take any necessary safety precautions when you handle tools to open the shaver and when you dispose of the rechargeable battery.

1. Remove the click-on attachment from the appliance.

2. On top of the appliance insert a screwdriver between the black cylinder and silver ring. Force the silver ring up off the appliance and remove the top panel.
3. Unscrew the two screws and remove the frame.

4. Remove the two back black covers and slide the front housing off the appliance.
5. Unscrew the two screws at the top of the inner panel.

6. Place a screwdriver between the lips of the inner panel and bend them aside. Then remove the inner panel.

7. Lift out the printed circuit board with the rechargeable battery.


8. Bend the battery tags aside with a screwdriver.
9. Remove the rechargeable battery.


If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.
