TruSens Z-1000 Manual

FEATURE HIGHLIGHTS

PureDirect™ Technology
Independent lab testing confirms that two airflow streams are better than one, moving air effectively and more comfortably throughout the room.

360° Purification
DuPont™ HEPA filter captures pollutants and VOC gases/odors from all directions. UV-C light inactivates germs and bacteria that can get trapped in the filter.

Thoughtful Execution
Exceptional functionality wrapped in a contemporary design that fits any environment.

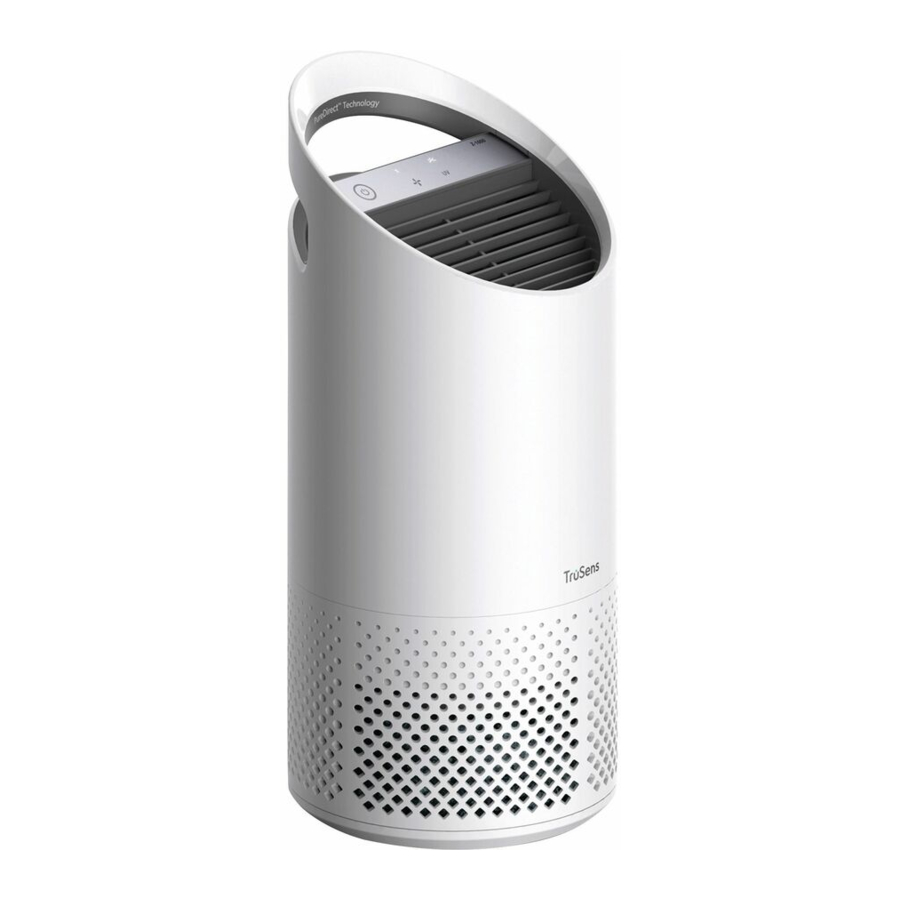

PRODUCT OVERVIEW

GETTING STARTED

1. Remove plastic bag from filter
   Unscrew the bottom cover and remove the plastic bag from the filter.

2. Reattach filter
   Secure filter on the bottom cover and replace inside the purifier.

3. Set up
   Plug in your air purifier unit and power on.
   Place the purifier on a flat surface, free from obstructions:

• where air can flow freely into the purifier from all sides
• avoiding furnishings like bedding and curtains, as well as sources of heat or moisture

4. Start living with cleaner air
   Select your preferred fan speed and proprietary PureDirect™ technology will deliver purified air throughout the room!


CONTROL PANEL

Power Button

Fan Speed Settings
Select fan speed: 1, 2 or Turbo.

UV Mode
UV bulb within the purifier's filter chamber is on when the symbol is white. The symbol will glow red when it is time to replace the UV bulb.

Filter and UV Indicator Reset
HEPA, Carbon and UV indicators glow red when it is time for each to be replaced.
When 1 indicator is on, simply hold Reset button for 3 seconds to reset that indicator. When 2+ indicators are on, tap the Reset button to select the correct indicator (selected indicator will blink) before holding 3 seconds to reset that indicator.

(See replacement instructions. Follow above Reset button instructions after replacing filter.)

SPECIFICATIONS

CARE & MAINTENANCE

Always power off the purifier by pressing the Power Button and unplugging the power cord.

To access the filter chamber, carefully remove the filter cover so that the filter chamber is exposed (Fig. A).

REPLACING HEPA DRUM FILTER

The HEPA indicator will glow red when it is time to change the entire HEPA drum filter.

1. Gently pull the HEPA drum filter away from its place secured to the filter cover (Fig. B).

2. Secure the replacement HEPA filter onto the filter cover (Fig. C).

3. Gently replace the filter cover with filter drum into the filter chamber and onto the threading, then turn the knob clockwise until the knob and filter chamber cover are securely tightened (Fig. D).

4. Plug in and power on your purifier, and hold the Reset button until the red HEPA indicator turns off.

Refer to HEPA Drum Filter replacement part numbers.

REPLACING THE STANDARD CARBON FILTER

The Carbon indicator will glow red when it is time to replace the Carbon layer.

1. Gently peel away the used Carbon layer from the fastener strips (Fig. E).

2. Wrap a new Carbon layer around the filter drum and attach to the same fastener strips (Fig. F).

3. Once the purifier is powered on, hold the Reset button until the red Carbon indicator turns off.

Note: Standard Carbon filter 3-pack will cover 3 Carbon changes between replacing the entire HEPA drum filter assembly.

Note: Specialty Filters feature a Carbon drum filter that slides away from the HEPA filter layer.

REPLACING UV BULB

1. Theindicator will glow red when it is time to replace the UV bulb.
2. Remove HEPA filter drum (Fig. A) and use a screwdriver to remove the screw securing the UV housing (Fig. G).
3. Gently remove the UV housing (Fig. H) and disconnect the UV bulb from the socket (Fig. I).
4. Release carriage from the UV bulb (Fig. J).
5. Secure carriage to new UV bulb (Fig. K) and connect UV bulb into purifier (Fig L).
6. Replace the UV housing and use a screwdriver to tighten the fastening screw.
7. Once the purifier is powered on, hold the Reset button until the indicator turns white.

FAQ & TROUBLESHOOTING

SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS/READ LABEL AND OPERATING MANUAL BEFORE USING

PRECAUTIONS
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

Unplug or disconnect the appliance from the power supply before replacing filters or UV bulb, or when appliance is not in use.

To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. Do not operate any purifier with a damaged cord or plug, or if the wall socket is loose.

Do not run cord under carpeting, throw rugs, runners or similar coverings. Do not run cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

Skin or eye damage may result from directly viewing the light produced by the bulb in this apparatus. Always disconnect power before relamping or servicing. Replace bulb with UVLZ1000-01, manufactured by ACCO Brands.

UV radiation emitted from this device. Unintended use of the device or damage to the housing may result in exposure to ultraviolet radiation.

Ultraviolet radiation may cause eye and skin irritation. Avoid exposing eyes and skin to ultraviolet radiation.

• Remove all packaging, including the filter bag, before use.
• Appliances that are obviously damaged must not be operated.
• This appliance must only be connected to a wall socket outlet matching the supply plug type and rating stated on the rating plate.
• Locate air purifier near the outlet wall socket and do not use extension cords.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• KEEP OUT OF THE REACH OF CHILDREN. Children shall not play with the appliance.
• Replace the UV lamp with the models specified within this manual. The lamp contains mercury. Ensure safe handling, cleanup and disposal of lamp per local laws.
• Do not attempt to service or repair this product yourself.
• Only use the purifier with the power cable provided.
• Only clean this machine with a damp cloth. Do not use solvents or bleach.
• Ensure appliance is always placed on firm level surface before operation.
• Do not block or obstruct the air intake or outlet vents.
• Do not insert fingers or other items into the air intake or outlet vents.
• The use of this device is a supplement to and not a substitute for standard infection control practices; users must continue to follow all current infection control practices, including those practices related to cleaning and disinfection of environmental surfaces.

FIRST AID INSTRUCTIONS: Seek medical attention in the event of an injury.

LAMP CONTAINS MERCURY Do not dispose of lamp. Recycle in accordance with local Disposal Laws Visit www.Lamprecycle.org

EPA Est. No. indicated by 3rd and 4th digits of the serial number on the package and/or machine. 23 and higher = 91680-CHN-1; 22 and lower = 93166-CHN-1
