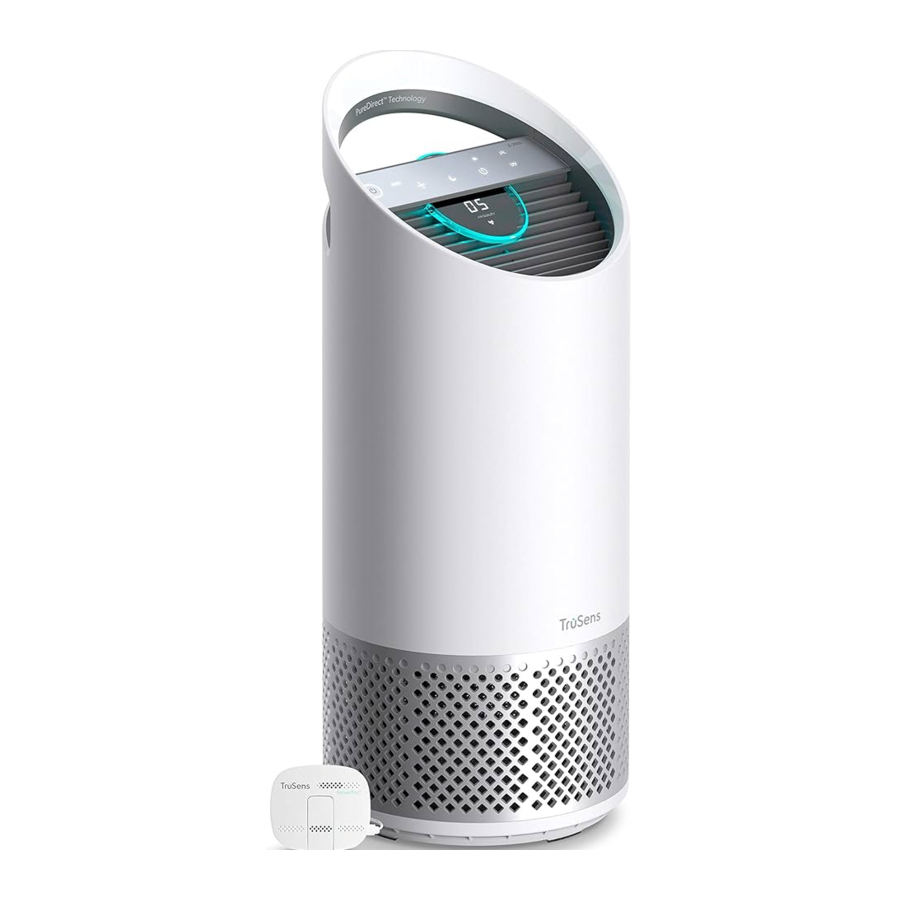

TruSens Z-2000 Manual

FEATURE HIGHLIGHTS

	SensorPod™ Remote air quality monitor that ensures cleaner air, right where you need it.
	PureDirect™ Technology Independent lab testing confirms that two airflow streams are better than one, moving air effectively and more comfortably throughout the room.
	Informs and Adapts Color-coded, illuminated ring provides additional information by communicating air quality in real time.
	360° Purification DuPont™ HEPA filter captures pollutants and VOC gases/odors from all directions. UV-C light inactivates germs and bacteria that can get trapped in the filter.
	Thoughtful Execution Exceptional functionality wrapped in a contemporary design that fits any environment.

PRODUCT OVERVIEW

GETTING STARTED

1. Remove plastic bag from filter
   Unscrew the bottom cover and remove the plastic bag from the filter.

2. Reattach filter
   Secure filter on the bottom cover and replace inside the purifier.

3. Set up
   Plug in your SensorPod™, and place upright on tabletop or counter across the room, within line of sight of the purifier.
   Plug in your air purifier unit and power on. Place the purifier on a flat surface, free from obstructions.
   Signal strength may vary by location. In the rare occasion that it doesn't work.
4. Start living with cleaner air
   The purifier will automatically adjust fan speeds based on the air quality readings from SensorPod, and proprietary PureDirect™ technology will deliver purified air throughout the room!


CONTROL PANEL

Power Button

Fan Speed Settings
Select fan speed or AUTO mode. In AUTO mode, purifier automatically adjusts fan speed based on air quality readings from SensorPod™.
(AUTO mode only available when purifier is paired with SensorPod and receiving signal.)

Dimmer Mode
Display illumination turns off (for use while sleeping) without sacrificing the effectiveness of the purifier. Simply press the button again to bring back all display features.

Timer Mode
Purifier will automatically turn off after 2, 4, 8 or 12 hours. To cancel this countdown, simply press button until no timer setting is displayed.

UV Mode
UV bulb within the purifier's filter chamber is on when the symbol is white. The symbol will glow red when it is time to replace the UV bulb.

Filter and UV Indicator Reset
HEPA, Carbon and UV indicators glow red when it is time for each to be replaced.
When 1 indicator is on, simply hold Reset button for 3 seconds to reset that indicator. When 2+ indicators are on, tap the Reset button to select the correct indicator (selected indicator will blink) before holding 3 seconds to reset that indicator.
(See "CARE & MAINTENANCE" for replacement instructions. Follow above Reset button instructions after replacing filter.)

AIR QUALITY DISPLAY

Real-time Feedback
The revolutionary SensorPod™ evaluates the condition of your air by measuring both small (PM2.5) and larger (PM10) particulate matter. It calculates the overall air quality using a proprietary algorithm that is reactive to genuine increases in pollutants without overreacting to someone entering the room or settling into the couch.
The illuminated, color-coded display communicates good, moderate or poor air quality and a numeric value provides a greater level of detail.
In AUTO mode, the purifier automatically adjusts the fan speed in response to these air quality readings.

SPECIFICATIONS

CARE & MAINTENANCE

Always power off the purifier by pressing the Power Button and unplugging the power cord.
To access the filter chamber, carefully remove the filter cover so that the filter chamber is exposed.

REPLACING HEPA DRUM FILTER

The HEPA indicator will glow red when it is time to change the entire HEPA drum filter.

1. Gently pull the HEPA drum filter away from its place secured to the filter cover.

2. Secure the replacement HEPA filter onto the filter cover.

3. Gently replace the filter cover with filter drum into the filter chamber and onto the threading, then turn the knob clockwise until the knob and filter chamber cover are securely tightened.

4. Plug in and power on your purifier, and hold the Reset button until the red HEPA indicator turns off.

REPLACING THE STANDARD CARBON FILTER

The Carbon indicator will glow red when it is time to replace the Carbon layer.

1. Gently peel away the Prefilter from the fastener strips.

2. Gently peel away the used Carbon layer from the fastener strips.

3. Wrap a new Carbon layer around the filter drum and attach to the same fastener strips.

4. Replace the Prefilter by wrapping it around the Carbon layer and attach to the fastener strips.

5. Once the purifier is powered on, hold the Reset button until the red Carbon indicator turns off.

Note: Standard Carbon filter 3-pack will cover 3 Carbon changes between replacing the entire HEPA drum filter assembly.
Note: Specialty Filters feature a Carbon drum filter that slides away from the HEPA filter layer.

WASHING THE STANDARD AND PET PREFILTER

We recommend that you visually inspect the Prefilter every month and clean as needed. At minimum, you should hand wash the Prefilter every time you change the Carbon filter.

1. Gently peel away the Washable Prefilter from the fastener strips (Fig. E).
2. Gently rinse Prefilter with running water and allow to air dry before reinstalling.
3. Replace the Prefilter by wrapping it around the filter drum and attaching to the fastener strips (Fig. H).

REPLACING UV BULB

1. The indicator will glow red when it is time to replace the UV bulb.
2. Remove HEPA filter drum (Fig. A) and use a screwdriver to remove the screw securing the UV housing (Fig. I).

3. Gently remove the UV housing (Fig. J) and disconnect the UV bulb from the socket (Fig. K).

4. Release carriage from the UV bulb.

5. Secure carriage to new UV bulb (Fig. M) and connect UV bulb into purifier (Fig N).

6. Replace the UV housing and use a screwdriver to tighten the fastening screw.
7. Once the purifier is powered on, hold the Reset button until the indicator turns white.

CLEANING THE SENSORPOD™

Cleaning the air quality sensor
The SensorPod™ uses an infrared light to detect particulate matter, so it is important that you clean the viewing chamber every 1-2 months to remove any dust or particles that may affect the accuracy of the sensor's readings.

1. Turn off the SensorPod by unplugging the power cord.
2. Open the easy-access door on the front side by pulling the door up at a 90° angle.
3. Use a damp cotton swab to wipe the lens and intake area of the dust sensor.

4. Use a dry cotton swab to wipe away any remaining moisture.
5. Close the cover by rotating the door back down and sliding it back into place until you hear a click.

FAQ & TROUBLESHOOTING

Pairing SensorPod^™ and Purifier

The SensorPod communicates with the purifier using radio frequency signals and will be paired on the production line and ready for use when you open the box. In the rare event that the signal is interrupted, the purifier's sensor indicator light will blink. You can repair the connection in just a few easy steps.

1. Unplug the SensorPod.
2. HOLD the Power Button on the purifier for 3 seconds; you should hear two chimes.
3. Plug in the SensorPod and use an item with a small point (paper clip) to press and HOLD the pairing button underneath the SensorPod for 5-7 seconds.

4. The connection is established when the purifier's sensor indicator light is lit with no blinking and the air quality indicators turn on.

SAFETY INFORMATION

PRECAUTIONS
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
Unplug or disconnect the appliance from the power supply before replacing filters or UV bulb, or when appliance is not in use.

To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. Do not operate any purifier with a damaged cord or plug, or if the wall socket is loose.
Do not run cord under carpeting, throw rugs, runners or similar coverings. Do not run cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

Skin or eye damage may result from directly viewing the light produced by the bulb in this apparatus. Always disconnect power before relamping or servicing. Replace bulb with UVLZ2000-01, manufactured by ACCO Brands.

UV radiation emitted from this device. Unintended use of the device or damage to the housing may result in exposure to ultraviolet radiation.
Ultraviolet radiation may cause eye and skin irritation. Avoid exposing eyes and skin to ultraviolet radiation.

• Remove all packaging, including the filter bag, before use.
• Appliances that are obviously damaged must not be operated.
• This appliance must only be connected to a wall socket outlet matching the supply plug type and rating stated on the rating plate.
• Locate air purifier near the outlet wall socket and do not use extension cords.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• KEEP OUT OF THE REACH OF CHILDREN. Children shall not play with the appliance.
• Replace the UV bulb with the models specified within this manual. The bulb contains mercury. Ensure safe handling, cleanup and disposal of bulb per local laws.
• Do not attempt to service or repair this product yourself.
• Only use the purifier and SensorPod ™ with the power cable provided.
• Only clean this machine with a damp cloth. Do not use solvents or bleach.
• Ensure appliance is always placed on firm level surface before operation.
• Do not block or obstruct the air intake or outlet vents.
• Do not insert fingers or other items into the air intake or outlet vents.
• When the air purifier is in standby mode the SensorPod™ is still transmitting a signal/data.
• The use of this device is a supplement to and not a substitute for standard infection control practices; users must continue to follow all current infection control practices, including those practices related to cleaning and disinfection of environmental surfaces.

FIRST AID INSTRUCTIONS: Seek medical attention in the event of an injury.
