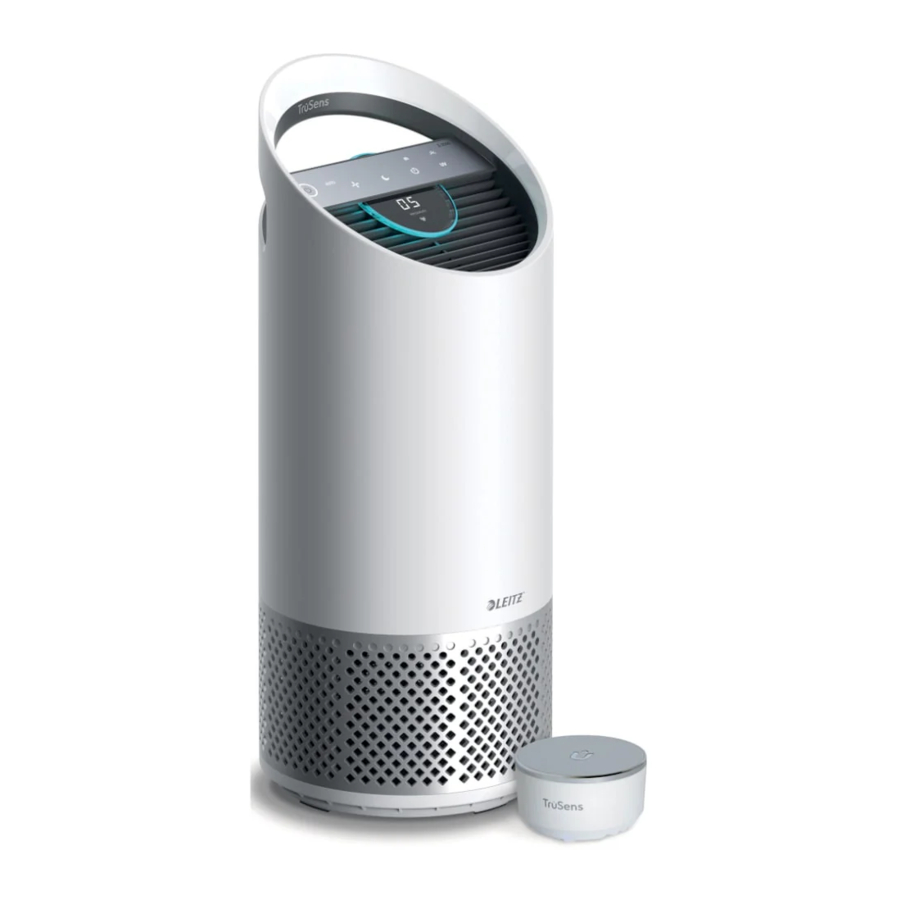

TruSens Z-2500 Manual

INTRODUCTION

TruSens SensorPod, PureDirect Technology, and DuPont Filtration ensure the whole room benefits from cleaner air. You're always in control with Alexa device voice commands and TruSens App remote functions. Track outdoor air quality changes, get filter change reminders, and reorder supplies.

FEATURE HIGHLIGHTS

SensorPod
Remote air quality monitor that ensures cleaner air, right where you need it.

PureDirect Technology
Independent lab testing confirms that two airflow streams are better than one, moving air effectively and more comfortably throughout the room.

Informs and Adapts
Color-coded, illuminated ring provides additional information by communicating air quality in real time.

360° Purifoication
DuPont HEPA filter captures pollutants and VOC gases/odors from all directions. UV-C light inactivates germs and bacteria that can get trapped in the filter.

TruSens App and Alexa Device Voice Commands
You're always in control with voice command compatibility and the TruSens app remote functions. Track outdoor air quality changes, get filter change reminders and reorder supplies.

PRODUCT OVERVIEW

GETTING STARTED

1. Remove plastic bag from filter
   Unscrew the bottom cover and remove the plastic bag from the filter.

2. Reattach filter
   Secure filter on the bottom cover and replace inside the purifier.

3. Set up
   Plug in your SensorPod and place upright on tabletop or counter across the room, within line of sight of the purifier.
   Plug in your air purifier unit and power on. Place the purifier on a fat surface, free from obstructions.
   Signal strength may vary by location. In the rare occasion that it doesn't work, see "FAQ & TROUBLESHOOTING".
4. Start living with cleaner air
   The purifier will automatically adjust fan speeds based on the air quality readings from SensorPod, and proprietary PureDirect technology will deliver purified air throughout the room.


CONTROL PANEL

Power Button

Fan Speed Settings
Select fan speed or AUTO mode. In AUTO mode, purifier automatically adjusts fan speed based on air quality readings from SensorPod.
(AUTO mode only available when purifier is paired with SensorPod and receiving signal.)

Dimmer Mode
Display illumination turns off (for use while sleeping) without sacrificing the effectiveness of the purifier. Simply press the button again to bring back all display features.

Timer Mode
Purifier will automatically turn off after 2, 4, 8 or 12 hours. To cancel this countdown, simply press button until no timer setting is displayed.

UV Mode
UV bulb within the purifier's filter chamber is on when the symbol is white. The symbol will glow red when it is time to replace the UV bulb.
(See "REPLACING UV BULB" for replacement instructions.)

Filter and UV Indicator Reset
HEPA, Carbon and UV indicators glow red when it is time for each to be replaced.
When 1 indicator is on, simply hold Reset button for 3 seconds to reset that indicator. When 2+ indicators are on, tap the Reset button to select the correct indicator (selected indicator will blink) before holding 3 seconds to reset that indicator.
(See "CARE & MAINTENANCE" for replacement instructions. Follow above Reset button instructions after replacing filter.)

AIR QUALITY DISPLAY

Real-time Feedback
The enhanced SensorPod evaluates the condition of your air by measuring both particulate matter (PM1.0, PM2.5, PM10) and volatile organic compounds (VOCs). It calculates the overall air quality using a proprietary algorithm that is reactive to genuine increases in pollutants without overreacting to someone entering the room or settling into the couch.
The illuminated, color-coded display communicates good, moderate or poor air quality and a numeric value provides a greater level of detail.
In AUTO mode, the purifier automatically adjusts the fan speed in response to these air quality readings.

TruSens utilizes the Air Quality Index (1-500) created by the U.S. Environmental Protection Agency (EPA).

TRUSENS APP

The TruSens app allows you to conveniently control your TruSens air purifier from your smart device, whether you are across the room or across town.
You'll have the same control and real-time air quality feedback as on the Purifier. You'll also find historical tracking of your indoor air quality and information on your local outdoor air quality, and be able to set a schedule for the purifier. The app will notify you when it's time to replace your filter or UV bulb, and you can easily reorder through the app.

Download the TruSens App from the Google Play Store or the Apple App Store.

SET-UP

Once downloaded, open the app and follow the on-screen prompts.

Allow the app to use your phone's Bluetooth.

Select your country/language. (This can be updated at any point.)

Accept the End User License Agreement and Privacy Policy.

Connect the app to your TruSens purifier. (Your mobile device needs to be within 5 feet of the purifier.)

Create a PIN.

Connect your purifier to a Wi-Fi network.

Name your purifier to complete your setup.

NAMING TIPS

• When using your purifier's voice control feature, you will say the purifier's name every time you issue a command; to prevent confusion, each purifier should have a unique name.
• Name your purifier something easy and short (such as "Bedroom" or "Kitchen").
• Do not include "purifier" in the name. The Alexa app allows the renaming of a purifier, but we do not recommend it.

FUNCTIONS

Once loaded, you can explore multiple remote functions from the TruSens app's main screen.

POWER ON/OFF
Tap POWER to turn your purifier on. (Green indicates that a feature is activated.)

SELECT FAN SETTINGS
Select FAN to adjust fan speeds. AUTO will adjust the fan speed according to air quality.

SEE AIR DETAILS
The enhanced SensorPod sends real-time air quality data to your purifier and the app. To view details about this data, tap SEE AIR DETAILS.
Select BACK to return to the main screen.

NIGHT MODE
Night Mode dims the lights on the purifier's control panel. Tap the NIGHT button to control this setting.

FILTER STATUS
Track when to reorder new filters and accessories and purchase easily from the app.

VIEW AQI HISTORY
Select HISTORY from the main screen to view your indoor air quality information by the hour, day, week or month.

SCHEDULE SET-UP
Schedules allow you to specify purifier settings based on day and time. For instance, you could set a schedule that tells your purifier to turn off every weekday at 9 am and back on again at 6 pm, depending on when you're gone from the house.
To initiate the process, select SCHEDULE and make selections based on your individual needs.

OUTDOOR AIR QUALITY
In addition to indoor air quality information (AQI), you can also access outdoor air quality information from the main screen.
The TruSens app's outdoor air quality information feature can alert and inform you about your local conditions, as well as conditions anywhere in the world.
To view outdoor AQIs, select the OUTDOOR icon in the upper right of the main screen and follow prompts.

ADDITIONAL INFORMATION
In addition to making remote purifier functions useful, the TruSens app makes it easy to access additional information.
Tap the icon in the upper left of the main screen and select one of the multiple options.

ALEXA DEVICE VOICE CONTROL

INSTALL THE ALEXA APP

1. Download the latest version of the Amazon Alexa app to your smart device.
2. Once loaded, open the Alexa app and tap the Devices button on the bottom right of the screen.
3. Alexa will scan your Wi-Fi network and locate your Z-2500 TruSens Smart Air Purifier.

PAIR YOUR PRODUCT WITH ALEXA DEVICE

1. Confirm that your Z-2500 TruSens Smart Air Purifier and your Alexa device are connected to your local wireless network.
2. Open the Alexa app and search "TruSens" under the Skills section.
3. In the TruSens app, go to Settings and select Reveal to reveal your Alexa code, then click Copy.
4. In the Alexa app, click Enable on the TruSens Skill, then paste the code you copied in step 3.
5. If successful, you will receive this message: Your TruSens Air Purifier account has been successfully linked.

PAIR YOUR PRODUCT WITH ALEXA APP

1. In the Alexa app, navigate to the Devices tab.

2. Click "Your Smart Home Skills". You will likely not have any skills at this time. Once installed, you will see the TruSens skill on this page.

3. Click the "Enable Smart Home Skills" button. In the skills list that appears, click the magnifying glass icon in the upper-right corner to search. Type "TruSens" in the search bar.

4. Select the TruSens skill to install it. This is technically a new skill for your Alexa device, so you may be expected to link your purifier again.

5. If so, please use the TruSens app to obtain a new linking code.


SPECIFICATIONS

CARE & MAINTENANCE

Always power off the purifier by pressing the Power Button and unplugging the power cord.

To access the filter chamber, carefully remove the filter cover so that the filter chamber is exposed (Fig. A).

REPLACING HEPA DRUM FILTER

The HEPA indicator will glow red when it is time to change the entire HEPA drum filter.

1. Gently pull the HEPA drum filter away from its place secured to the filter cover (Fig. B).

2. Secure the replacement HEPA filter onto the filter cover (Fig. C).

3. Gently replace the filter cover with filter drum into the filter chamber and onto the threading, then turn the knob clockwise until the knob and filter chamber cover are securely tightened (Fig. D).

4. Plug in and power on your purifier, and hold the Reset button until the red HEPA indicator turns off.

Refer to "SPECIFICATIONS" for HEPA Drum Filter replacement part numbers.

REPLACING THE STANDARD CARBON FILTER

The Carbon indicator will glow red when it is time to replace the Carbon layer.

1. Gently peel away the Prefilter from the fastener strips (Fig. E).

2. Gently peel away the used Carbon layer from the fastener strips (Fig. F).

3. Wrap a new Carbon layer around the filter drum and attach to the same fastener strips (Fig. G).

4. Replace the Prefilter by wrapping it around the Carbon layer and attaching to the fastener strips (Fig. H)

5. Once the purifier is powered on, hold the Reset button until the red Carbon indicator turns off.
   Note: Standard Carbon filter 3-pack (see "SPECIFICATIONS") will cover 3 Carbon changes between replacing the entire HEPA drum filter assembly (see "CARE & MAINTENANCE").
   Note: Specialty Filters feature a Carbon drum filter that slides away from the HEPA filter layer.

WASHING THE STANDARD AND PET PREFILTER

We recommend that you visually inspect the Prefilter every month and clean as needed. At minimum, you should hand wash the Prefilter every time you change the Carbon filter.

1. Gently peel away the Washable Prefilter from the fastener strips (Fig. E).
2. Gently rinse Prefilter with running water and allow to air dry before reinstalling.
3. Replace the Prefilter by wrapping it around the filter drum and attaching to the fastener strips (Fig. H).

REPLACING UV BULB

1. The indicator will glow red when it is time to replace the UV bulb.
2. Remove HEPA flter drum (Fig. A) and use a screwdriver to remove the screw securing the UV housing (Fig. I).

3. Gently remove the UV housing (Fig. J) and disconnect the UV bulb from the socket (Fig. K).

4. Release carriage from the UV bulb (Fig. L).

5. Secure carriage to new UV bulb (see "SPECIFICATIONS") (Fig. M) and connect UV bulb into purifier (Fig N).

6. Replace the UV housing and use a screwdriver to tighten the fastening screw.
7. Once the purifier is powered on, hold the Reset button until the indicator turns white.

FAQ & TROUBLESHOOTING

Pairing SensorPod and Purifier
The SensorPod communicates with the purifier using radio frequency signals and will be paired on the production line and ready for use when you open the box. In the rare event that the signal is interrupted, the purifier's sensor indicator light will blink. You can repair the connection in just a few easy steps.

1. Unplug the SensorPod.
2. HOLD the Power Button on the purifier for 3 seconds; you should hear two chimes.
3. Plug in the SensorPod and press and HOLD the pairing button underneath the SensorPod for 5-7 seconds (Fig. O).

4. The connection is established when the purifier's sensor indicator light is lit with no blinking and the air quality indicators turn on.

SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS/READ LABEL AND OPERATING MANUAL BEFORE USING

PRECAUTIONS
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
Unplug or disconnect the appliance from the power supply before replacing filters or UV bulb, or when appliance is not in use.

To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. Do not operate any purifier with a damaged cord or plug, or if the wall socket is loose.
Do not run cord under carpeting, throw rugs, runners or similar coverings. Do not run cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

Skin or eye damage may result from directly viewing the light produced by the bulb in this apparatus. Always disconnect power before relamping or servicing. Replace bulb with UVLZ2000-01, manufactured by ACCO Brands.

UV radiation emitted from this device. Unintended use of the device or damage to the housing may result in exposure to ultraviolet radiation.
Ultraviolet radiation may cause eye and skin irritation. Avoid exposing eyes and skin to ultraviolet radiation.

• Remove all packaging, including the filter bag, before use.
• Appliances that are obviously damaged must not be operated.
• This appliance must only be connected to a wall socket outlet matching the supply plug type and rating stated on the rating plate.
• Locate air purifier near the outlet wall socket and do not use extension cords.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• KEEP OUT OF THE REACH OF CHILDREN. Children shall not play with the appliance.
• Replace the UV bulb with the models specified within this manual. The bulb contains mercury. Ensure safe handling, cleanup and disposal of bulb per local laws.
• Do not attempt to service or repair this product yourself.
• Only use the purifier and SensorPod with the power cable provided.
• Only clean this machine with a damp cloth. Do not use solvents or bleach.
• Ensure appliance is always placed on firm level surface before operation.
• Do not block or obstruct the air intake or outlet vents.
• Do not insert fingers or other items into the air intake or outlet vents.
• When the air purifier is in standby mode the SensorPod is still transmitting a signal/data.
• The use of this device is a supplement to and not a substitute for standard infection control practices; users must continue to follow all current infection control practices, including those practices related to cleaning and disinfection of environmental surfaces.

FIRST AID INSTRUCTIONS: Seek medical attention in the event of an injury.

SUPPORT

We value your feedback. Please contact us to share your experience.
Visit our website at www.trusens.com
Email us at support@trusens.com
Call us at 1-833-TRUSENS (1-833-878-7367)

Subscribe to our YouTube channel TruSens
& Follow us @TruSensWellness

www.trusens.com

ACCO Brands
101 O'Neil Road
Sidney, NY 13838
Tel: 1-833-TRUSENS
(1-833-878-7367)
