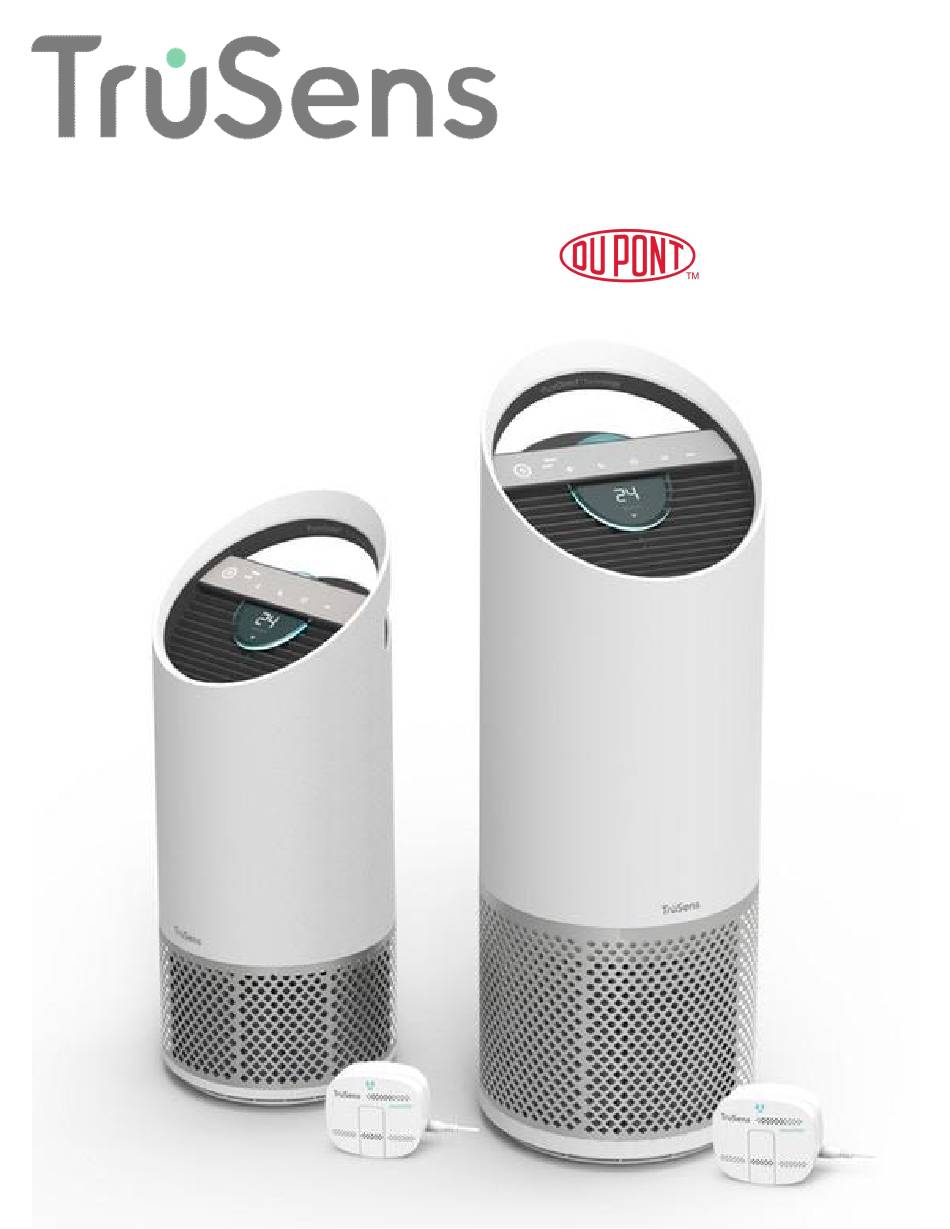

- Page 1 Z-2000 Z-3000 Owner Guide Air Purifier with SensorPod™ and filtration...
-
Page 2: General Safety Information
• Ensure appliance is always placed on firm level surface before operation. • Do not block or obstruct the air intake or outlet vents. • Do not insert fingers or other items into the air intake or outlet vents. FCC ID: Z-2000: GV3-18Z2000 Z-3000: GV3-18Z3000 Sensor: GV3-18SP001 Z-2000: 6128A-18Z2000 Z-3000: 6128A-18Z3000 Sensor: 6128A-18SP001 This device complies with part 15 of the FCC Rules. - Page 3 ISED Compliance This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 4: Table Of Contents
Experience the difference PureDirect™ technology SensorPod™ Proprietary bi-directional airflow Remote air quality monitor that distributes clean air comfortably ensures cleaner air, right where and efficiently you need it Informs and adapts 360° Purification Illumination color ring and Surrounding air is drawn in from numeric display communicate air all directions through a 3-stage quality in real-time... -
Page 5: Getting Started
Getting started Step 1. Placement of the purifier and SensorPod Place the purifier on a flat surface along a side wall, free from obstructions: where air can flow freely into the purifier from all sides avoiding furnishings like bedding and curtains, as well as sources of heat or moisture. Place SensorPod on a counter or table away from the purifier to increase coverage across the room. -
Page 6: Get To Know Your Air Purifier

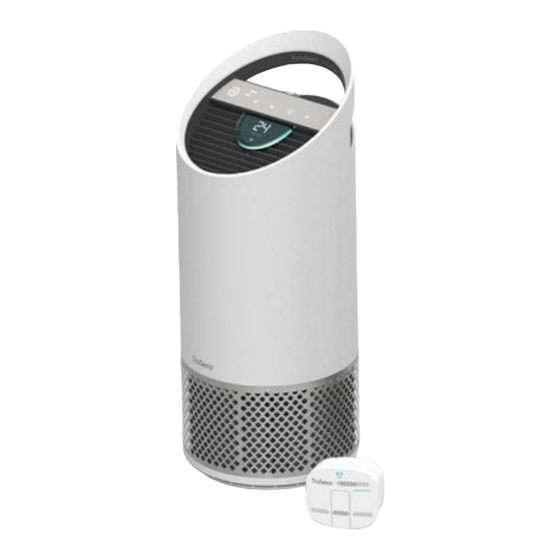

Get to know your air purifier 1. Easy-carry handle 2. Soft-touch control panel 3. Air quality indicator ring 4. 360° air intake 5. Filter chamber cover & knob (underneath) Introducing your remote air quality monitor, SensorPod™ The separate air quality sensor can more accurately represent the air quality in your room by monitoring the air away from the purifier, ensuring greater coverage of cleaner air. - Page 7 PureDirect™ cleans comfortably and efficiently By splitting the purified air into two distinct and directed streams, PureDirect provides a unique and proprietary airflow that cleans the room up to 24% faster. filtration and UV sterilization Washable Pre-Filter Captures larger particulates, like dust and pet hair Activated Carbon Filter Removes certain gases and odors...
-
Page 8: Control Panel
An illuminated ring on the purifier’s control panel communicates your air quality levels with color, while a numeric value provides greater detail. Good Air Quality Moderate Air Quality Poor Air Quality 0 - 50 51 - 100 101 - 500 TruSens utilizes the Air Quality Index (1-500) created by the U.S. Environmental Protection Agency (EPA). -
Page 9: Specifications
Specifications Z-2000 Z-3000 Medium Room Purifier Large Room Purifier Area changed every 15 minutes 188 ft² (17 m²) 375 ft² (35 m²) Area changed every 30 minutes 375 ft² (35 m²) 750 ft² (70 m²) Included SensorPod™ Works up to 49 ft (15 m) across a room from the purifier. - Page 10 Specifications SensorPod Medium & Large Rated operational voltage 9V DC Rated operational current 0.15A DC ±10% Adapter input voltage range 90 ~ 240V AC 60±3Hz/50±3Hz Adapter output power DC 9V 0.15 Rated power 1.3±0.3W Signal frequency 2462MHz Channel bandwidth 1MHz Wireless transmit power 0dBm Receive Sensitivity...
- Page 11 Filter Change and Maintenance Accessing the filter chamber -Always power off the purifier by pressing the Power Button and unplugging the power cord. -Gently place the unit on its side so that the filter chamber cover and knob are exposed. -Turn the knob counter-clockwise and remove (Fig A).
-
Page 12: Replacing Carbon Filter
Filter Change and Maintenance Fig. E Replacing the Carbon filter 1. The indicator will glow red when it is time to replace only the Carbon layer. 2. Gently peel away the Prefilter from its fastener strips. 3. Gently peel away the old Carbon layer from its fastener strips. 4. -
Page 13: Replacing The Uv Lamp
Replacing the UV lamp 1. The indicator will glow red when it is time to replace the UV lamp. 2. Once the filter drum is removed (Fig. A, Fig B), use a screwdriver to remove the 4 screws securing the UV housing (Fig. G). 3. - Page 14 Pairing SensorPod and Purifier The SensorPod communicates with the purifier using radio frequency signals, and will be paired on the production line and ready for use when you open the box. In the rare event that the signal is interrupted, you can repair the connection in just a few easy steps.
-
Page 15: Sensorpod
Troubleshooting and FAQ Where do I place the SensorPod? Anywhere you want to measure the air quality within the room! For optimal performance, place the SensorPod away from the air purifier on a counter or table. In Auto Mode, the purifier will work to distribute clean air until the SensorPod reads an acceptable level of air quality. -
Page 16: Support
TruSens Warranty TruSens warrants that the machine will be perform to the specifications stated and be free from defects in materials and workmanship for a period of 2 years from date of purchase, subject to normal use. Within the guarantee period, TruSens will at its own discretion either repair or replace the defective machine free of charge. - Page 17 Version 0, November 2018 Experience the difference www.trusens.com...
