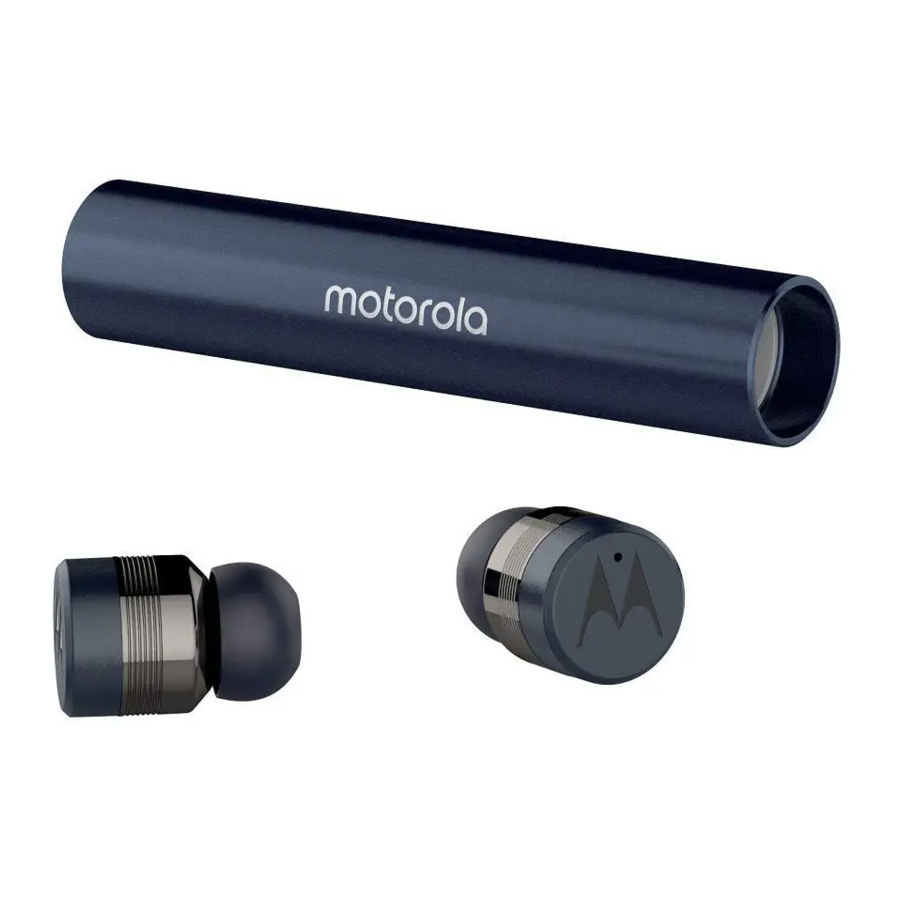

Motorola VERVEBUDS 300 (SH032) Manual
Specifications
- MODELS: VERVEBUDS 300
- Frequency Band: 2.402 – 2.480 GHz
- Maximum RF power: 6 dBm
- Working temperature: -10oC – 45oC
- Product ID: SH032
- FCC ID: VLJ-SH032
- IC: 4522A-SH032

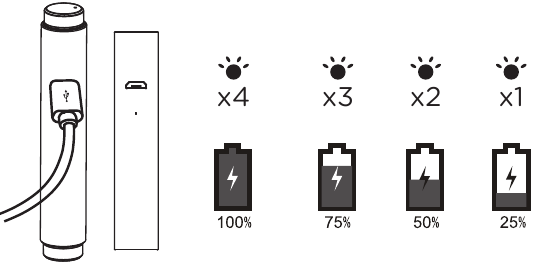

Charging
Fully charge before use
The device can be powered through a micro USB from any CE compliant power source that implement the European interface as requested by EN 301 489-52.
Pairing

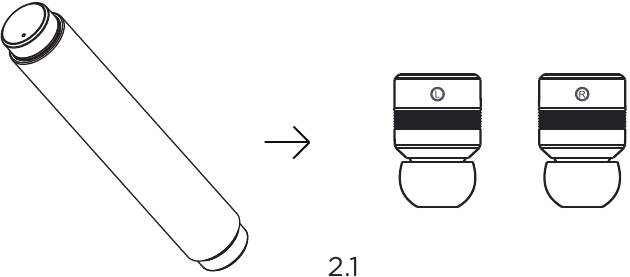

- Ensure both buds are inside the charging case and take out both buds. The buds will flash blue and red.
![Pairing]( "Motorola - VERVEBUDS 300 - Pairing")
- Select "Vervebuds 300" from the smartphone Bluetooth menu.
![]()
Fitting

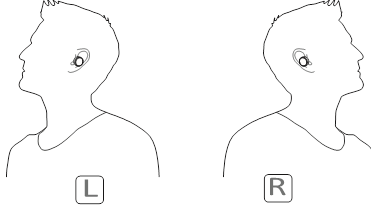

- Insert the Vervebuds into your ear and rotate to fit comfortably.
![Fitting - Step 1]( "Motorola - VERVEBUDS 300 - Fitting - Step 1")

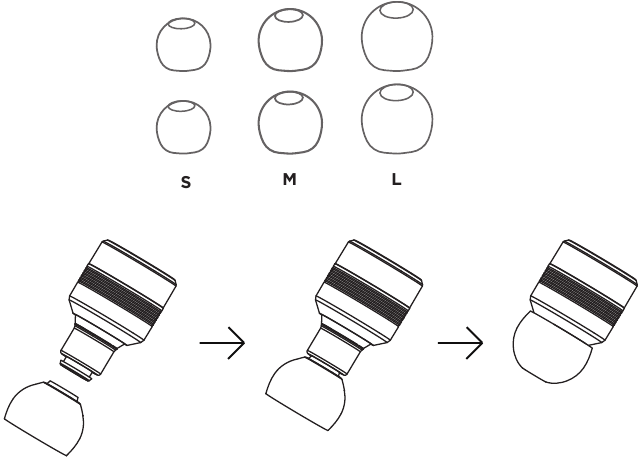

- To optimize the best fit and audio experience, it is recommended to try different earbud sizes.
![Fitting - Step 2]( "Motorola - VERVEBUDS 300 - Fitting - Step 2")

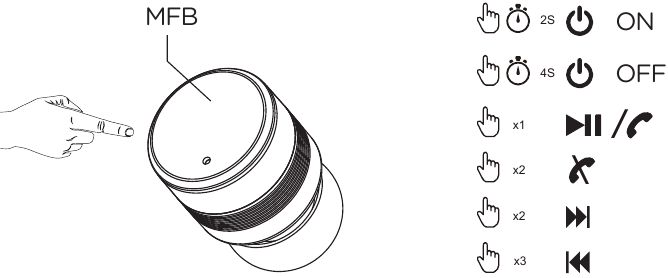

Base Operation
Additional Operation
| Factory reset | Switch off both buds, then hold both MFB for 5 sec until the indicator shows RED & BLUE, press MFB rapidly for 4 times. |
| Reject a call | MFB 2sec |
| Receive incoming call and end ongoing call | Double Press MFB |
| Receive incoming and on hold ongoing call | Single Press MFB |
| Voice command (Siri/ Google/Alexa) | MFB 2sec |
| LED Indicator | |
| Pairing | Red-blue flash |
| Standby | Blue flash |
| Charging | Red steady |
| Fully charged | Off |
| Battery low | Red flash |
Value-added Feature
To use the buds independently (mono mode) please follow this pairing sequence.
- Ensure both buds are in the case. Take the L bud out, the indicator will flash BLUE & RED.
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
