Motorola SH067 - True wireless Earbuds Manual

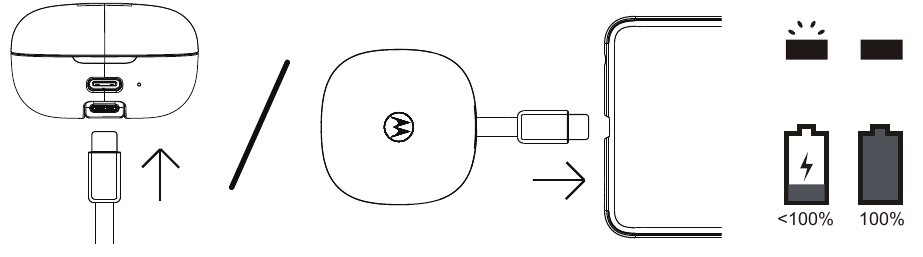

Charging
Fully charge before use
The device can be powered through a Type-C from any CE compliant power source that implement the European interface as requested by EN 301 489-52.
Pairing

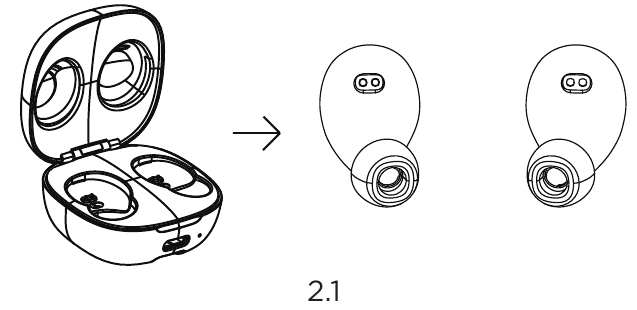

- Ensure both buds are inside the charging case and take out both buds. The buds will flash blue and red.
![Pairing]( "Motorola - SH067 - Pairing")

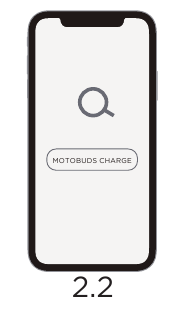

- Select "Motobuds Charge" from the smartphone Bluetooth menu.
![]()
Fitting

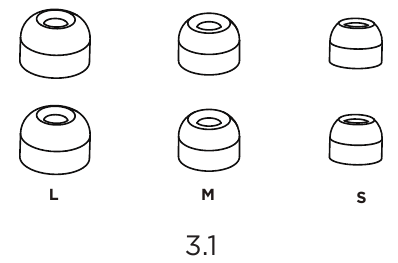

- To optimize the best fit and audio experience, it is recommended to try different earbud sizes.
![Fitting - Step 1]( "Motorola - SH067 - Fitting - Step 1")

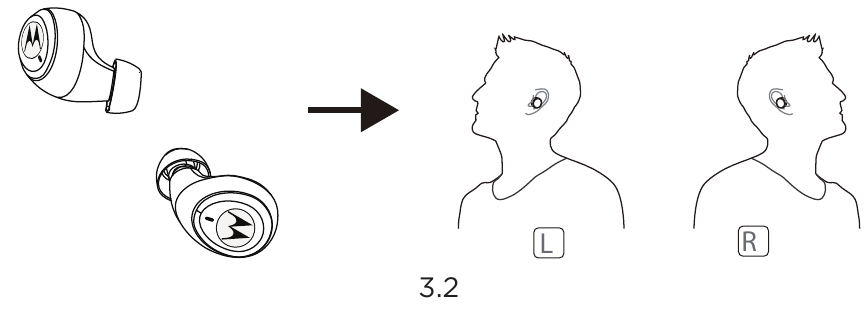

- Insert the Vervebuds into your ear and rotate to fit comfortably.
![Fitting - Step 2]( "Motorola - SH067 - Fitting - Step 2")

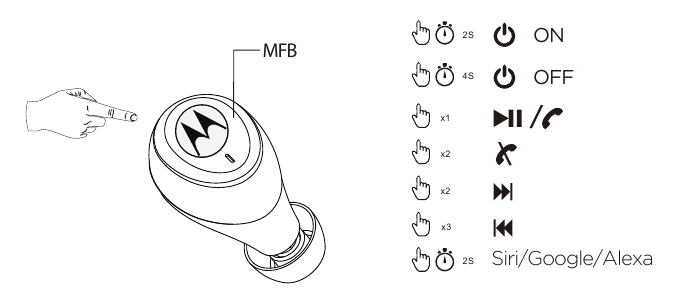

Basic Operation
Motorola SH067 Factory reset
- Ensure earbuds are not connected to phone
- Double press MFB and then hold MFB for 5 second until LED shows blue and red
- Put both buds into the charging case
| Additional Operation | |
| Reject a call | MFB 2sec |
| Receive incoming and on hold ongoing call | Single Press MFB |
| LED Indicator | |
| Pairing | Red-blue flash |
| Standby | Blue flash |
| Charging | Red steady |
| Fully charged | Off |
| Battery low | Red flash |
Specifications
| Model No. | SH067 | Working temperature: | -10ºC–45ºC |
| Frequency Band | 2.402 – 2.480GHz | Product ID | SH067 |
| Maximum RF power | 6 dBm | FCC ID | VLJ-SH067 |
| IFETEL ID | RCPMOSH20-1529 | IC | 4522A-SH067 |
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
