Motorola MOTO BUDS 270 ANC - Bluetooth True Wireless Earbuds Manual

Getting started

Location


The earbuds are resistant to dripping and splashing water, but the charging case is not waterproof. Make sure you wipe off any moisture on the earbuds thoroughly before putting them into the charging case.

Range of earbuds and the Bluetooth device

Make sure the earbuds and Bluetooth device are placed within range of each other.

Charging the battery


Use only the approved rechargeable Lithium-ion battery supplied with your MOTO BUDS 270 ANC.

Charging case
Connect one side of the supplied USB-C charging cable to the Type-C charging port, and the other side to the USB AC adaptor.

The LED indicators on the charging case flash then stay on when charging is complete. They show the current battery level. For the first time use, charge the battery for at least 5 hours continuously. After the first time charge, it takes approximately 2 hours for a normal charge.
Charging case

Battery performance
In ideal conditions, a fully charged battery should give up to 6.0 hours usage time or up to 50 hours standby time.
The charge capacity of the rechargeable battery will reduce with time as it wears out, giving the earbuds less usage / standby time.

Battery low warning
If you hear 'LOW BATTERY' every 3 minutes, recharge the battery.

Earbuds
Put the earbuds into the charging case. Charging starts automatically. The red LEDs on both earbuds turn on until charging is complete.
The red LEDs on both earbuds turn on until charging is complete.

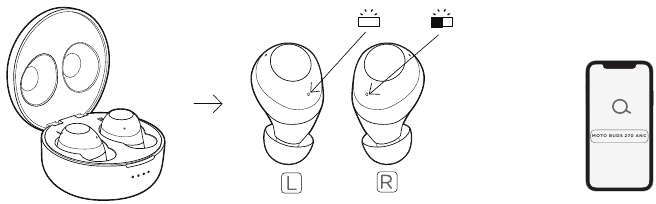

Connecting your earbuds

Pair your earbuds with the Bluetooth device for the first time

  1. Open the charging case top lid to turn earbuds on.
    • You will hear 'POWER ON'. The LEDs on both earbuds will flash blue for a second and you will hear 'LEFT CHANNEL', 'RIGHT CHANNEL'.
    • Then the LED indicator flashes every 5 seconds on the left earbud and red and blue alternately on the right earbud. Earbuds enter pairing mode. You will hear 'PAIRING'.
  2. Make sure the Bluetooth function of you device is activated. Earbuds will do pairing automatically.
  3. Select MOTO BUDS 270 ANC from the Bluetooth menu of your device. You will hear 'HELLO MOTO, CONNECTED' when pairing is successful. The blue LED on both earbuds will flash slowly.
    Connecting your earbuds

warningNote: Make sure your device is compatible with Bluetooth and earbuds.
Your MOTO BUDS 270 ANC are now ready for use.

Getting to know your true wireless earbuds

Overview
Overview

  1. Microphones
  2. Multi-function button (MFB)
  3. LED indicators
  4. Replaceable earcaps (size M)
  5. Charging case
  6. USB Type-C charging socket
  7. Earbud charging contacts
  8. Battery level indicators

Using the true wireless earbuds

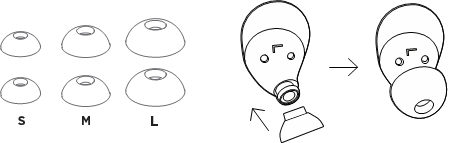

Select the earcaps

  1. Select from 3 different size of replaceable earcaps which fit your ears the best. The earbuds come with size M attached as default.
  2. Fit the earcaps into the earbuds.

Select the earcaps

Wear the earbuds

Insert the earbuds into ears and rotate to fit comfortably.

Wear the earbuds

Reconnect the earbuds to your Bluetooth device

  1. Turn on your Bluetooth device with the Bluetooth feature activated.
  2. Open the charging case top lid to turn on your earbuds.
    • The earbuds will auto reconnect to the last connected Bluetooth device.

warning
Note: If the earbuds cannot find and connect to any Bluetooth device with 5 minutes, they will switch off automatically.

Operation

Turn on/off

Task Operation
Turn on Open the charging case top lid. You will hear 'POWER ON'.
Turn off Put the earbuds in the charging case and close the charging case top lid. You will hear 'POWER OFF'.

Call control

Task Operation
Answer/End a call Left/right MFB: Tap once.
Reject a call Left/right MFB: Press and hold for 2s.
3-way call
Pick up calls/Put calls on hold/ switch calls Left/right MFB: Tap once.
Reject calls/Continue current call Left/right MFB: Press and hold for 2s.
End current call/Resume on hold calls Left/right MFB: Tap twice.

Music

Task Operation
Play/Pause Left/right MFB: Tap once.
Previous track Right MFB: Tap 3 times.
Next track Right MFB: Tap twice.

Activate voice assistant

Task Operation
Siri, Google Right MFB: Press and hold for 2s.

Noise cancellation and ambient sound

Task Operation
Switch the noise cancellation/ ambient sound on/off Left MFB: Tap twice.

Restore factory settings

  1. Switch off both earbuds.
  2. Press both MFBs for 10 seconds.
  3. Put both earbuds into the charging case.
  4. Follow pairing instructions to do pairing (see page 8).

LED status indicators

Power on Flash blue for 1 second
Power off Flash red for 2 seconds
Pairing

Flashes blue every 5 seconds (left earbud)

Flashes red and blue alternately (right earbud)

Connected Flashes blue every 5 seconds
Charging Steady red
Fully charged Off

Help

The true wireless earbuds do not turn on.

  • The battery level is too low. Recharge your earbuds.

The true wireless earbuds do not connect with the Bluetooth device.

  • Ensure the Bluetooth function of the Bluetooth device has been turned on.
  • Ensure the Bluetooth function of the previous connected device has been turned off.
  • Ensure you follow the instructions in this user manual to connect the earbuds.

The true wireless earbuds keep disconnecting.

  • The battery level is too low. Recharge your earbuds.
  • Ensure the true wireless earbuds and Bluetooth device are operated within range.
  • Remove the true wireless earbuds from the pairing list and connect them with the Bluetooth device again.

Poor audio quality.

  • Ensure the true wireless earbuds and Bluetooth device are operated within range.
  • Remove the true wireless earbuds from the pairing list and connect them with the Bluetooth device again.

Only one side of the earbuds has sound.

  • The battery level of one earbud is too low. Recharge your true wireless earbuds.
  • One earbud has disconnected from another earbud.
  • Try to reconnect the true wireless earbuds with the Bluetooth device.
  • Reset the earbuds if the problem is not solved.

The other side's voice cannot be heard.

  • Adjust the volume on the Bluetooth device.

My voice cannot be heard.

  • Check the Bluetooth device to ensure the voice is going through the true wireless earbuds.
  • Remove the earbuds from the ears and speak close to the microphone.

Music plays on my Bluetooth device not through the earbuds.

  • Check on your Bluetooth device if you have selected to listen to music through the earbuds.

Technical Specifications

Bluetooth profiles HFP (Handsfree Profile); A2DP (Advanced
Audio Distribution Profile); AVRCP (Audio Video Remote Control Profile)
Bluetooth version 5.2
Battery Lithium-ion 350mAh 3.85V on charging case
Music time 6 hours (maximum)
Talk time 5 hours (maximum)
Standby time 50 hours (maximum)
Frequency range 2.402 – 2.480GHz
Transmission power 7dBm
Operation range 10 meters (33 feet)
Operation temperature 0°C - +45°C

warningNote: Specifications are subject to change without prior notice.
