Newstripe BigSqueeze 10001655 Product Manual

Paint can & pail crusher

Advertisement

Quick Links

Product Manual
BigSqueeze
TM
Paint Can & Pail Crusher
10001655
1655.0924

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BigSqueeze 10001655 and is the answer not in the manual?

Questions and answers

Summary of Contents for Newstripe BigSqueeze 10001655

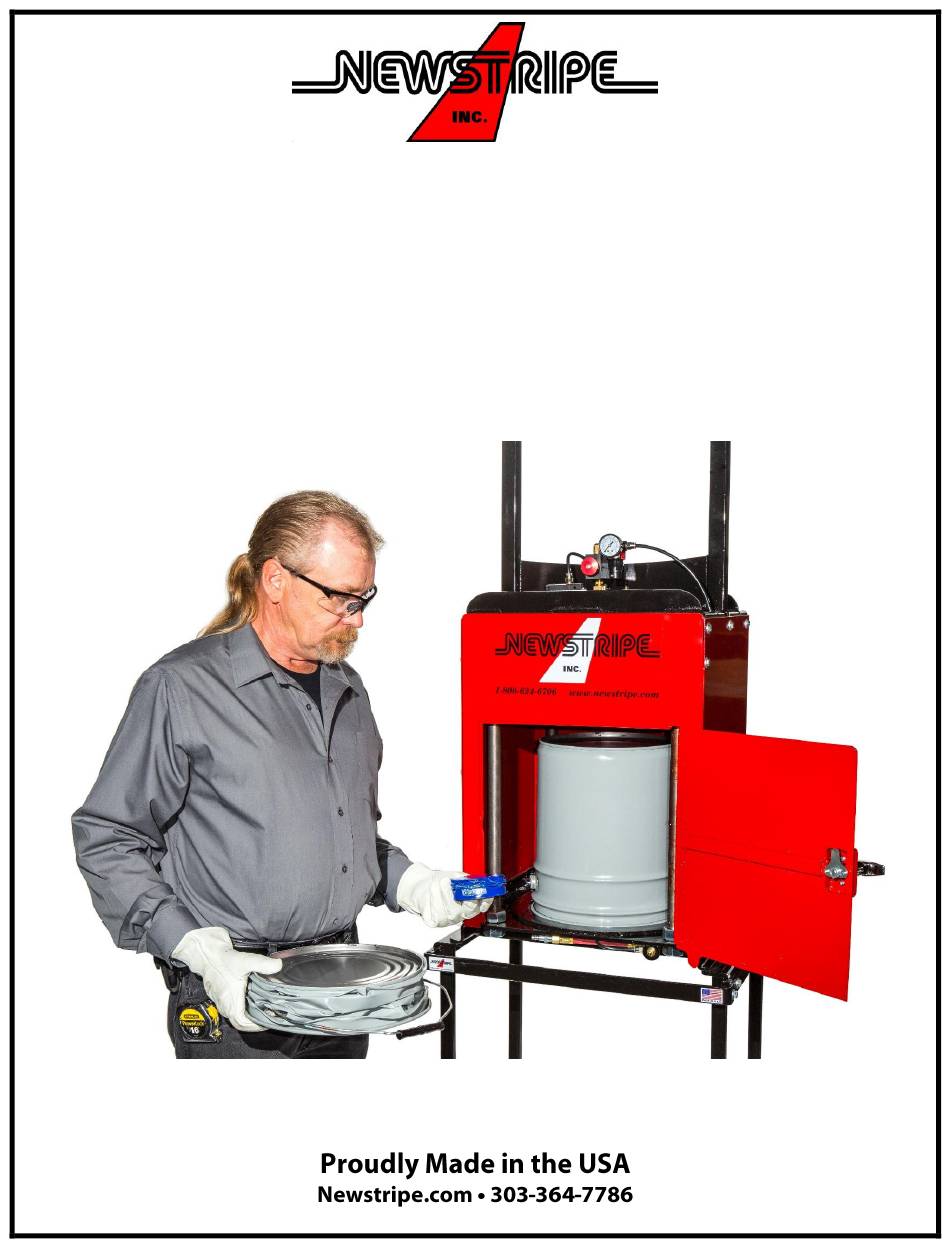

  • Page 1 Product Manual BigSqueeze Paint Can & Pail Crusher 10001655 1655.0924...
  • Page 2: Table Of Contents

    BigSqueeze Paint Can & Pail Crusher TABLE OF CONTENTS Precautionary Warnings ......Page 1 Thank you for purchasing the Newstripe BigSqueeze Paint Can & Pail Crusher. Assembly ..........Page 2 Operation ........... Page 2-3 Please read over the instructions and make sure you understand the operating Operational Notes ........
  • Page 3: Precautionary Warnings

    BigSqueeze Paint Can & Pail Crusher PRECAUTIONARY WARNINGS • PLEASE read and understand all operation instructions as detailed in this manual. Failure to follow specified instructions may result in equipment damage or severe injury to personnel. • DO NOT crush sealed containers. The lid must be off, or one end must be vented.
  • Page 4: Assembly

    BigSqueeze Paint Can & Pail Crusher ASSEMBLY • If you have purchased the optional floor stand (10001623), assemble it first, and then mount the BigSqueeze on top of it. • If you are installing the BigSqueeze on a bench or shelf, make sure that the mounting surface can support at least 440 lbs.
  • Page 5 BigSqueeze Paint Can & Pail Crusher OPERATION WITH ALIGNMENT RING • The alignment ring is used to center smaller containers, or to center the pedestal in the recess inside the BigSqueeze. The most common container used with the alignment ring is a 1 #13 Alignment gallon paint pail.
  • Page 6: Operational Notes

    • NOTE: If the Safety Relief Valve opens during the cycle, the non-adjustable regulator has malfunctioned. If this happens, STOP using the unit and contact Newstripe for a corrective action. TROUBLESHOOTING GUIDE PROBLEM REMEDY The unit begins to operate as The operating cycle button was pushed prior to closing the door.
  • Page 7: Parts List

    BigSqueeze Paint Can & Pail Crusher PARTS LIST Part Part Item Description Item Description Number Number Gauge, 0-160 psi 10004965 Return Spring (2) (Not shown) 10001658 Valve, Cycle/Operating 10001659 Door Latch/Handle 10001694 Valve, Safety Relief 10001525 Regulator, 100 psi Non-Adjustable 10001103 Valve, Adjustable Pilot 10001660 Alignment Ring...
  • Page 8: Warranty

    Return Materials Authorization (RMA) from Newstripe and then ship the defective part or parts of the equipment, transportation prepaid by the purchaser, to Newstripe together with a written description of any claimed defect and proof of purchase date of the materials being returned.
