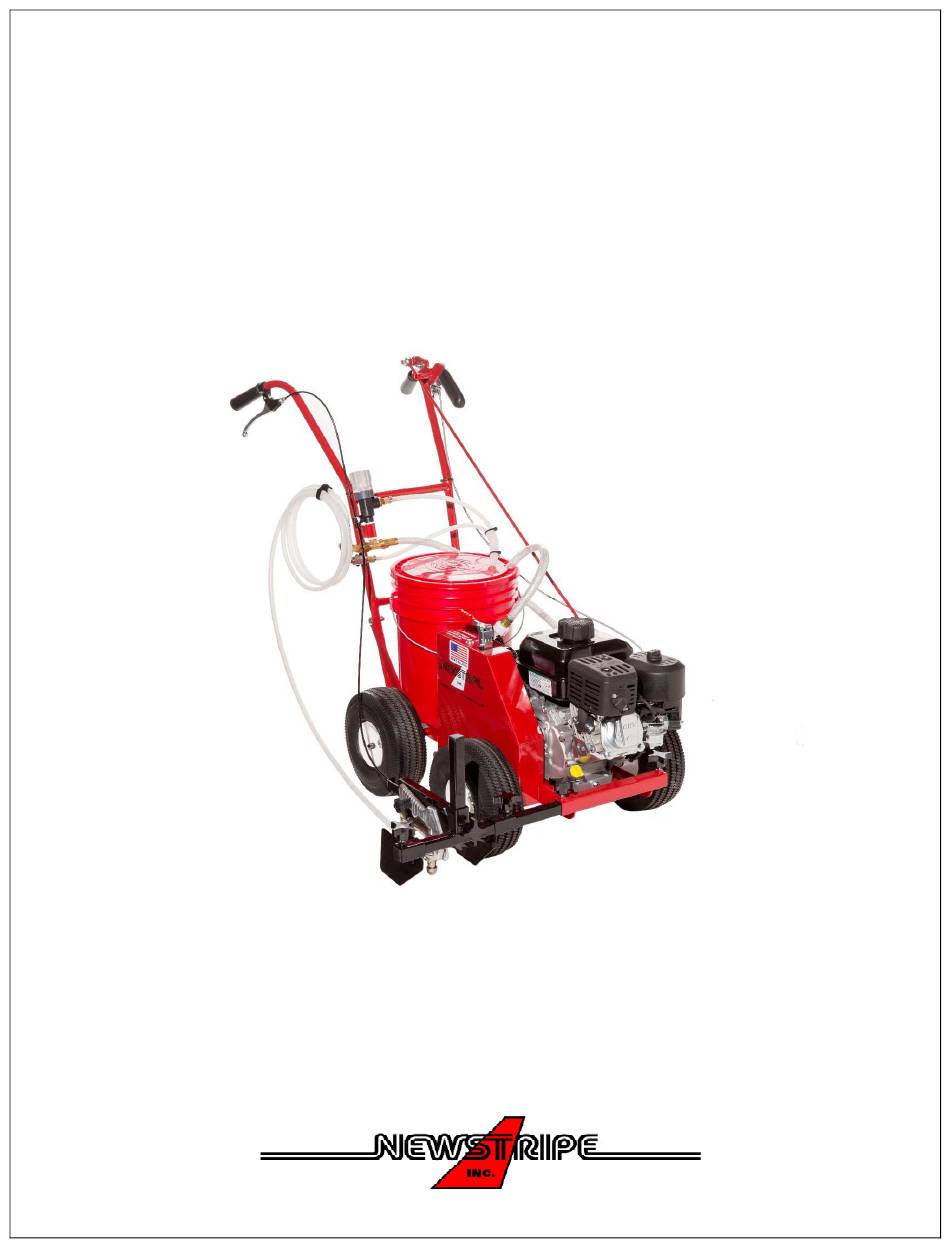

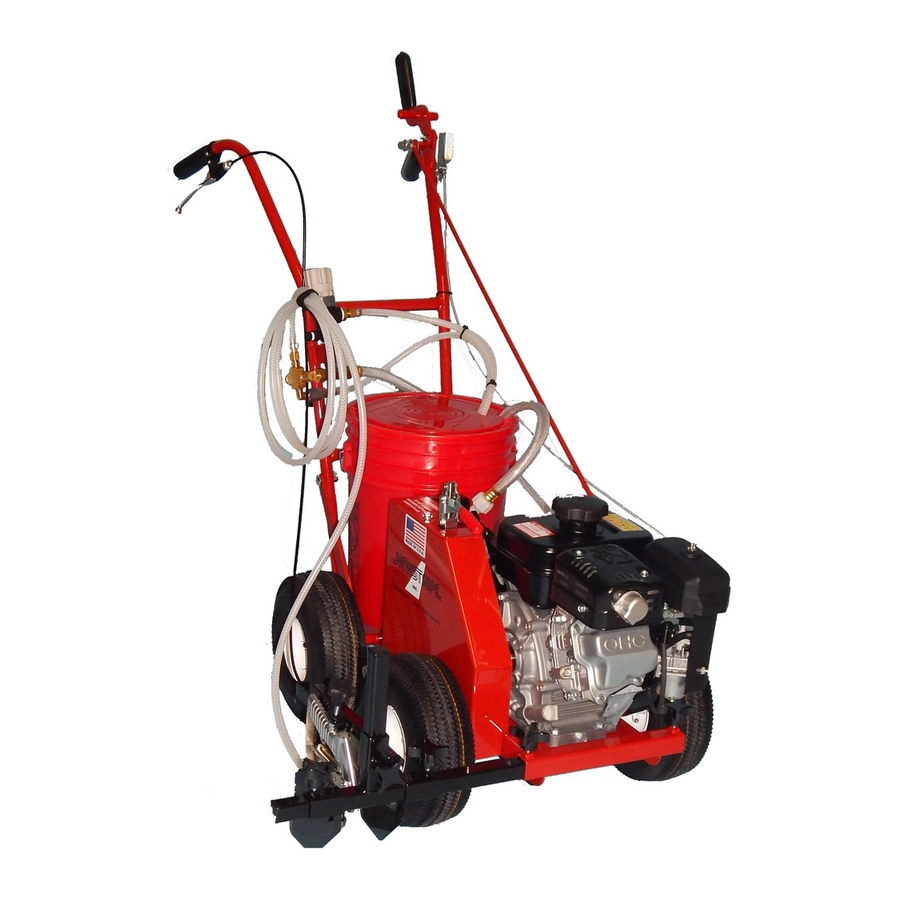

- Page 1 EcoLiner™ SP Product Manual 1700 Jasper St., Unit F, Aurora, CO 80011 T 800.624.6706 F 303.364.7796 • Newstripe.com EcoLiner™ SP Manual / 4621.0517 ...
-
Page 2: Table Of Contents
This Manual is for units with serial Cleaning Procedure .... Page 4 number 1016773 and above only. For units with serial numbers below Cleaning Procedure .... Page 4 1016773, please contact Newstripe for (Winter Storage) the correct manual. Parts List ......... Page 5 Spray Gun Assembly .... Page 6 Images ......... Page 7‐9 ... -
Page 3: Precautionary Warning
DO NOT use oil, petroleum, primer or base coat paints in the EcoLiner™ SP. Before using paint, fill the paint pail with water to familiarize yourself with the machine. ALWAYS STRAIN THE PAINT. Field marking paint often has oversized material, lumps, skin, etc., in it. If not strained, these contaminates will be drawn into the pump, shut‐off valve, lines, etc., and will cause problems. THIN THE PAINT BEFORE adding it to the pail for the ECOLINER. Almost all field marking paints MUST BE THINNED before using them with the ECOLINER. These paints are typically thinned at ratios of 1:1 (One‐gallon of water to one‐gallon of paint) up to 3:1. NEVER perform maintenance on the machine while the system is running. If equipped with fuel shut off, the gas On/Off lever should always be OFF when the machine is not being used DO NOT run the pump dry after cleaning. Please note that modifying, changing or servicing any portion of the machine, system or components outside of the procedures and parts outlined in the owner’s manual will VOID the warranty. Use only in well‐ventilated area. Always consult your Facility Safety and/or Personnel Department for specified safety protocols prior to operating this equipment. 1700 Jasper St., Unit F, Aurora, CO 80011 T 800.624.6706 F 303.364.7796 • Newstripe.com EcoLiner™ SP Manual / 4621.0517 Page 1 of 11... -
Page 4: Assembly
Support arm for spray gun with left & right side spray shields Gun mounting Bar Spray gun assembly Nozzles, 5002 (2”‐3” lines) and 9005 (5”‐6” lines) Pail paint strainer Owner’s Manual ASSEMBLY 1. The EcoLiner™ SP is shipped mostly assembled. You are only required to attach the spray gun assembly and paint hose. 2. Slide the Support Arm with side plates through mounting tube on front of chassis. 3. Tighten down the Star Knobs. 4. Mount Spray Gun Mounting Arm on Support Arm with spray hose connection facing rearward. 5. Tighten Star Knob. 6. Line width is adjusted by raising or lowering Spray Gun and selecting the appropriate Spray Nozzle. 7. Connect Paint Hose from Pressure Valve Cross to Spray Gun. Tighten lightly with wrench. 8. CHECK ENGINE OIL. FILL WITH HIGH QUALITY 10W30 DETERGENT MOTOR OIL. Fill level is between the cross hatched markings on the dipstick with the dipstick pushed against the fill port. (Not screwed in.) Pic 1 1700 Jasper St., Unit F, Aurora, CO 80011 T 800.624.6706 F 303.364.7796 • Newstripe.com EcoLiner™ SP Manual / 4621.0517 Page 2 of 11 ... -
Page 5: Operation
6. Move the pump engagement lever to the “ON” position, all the way forward. Engagement lever should now be in a horizontal position. 7. Move Pump Prime Valve next to the Pressure Valve and Cable, to the open position. Lift the lid slightly on the pail and watch the paint flow from the hose. Once there is a continuous flow from the hose, close the Pump Prime Valve. The unit should now spray when the handle mounted trigger is squeezed. 8. To engage the self‐propelled mechanism, simply push the drive lever to the forward most position. Pull back to stop. The speed is controlled by adjusting the engine speed. OPERATIONAL NOTES! a) Adjust side spray shields for line width and adjust spray gun height up or down as needed to achieve the line width. (Note: water will produce a wider line than paint.) b) Fill bucket to about 2” from the top with PREMIXED paint. DO NOT place Non‐thinned paint in unit, as this will clog the pump. Most athletic field marking paint is mixed at a ratio of 1:1, one gallon of water to one gallon of paint. Some paints may be thinned more. See paint manufacturer’s directions. c) You will need to use the Pump Prime valve each time you run the pail dry and when you switch to water for cleaning to remove air in the system. The spray pressure valve is initially set at the factory for maximum spray pressure. If you feel you are getting too much paint flow from the nozzles, unscrew the Pressure Valve Cap until the flow is where you would like it to be and then run the Locking ring up against the cap to maintain the setting. ALWAYS Disengage the pump lever when the paint pail becomes empty. Continuing to run the pump when paint has run out will dry paint inside the pump 1700 Jasper St., Unit F, Aurora, CO 80011 T 800.624.6706 F 303.364.7796 • Newstripe.com EcoLiner™ SP Manual / 4621.0517 Page 3 of 11 ... -
Page 6: Cleaning Procedure
3. Empty pail of unused paint, or remove pail completely and cover for the next time you stripe. 4. Place another empty pail on machine. 5. Wipe off or rinse off suction hose, screen, return hose, pump prime hose and pail lid. 6. Remove nozzle cap, nozzle, and valve seat and put in container of water to soak. 7. Place 2‐3 gallons of clean water in the pail. Place pick up tube back in pail. Leave return hose out of pail. This allows you to flush all hoses of paint. Start engine. Use Pump Prime valve to prime pump and activate control lever. CAREFUL: Return hose will ‘jump’ from paint pressure. Run until spray runs clear. 8. Clean nozzle parts that have been soaking and reassemble on spray gun. 9. Clean and rinse exterior of machine. Use soapy water (dish washing detergent or Simple Green) once each week to thoroughly clean pump. Add soap to 2‐3 gallons of water, run machine and let it circulate back to pail for 10‐15 minutes and then empty. CLEANING PROCEDURE FOR WINTER (FREEZING) STORAGE 1. Clean as instructed in cleaning procedure and then place ½ bottle of pump protector in pail. 2. Remove as much fuel from the engine gas tank as you can. Run engine until it runs out of gas. 3. Disconnect inlet and outlet hoses at pump and drain. 4. Disconnect paint hose from fitting at spray valve and drain hose. 5. Open pump prime valve and place pump prime valve hose on ground to drain valve 6. Unit may now be stored in freezing temperatures. 7. Drain and change engine oil in the spring. 1700 Jasper St., Unit F, Aurora, CO 80011 T 800.624.6706 F 303.364.7796 • Newstripe.com EcoLiner™ SP Manual / 4621.0517 Page 4 of 11 ... -
Page 7: Parts List
N/A engagement lever 10000649 27 Pressure Valve 10003478 54 Spring, tension, idler arm 10000692 28 Hose, re‐circulating 10003692 55 Bearing, pump shaft (2) 10003131 29 Hose, pump outlet with fitting 10004469 56 Pump shaft (Not Shown) 10003365 30 Hose, pump prime valve 10003692 1700 Jasper St., Unit F, Aurora, CO 80011 T 800.624.6706 F 303.364.7796 • Newstripe.com EcoLiner™ SP Manual / 4621.0517 Page 5 of 11 ... -
Page 8: Spray Gun Assembly
10000136 5002 2” Line (package of 4) 10001891 58 Nozzle Select nozzle 8005 4” ‐5” Line (Heavy Turf) 10003493 59 Nozzle Cap 10001890 8004 4”‐5” Line (package of 4 10001893 *8004 Tip preinstalled by the factory **Comes standard on the machine 9505 5”‐6” Line (package of 4 10001894 Spray Gun Valve Seat #57 Nozzle #58 Nozzle Cap #59 Pic 1 1700 Jasper St., Unit F, Aurora, CO 80011 T 800.624.6706 F 303.364.7796 • Newstripe.com EcoLiner™ SP Manual / 4621.0517 Page 6 of 11 ... - Page 9 Hose #12 Paint Hose #6 Handle Support Braces Pic 2 #24 Pressure valve adjusting cap #25 Locking ring #26 Pressure limiter collar #12 Paint hose #28 Recirculating hose #27 Pressure valve #31 Brass T #36 Brass fitting, ½” #38 Ball Elbow Seat Fitting #29 Pump outlet hose #37 Plug #30 Pump prime #35 Cross valve hose Brass #32 Reducer 1/2” ‐1/4” #33 Pump #34 Brass prime valve Elbow ¼” Pic 3 1700 Jasper St., Unit F, Aurora, CO 80011 T 800.624.6706 F 303.364.7796 • Newstripe.com EcoLiner™ SP Manual / 4621.0517 Page 7 of 11 ...
- Page 10 #18 Right Shield Pivot Pic 4 #39 Pump engagement lever #36 Belt Guard #13 Suction hose #42 Pump #41 Pump Elbow Fittings #11 Drive rod #29 Pump outlet hose #43 Drive Assembly #9Throttle Cable Pic 5 #44 Drive rollers 1700 Jasper St., Unit F, Aurora, CO 80011 T 800.624.6706 F 303.364.7796 • Newstripe.com EcoLiner™ SP Manual / 4621.0517 Page 8 of 11 ...
-
Page 11: Maintenance
(4L280) #49 Idler drive pulley Pic 6 #44 Drive rollers MAINTENANCE ITEM CHECK MAINTENANCE ACTION Change engine oil after first 20 hours of operation and then Engine oil level Prior to every use every 100 hours thereafter. Paint Pail/Tank After every use Clean paint pail/tank hoses and nozzle Run soapy water through pump and hoses for additional Hoses and pump After every use cleaning Check air level before Wheels Fill with air as needed. Grease weekly. each use Handles Monthly Check handles for tightness to frame. Engine air filter Monthly Clean monthly. Replace every 4 months **For additional instructions please contact Newstripe, Inc. at 800‐624‐6706 1700 Jasper St., Unit F, Aurora, CO 80011 T 800.624.6706 F 303.364.7796 • Newstripe.com EcoLiner™ SP Manual / 4621.0517 Page 9 of 11 ... -
Page 12: Troubleshooting Guide
Wrong nozzle or Adjust spray head height up or down. Nozzle slot must be spray head height is Spray pattern too crosswise to the gun body. incorrect narrow or uneven Paint is too thick Thin Paint Control cable out of Check cable at spray gun mount. Adjust or replace adjustment Clogged or worn Dissemble and clean, or replace Paint drips after being spray control valve shut off Gun not mounted in Adjust gun position so lifting bar allows spray trigger to holder correctly release Faulty control lever Replace Clutch rod out of adjustment. Adjust by removing hair pin, Drive unit will not Drive rollers turning, turning adjustment nut clockwise & reinstall in drive unit move machine but no movement are. MAKE sure both tires are inflated equally. Drive rollers not Worn belt or broken idler spring. Replace belt or spring as turning needed 1700 Jasper St., Unit F, Aurora, CO 80011 T 800.624.6706 F 303.364.7796 • Newstripe.com EcoLiner™ SP Manual / 4621.0517 Page 10 of 11 ... - Page 13 ECOLINER™ SP ALWAYS wear safety goggles or protective eye‐wear when operating the unit! THE NEWSTRIPE WARRANTY – 18 MONTH NEWSTRIPE, INC., WARRANTS TO THE ORIGINAL PURCHASER, FOR 18 (EIGHTEEN) MONTHS AFTER DATE OF PURCHASE, THAT THE EQUIPMENT* HEREBY SOLD SHALL BE FREE OF DEFECTS IN MATERIALS AND WORKMANSHIP. THIS WARRANTY DOES NOT EXTEND TO ANY DAMAGE OR MALFUNCTION RESULTING FROM MISUSE, NEGLECT, ACCIDENT, IMPROPER OPERATION, OR NORMAL WEAR AND TEAR. Damage incurred in shipment from Newstripe, Inc. to the customer is the total responsibility of the carrier. The CUSTOMER MUST NOTE DAMAGES on the Bill of Lading of Trucking Company or Railroad; and Newstripe, Inc. will furnish to the customer the cost or parts and labor. The customer can then bill the common carrier for the damages by placing his signature on the documents. The Newstripe, Inc. obligation under this warranty and any implied warranties is limited to replacement or repair of defective parts of its manufacture without charge for 18 (Eighteen) months from date of purchase. For service under this warranty, buyer shall ship the defective part or parts of the equipment, transportation prepaid, to Newstripe, Inc. together with a written description of any claimed defect and proof of purchase date of the materials being returned. Prior to retuning any part or machine, the CUSTOMER must obtain a Return Materials Authorization number. Call 1‐800‐624‐6706. *Gasoline engines, compressors, pumps (including airless) and Transaxles are furnished with their respective manufacturer's warranties only. Such components are not covered by any warranty of Newstripe, Inc. Where Newstripe elects to extend manufacturers’ warranties, the warranty shall be pro‐ rated as to cover 100% of the cost to replace or repair materials and parts for the first 12 months of ownership and 60% for the remaining 6 month period. The responsibilities described above are the only responsibilities of Newstripe, Inc. under this written warranty or any implied warranty, and may be exercised only within 18 (Eighteen) months from the date of purchase. In no event shall Newstripe, Inc. be liable for incidental or consequential damages and no person had any authority to bind it to any representation or warranty, not be responsible for work done, materials furnished or repairs made by others without its' specific written authorization. THIS WARRANTY SHALL BE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND THERE IS NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND WITH RESPECT TO THE GOODS SOLD HEREBY EXCEPT AS SET FORTH HEREIN. IT IS EXPRESSLY AGREED THAT THIS WARRANTY SHALL BE LIMITED TO THE ADJUSTMENT, REPAIR OR REPLACEMENT OF PARTS AND THE LABOR AND SERVICES REQUIRED THEREBY. IN NO EVENT, INCLUDING ANY CLAIM FOR NEGLIGENCE, SHALL NEWSTRIPE, INC. BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. ...
