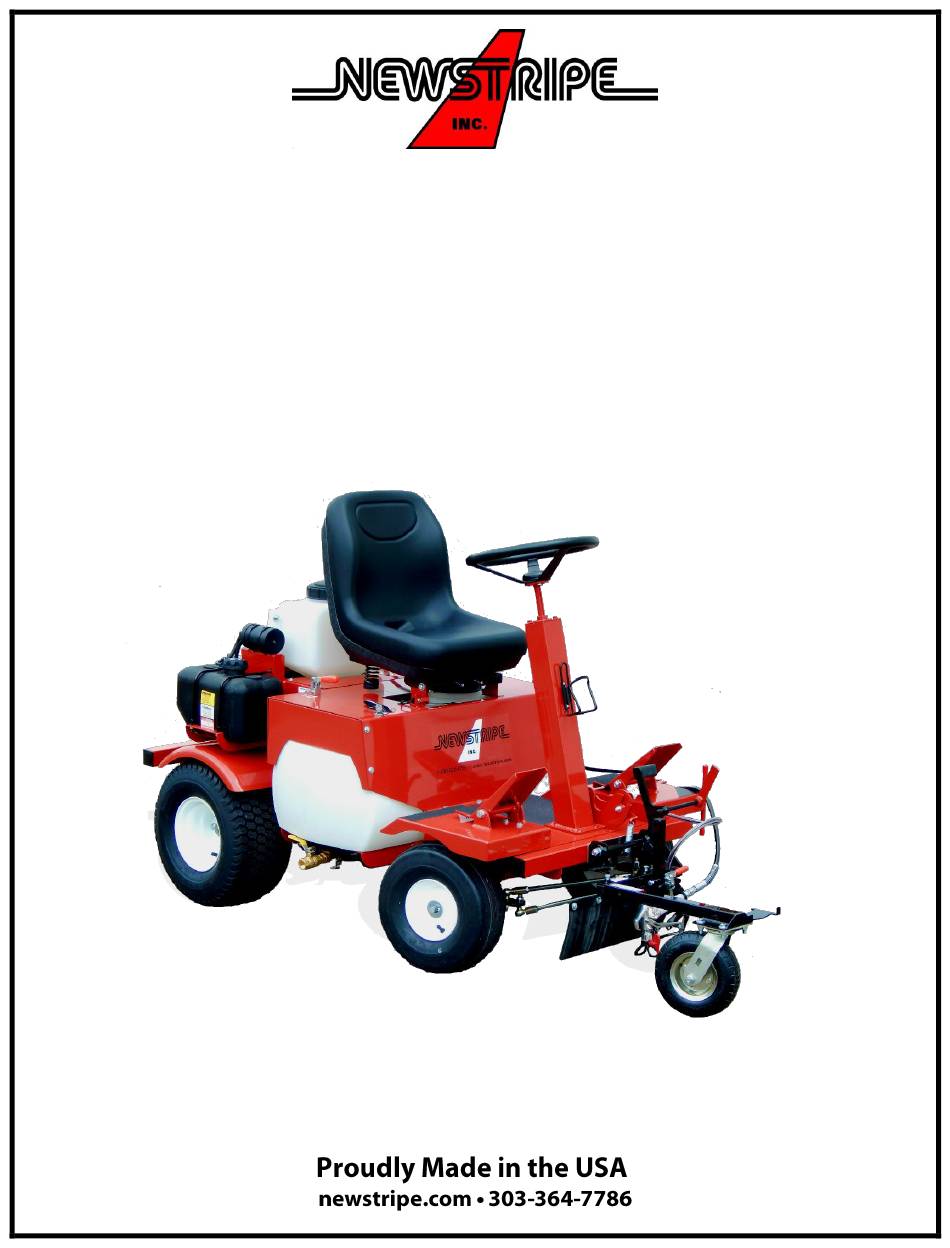

- Page 1 Product Manual NewRider™ 1700 Airless Riding Field Line Striper 10004026 NOT FOR SALE IN CALIFORNIA 4026.0524...
-
Page 2: Table Of Contents
NewRider™ 1700 Airless Riding Field Line Striper TABLE OF CONTENTS Precautionary Warnings ....Page 1 Thank you for purchasing the Newstripe NewRider™ 1700 Riding Field Line Striper. Assembly ........... Page 2 Operation ........Page 3-6 Please read over the instructions and make sure you understand operating procedures Spray Tip Cleaning ...... -
Page 3: Precautionary Warnings
• CAUTION: This system is capable of producing 3000 psi. Use only Newstripe Airless replacement parts rated at 3000 psi or higher. • DO NOT remove the spray tip from the gun while cleaning the pump, or while the system in under pressure. -
Page 4: Assembly
15. Make sure the static chain is contacting the ground. two holes in the bumper bracket with the two NOTE: The NewRider 1700 is Equipped with an EPA/Carb holes in the frame. Insert two 1/2”x3” bolts in approved recovery system and tethered fuel cap. DO the holes from the front. - Page 5 NewRider™ 1700 Airless Riding Field Line Striper HOUR METER & TACHOMETER OPERATION TO SET THE TACHOMETER (SPARK PLUG FIRING REVOULTION) Press and hold the S1 button for 4 seconds. The LCD will display 01(spark plug fires twice per revolution), 02 (once per revolution), 03 (every other revolution), 04 (hours only, will not display RPM).
- Page 6 NewRider™ 1700 Airless Riding Field Line Striper VIEWING MAINTENANCE INTERVAL Press and hold the S2 button for 4 seconds to view remaining time of your maintenance interval. To continue current maintenance do nothing. If you would like to start a new maintenance interval, repeat steps 4 & 5 again. Each time you want to view the remaining time of your maintenance, press and hold S2.
-
Page 7: Operation
First time use or after extended periods of not using the machine use water to test operations and settings. The NewRider 1700 is designed to be used with water based athletic field marking paints. ALWAYS STRAIN THE PAINT BEFORE USE! 1. - Page 8 (clockwise) just until it stops. Pump should now prime. If the pump will still not prime, Please call Newstripe.
-
Page 9: Spray Tip Cleaning
NewRider™ 1700 Airless Riding Field Line Striper SPRAY TIP CLEANING DURING USE 1. Place the prime/spray valve in the prime position 4. Reverse the spray gun tip so that the spray tip is in spray and press spray trigger pedal to release the mode (spray tip arrow pointed at the ground). -
Page 10: Cleaning Procedure
“Off” position. 2. Add 8 ounces (1/4 bottle) of Newstripe Pump 6. Trigger the spray gun to release any pressure from the Defender (10000459) to the purge tank. -
Page 11: Maintenance
Open oil level check port, if no oil runs Transaxle oil out, top off with Mobil 1 Full Synthetic Warning: Use ONLY Newstripe Check if performance is low or 15W50 Motor Oil ONLY. Filter 10003778. Failure to use if the transaxle is noisy. -
Page 12: Parts List
NewRider™ 1700 Airless Riding Field Line Striper PARTS LIST Item Number Description Part Number Battery, YTX20H 10003163 Transaxle Release/Engage Lever 10004101 Parking Brake Lever 10001817 Spring, (Seat Lift) 10001756 Empty Seat Safety Switch 10002437 Not Shown Neutral Switch (Under Right Front Fender on Shift Linkage) 10002913 Not Shown Brake Safety Switch (Under Right Side Seat Console) -
Page 13: Detailed Parts Pictures
10004999 Hour Meter 10002241 18ah SLA Batteries for NewRider 1700 These are high performance factory activated permanently sealed spill proof 18 amp hour SLA deep cycle motorcycle batteries .The battery dimensions are: 6-7/8" L X 3-7/16" W X 6-1/8" H. - Page 14 NewRider™ 1700 Airless Riding Field Line Striper Picture 7 Picture 8 #11 Purge Tank Vapor Canister Paint Tank #6 Seat Pins DO NOT SERVICE Battery Oil Dipstick Access Panel #56 Pump #8 Ignition Return Hose Switch Fuel Tank #5 Empty Seat Safety Switch #55 Hour #9 Air Filter...
- Page 15 NewRider™ 1700 Airless Riding Field Line Striper VALVES IN TANK FEED POSITION VALVES IN PURGE POSITION Picture 13 Picture 14 #28 Purge Feed #28 Tank Feed ½” Ball Valve ½” Ball Valve #35 Purge Feed Hose #47 Transaxle Oil Filter #29 In-Line Filter #26 Tank...
-
Page 16: Airless Pump Detail
At the beginning of each use Every 1000-1500 gallons or if it stops working Return/Bypass Hose Before each use Check for nicks and cuts Use Newstripe Pump Defender every time you Spray Pump Before and after each use store the machine. (10000459) Pump Inlet Hose Before each use Replace the hose if it is nicked or has cuts. -
Page 17: Airless Spray Gun Detail
NewRider™ 1700 Airless Riding Field Line Striper AIRLESS SPRAY GUN DETAIL Part Number Description 10005116 SPRAY TIP GUARD 10002103 319 SPRAY TIP - STANDARD FOR GPS AND SKID MOUNTED STRIPERS 10000508 517 SPRAY TIP - STANDARD FOR WALK BEHIND STRIPERS 10004860 519 SPRAY TIP - STANDARD TIP FOR RIDE ON STRIPERS 10003824... -
Page 18: Transaxle Service
11. Proceed to the purge procedure. 12. Check oil level. Top off if necessary. **Warning: Use ONLY Mobil 1 Full Synthetic 15W50 Motor Oil and Newstripe Filter Part Number 10003778 in the transaxle of this machine. Failure to use the correct filter and oil will cause damage to the transaxle and void the warranty. - Page 19 4. It may be necessary to repeat Steps 2 and 3 until all the air is completely purged from the system. When the transaxle operates at normal noise levels and moves smoothly forward and reverse at normal speeds, then the transaxle is considered purged. Please call Newstripe at 303-364-7786 if you have any questions.
-
Page 20: Troubleshooting Guide
Check that there is fuel in the tank and the fuel valve is open. start Make sure the throttle lever is in the full forward (choke) position. Call Newstripe for assistance. Engine will still not start Check that the choke is turned off (throttle back from full forward... - Page 21 The spray tip is worn. (sprayed more than 100 gallons) Replace the tip. clean, spray still not correct Replaced tip, spray is still Call Newstripe for assistance not correct Your machine is designed to be simple and safe to operate. Please call Newstripe at 303-364-7786 if you have any questions.
-
Page 22: Epa And Newstripe Inc. Evaporative Emission Control Warranty Statement
▪ As the small off-road engine line painter owner, you should be aware that Newstripe, Inc. may deny you warranty coverage if your line painter or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications. - Page 23 If the part fails prior to the first scheduled replacement, the part must be repaired or replaced by Newstripe, Inc. Any such part repaired or replaced under warranty must be warranted for a time not less than the remainder of the period prior to the first scheduled replacement point for the part.
-
Page 24: Warranty
Return Materials Authorization (RMA) from Newstripe and then ship the defective part or parts of the equipment, transportation prepaid by the purchaser, to Newstripe together with a written description of any claimed defect and proof of purchase date of the materials being returned.
