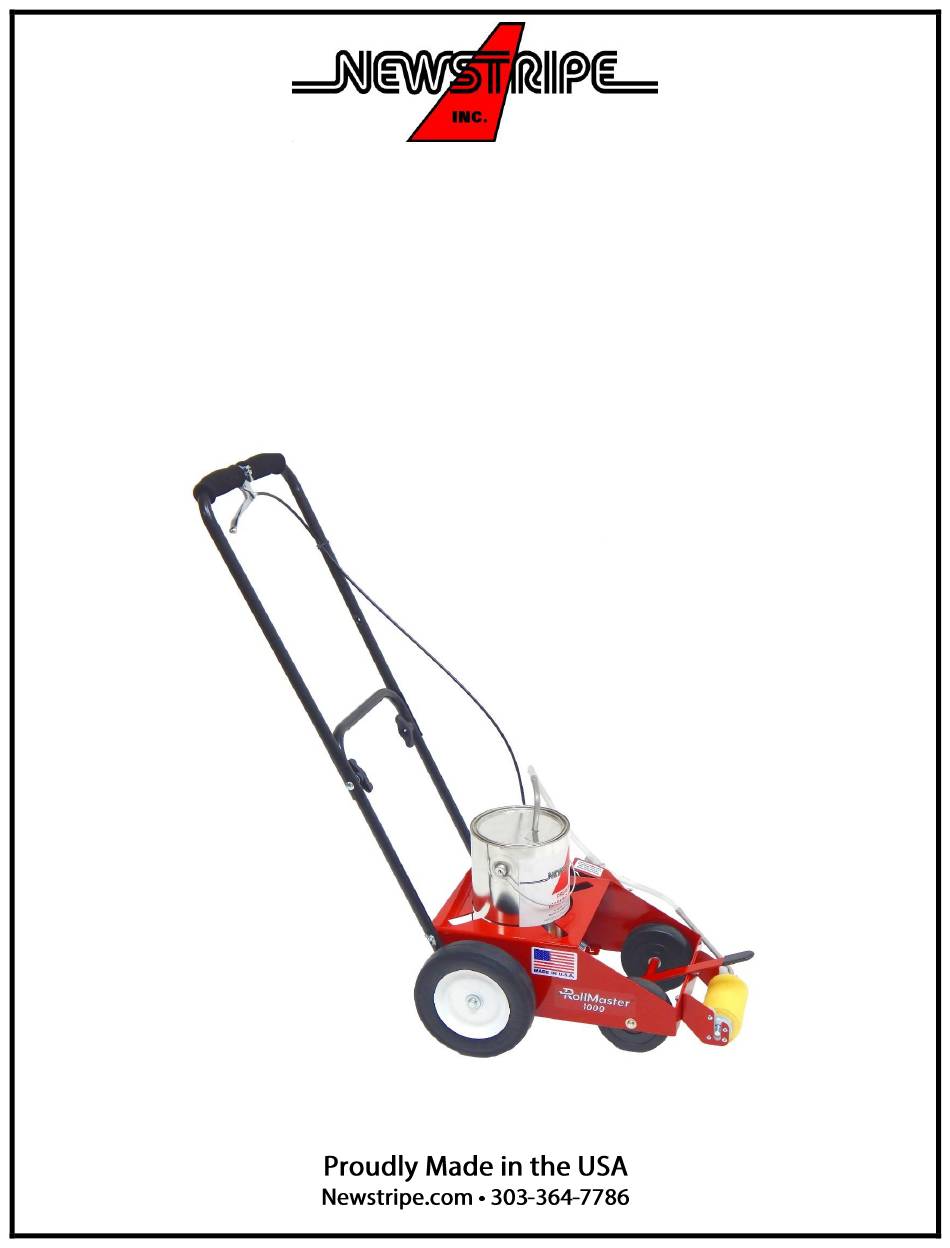

- Page 1 Product Manual RollMaster™ 1000 Line Painting Machine 10003856 3856.0125...
-
Page 2: Table Of Contents
RollMaster™ 1000 Line Painting Machine TABLE OF CONTENTS Precautionary Warnings....Page 1 Thank you for purchasing the Newstripe RollMaster 1000 Line Painting Machine. Assembly ........Page 2-3 Operation ........Page 3-4 Please read over the instructions and make sure you understand the operating Helpful Tips ........ -
Page 3: Precautionary Warnings
NOTE: Pressure washing is not recommended. • DO NOT use brushes with metal bristles or any metal object to clean any part of the RollMaster 1000. • DO NOT dispose of the Paint Can Dip Tube (metal tube used for pulling the paint from the can), Mandrel Tube (metal tube that inserts into the mandrel), Mandrel, and Knurled Nuts. -
Page 4: Assembly
RollMaster™ 1000 Line Painting Machine 4” Roller Kit Your RollMaster 1000 Box Should Include: Paint Can Dip Tube • Paint Can Hole Punch Mandrel with • Paint Can Dip Tube Knurled Nuts • Mandrel Tube with O-Ring Handle • Mandrel with Knurled Nuts Hardware •... -
Page 5: Operation
RollMaster™ 1000 Line Painting Machine ASSEMBLY FOR STRIPING 1. Apply a light coating of grease to the O-Ring and 3. Open the trough by grasping the thumb grip on the short end of the mandrel tube. Insert the the trough and the rear wheel hub while greased end of the mandrel tube into the open side squeezing them toward each other, until it clicks of the mandrel with the O-Ring toward the... -
Page 6: Helpful Tips
• DO NOT use solvent or oil-based paints. Use of solvent or oil-based paints may damage the roller cover and hose. Use water-based paints only. NOTE: Paints that dry faster than 10 minutes are not recommended. Newstripe Fast Dry Paint is suitable for use in this machine. We recommend only using water-based traffic paints, as they are easier to clean up and do not “lift”... -
Page 7: Cleaning Procedure
O-Ring. Make sure the J-Yokes are width of the roller. clean. Your machine is designed to be simple and safe to operate. Please call Newstripe at 303-364-7786 if you have any questions during setup, painting, or cleaning. -
Page 8: Parts List
RollMaster™ 1000 Line Painting Machine PARTS LIST Part Part Item Description Item Description Number Number Dip Tube, Paint Can 10000665 Hand Grip (2) 10000967 Paint Hose (5-Pack) 10002496 Control Lever 10000821 Mandrel Tube Assembly 10003864 Front Wheel (2) 10000753 O-Ring, 3/8” ID x 1/16” Thick 10000027 Rear Wheel (2) 10003837... - Page 9 RollMaster™ 1000 Line Painting Machine #13 Hand Grips #14 Control Lever #11 Control Cable #12 Handle #24 Wing Knobs #1 Paint Can Dip Tube #20 Cable Adjuster #15 Front #2 Paint Hose Wheel #16 Rear Wheel #21 Roller Carrier Bracket #3 Mandrel Tube J-Yokes #19 Cable...
-
Page 10: Warranty
18 (Eighteen) Months from the date of original purchase. In no event shall Newstripe be liable for incidental or consequential damages and no person had any authority to bind it to any representation or warranty. Newstripe is not responsible for work done, materials furnished, or repairs made by others without its specific written authorization.
