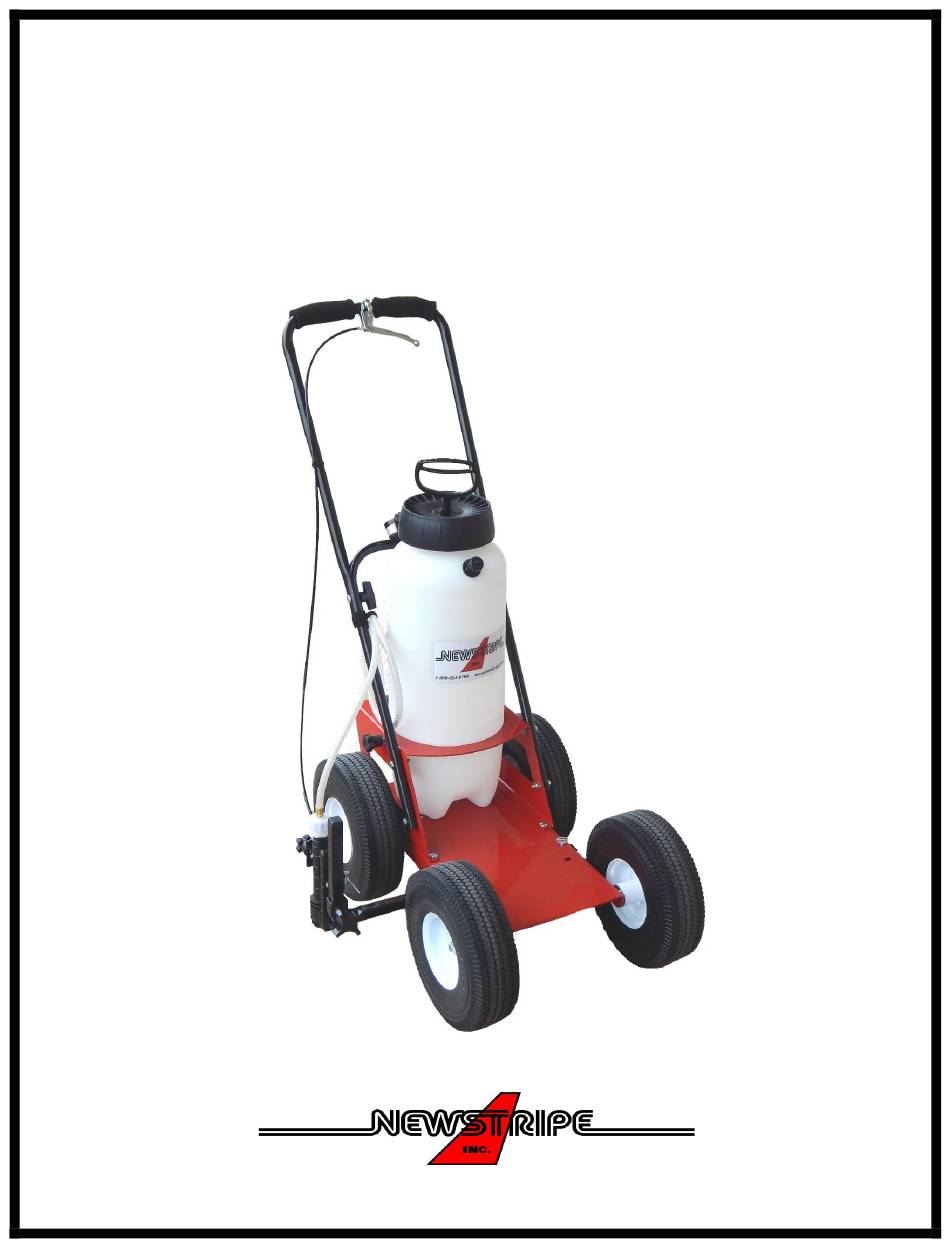

- Page 1 FieldLiner 3™ Product Manual Jasper St. Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com FieldLiner 3™ Manual / 4867.0917...
-
Page 2: Table Of Contents
ALWAYS wear safety goggles or protective eye-wear when operating the unit! TABLE OF CONTENTS Precautionary Warning…..Page 1 Thank you! And Congratulations on your purchase of the FieldLiner 3™ Assembly……………………………...Page 2-3 paint marking machine. Operation …………………………….Page 4 With proper care, service and clean up, the Newstripe FieldLiner 3™... -
Page 3: Precautionary Warning
THIN THE PAINT, as per manufacturer’s recommendations prior to use. Almost all field-marking paints MUST BE THINNED before use with the FieldLiner 3™. These paints are typically thinned at a minimum ratio of 1:1. Follow suggested paint thinning guidelines per the paint manufacturer’s instructions. -
Page 4: Assembly
FieldLiner 3™ ALWAYS wear safety goggles or protective eye-wear when operating the unit! Velcro Strap Your FieldLiner 3™ box should include: Paint Hose Chassis assembly Handle Mounting Handle assembly Hardware Paint tank assembly Paint Spray Hose ... - Page 5 Velcro strap. Connect the hose to the spray gun by hand (Pic 5). Pic 4 Pic 5 1700 Jasper St. Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com Page 3 of 8 FieldLiner 3™ Manual / 4867.0917...
-
Page 6: Operation
Lubricate the lid gasket with petroleum jelly. Never try to open the tank when it is pressurized. ALWAYS strain the paint. 1700 Jasper St. Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com Page 4 of 8 FieldLiner 3™ Manual / 4867.0917... -
Page 7: Cleaning Procedures
After every use soapy water through the system for additional cleaning Handles Monthly Check handles for tightness to frame **For additional instructions please contact Newstripe, Inc. at 800-624-6706 1700 Jasper St. Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com Page 5 of 8 FieldLiner 3™... -
Page 8: Parts List With Images
Description Part # Adaptor Fitting 10004836 Valve Seat 10000136 Nozzle (4 pack) Select Nozzle Nozzle Cap (4 pack) 10001890 1700 Jasper St. Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com Page 6 of 8 FieldLiner 3™ Manual / 4867.0917... -
Page 9: Troubleshooting
Clean or replace the gun if necessary. Please call us! If you have any questions during setup, painting or cleaning 1-800-624-6706 1700 Jasper St. Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com Page 7 of 8 FieldLiner 3™ Manual / 4867.0917... -
Page 10: Warranty
12 (Twelve) months from the date of purchase. In no event shall Newstripe, Inc. be liable for incidental or consequential damages and no person had any authority to bind it to any representation or warranty, not be responsible for work done, materials furnished or repairs made by others without its' specific written authorization.
