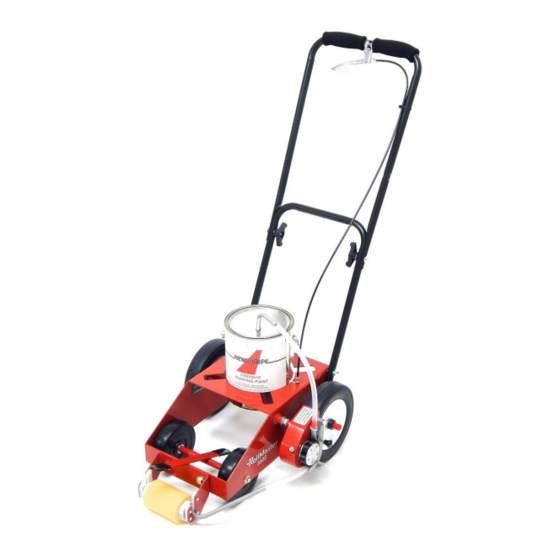

- Page 1 RollMaster™ 1000 Product Manual Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 1000 / 3856.0917...
-
Page 2: Table Of Contents
This Manual is for units Cleaning Procedure…………. Page 5 with serial number 1017585 and above only. For units with serial Troubleshooting…..………….Page 5 numbers below 1017585, please contact Newstripe for the correct Parts List……………………..Page 6-7 manual. Warranty……………………..Page 8 Table of Contents / 3856.0917... -
Page 3: Precautionary Warning
RollMaster™ 1000 ALWAYS wear safety goggles or protective eye-wear when operating the unit! PRECAUTIONARY WARNING! • Please read and understand all operation instructions as detailed in this manual. Failure to follow specified instructions may result in equipment damage or serious injury to person. -
Page 4: Assembly
Pic 2 Pic 4 Pic 5 Pic 3 Guide bar/ Regulating disc Wing nut Cable adjuster Kickstand in correct position 1700 Jasper St. Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 1000 Manual / 3856.0917 Page 2 of 8... -
Page 5: Operation
7. Now place the unit on an existing line or cardboard and roll the unit forward and backwards with the front wheels contacting the surface until the roller is completely saturated. 1700 Jasper St. Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com Page 3 of 8 RollMaster™ 1000 Manual / 3856.0917... -
Page 6: Helpful Tips
Releasing the Control Lever about two feet from the end of the line creates a crisp edge without puddling. 1700 Jasper St. Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 1000 Manual / 3856.0917 Page 4 of 8... -
Page 7: Cleaning Procedure
Your machine is designed to be simple and safe to operate. If you have any questions during setup, painting or cleaning, please call us! 1-800-624-6706 1700 Jasper St. Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 1000 Manual / 3856.0917 Page 5 of 8... -
Page 8: Parts List
Striping Bracket (10003865), 5/16-18 x 3/4” Bolts (2) (10001499), 5/16” Flat Washers (4) (10000095), 5/16-18 KEPS Nuts (2) (10004461) 1700 Jasper St. Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 1000 Manual / 3856.0917 Page 6 of 8... - Page 9 Mandrel tube #3 Pic 13 Knurled Nut #5 Mandrel #6 Rollers (part of #25) Regulating Discs (part of #25) 1700 Jasper St. Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 1000 Manual / 3856.0917 Page 7 of 8...
-
Page 11: Warranty
18 (EIGHTEEN) months from the date of purchase. In no event shall Newstripe, Inc. be liable for incidental or consequential damages and no person had any authority to bind it to any representation or warranty, not be responsible for work done, materials furnished or repairs made by others without its' specific written authorization.
