Kramer VP-12x8 Quick Start Manual

Uxga matrix switcher
Hide thumbs Also See for VP-12x8:

Advertisement

Quick Links

Scan for full manual
Step 1: Check what's in the box
VP-12x8 UXGA Matrix Switcher
Remote control transmitter with batteries

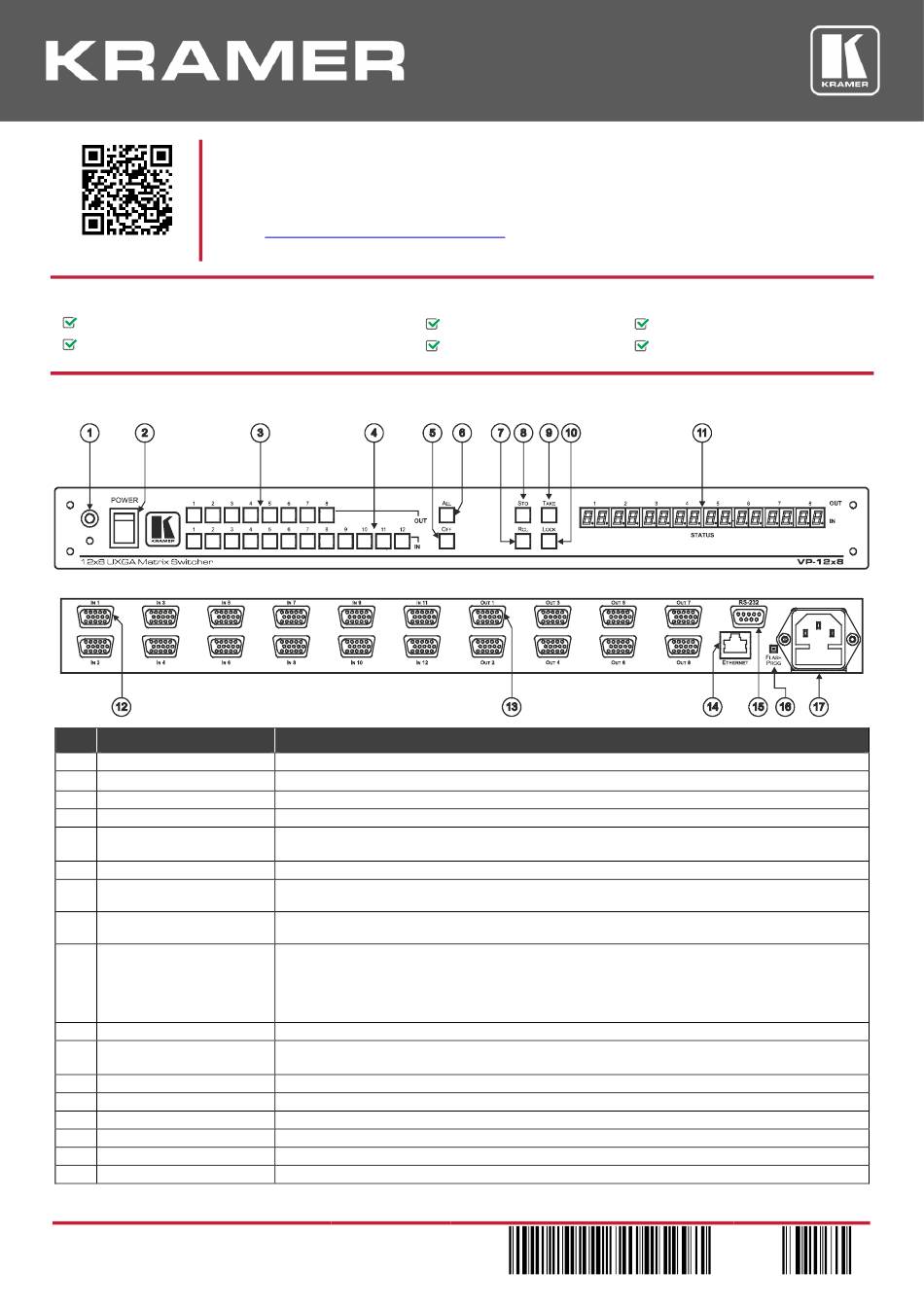

Step 2: Get to know your VP-12x8
#
Feature
1
IR Receiver
2
POWER Switch
3
OUT Selector Buttons
4
IN Selector Buttons
5
OFF Button
6
ALL Button
7
RCL (Recall) Button
8
STO (Store) Button
9
TAKE Button
10
LOCK Button
11
7-segment STATUS Display
12
IN 15-pin HD Connectors
13
OUT 15-pin HD Connectors
14
ETHERNET Connector
15
RS-232 9-pin D-sub Port
16
FLASH PROG Button
17
Power Connector with Fuse
VP-12x8 Quick Start
VP-12x8 Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/VP-12x8
upgrades are available.
Function
The red LED underneath illuminates when receiving signals from the Infra-red remote-control transmitter.
VP-12x8
Switch for turning the
Select to assign an output to an input.
Select set an input to a specific output.
Press an OUT button followed by the OFF button to disconnect that output from all its inputs.
Press an ALL button followed by the OFF button to disconnect all the outputs.
Press the ALL button followed by an IN button to connect that input to all the outputs.
Press the RCL button and the corresponding IN/OUT button to recall a setup from the non-volatile
memory.
Press the STO button followed by an IN/OUT button to stores the current configuration in non-volatile
memory.
Press the TAKE button to toggle between Confirm mode and At Once mode. The TAKE button is
illuminated when in Confirm mode.
At Once mode - Implements the switch immediately.
Confirm mode - Key-in several switching combinations and implement them simultaneously at the end by
pressing the TAKE button.
Locks the front panel buttons from being accidentally pressed.
Displays the inputs assigned to each output.
Upon power up, it displays the firmware version number and machine number.
Connect up to 12 video sources.
Connect up to 8 output acceptors.
Connect to a PC or other Serial Controller through computer networking.
Connect to a PC or Remote Controller.
Used to upgrade to the latest Kramer firmware.
AC connector enabling power supply to the unit.
VP-12x8
for the first time.
to download the latest user manual and check if firmware
1 Bracket set
1 Power cord
on or off.
P/N: 2 9 0 0 - 3 0 1 3 5 9 QS
4 Rubber feet
1 Quick start guide
Rev: 2
