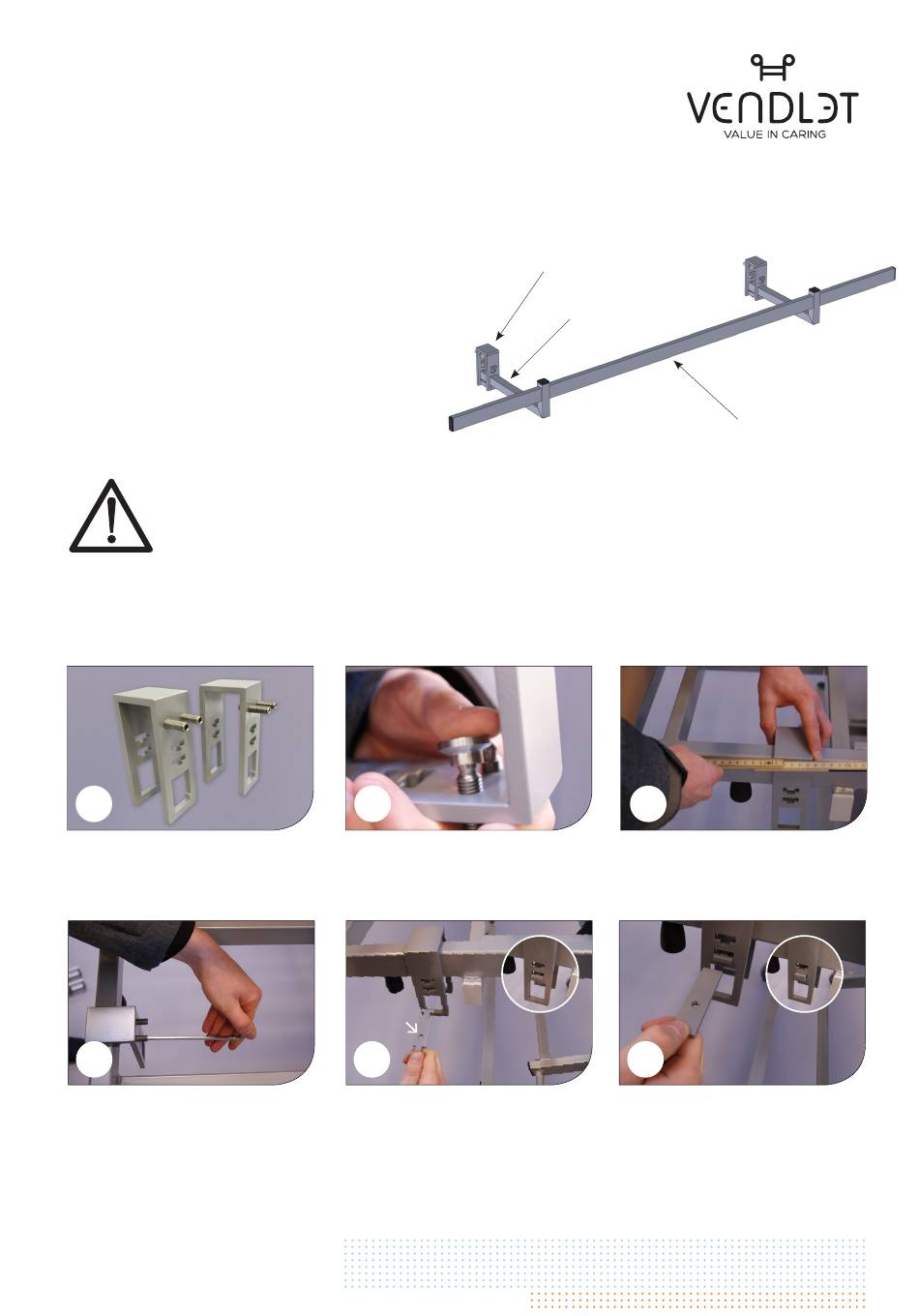

Vendlet Multi Bracket Quick Start Manual

MOUNTING MULTI BRACKET ON OCTAVE
Multi bracket is a bracket that can be fitted to
Octave beds that do not have an accessible
steel frame that VENDLET can be mounted
upon.
By using Multi Bracket a steel bed frame is
created on which VENDLET V5S/VENDLET
V5S+ can be mounted.
NB:
Multi Bracket increases the VENDLET
system's weight by 20.2 kilos.
Mounting instructions
1
1. Mount 4 x M10 bolts with heads uppermost in the 2 brackets. 2. Press the feet against the bolt
heads. 3. Place the two brackets 20 cm from the headboard and footboard, respectively.
4
4. Lightly tighten the 4 bolts. 5. Mount the perforated plate as illustrated, with the hole closest to you.
6. Place the threaded plate on top of the perforated plate with the thread closest to you.
Vendlet ApS
Egelund 33
6200 Aabenraa
Tel. +45 9631 0050
www.vendlet.com
vendlet@vendlet.dk
2
5
VALUE IN CARING
Bracket
Frame holder
Frame
3
6
