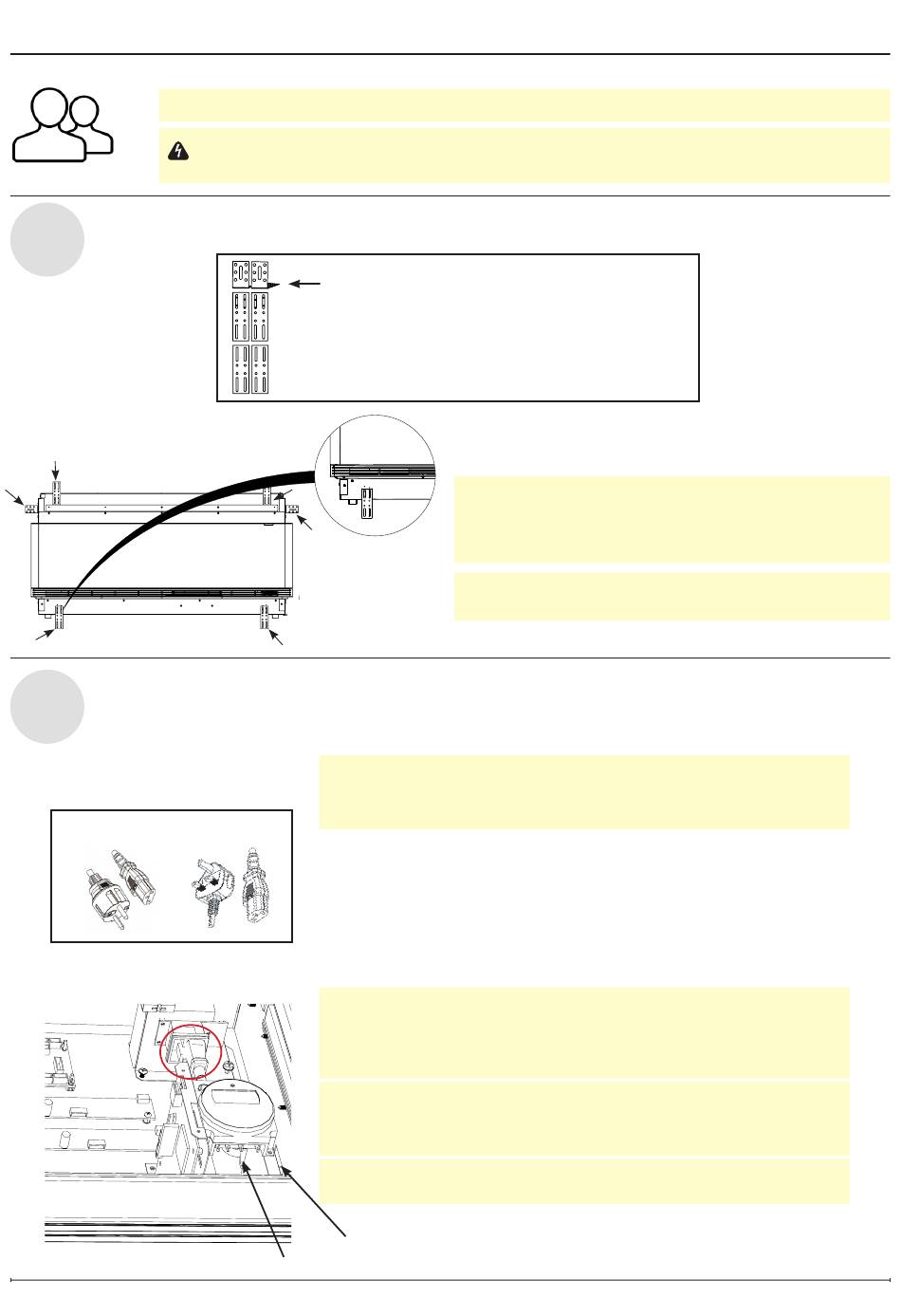

Installation

!
1
Install the Mounting Brackets
2
Install the Cord Set (if applicable)
EU
8
NOTE: Two people are required for installation.
WARNING: The top of the fireplace must be installed a minimum of 24" (61 cm) from the
ceiling and a minimum of 15" (38 cm) from the ground.
Mounting brackets included in the hardware kit.
• 2 L shaped brackets for rear mounting
• 2 top stepped brackets brackets for timber
mounting fixed from the front
• 2 timber mounts (flat) fitted on the front
face
!
NOTE: Ensure the internal rocker switch is in the OFF position. It
is located on the inside of the unit at the top right side.
UK
Install the suitable cord set if the incorrect set came installed
on the unit. To access the cord set and IEC connector location,
remove the base log set by removing the 3 screws. There is a
screw at the back left, back right, and underneath the timer cover.
The IEC connector is located at the bottom right side. Plug in the
cord set, and secure it with the cable clamp provided. Run the
cord through the exit opening.
!
NOTE: 2 cord sets are provided (the EU or UK option) with the
fireplace. A certified technician should install the suitable cord set
based on local electrical requirements.
!
NOTE: Reinstall the base log set after installing the cord set.
!
NOTE: Ensure the earth connection is securely re-tightened.
Exit Opening
Cable Clamp
Carefully lay the firebox on its back and install the
mounting brackets to the top and bottom of the
firebox with the black screws provided.
!
NOTE: The mounting brackets are equipped with
slots to allow small adjustments to fit the framing.
Ensure all the brackets are aligned.
!
NOTE: There are 6 mounting brackets
