ADVANCED SIMRACING ASR4 Assembly And User's Manual page 10

2.

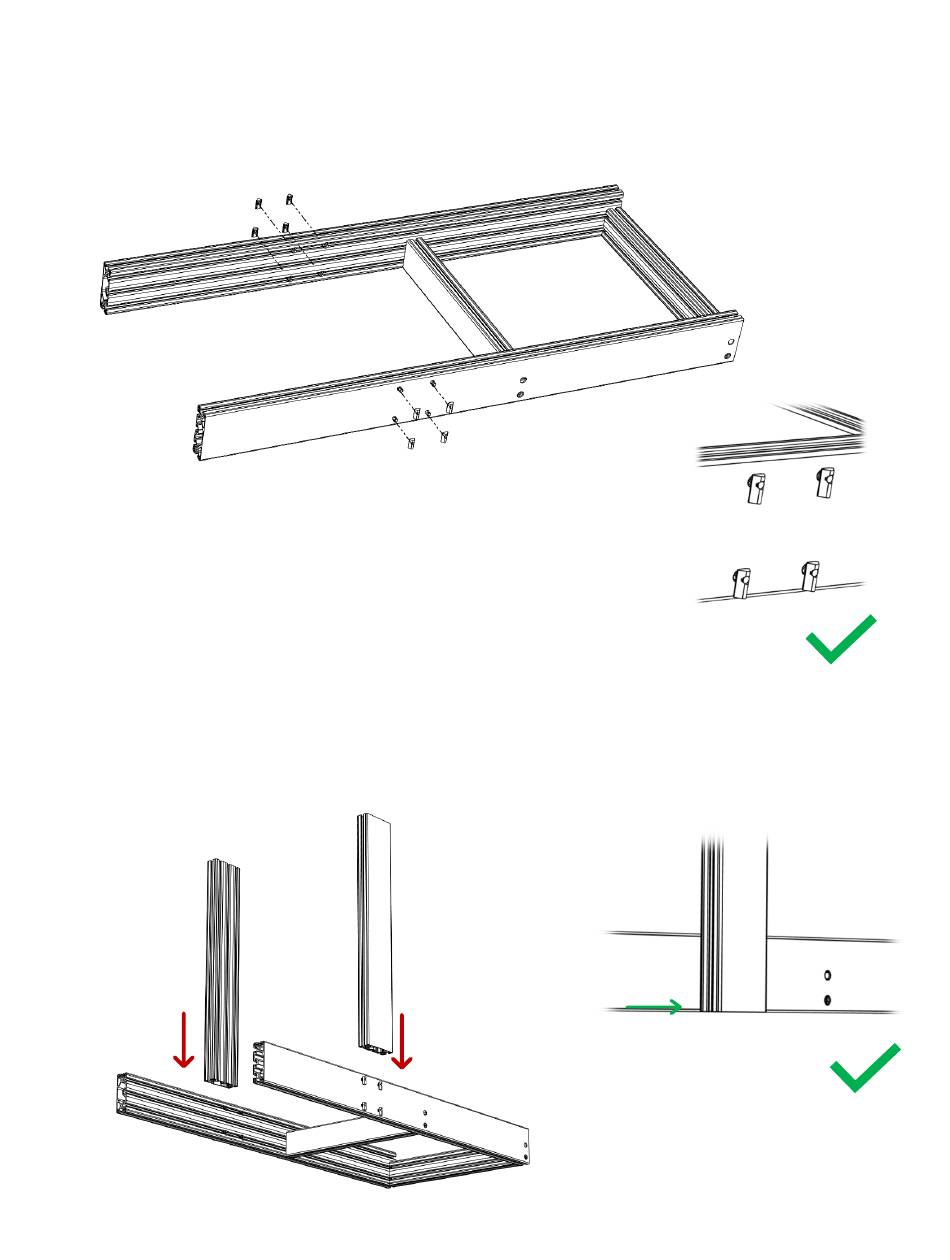

Preinstall the M8 x 35 screws with the t-nuts through the base as shown. Don't
tighten more than a turn!
3.
Slide the 4.5"x28" extrusion through the loose t-nuts. Make sure the extrusion is
resting square to the chassis and tighten fully. Repeat on both sides.
Note: Be mindful of the position of the previously fastened 19" extrusions. They need to be
flush to the bottom as shown.
6
