Chiayo NH-3900 Operation Manual

Rechargeable handheld wireless microphone

Advertisement

Quick Links

NH-3900
Operation manual
Rechargeable Handheld Wireless
Microphone
CHIAYO ELECTRONICS CO., LTD.

Advertisement

loading
Need help?

Need help?

Do you have a question about the NH-3900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chiayo NH-3900

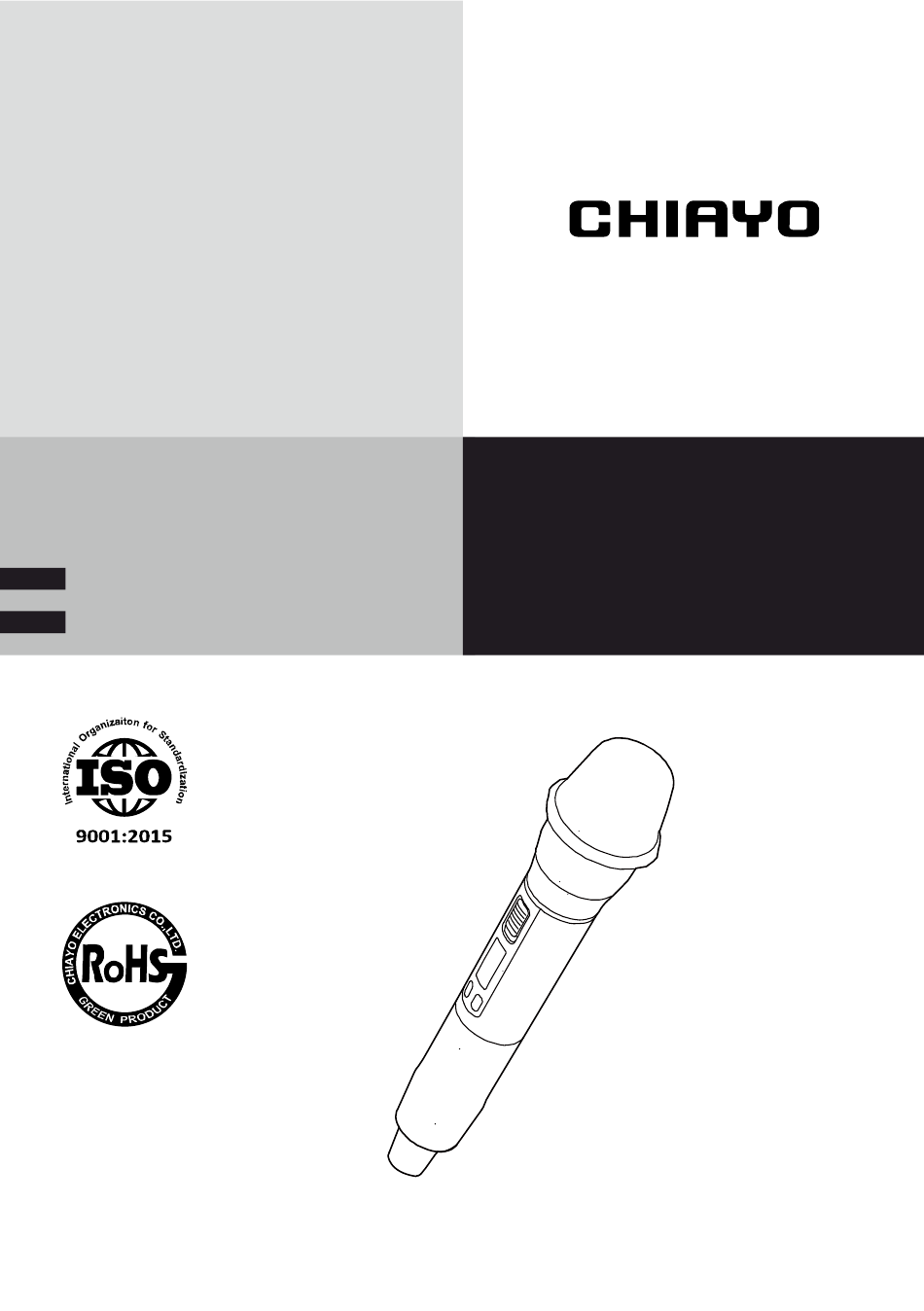

  • Page 1 NH-3900 Operation manual Rechargeable Handheld Wireless Microphone CHIAYO ELECTRONICS CO., LTD.
  • Page 2 Rechargeable Handheld Wireless Microphone NH-3900 Parts and functions Cartridge module Battery power LED 3-STEP power switch Menu button Setting button Battery compartment Color cap Charging port Battery installation & indicator   When the microphone is switched ON, the If the LED remains illuminated, it means the battery power LED will blink once to denote batteries are weak and require replacement.
  • Page 3: Power Off

    Instructions 3-STEP power switch To prevent other user from turning off the power, you may slide this switch to the right to lock the microphone on stand-by or mute status. Slide to the left to unlock. power switch Switch lock POWER ON MUTE POWER OFF...
  • Page 4 NH-3900 Rechargeable Handheld Wireless Microphone Channel setting Use MENU button to go to the CHANNEL|FREQUENCY page. CH :0 0 1  650.000 M H z Press and hold the SET button for 3 seconds, then the upper-left CH will flash to allow changes to be made.
  • Page 5 Instructions Battery type setting Use MENU button to go to the BATTERY TYPE page.  A K L N Press and hold SET button for 3 seconds, then the battery icon will flash to allow changes to be made.  Press SET button to select either NiMH (rechargeable battery) or AKLN (alkaline battery).
  • Page 6 NH-3900 Rechargeable Handheld Wireless Microphone AF GAIN setting Microphone GAIN L: 01 L: 02 L: 03 L: 04 Sensitivity lowest high highest Dynamic range highest high lowest Noise & feedback lowest high highest Mic cartridge to mouth < 3 cm...
  • Page 7 Instructions...
  • Page 8 CHIAYO ELECTRONICS CO., LTD. Http://www.chiayo.com.tw | Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 | Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 | Fax: 886-5-5767611 12I1500...
