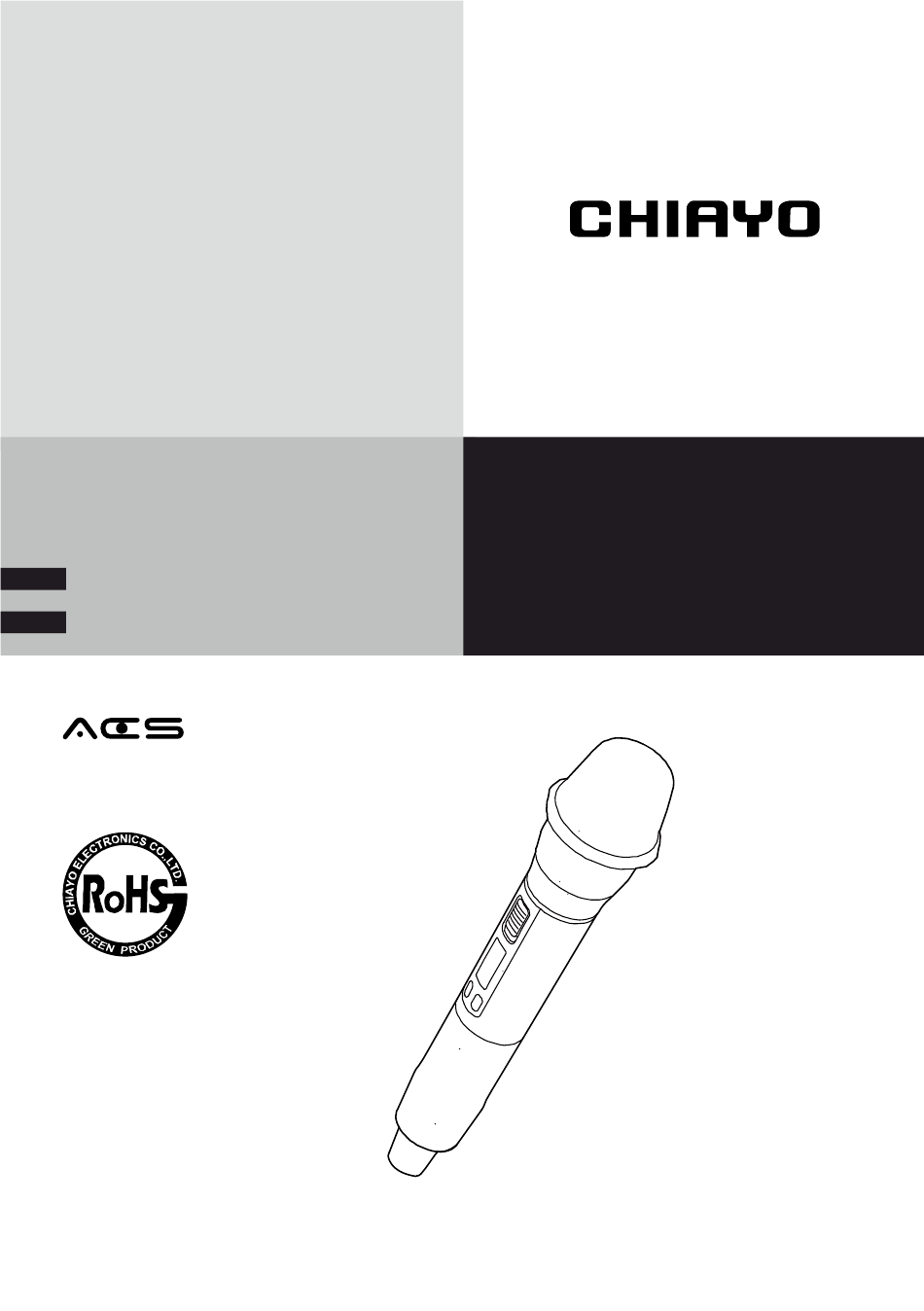

- Page 1 SQ-5100 IrDA Operation manual UHF Handheld Microphone R E G I S T R A R S l i t ISO 9 0 0 1 :2 0 1 5 CHIAYO ELECTRONICS CO., LTD.

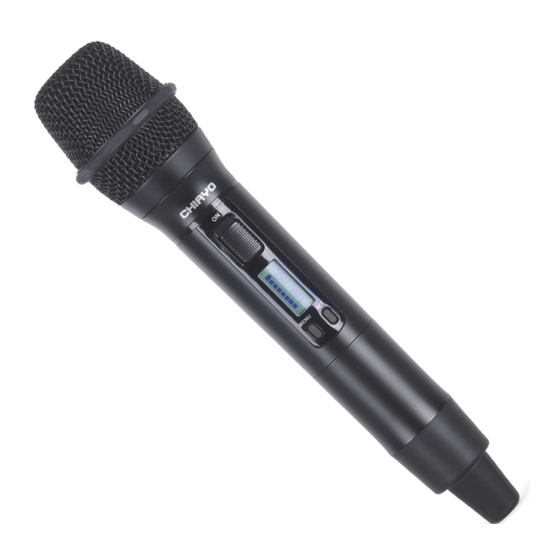

- Page 2 SQ-5100 IrDA UHF Handheld Microphone Parts and functions 1 Cartridge 5 Menu button 9 Battery power LED 2 3-STEP power switch 6 IrDA synchronizing button 10 Charging port 3 LCD 7 Battery compartment 4 Setting button 8 Color cap 3-STEP power switch To prevent other user from turning off the power, you may slide this switch to the right to lock the microphone on stand-by or mute status.
- Page 3 Instructions Channel setting Use MENU button to go to the CHANNEL｜FREQUENCY page. CH :0 0 1 650.000 M H z Press and hold the SET button for 3 seconds, then the upper-left CH will flash to allow changes to be made. CH :0 0 1 ...
- Page 4 SQ-5100 IrDA UHF Handheld Microphone Channel synchronizing of the receiver and microphone 10~30cm Align infrared areas of the receiver and microphone within 10~30cm. Changing the receiver’s channel Press the synchronizing button of the microphone. The microphone's LED will grow to denote transmitting the frequency to the receiver and synchronizing the channels.
- Page 5 Instructions Battery type setting Use MENU button to go to the BATTERY TYPE page. A K L N Press and hold SET button for 3 seconds, then the battery icon will flash to allow changes to be made. A K L N Press SET button to select either NiMH (rechargeable battery) or AKLN (alkaline battery).
- Page 6 SQ-5100 IrDA UHF Handheld Microphone AF GAIN setting Microphone GAIN L: 01 L: 02 L: 03 L: 04 Sensitivity lowest high highest Dynamic range highest high lowest Noise & feedback lowest high highest Mic cartridge to mouth < 3 cm...
- Page 7 Instructions...
- Page 8 Frequency: 470~789 MHz, Maximal power: 6 mW Frequency: 823~832 MHz, Maximal power: 7.2 mW CE declaration info: www.chiayo.com.tw/declaration.html CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜...
