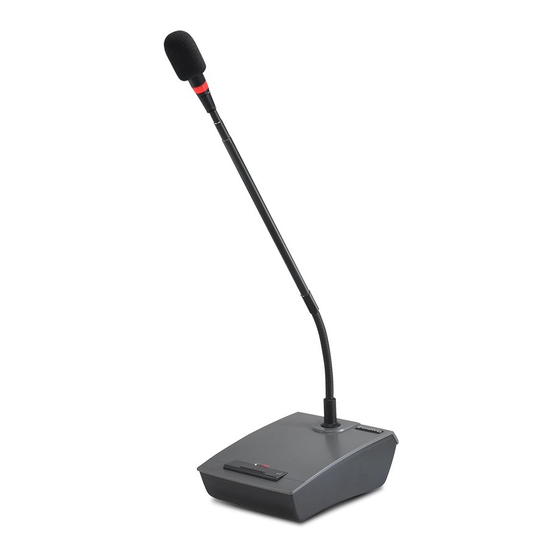

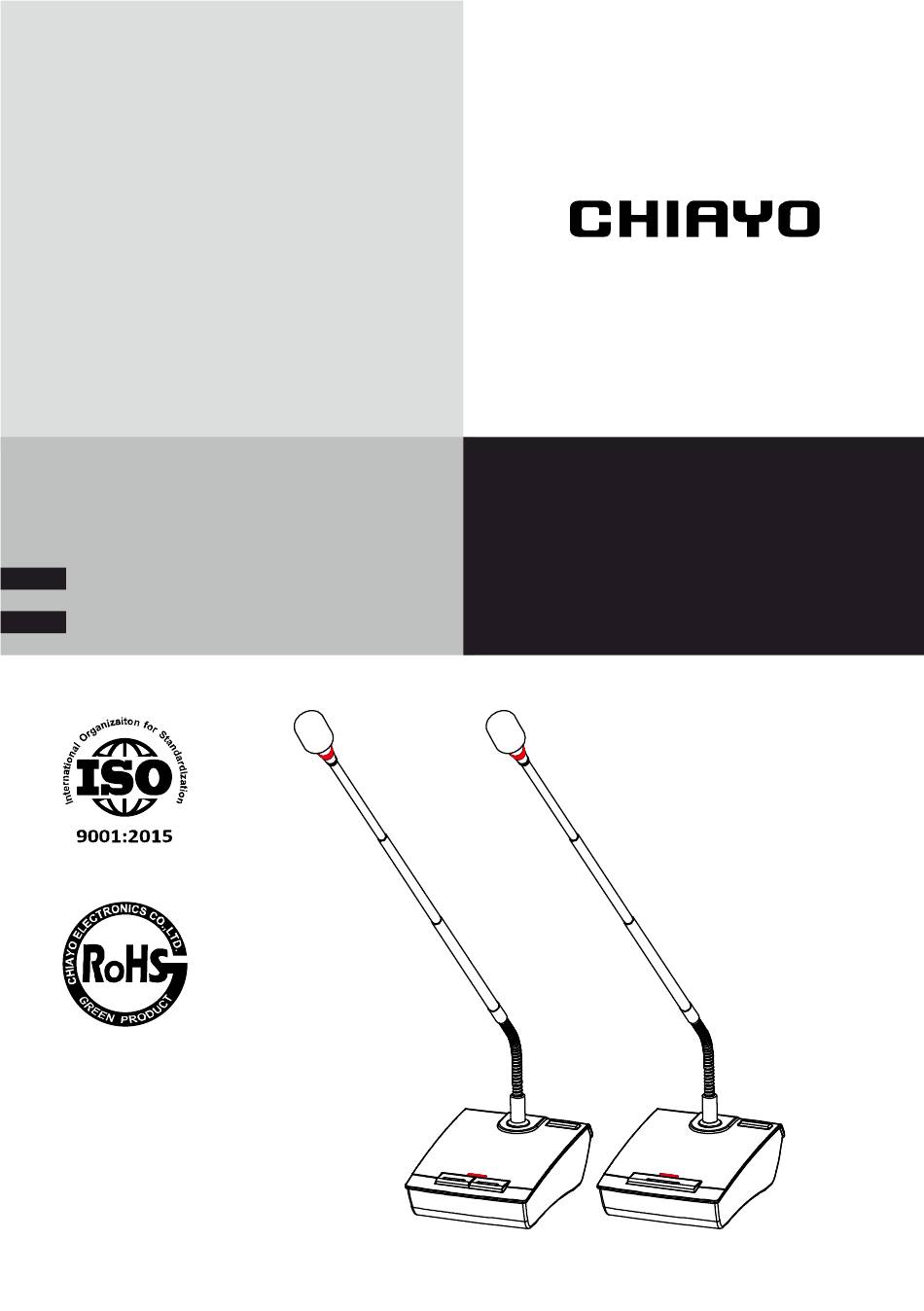

- Page 1 GM-243 Operation manual Audio Linked Telescopic Gooseneck Microphone CHIAYO ELECTRONICS CO., LTD.
- Page 2 GM-243 Audio Linked Telescopic Gooseneck Microphone Parts and functions of GM-243C Talk indicator Telescopic gooseneck Chairman Audio input / DC input for GMC- indicator audio output 10+ audio convertor (optional) Chairman priority Talk button Power indicator Gain control mute button...
- Page 3 Instructions TALK in normal mode Press the talk button ◼ Both chairman (left) and talk (right) Press the talk button (right). indicators will light solid. (right) again to stop ◼ The unit automatically mutes after 5 minutes talking. without voice into the microphone (except chairman uint under priority mode.).
- Page 4 GM-243 Audio Linked Telescopic Gooseneck Microphone Parts and functions of GM-243S Talk indicator Telescopic gooseneck Audio input / DC input for GMC- Talk indicator audio output 10+ audio convertor (optional) Talk button Power indicator Gain control TALK in normal mode Press the talk button.
- Page 5 For an ideal acoustic quality, either lower the gain level or the volume of the amplifier. GM-243 System Connection 1. System capacity of no more than 10 units with GMC-10+ audio converter. ※ Please refer to GMC-10+ instruction manual for more detail.
- Page 6 CHIAYO CAT.5e network cables which are available in 2M, 5M and 10M length. 5. The chairman unit GM-243C can be located anywhere in the loop. 6. Each RJ45 jack of the audio convertor can only connect to the first or last unit of a GM-243 series.
- Page 7 Instructions Insert the plug Lock bar Use finger to push the lock bar Done! to the bottom Pull out the plug Prepare to unlock Lock bar Push lock bar Locked!
- Page 8 CHIAYO ELECTRONICS CO., LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611...
