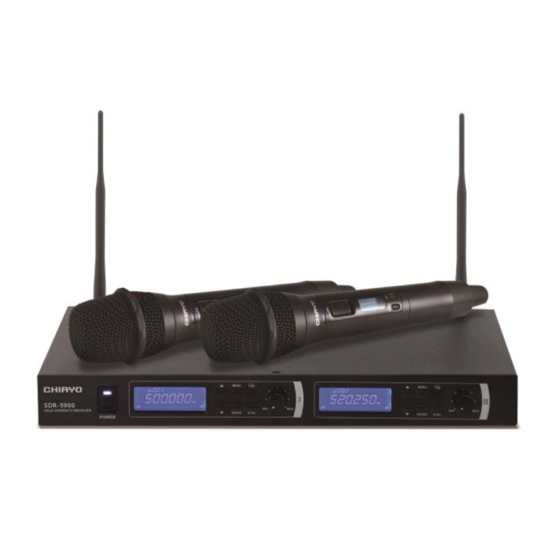

- Page 1 SDR-5900 UHF 2-way Synchronizing True Diversity Wireless Microphone Operation manual ISO 9001 REGISTERED INTERNATIONAL 14001 ISO 14001 REGISTERED INTERNATIONAL OHSAS 18001 OHSAS 18001 GREEN PRODUCT...
- Page 2 3. The receiver and transmitter must be the same frequency. FREQ 4. While using the transmitter, the audio meter bars will appear to denote audio signal received. Channel-Frequency Audio meter Parts and functions of SDR-5900 receiver 11 12 13 3 4 5 MENU MENU MENU MENU ►front...
- Page 3 ISO 9001｜ISO 14001｜OHSAS 18001 CHANNEL scanning For an interference- free operation, a cleaner channel might be necessary if the current one receives too much interference. To operate the scanning: 1. Press MENU button to make the frequency 2. Press ENTER button until this icon icon appear on the bottom.
- Page 4 VOLUME adjusting MENU MENU Volume level can be adjusted by rotating the designated volume knob. M H z M H z S D R -5 9 0 0 S D R -5 9 0 0 FR E Q FR E Q TRUE DIVERSITY RECEIVER TRUE DIVERSITY RECEIVER ENTER...
- Page 5 ISO 9001｜ISO 14001｜OHSAS 18001 Audio output connection There are three audio outputs on the back of the receiver, Mic-level balanced (channel 1 and channel 2), and Line-level unbalanced (mixed). Use shielded audio cable for the connection between the receiver and the amplifier/mixer. If the amplifier/mixer has a 1/4"(6.3mm) phone jack, connect a cable from the 1/4"(6.3mm) unbalanced audio output from the receiver to the amplifier/mixer.
- Page 6 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw｜Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan｜Tel: 886-2-27415741｜Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan｜Tel: 886-5-2711000｜Fax: 886-5-5767611...
