AL30 Included Items

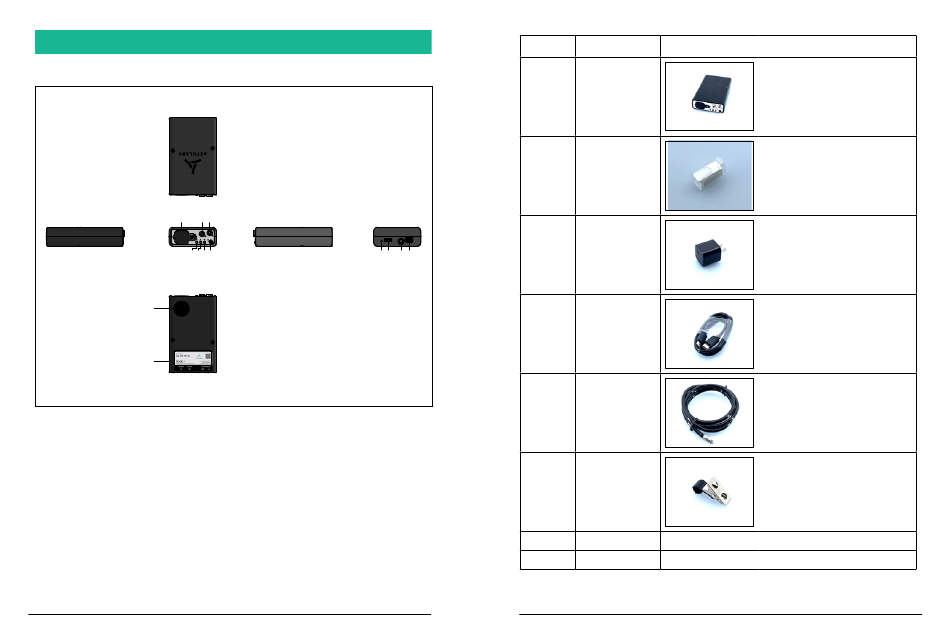

microAeth AL30 Instrument Diagram
TOP
1
LEFT SIDE FRONT
12
13
BOTTOM
1. Filter strip front cover
2. Inlet port
3. Outlet port
4. Power button
5. Operation Indicator
6. Warning Indicator
7. Notification Indicator
8. Charging Indicator
9. USB-C Charging port
10. WiFi Mode button
11. 4-pin 3.3V TTL serial port
12. Filter strip release button
13. Serial number label
AL30 Quick Start Guide
microAeth
®
8
2 3
7 6 5 4
RIGHT SIDE
Quantity
1
1
1
8 9 10 11
BACK
1
1
1
Download
Download
AethLabs microAeth
®
Part Number Description
AL30
ALX-FS30
AC-ALX-USBC-
PS-<cc>
USBC-C-ALX-10
MASH-40
MALC
Quick Start Guide (download via AethLabs website)
Manual (download via AethLabs website)
AL30 Quick Start Guide
microAeth AL30
AL30 Filter Strip,
1 Sampling location each,
Pack of 30 and 1 installed in
instrument
Territory-specific USB-C AC wall
adapter: where <cc> is either US,
EU, or UK
USB-C power cable
Sampling Hose with Barb Fitting
Swivel Connector,
40 inches (1 meter)
Lapel clip for sampling hose
