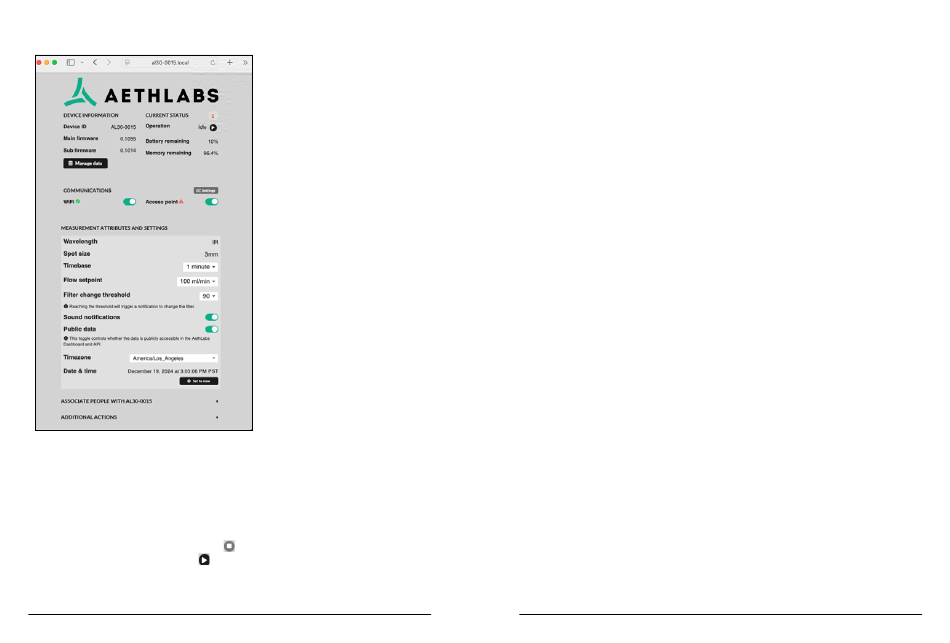

microAeth Interface Webpage Information and Settings:
Device Information
• Device ID: Serial number of the device
• Main firmware: Firmware version of the communications hardware
• Sub firmware: Firmware version of the measurement hardware
Current Status
• Operation: Shows if the device is Sampling or Idle (not making measurements)
• Operation Button:
• When the AL30 is Sampling, click the
• When the AL30 is Idle, click the
• Battery remaining: Percentage amount of battery remaining
• Memory remaining: Percentage amount of data storage remaining
AL30 Quick Start Guide
microAeth
®
20
Stop button to stop measurements.
Start button to start measurements.
Manage Data: Click this button to open the data management window where data can be
downloaded or erased
Communications
• Settings: Click this button to open the WiFi & Access point settings window where
associated WiFi network can be configured and device WiFi access point password
can be modified (see instructions in the previous Section: Initial Setup and WiFi
Communications)
• WiFi: Toggle to enable/disable connection to local WiFi network
• Access point: Toggle to enable/disable micoAeth access point hosted WiFi network for
direct WiFi connection to the microAeth
Measurement attributes and settings
• Wavelength: IR (880 nm)
• Spot size: 3mm diameter
• Timebase: Select 1, 10, 30, 60, 150, or 300 seconds measurement interval
• Flow setpoint: Select 50, 75, 100, 125, 150, 175, 200, 225, or 250 ml/min flow rate
• Filter change ATN threshold: Select 1-100 ATN unit sampling notification threshold
• Sound notifications: Toggle to enable/disable sound notifications from the device
• Public data: Toggle to enable/disable if data collected is publicly accessible in the
AethLabs Dashboard website and API (makes data public)
• Timezone: Select local timezone to use as offset from UTC recorded date and time
• Date & time: Displays current date & time on device
• Set to now: Click this button to set device date & time to current time of the viewing
device (e.g. computer, tablet, phone)
Associate people with AL30-<xxxx> (expandable menu item): Use this section to invite
people to manage this device and view data on the AethLabs Dashboard website.
• Your name: Input your name and organization to inform the invitee(s) who their
invitation is from.
• Email(s): Input the email address(es) of the invitee(s) that you would like to manage this
device and view data on the AethLabs Dashboard website.
Additional actions (expandable menu item)
• Reboot: Click this button to restart the device. Sampling and measurements will
automatically start after the device is restarted.
• Calibrate flow: Click this button to open the Calibrate flow window where the flow
calibration process can be conducted.
• Erase memory: Click this button to delete all data stored on the device. CAUTION:
This action cannot be reversed.
