Introduction
3
Thank you for your purchase of an AethLabs microAeth® AL30 Black Carbon monitor. This
3
guide is a short introduction to setting up and using your microAeth instrument. Please
4
refer to the AL30 Manual
5
7
Carefully unpack the instrument and accessories from their packaging. Check to identify
8
that all items are present and that there is no damage. Retain original packaging for safe
10
storage and shipping of the instrument.
The small size and light weight of the microAeth AL30 instrument will allow you to gather
data in a wide range of mobile or stationary applications. The AL series filter strip needs to
be changed on a regular basis. Optimization of performance across applications requires
an understanding of operational settings, precautions, and maintenance procedures. The
following recommendations provide general guidelines.
12
The model and serial number of the microAeth AL30 is located on the bottom and back of
13
the instruments adjacent to the USB-C port. Refer to the full serial number whenever you
contact AethLabs for service.
15
18
22
24
24
25

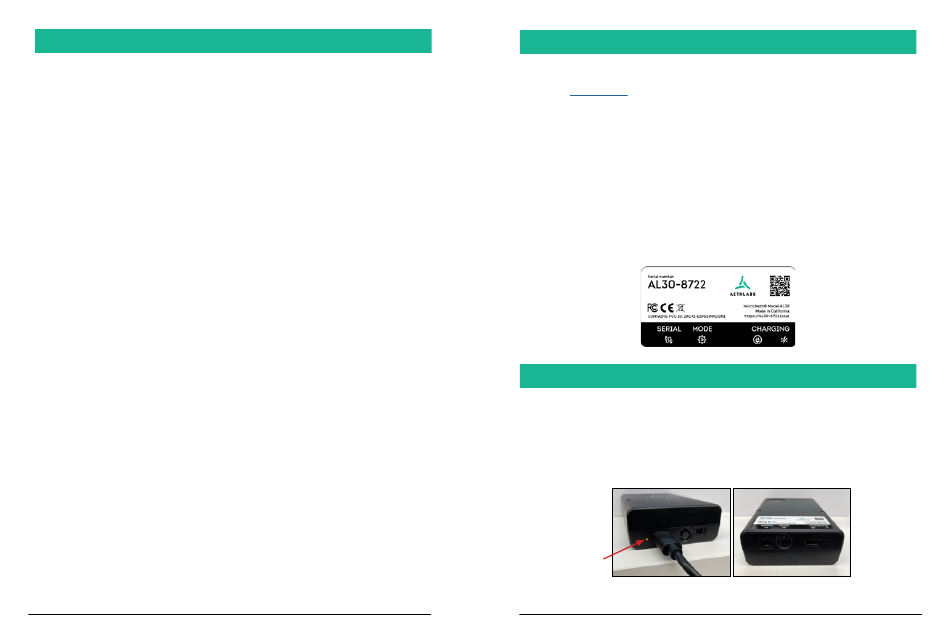

Charging the microAeth
Before using the instrument, the internal battery can be charged by plugging it into
external power using the USB-C power adapter. Battery runtime varies with settings and
age of the pump and battery.
The yellow LED charging indicator on the back panel of the instrument is illuminated when
the instrument is connected to an external power source and is charging using the USB-C
port.
Yellow LED
Charging Indicator
Charging time with instrument turned off: Approximately 2.2 hours to full charge
