Summary of Contents for Retevis B3B
- Page 1 User Manual...
-
Page 2: Table Of Contents
Ⅳ.Technical Indicators ----------------------------------------------- Ⅴ.Factory Settings -------------------------------------------------- WARNING ---------------------------------------------------------- GUARANTEE -------------------------------------------------------- For downloading further resources: Brochures, Software/Firmware, Manual etc, Please contact your direct reseller first OR go to website retevis.com and check “support” in the each product link to download it. -
Page 3: Function Introduction
Function Introduction ●Monitor ●VOX function ●English broadcast ●Key lock function ●TOT ●Busy Channel Lockout ●High/low power selection ●Power saving mode ●Low battery reminder ●50 CTCSS/210 DCS ●Squelch manual adjustment ●Roger Beep ●Emergency alarm Charging Notice ● Ionic polymer batteries are not charged at the factory, please charge them at an ambient temperature between 5-40°C before use. -
Page 4: Ⅰ.functional Profile

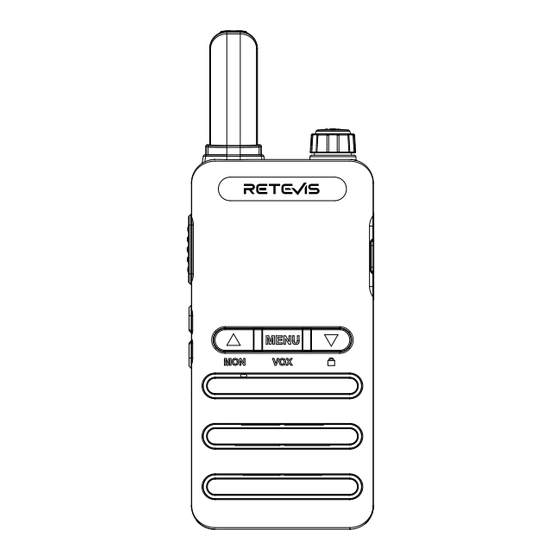

Ⅰ.Functional Profile antenna volume knob menu UP/monitor DOWN/key lock microphone headphone jack charging port side key + side key - belt clip... -
Page 5: Ⅱ.basic Operation
Ⅱ.Basic Operation Switch power supply: 1. Turn the power volume switch knob in the clockwise direction and after hearing a click, and turn on the walkie talkie. Voice prompts “welcome to use”, and the screen shows the current channel machine is powered on. -
Page 6: Ⅳ.technical Indicators
2 and so on. The machine can be restarted after the pairing is completed; Mode 2: after the two B3B machines are simultaneously tuned to channel 2, press and hold [▲] to start the machine, and the green light of the machine flashes. -
Page 7: Ⅴ.factory Settings
462.5500-462.7250MHz: 32.56dBm Output power 462.5500-462.7250MHz: 26.26dBm 467.5625-467.7125MHz: 26.62dBm Modulation system FM (F3E) ≤2.5KHz Maximum frequency deviation 6dB for every octave Pre-emphasis ≤1200mA Transmit current Ⅴ.Factory Settings B3B FRS Frequency（MHz） CTCSS/DCS Bandwidth Power 462.5625 67.0 Narrow-band High 462.5875 118.8 Narrow-band High 462.6125... - Page 8 RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE Before using this device, please read this guide which contains important operating instructions for safe usage, control information and operational instructions for compliance with RF Energy Exposure limits in applicable national and international standards. User’...
-
Page 9: Hand-Held Mode
Transmit no more than the rated duty factor 50% of the time. Transmitting necessary information or less, is important because the radio generates measurable RF energy exposure only when transmitting in terms of measuring for standards compliance. For users who wish to further reduce their exposure, some effective measures to reduce RF exposure include: Reduce the amount of time spent using your wireless device. -
Page 10: Warning
The plug of the adapter is considered a disconnect device. The socket-outlet shall be installed near the equipment and shall be easily accessible. •Contact Retevis for assistance regarding repairs and service. •For a list of Retevis-approved accessories for your radio model, visit the website: http://www.Retevis.com... -
Page 11: Guarantee
1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. Further details, pls read http://www.retevis.com/after-sale/ 3.The user can get warranty and after-sales service as below: ・Contact the seller where you buy. - Page 12 Shenzhen Retevis Technology Co.,Ltd. 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web:www.retevis.com E-mail:info@retevis.com Made in China Facebook:@retevis.fans...
