Pinpoint
Pinpointing helps you to quickly narrow down the
location of a buried target, allowing you to determine its
exact location before digging.
While Pinpoint is active the detector will play a sound
while the Search Coil is stationary over a target.
LOCATE A TARGET WITH
PINPOINT
1. Hold the coil away from the approximate target
location, then press‑and‑hold the Pinpoint button to
enable Pinpoint. The Target ID number will begin to
flash 'PP'. Wait for 'PP' to stop flashing.
The Pinpoint button
2. Sweep the coil slowly over the target location.
3. Locate the center of the target by listening for the
loudest signal.
4. Rotate the Search Coil by stepping to the side of
the target. Repeat steps 2 and 3.
5. The Target will be located where the loudest signal
sounded.
6. Release the Pinpoint button and return to normal
detecting.

Depth Gauge

The Depth Gauge indicates the approximate depth of a
detected target.
The Depth Gauge is a guide only. Fewer arrows indicate a
shallower target, more arrows indicate a deeper target.
The accuracy can vary depending on the target type and
size, and ground conditions.
After a target is detected, the Depth Gauge will remain
on the LCD for up to 3 seconds, or until the next target
is detected.
When there is no detection, the Depth Gauge icon and
arrows are turned Off.

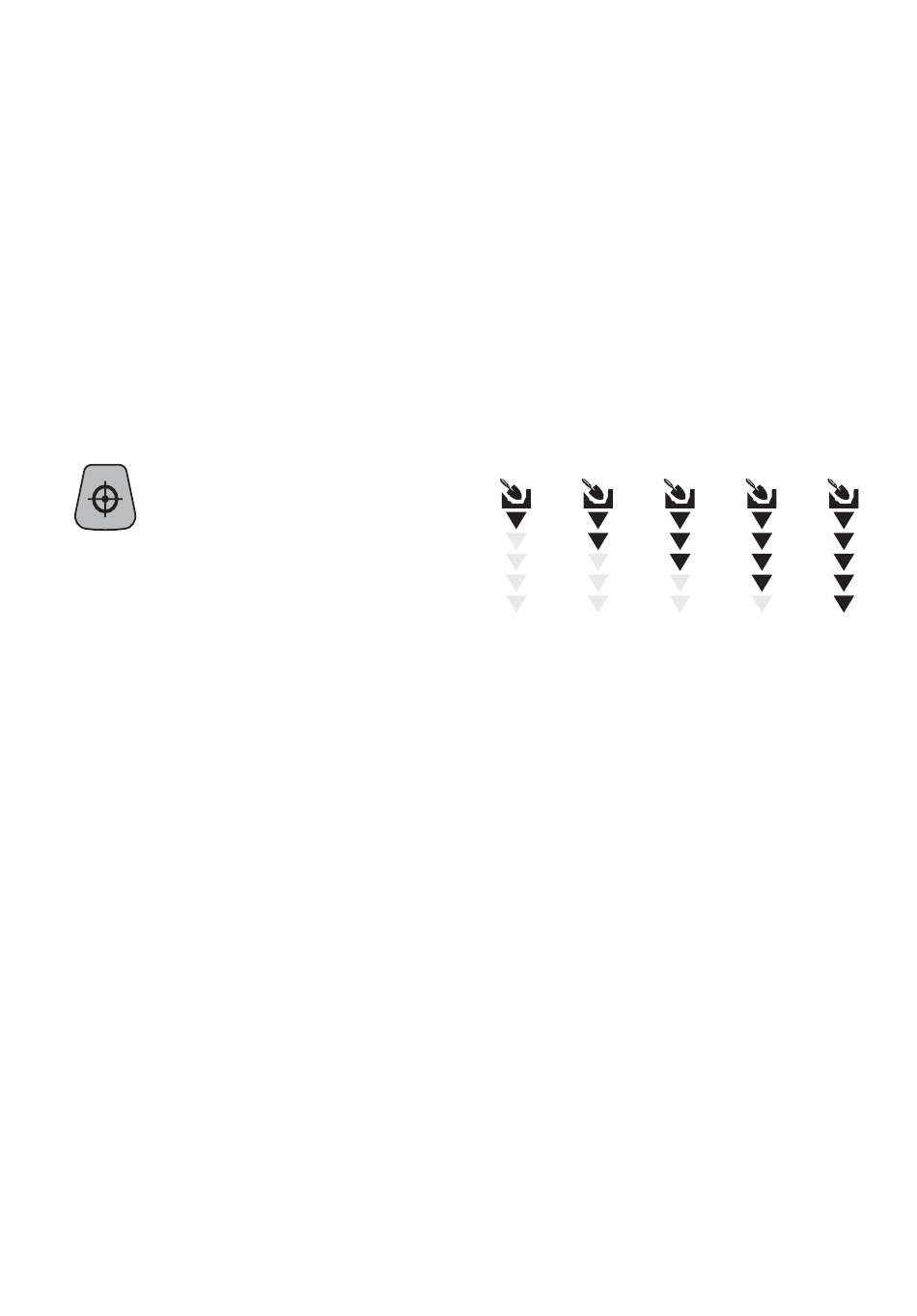

Here is an example of the Depth Gauge reading and the
approximate target depth for a US quarter.
1" 3"
(25 mm) (75 mm)
10
5" 6"
(125 mm) (150 mm) (> 150 mm)
> 6"
