Assembly

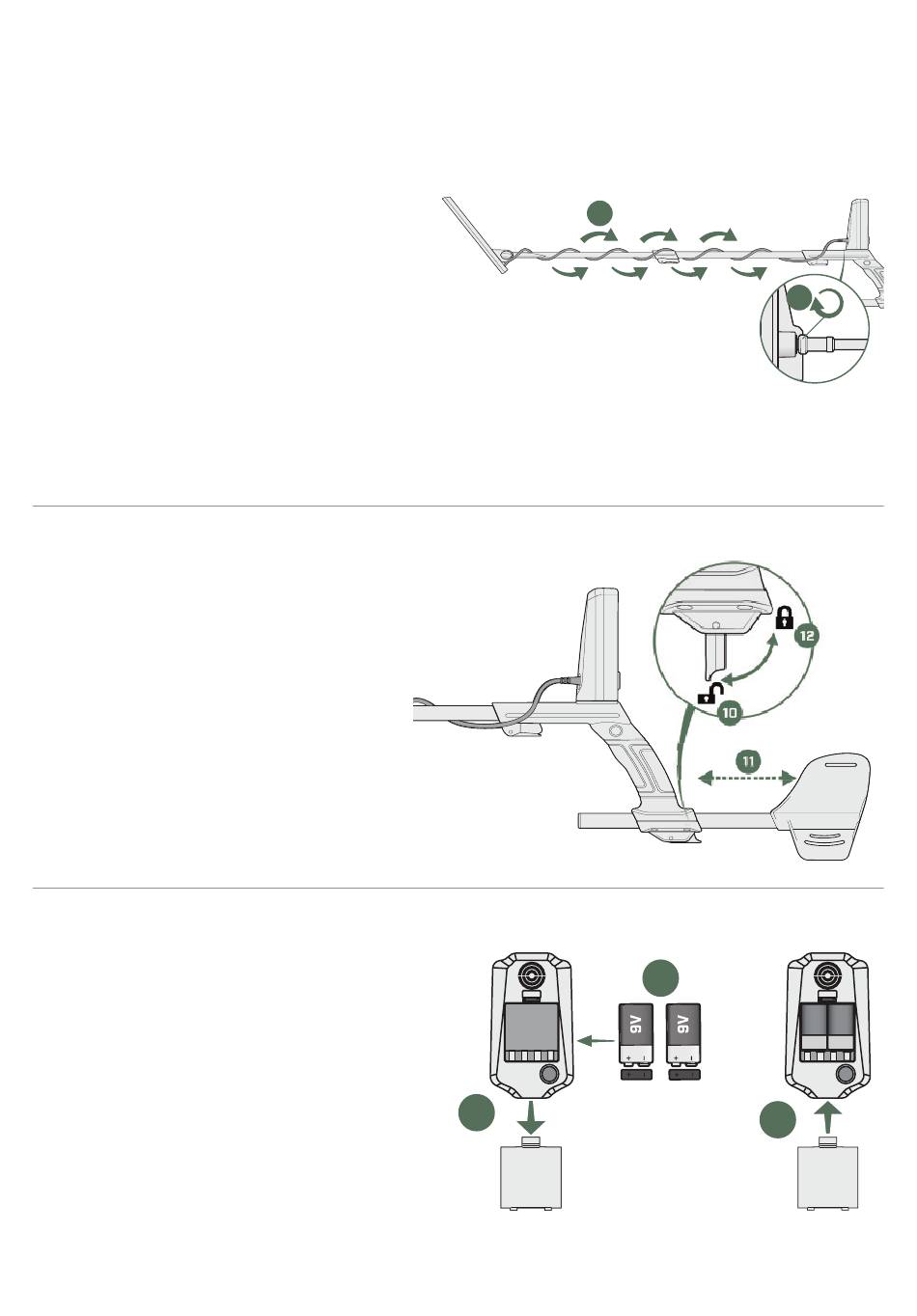

WRAP THE CABLE AND PLUG-IN
8. Wrap the Coil Cable around the Shaft enough times
to take up the slack, but so that the Coil can still
tilt easily.
9. Align the Coil Connector with the socket on the
back of the Control Pod. Plug it in.
CAUTION: Do not force the connector if there is
resistance — this may cause damage.
ADJUST THE DETECTOR LENGTH
10. Open the Armrest Adjustment Camlock.
11. Rest your arm in the Armrest and adjust as
needed — the armrest should be positioned
just below your elbow.
12. Close the Camlock.
INSERT BATTERIES
13. Remove the Battery Cover.
14. Place the two 9 V alkaline batteries inside the
battery compartment. Make sure the terminals
are aligned correctly to the polarity symbols (+
and −).
15. Replace the Battery Cover.
CAUTION: Turn off the detector before changing
the batteries.
See page 12 for additional important
information about batteries.
(Continued)
