Minelab X-TERRA INTREPID User Manual page 4

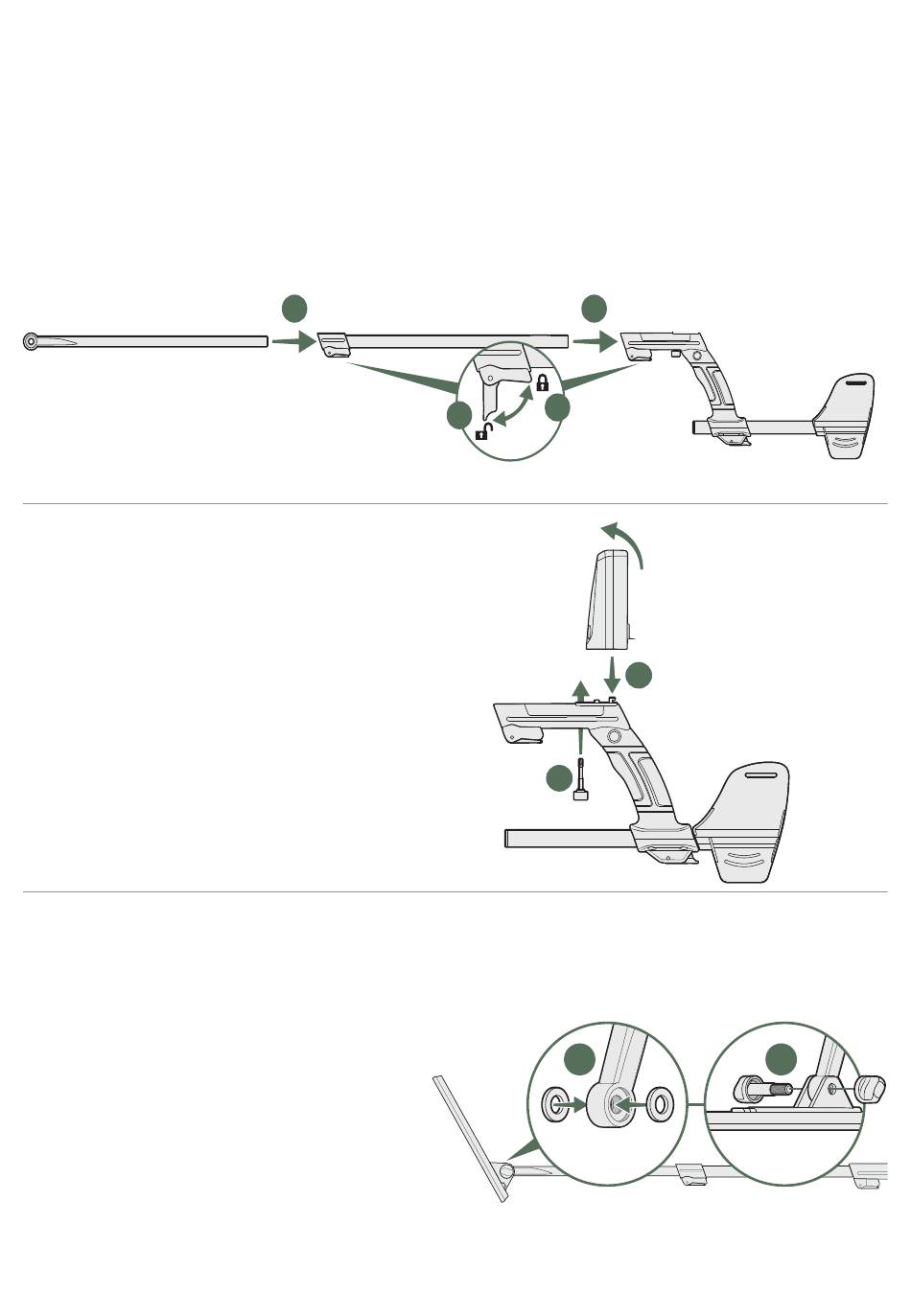

Assembly
ASSEMBLE THE SHAFTS
1. Open the Camlocks.
2. Insert the Middle Shaft into the Handle Assembly,
and insert the Lower Shaft into the Middle Shaft.
3. Close the Camlocks.
ATTACH THE CONTROL POD
4. Place the Control Pod on the Locating Hook on the
top of the Handle.
5. Secure with the Control Pod Screw.
ATTACH THE COIL
6. Check that the Rubber Washers are inserted into
the Lower Shaft.
7. Slide the Lower Shaft into the Yoke Bracket on the
Coil, aligning the holes. Fasten with the supplied
plastic Bolt and Nut.
CAUTION: Do not use tools to tighten —
over‑tightening may cause damage.
4
3
4
4
5
1
2
6 7
