Summary of Contents for Minelab X-TERRA INTREPID

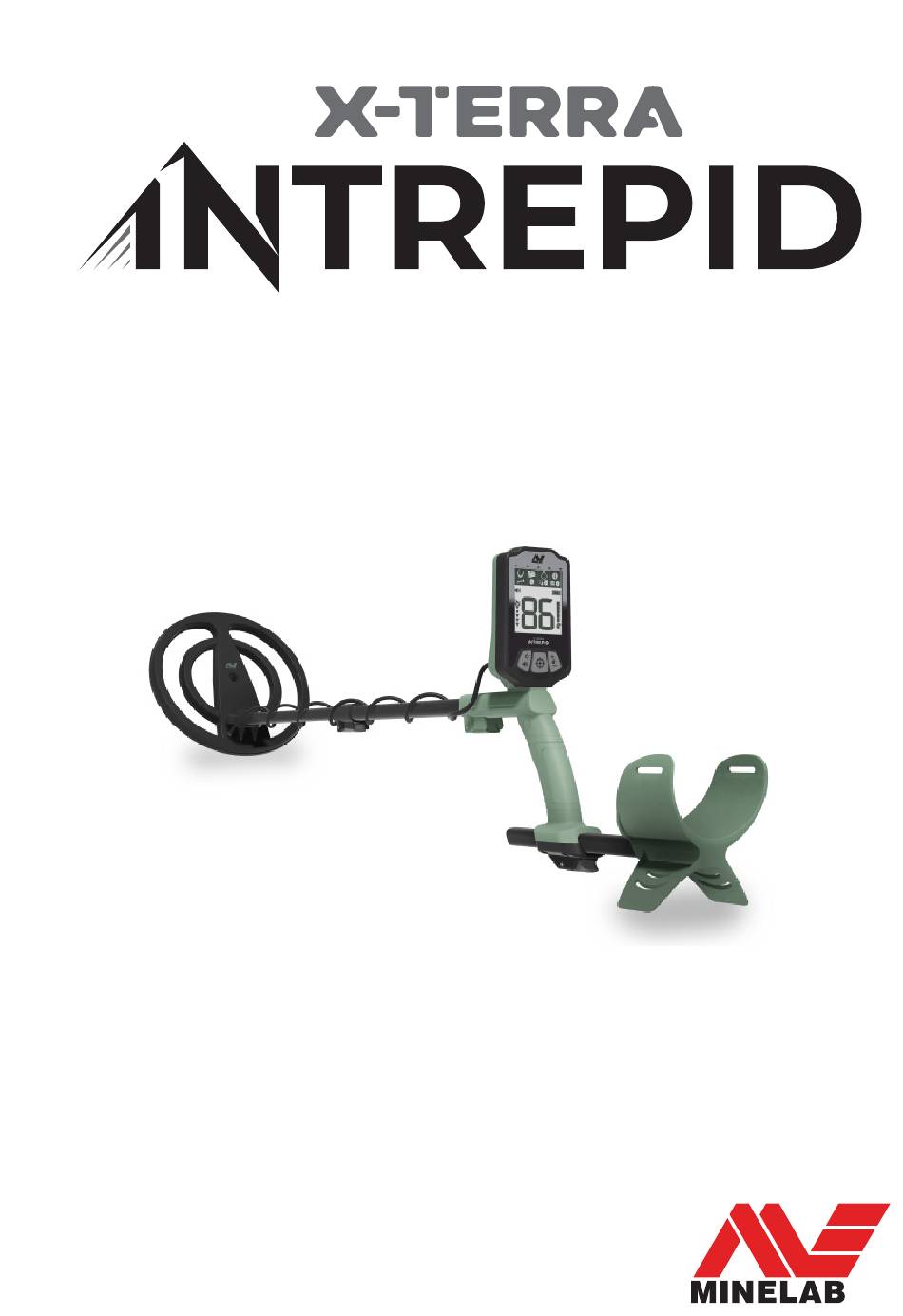

  • Page 1 USER MANUAL...
  • Page 2: Quick Start

    Contents Quick Start QUICK START ������������������������������������������������������������������������������������������������� 1. Turn On PARTS OVERVIEW ����������������������������������������������������������������������������������� ASSEMBLY �������������������������������������������������������������������������������������������������������� CONTROLS �������������������������������������������������������������������������������������������������������� DISPLAY ��������������������������������������������������������������������������������������������������������������� OPERATION ������������������������������������������������������������������������������������������������������ DETECTOR SETTINGS �������������������������������������������������������������������������� Volume ������������������������������������������������������������������������������������������������������������ Sensitivity ��������������������������������������������������������������������������������������������������� To Adjust the Sensitivity Level �������������������������������������� Excessive Noise ����������������������������������������������������������������������������� 2. Wait For 5 Seconds PINPOINT ��������������������������������������������������������������������������������������������������������...
  • Page 3: Parts Overview

    Parts Overview CONTROL POD Speaker Coil Connector Socket Battery Compartment Battery Cover 6. HANDLE ASSEMBLY Locating Hook Control Pod Screw Camlock 10. Handgrip Armrest Adjustment Camlock 12. Upper Shaft 13. Armrest with Stand 14. MIDDLE SHAFT 15. Camlock 16. LOWER SHAFT 17.
  • Page 4 Assembly ASSEMBLE THE SHAFTS Open the Camlocks. Insert the Middle Shaft into the Handle Assembly, and insert the Lower Shaft into the Middle Shaft. Close the Camlocks. ATTACH THE CONTROL POD Place the Control Pod on the Locating Hook on the top of the Handle.
  • Page 5 Assembly (Continued) WRAP THE CABLE AND PLUG-IN Wrap the Coil Cable around the Shaft enough times to take up the slack, but so that the Coil can still tilt easily. Align the Coil Connector with the socket on the back of the Control Pod. Plug it in. CAUTION: Do not force the connector if there is resistance —...
  • Page 6 Note: The detector turns Off automatically if no button is pressed or no target is detected within 15 minutes.
  • Page 8: Operation

    Operation These steps go beyond Quick Start and explain how to successfully operate your detector from turning on to recovering a target. TURN ON 4. PINPOINT A TARGET Press the Power button to turn the detector On, Once you have detected a target that you want to waiting a few seconds for the start‑up calibration dig, use the Pinpoint function to narrow down the to complete.
  • Page 9: Detector Settings

    Detector Settings Excessive Noise VOLUME Sometimes, excessive noise is encountered whilst The Volume setting changes the loudness of detecting. This can be caused by environmental target signals. electrical interference from sources such as power lines, Press the Volume button to cycle through the volume mobile phone towers, or other metal detectors.
  • Page 10: Depth Gauge

    Pinpoint Depth Gauge Pinpointing helps you to quickly narrow down the The Depth Gauge indicates the approximate depth of a location of a buried target, allowing you to determine its detected target. exact location before digging. The Depth Gauge is a guide only. Fewer arrows indicate a While Pinpoint is active the detector will play a sound shallower target, more arrows indicate a deeper target.
  • Page 11: Target Identification

    Target Identification TARGET IDENTIFICATION TARGET GROUPS NUMBER Target Groups are located along top of the Display. Each Target Identification Number has a corresponding Target Identification (Target ID) numbers range from 0 Target Group icon that will flash when that type of to 99 with ferrous (iron) targets ranging from 0 to 30.
  • Page 12 Batteries Two 9 V batteries are needed to power the INTREPID. Using alkaline batteries is recommended. Replace the batteries when there are no segments remaining on the Battery Level indicator. Batteries need replacing NOTE: Replace both batteries with fresh ones at the same time —...
  • Page 13: Detector Care And Safety

    Detector Care and Safety Wash your hands before handling the detector after applying sunscreen or insect repellents. ƒ Do not use solvents to clean. Use a damp cloth with a mild soap detergent. ƒ Never allow the detector to come into contact with gasoline/petrol or other petroleum‑based liquids. ƒ...
  • Page 14: Troubleshooting

    Troubleshooting Detector does not turn on, or turns off by itself Replace the batteries. Detector does not detect anything Make sure you are sweeping the coil close enough to the ground (i.e. make sure the coil is close enough to the target to detect it).
  • Page 15: Technical Specifications

    –20°C to +70°C (–4°F to +158°F) Equipment may vary according to the model or items ordered with your detector. Minelab reserves the right to respond to ongoing technical progress by introducing changes in design, equipment and technical features at any time.
