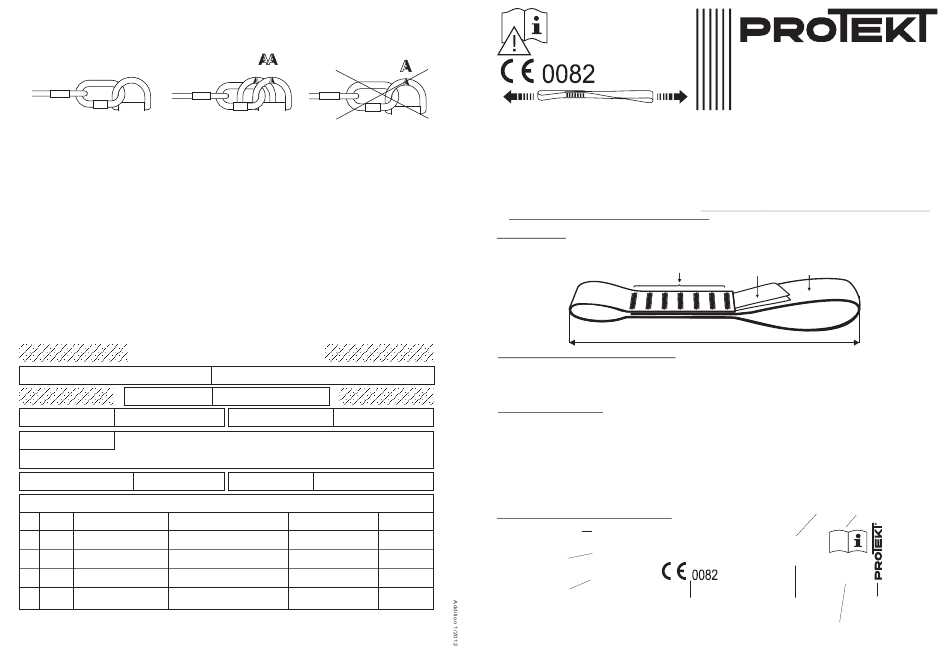

Protekt AZ 930 Instruction Manual

,
a full body harness is the only acceptable body holding device that can be used in a fall arrest system.
!
in full body harness use only attaching points marked with big letter "A" to attach a fall arrest system. Marking like "A/2'" or a half of "A" means the necessity of attaching a fall arrest system to both
!
attaching points together simultaneously. It is strictly forbidden to attach a fall arrest system to the single attaching point marked "A/2'" or a half of "A". See drawings below:
A
HARNESS ATTACHING POINT
A
FALL ARREST SYSTEM
FALL ARREST SYSTEM
the anchor device or anchor point for the fall arrest system should always be positioned, and the work carried out in such a way, as to minimise both the potential for falls and potential fall distance.
!
The anchor device/point should be placed above the position of the user . The shape and construction of the anchor device/point shall not allowed to self-acting disconnection of the equipment.
Minimal static strength of the anchor device/point is 12 kN. It is recommended to use certified and marked structural anchor point complied with EN795.
it is obligatory to verify the free space required beneath the user at the workplace before each occasion of use the fall arrest system, so that, in the case of a fall, there will be no collision with the
!
ground or other obstacle in the fall path. The required value of the free space should be taken from instruction manual of used equipment.
there are many hazards that may affect the performance of the equipment and corresponding safety precautions that have to be observed during equipment utilization, especially:
!
- trailing or looping of lanyards or lifelines over sharp edges,
- any defects like cutting, abrasion, corrosion,
- climatic exposure,
- pendulum falls,
- extremes of temperature,
- chemical reagents,
- electrical conductivity.
personal protective equipment must be transported in the package (e.g.: bag made of moisture-proof textile or foil bag or cases made of steel or plastic) to protect it against damage or moisture.
!
the equipment can be cleaned without causing adverse effect on the materials in the manufacture of the equipment. For textile products use mild detergents for delicate fabrics, wash by hand or in a
!
machine and rinse in water. Plastic parts can be cleaned only with water. When the equipment becomes wet, either from being in use or when due cleaning, it shall be allowed to dry naturally, and shall
be kept away from direct heat. In metallic products some mechanic parts (spring, pin, hinge, etc.) can be regularly slightly lubricated to ensure better operation.
Other maintenance and cleaning procedures should be adhered to detailed instructions stated in the manual of the equipment.
personal protective equipment should be stored loosely packed, in a well-ventilated place, protected from direct light, ultraviolet degradation, damp environment, sharp edges, extreme temperatures and
!
corrosive or aggressive substances.
IT IS THE RESPONSIBILITY OF THE USER ORGANISATION TO PROVIDE THE IDENTITY CARD AND TO FILL IN THE DETAILS REQUIRED.
THE IDENTITY CARD SHOULD BE FILLED IN BEFORE THE FIRST USE BY A COMPETENT PERSON, RESPONSIBLE INTHE USER ORGANIZATION FOR PROTECTIVE EQUIPMENT.
ANY INFORMATION ABOUT THE EQUIPMENT LIKE PERIODIC INSPECTIONS, REPAIRS, REASONS OF EQUIPMENT'S WITHDRAWN FROM USE SHALL BE NOTED INTO THE IDENTITY CARD BY A COMPETENT PERSON.
THE IDENTITY CARD SHOULD BE STORAGED DURING A WHOLE PERIOD OF EQUIPMENT UTILIZATION.
DO NOT USE THE EQUIPMENT WITHOUT THE IDENTITY CARD.
ALL RECORDS IN THE IDENTITY CARD CAN BE FILLED IN ONLY BY A COMPETENT PERSON.
IDENTITY CARD
MODEL AND TYPE OF EQUIPMENT
REF. NUMBER
SERIAL NUMBER
USER NAME
DATE OF PURCHASE
PERIODIC EXAMINATION AND REPAIR HISTORY
REASON FOR
DATE
ENTRY PERIODIC EXAMINATION REPAIRS CARRIED OUT
OR REPAIR AND OTHER REVELANT INFORMATIONS
1
2
3
4
PROTEKT, 93-403 LODZ,
ul. Starorudzka 9, POLAND,
TEL: (48 42) 680 20 83, FAX: (48 42) 680 20 93
www.protekt.com.pl
HARNESS ATTACHING HALF POINTS FORBIDDEN!
DATE OF MANUF.
DATE OF PUTTING
INTO OPERATION
DEFECTS NOTED, NAME AND SIGNATURE
OF COMPETENT PERSON
Notified body, at which the European certification
was performed and which supervises
the production of the equipment:
APAVE SUDEUROPE SAS - BP 193 - 13322 MARSEILLE CEDEX 16 - FRANCE
Instruction Manual
READ CAREFULLY BEFORE USE
Webbing sling connector is a component of personal protective
equipment against falls from a height and conforms to EN 354:2010.
Also conform standard EN 566:2006 Mountaineering equipment.
Webbing sling connector can be used as:
device - a component of personal fall arrest equipment which is used to connect fall arrest devices to the structural anchor point.
!
or
lanyard - a component of personal fall arrest equipment in conjuction with energy absorber. Fall arrest system consisted of energy
!
absorber (complied with EN 355) connected to webbing sling connector AZ930 (complied with EN 354) attached to the full body
harness (complied with EN 361) and connected to the structural anchor point (complied with EN 795) can be used as a basic
personal protective equipment against falls from a height. T
absorber, terminations and connectors shall not exceed 2 m.
BASIC EQUIPMENT
Webbing sling connector is made of 20 mm width polyamide / polyester webbing. Webbing is sewn forming closed sling.
The sling length amount from 20 cm to 200 cm.
WITHDRAWN THE CONNECTOR FROM USE
the webbing connector must be withdrawn from use and destroyed when:
!
- it was used more than 5 years from the date of putting it into operation.
- it was used to arrest a fall.
- any mechanical, chemical or thermal defects have appeared.
ADMISSIBLE TIME OF USE
! the webbing connector can be used for 5 years, counting from the date of putting the device into operation. After 5 years of use the
connector must be withdrawn from use and destroyed.
Using the webbing sling connector in connection with fall arrest system must be compatible with use instructions of the fall arrest
systems and obligatory standards:
- EN 361 - for safety harness
- EN 353-1, EN 353-2, EN 354, EN 355, EN 360, EN 362 - for fall arrest systems
- EN 795 - for anchorages
- EN 358 - for work positioning systems
CONTENT OF THE DEVICE IDENTITY LABEL
PERIODIC
EXAMINATION
NEXT DUE DATE
name (type) of the device
reference number
of the device*
European standards
(number/year/class)
*) xxx - code of length
for example: xxx=050 cm - length 50 cm
xxx=200 - length 200 cm
Webbing Sling
THE EQUIPMENT
EN 354:2010
CONNECTOR
EN 566:2006
WARNING: Any activities at height, like climbing, work
or rescue actions are considered dangerous and may
22 kN
result in serious injuries or even death. The person using
this equipment is responsible for any possible damage
or consequences of an accident. If you do not agree to
accept responsibility for such risks, you should not use
this product.
he total length of
identity label
sewing
Webbing sling connector length from 20 cm to 200 cm
number of the manufacturing series
LENGTH: XXX cm
WEBBING SLING CONNECTOR
Serial number:
AZ 930 xxx
Date of manufacture:
EN 354:2010
EN 566:2006
month/year of manufacture
CE marking and number of a notified body
controlling manufacturing of the equipment (art. 11)
AZ 930
Ref: AZ 930 xxx
this sub-system with a lanyard including an energy
textile webbing
caution: read the manual
0000001
10.2012
22 kN
marking of the manufacturer
or distributor
tensile strength
