Protekt HEXAPOD Instruction Manual

EN 795/B
TS 16415/B

GENERAL DESCRIPTION

TM 12-2 safety hexapod is a component of personal protective equipment against fall from height. Hexapod is used to protect
employees (using Trolley B, Main Tripod Central Anchor Point or Beam Anchor Point) working in drainage wells, reservoirs,
wells, silos etc. during lifting loads (using Trolley A and Reinforced Leg Attachment Point and Main Tripod Lateral Attachment
Point). For personal protection hexapod must be used in conjuction with fall arrest equipment. Hexapod TM 12-2 is designed to
use with RUP 502-AT, RUP 503-T brake winches (for lifting loads) and RUP502-A, RUP 503 and CRW 300 rescue lifting devices
(for personal rescue purposes). TM 12-2 is composed from two independend main tripods and one 3-meter beam.
MAIN TRIPOD can be
used independently
(without beam)
as a single tripod.

CERTIFICATION AND COMPLIANCE WITH STANDARDS

a) EN 795:2012 type B
Equipment use as a transportable temporary anchor point for one person. EC certificate.
b) TS 16415:2013 type B
Equipment use as a transportable temporary anchor point for two people. Compliance with standard and document TS
16415/B:2013. Not covered by the EC certificate.
c) EN 1496:2006 type B
Equipment use with RUP 502-A / RUP 503 / CRW 300 as an rescue kit for maximum two people. Compliance with standard
and document EN1496/B:2006. Not covered by the EC certificate.
CONTENT OF THE IDENTITY LABEL
a) Device type.
b) Model symbol.
c) Reference number.
d) Number/year/class of the European standard.
e) CE marking and number of a notified body controlling
manufacturing of the equipment.
f) Month and year of manufacture.
g) Serial number of the tripod.
h) Caution: read the manual.
i) Marking of the manufacturer or distributor of the tripod.
j) Maximum number of users permitted simultaneously.
2013
edition: 3/09.10.2013 en
SAFETY "HEXAPOD"
TEMPORARY ANCHOR DEVICE
Reference
TM12-2 (AT-014-2)
number:

SECTION 1 - GENERAL DATA

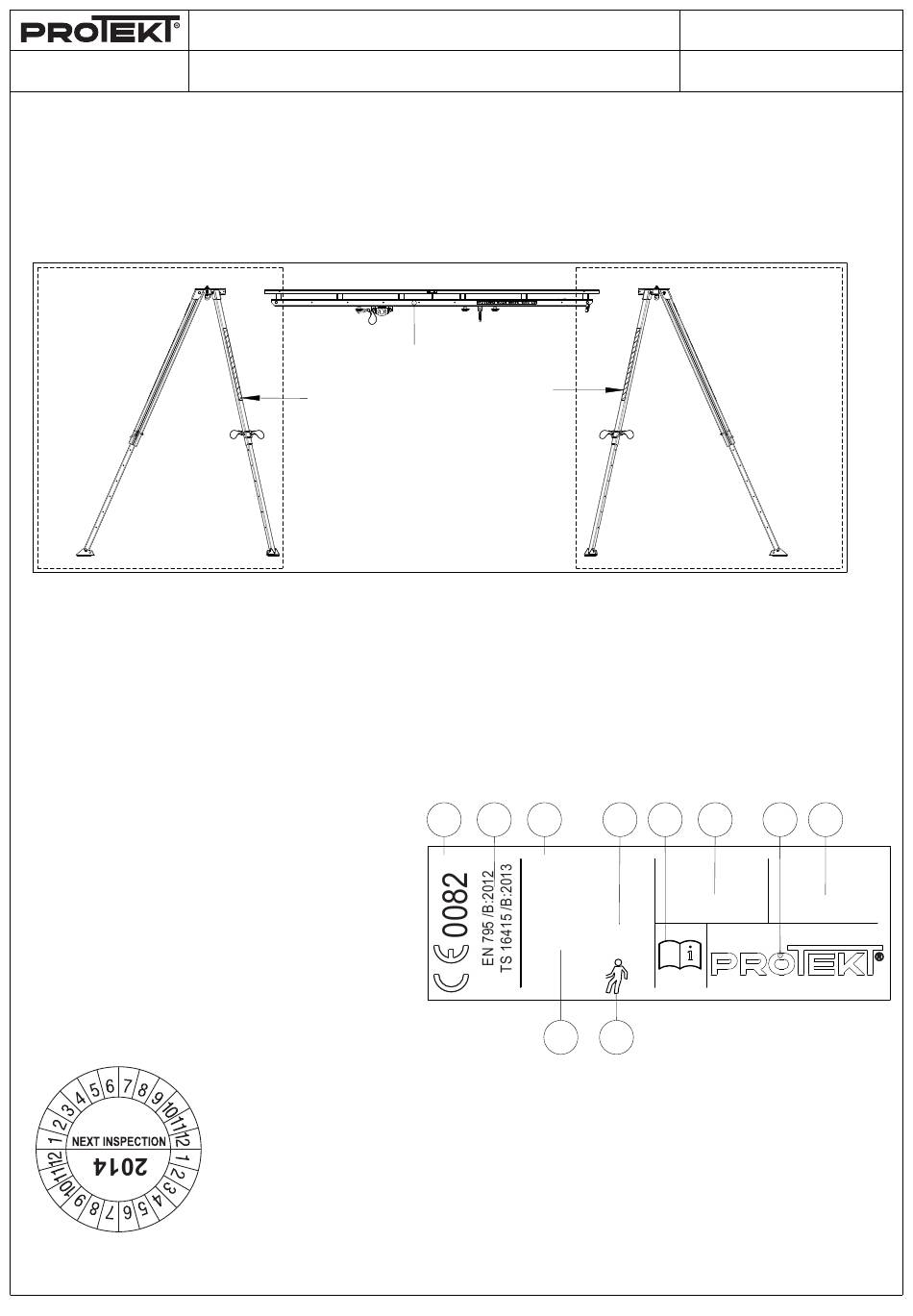

TM 12-2 "HEXAPOD" FULL SET
Main
tripod
Month and year of the manufacturer's next inspection.
Don't use the device after this date.
Attention: Before the first use mark the date of inspection
(date of first use + 12 months,
e.g. first use 01.2013 - mark inspection 01.2014).
"Next inspection label" placed near Identity Label.
The Notified Body involved with EC type examination and in the production control phase:
APAVE SUDEUROPE SAS, CS 60193, 13322 Marseille, France.
Beam
Main
tripod
e d a
SAFETY
TRIPOD
TM-12 -2
Ref.: AT-014-2
Max. 2 x
c
INSTRUCTION MANUAL
READ CAREFULLY BEFORE
USE THE EQUIPMENT
MAIN TRIPOD can be
used independently
(without beam)
as a single tripod.
b h f i
Date of manufacture: Serial number:
09.2014 00000000
j
g
1/24
