Protekt AZ411 Use And Instruction Manual

Use and instruction manual of connecting lanyard with fall indicator
AZ411
EN 795:2012 Type B
CEN/TS 16415:2013

TABLE OF CONTENTS:

1. General
2. Overall dimensions of connecting lanyard
3. Time of usage
4. Periodic inspections
5. Marking of device
6. Installation of anchor point
7. Installation of device
8. Essential principles of use of personal protective equipment against falls
from a height
9. Warranty
10. Identity card

1. General

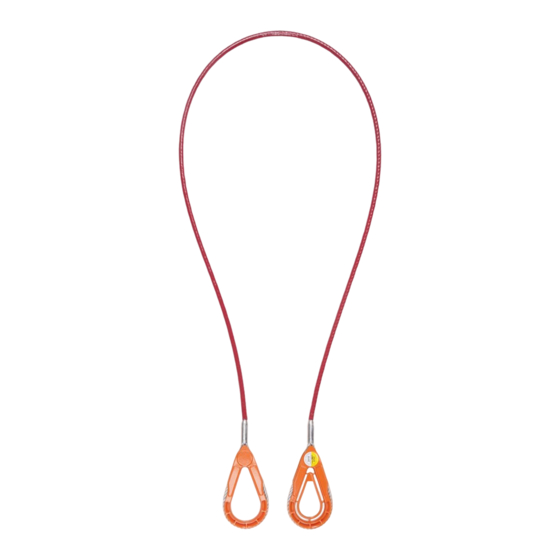

Connecting lanyard AZ411 is an anchor device compliant with EN 795 Type B
and can be used to provide protection of 3 users at the same time.
Connecting lanyard AZ411 can be used only as personal protective
equipment to protect user against a fall from a height, and cannot be used
for lifting loads.
The device is composed of PVC-coated galvanized steel cable and aluminium
thimbles.
According to EN 795:2012 Type B static strength of this anchor point is min.
14kN towards direction of force, and in configurations as shown in Figure 1,
the device can be used by 3 users at the same time.
The maximum load that could be transmitted in service from the device to
the static construction - 10 kN. This is the actual force which the anchor
point transfers onto the structure to which it is attached when a fall occurs.
According to European standard EN365:2004 and EN795:2012 type B a requirement to check the legibility of the product
Polski Rejestr Statków S.A. al. gen. Józefa Hallera 126, 80-416 Gdańsk, Poland
1
2
2
2
3
3
3
3
5
5
PROTEKT Grzegorz Łaszkiewicz ul.Starorudzka 9 93-403 Łódź
If the device is used as a part of a fall arrest system, the user must be
equipped with an element limiting maximum dynamic forces applied on user
while arresting a fall to max. 6 kN.
The device cannot be installed so support line of the device touches a sharp
edge with radius of below 0.5mm.

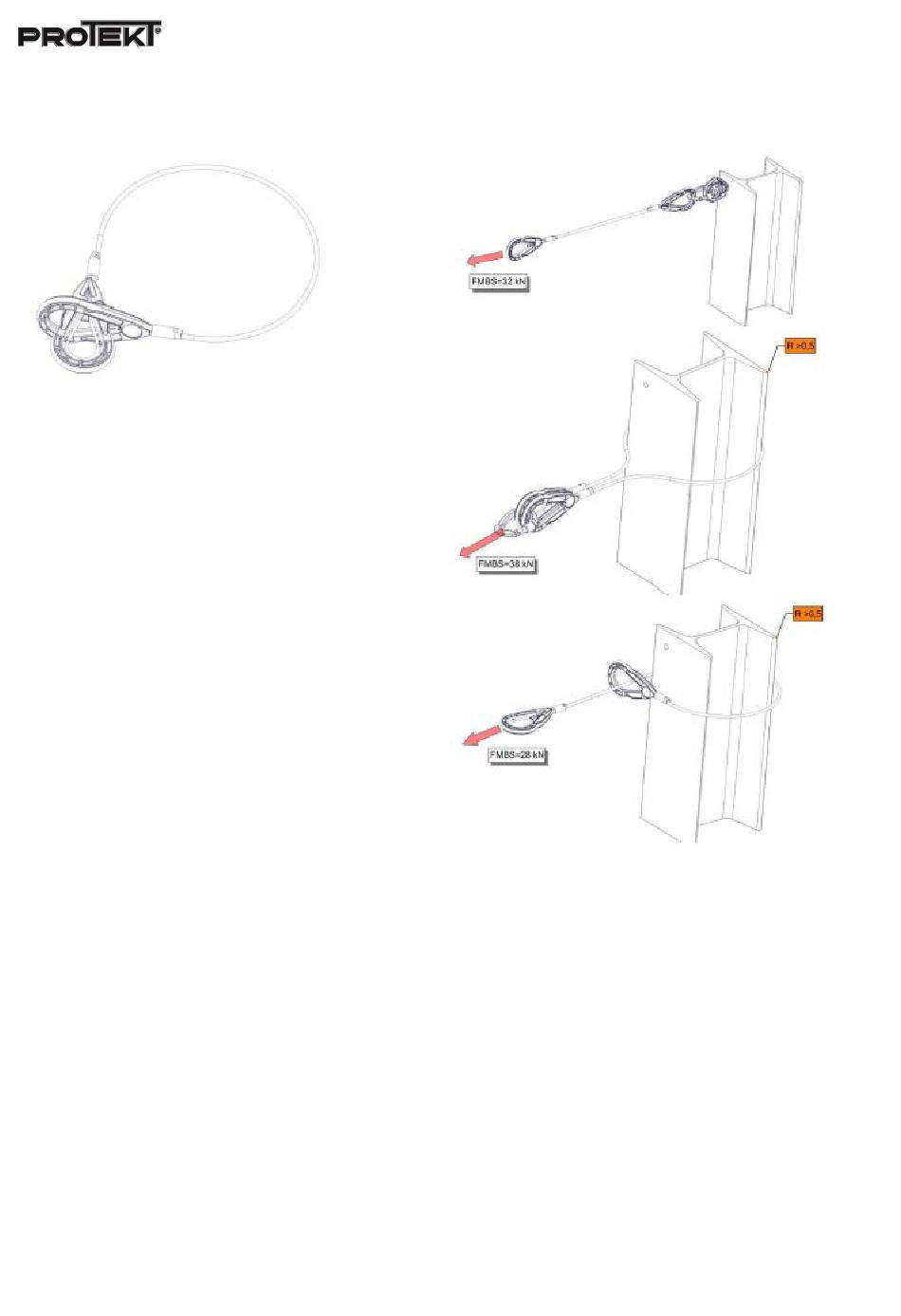

Figure 1. Acceptable methods of installation of device
