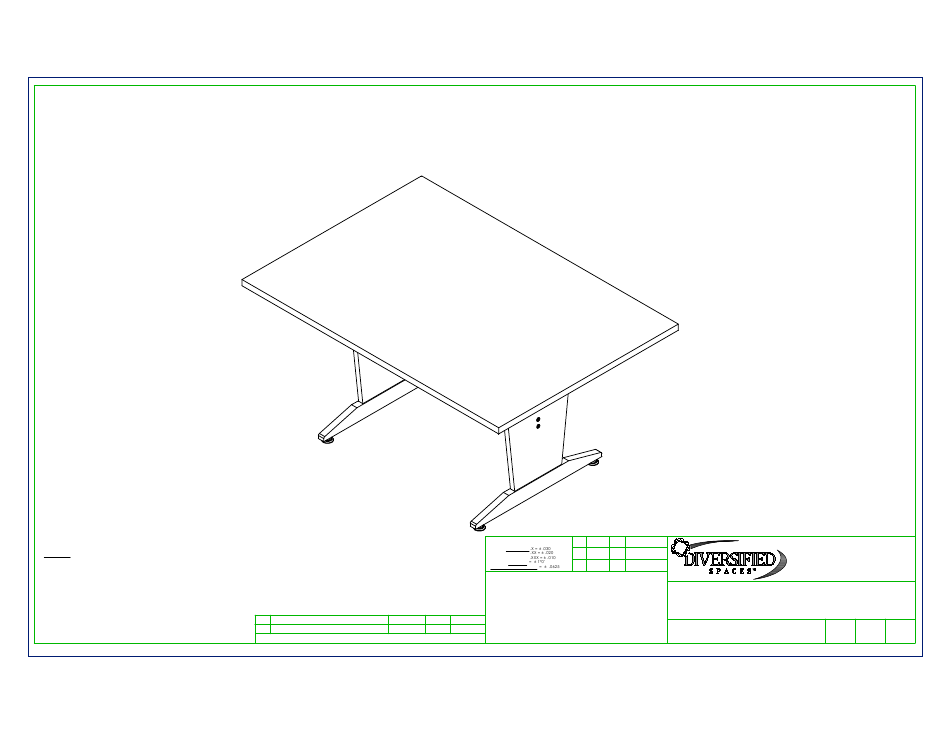

IN HOUSE ASSEMBLY TEMPLATE
PLANNING TABLES
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\AutoCAD\Assembly Instructions\PT-60, PT-61, & PT-62 SERIES TABLES.dwg,
11/3/2021 10:33:23 AM, DWG To PDF.pc3

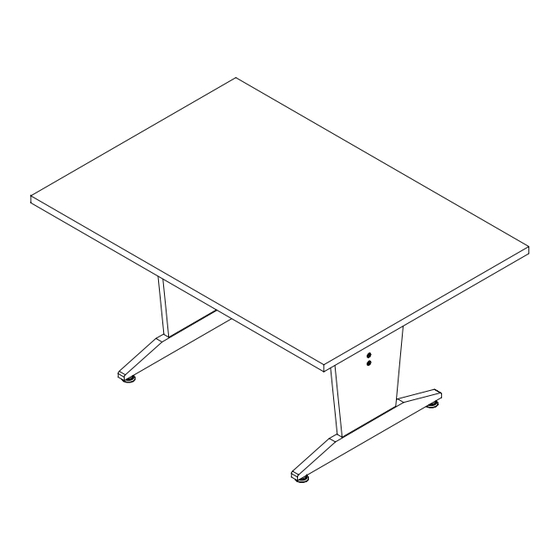

PT-60, PT-61, & PT-62 SERIES TABLES
ASSEMBLY INSTRUCTIONS
A
CREATED ASSEMBLY INSTRUCTIONS
10/23/14
EMR
REV.
DESCRIPTION
DESCRIPTION
DATE
DATE
NAME
NAME
REVISION LEVEL
ALL DIMENSIONS ARE IN INCHES UNLESS
DATE
DWN
10/23/14
EMR
NOTED OTHERWISE
DWN:
BY:
DECIMALS:
APR
DATE
BY:
APR:
ANGLES:
APR
DATE
CABINET SQUARENESS
BY:
APR:
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
-
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
ECN NO.
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
TITLE:
PLANNING TABLES
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
SCALE:
PT-60, PT-61, & PT-62 SERIES
NTS
SHEET:
REVISION:
REV A
1 OF 9
Advertisement
Related Manuals for DIVERSIFIED SPACES PT-60 Series
Summary of Contents for DIVERSIFIED SPACES PT-60 Series
- Page 1 IN HOUSE ASSEMBLY TEMPLATE PLANNING TABLES PT-60, PT-61, & PT-62 SERIES TABLES ASSEMBLY INSTRUCTIONS ALL DIMENSIONS ARE IN INCHES UNLESS DATE 10/23/14 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: NOTE: DATE APR: Suring, WI 54174 ANGLES: DATE CABINET SQUARENESS APR: diversifiedwoodcrafts.com MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED...
- Page 2 IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC. TOOLS AND ASSEMBLY COMPONENTS **XX** INDICATES PARTS ONLY FOR PT-60 SERIES. THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT...
- Page 3 IN HOUSE ASSEMBLY TEMPLATE UPPER STRETCHER STEP 1: TAKE RIGHT TABLE LEG AND INSERT LOWER STRETCHER THROUGH THE PRE-DRILLED HOLES. ATTACH WITH HARDWARE PROVIDED. DO THE SAME TO THE UPPER STRETCHER. STRETCHER WITH DRILLED HOLES GOES ON TOP . LOWER STRETCHER RIGHT LEG ALL DIMENSIONS ARE IN INCHES UNLESS DATE...
- Page 4 IN HOUSE ASSEMBLY TEMPLATE STEP 2: REPEAT STEP 1 FOR LEFT TABLE LEG. MAKE SURE EACH CONFIRMAT IS TIGHT AND STRETCHERS ARE STRAIGHT BEFORE MOVING ON. LEFT LEG ALL DIMENSIONS ARE IN INCHES UNLESS DATE 10/23/14 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: NOTE: DATE...
- Page 5 IN HOUSE ASSEMBLY TEMPLATE STEP 3: LEG LEVELER - TYPICAL FLIP LEG ASSEMBLY OVER AND CENTER LEGS ONTO TOP. ATTACH LEG ASSEMBLIES TO TOP USING HARDWARE PROVIDED. IF YOU HAVE A MAPLE TOP, PRE-DRILL HOLES IN TOP " DEEP USING A "...
- Page 6 IN HOUSE ASSEMBLY TEMPLATE STEP 4: SET COMPARTMENT BOTTOM ON STRETCHER SO THE HOLES ON BOTTOM ARE IN THE CENTER OF STRETCHER. FIT THE GROOVES OF BOOK RAILS ON THE SIDES OF COMPARTMENT BOTTOM. ATTACH TO LEGS WITH HARDWARE PROVIDED. ALIGN HOLES ON ASTRAGAL WITH HOLES ON COMPARTMENT BOTTOM AND ATTACH TOGETHER WITH REMAINING SCREWS.
- Page 7 IN HOUSE ASSEMBLY TEMPLATE STEP 5: SCREW CENTER AND OUTER TOTE RAILS IN CORRECT LOCATIONS INTO TOP WITH HARDWARE PROVIDED. TOTE TRAY RAILS - TYPICAL (3) ON EACH SIDE ALL DIMENSIONS ARE IN INCHES UNLESS DATE 10/23/14 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: NOTE:...
- Page 8 IN HOUSE ASSEMBLY TEMPLATE STEP 6: TURN TABLE OVER SO TOP IS UP. ADJUST LEG LEVELERS TO LEVEL TABLE. ADD TOTE TRAYS (IF NECESSARY). SET TABLE IN PLACE. ALL DIMENSIONS ARE IN INCHES UNLESS DATE 10/23/14 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: NOTE: DATE...
- Page 9 Butcher Block (Varnished Tops) Maintenance & Repair PRODUCT SPILLS • Be sure any spills are cleaned up immediately. Excessive moisture and certain chemicals allowed to stand on a finished surface can cause damage. •. Clean spills or soiled areas with a damp cloth and dry thoroughly. • Periodically, apply a coat of spray wax, paste wax, or lemon oil to finished surface. This will enhance and protect the finish and insure a moisture barrier is intact in the event the finish becomes scratched or worn. SCRATCHES & DENTS • Minor scratches and dents can be easily repaired by rubbing the affected area with steel wool or fine grit (#220) sandpaper. Remember, when rubbing or sanding always sand with the grain of the wood. Feather edges of repair in to the surrounding area. Remove all dust and residue and apply a coat of clear lacquer type finish or paint. Clear lacquer type finish can be purchased at most paint or hardware stores. Small cans of touch-up paint are available form your dealer or representative. Paint colors can easily be matched at most paint stores. Confine touch-up only to the area that was sanded. Remember, follow manufacturing directions on product label when refinishing. • Major scratches and gouges where large portions of wood have been removed or damaged should be handled by a professional experienced in furniture repair with the proper tools and equipment. MINERAL STREAKS • Mineral Streaks – Natural Coloring of wood due to mineral deposits in the tree. Repair is not required and will add to the individuality of your table. Sizes can range up to a 1/4" wide and up to 3" in length.
